10-16 Polaris Sportsman 850 XP Generator Stator Regulator Rectifier Gasket
Features:

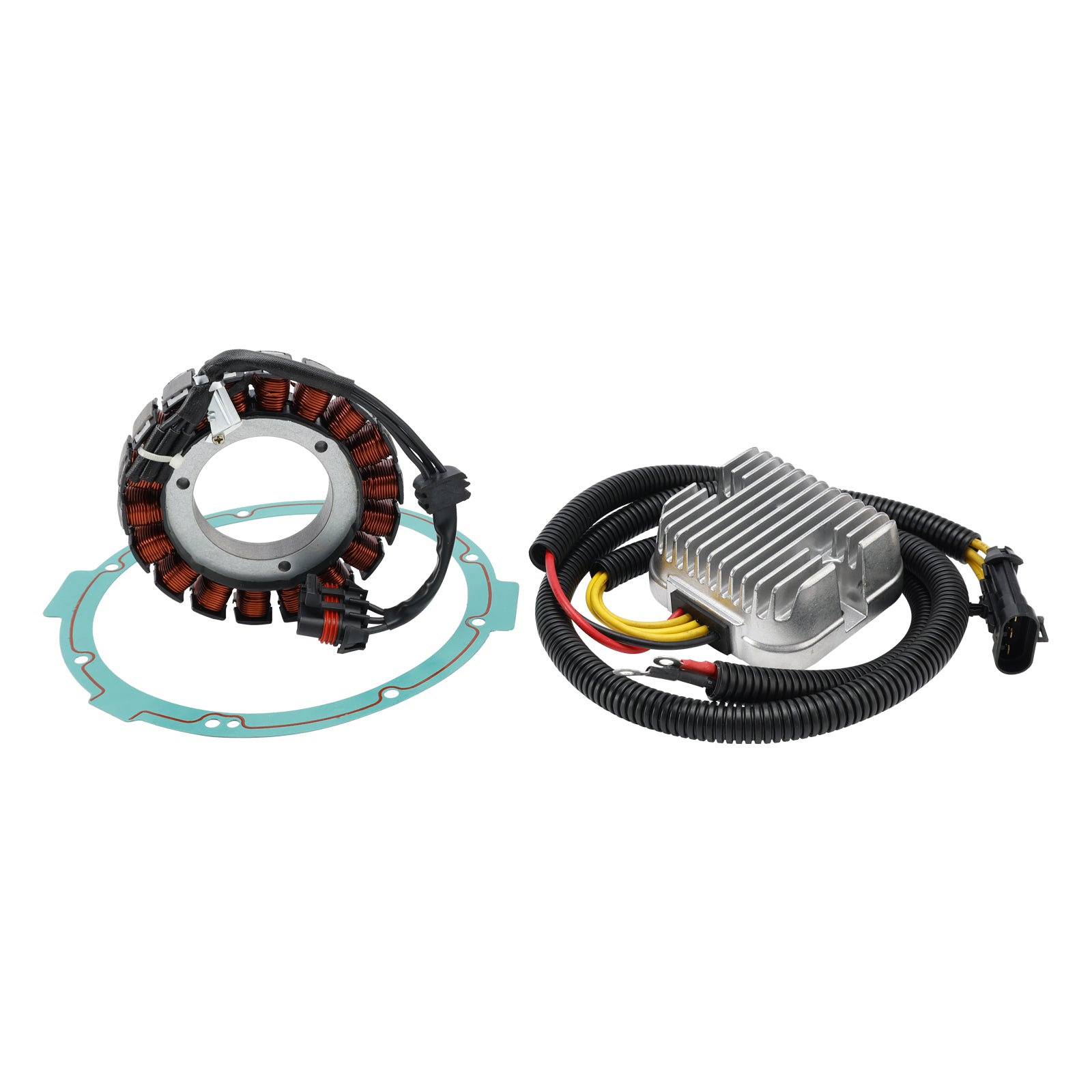

Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.
ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit
other specification:

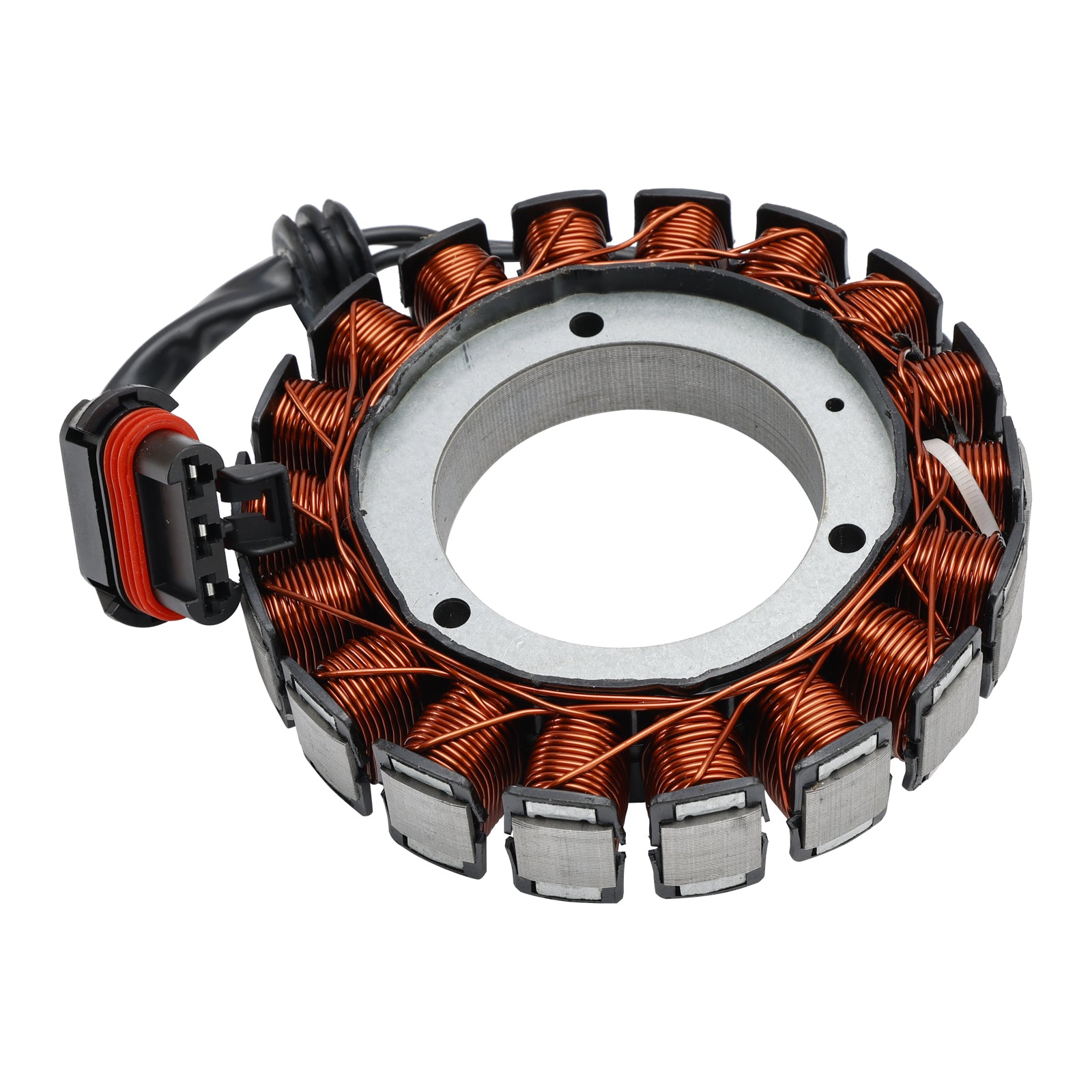

Stator
Number of plugs: 3
Number of wires: 3
Number of pins: 1
Number of poles: 18
Interior diameter : 69mm
Exterior diameter : 144mm

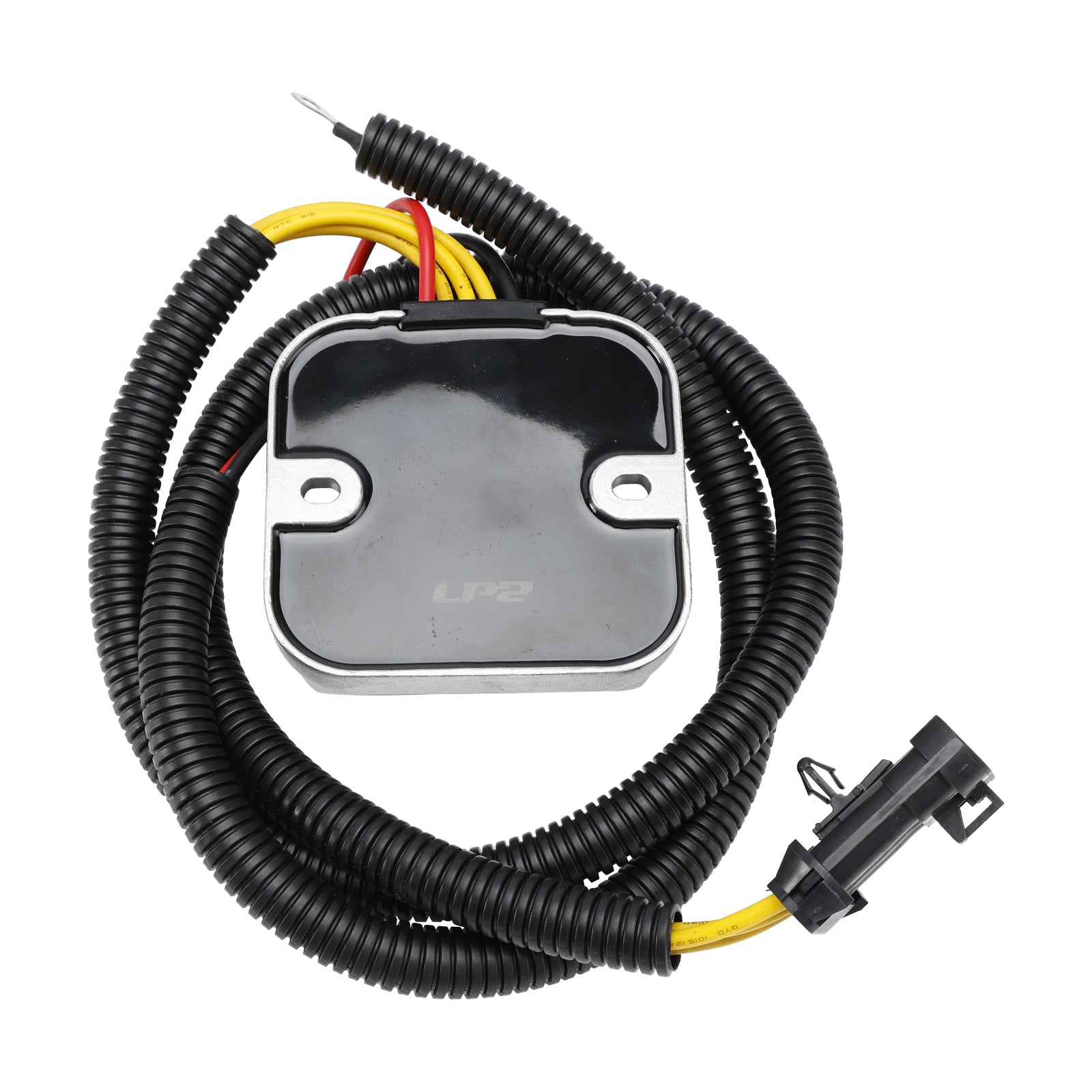

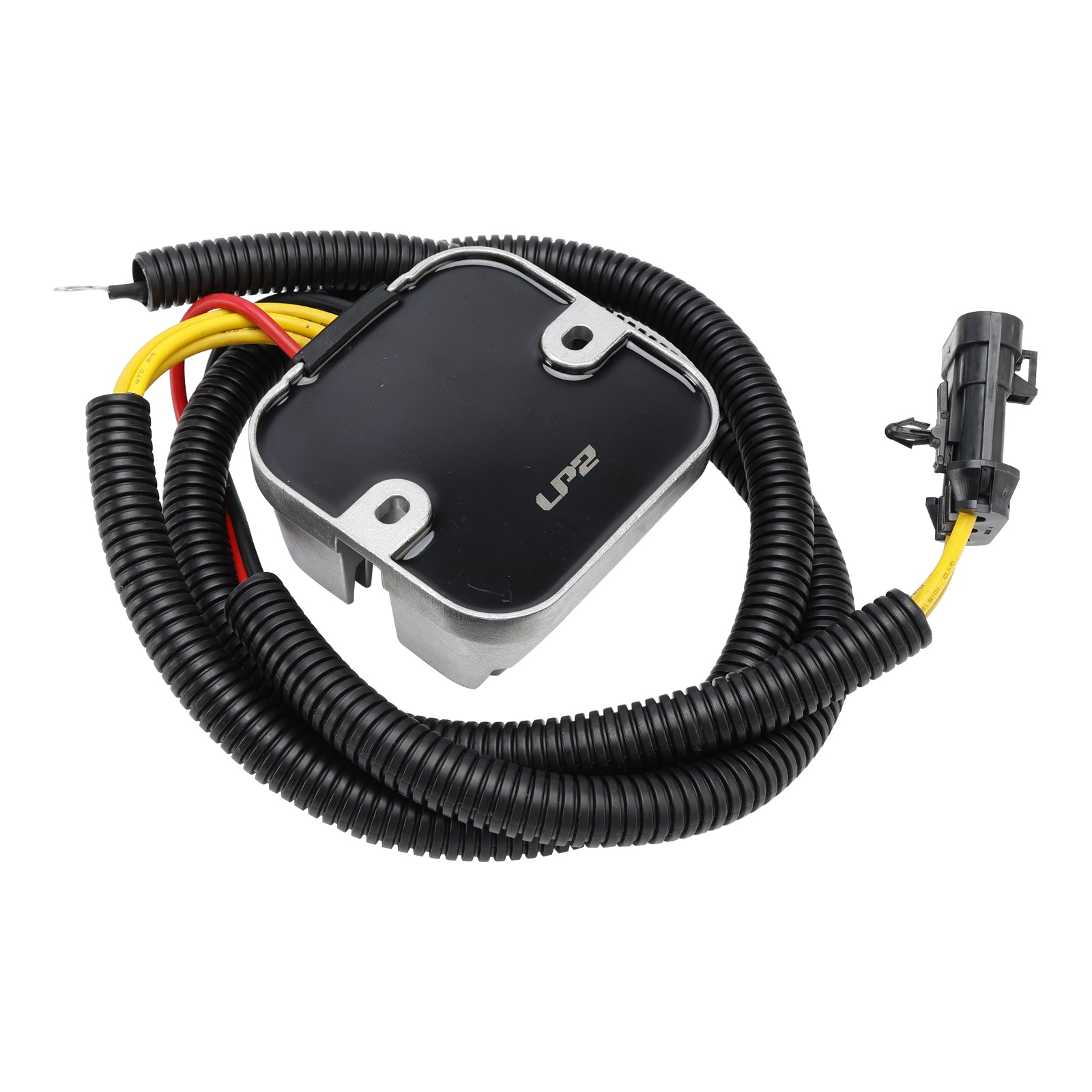

Regulator
Number of plugs: 1
Number of wires: 5
Number of pins: 3 + 1 + 1
Replacement Part Number:
Stator Assy: 4011427, 4014006
Rectifier, regulator: 4012678
Gasket, generator cover: 5813680, 5813267
Fits Make/Model/Year:
Fit for Polaris Sportsman 850 XP 2010-2014
Fit for Polaris Sportsman X2 850 2011
Fit for Polaris Sportsman 850 2015-2016
Fit for Polaris Sportsman 850 SP 2015-2016
Fit for Polaris Sportsman 850 XP EPS 2010-2012
Fit for Polaris Sportsman 850 Forest 2012-2015
Fit for Polaris Sportsman 850 High Lifter 2016
Fit for Polaris Sportsman 850 Touring SP 2016
Fit for Polaris Sportsman 850 Touring EPS 850 2011-2012
Fit for Polaris Sportsman 850 Touring EPS 850 INTL 2011
Fit for Polaris Sportsman 850 XP EPS INTL 2010
Fit for Polaris Sportsman 850 XP HO EPS 2013-2015
Fit for Polaris Sportsman 850 XP EPS INTL 2010/2012-2015
Fit for Polaris Scrambler 850 2015-2016
Fit for Polaris Scrambler 850 HO EPS INTL 2013
Fit for Polaris Scrambler 850 HO/EPS HO 2013
Fit for Polaris Scrambler 850 Euro 2014-2015
Fit for Polaris Scrambler 1000 XP 2014-2016
Fit for Polaris Scrambler 1000 XP Euro 2015
Fit for Polaris Sportsman 1000 XP 2015-2016
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1 x Generator Stator
1 x Voltage Regulator

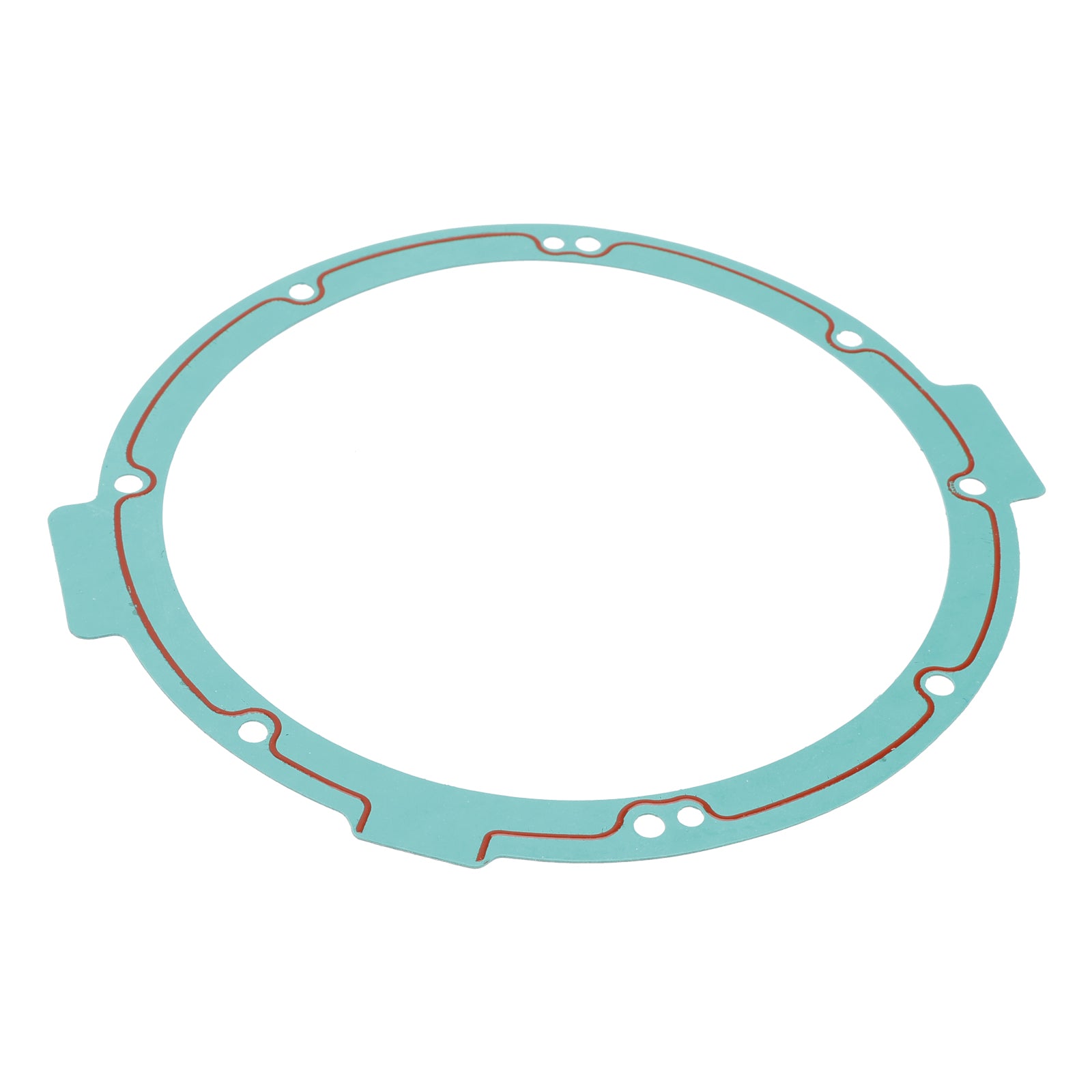

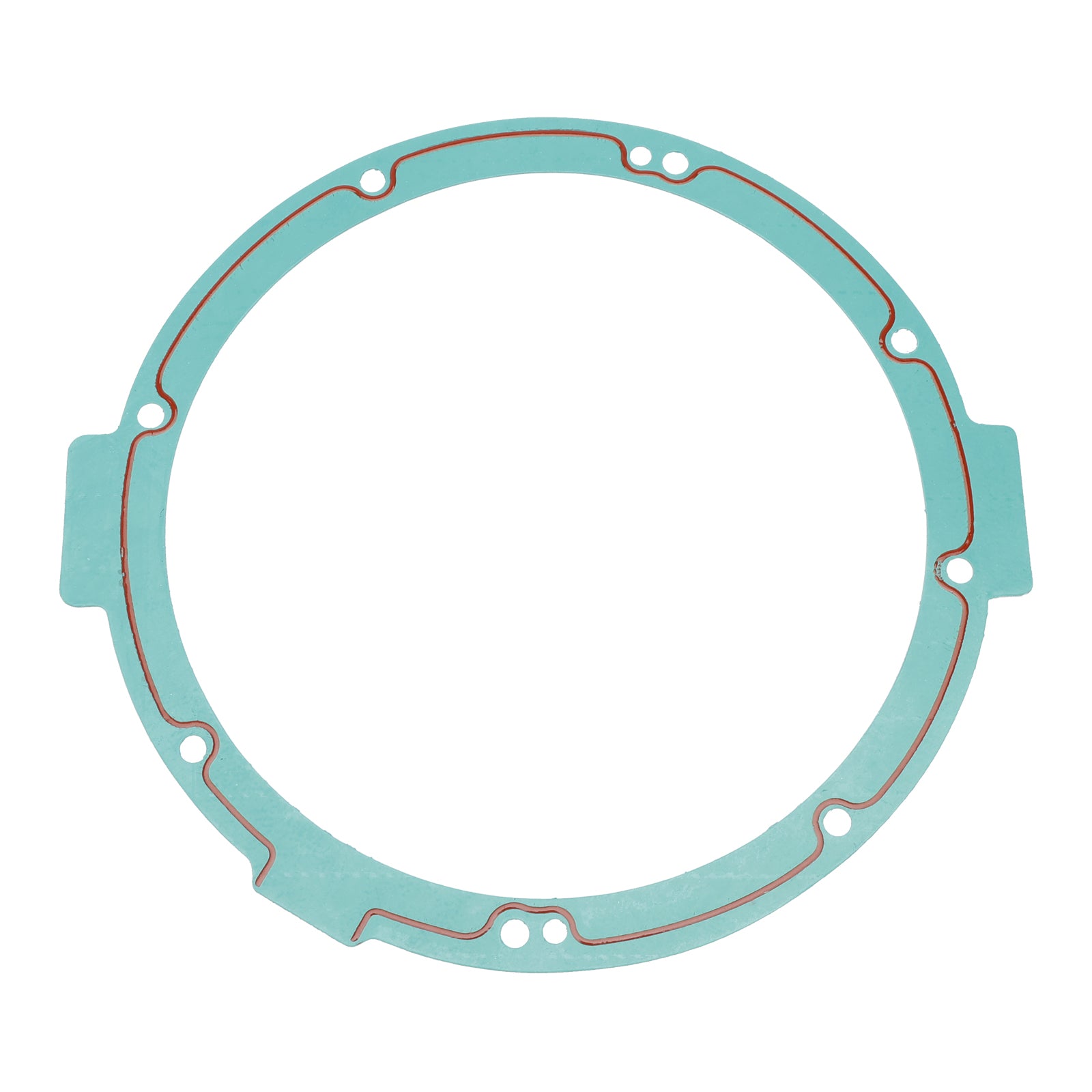

1 x Crankcase Gasket
(Comes exactly as pictured.)
Note:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
