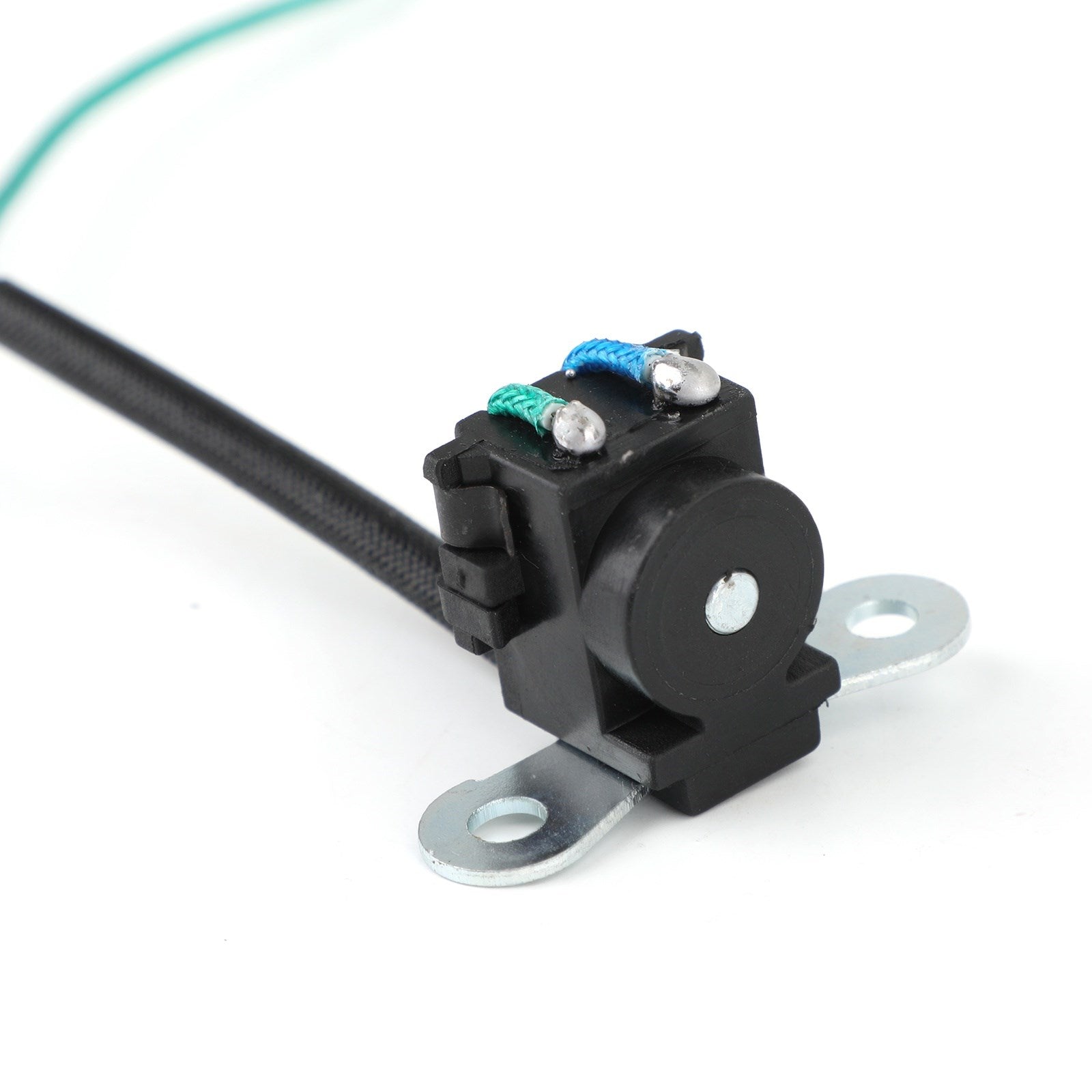

STATOR PULSE PICKUP COIL SENSOR Fit for Suzuki TL1000R/S Burgman 250 400 98-2016
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 22.2mm
Length: 27mm
Width: 24mm
Bracket center to center: 34.3mm
Wires length: Approx.600mm
Other Specifications:
Number of wires: 2
Replacement Part Number:
32160-92E20
Please confirm the?Replacement Part Number before ordering.
Fitments:
Fit for Suzuki AN250 Burgman250 1998-2002
Fit for Suzuki AN400 Burgman400 1999-2002
Fit for Suzuki AN250 Burgman250 2003-2006
Fit for Suzuki AN400 Burgman400 2003-2006
Fit for Suzuki AN400Z Burgman400 2007-2009
Fit for Suzuki AN400Z Burgman400 2007-2010
Fit for Suzuki AN400 Burgman 400 2011-2016
Fit for Suzuki AN400Z (ABS) Burgman400 2011-2016
Fit for Suzuki TL1000R 1998-2003
Fit for Suzuki TL1000S 1997-2001
Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Notice:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
