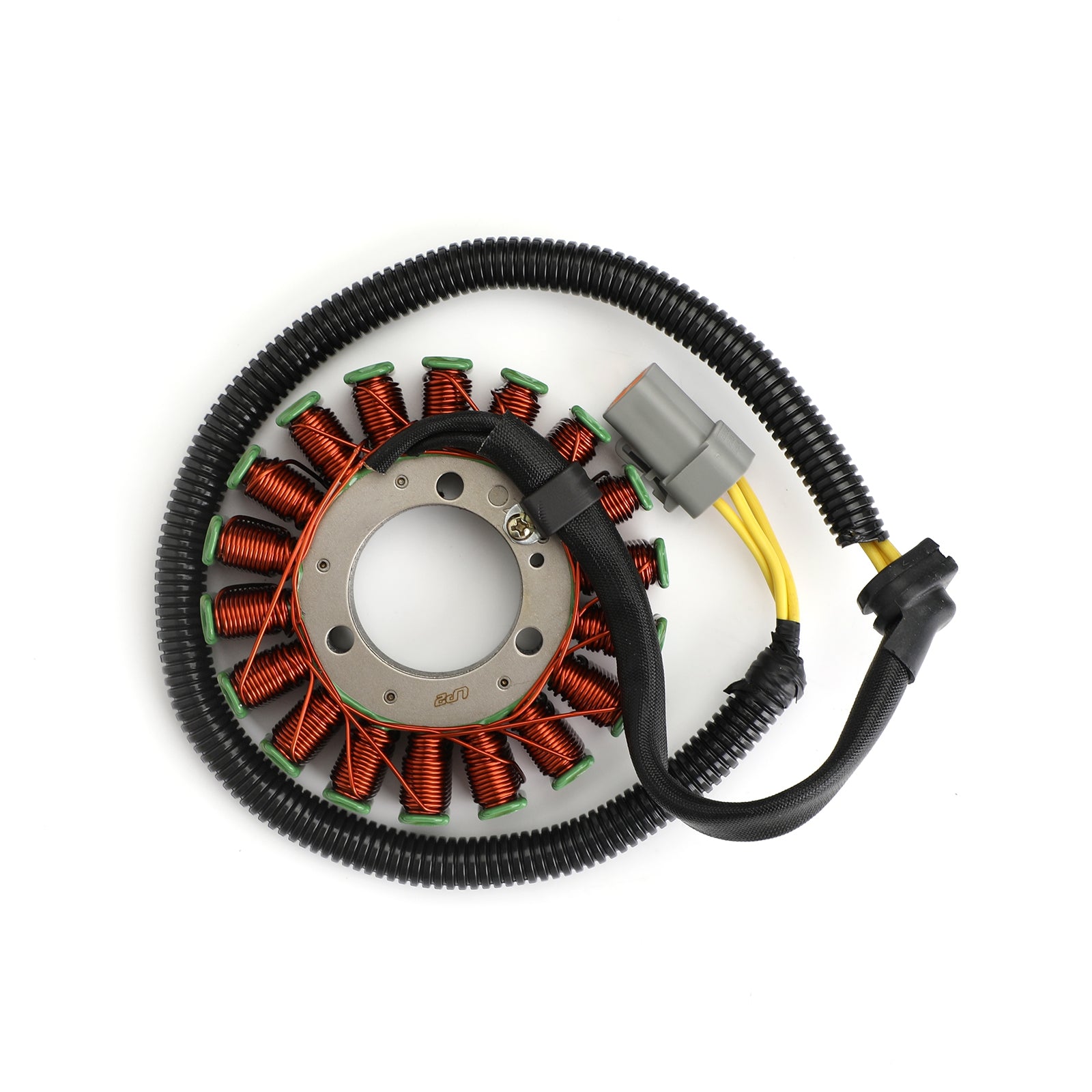

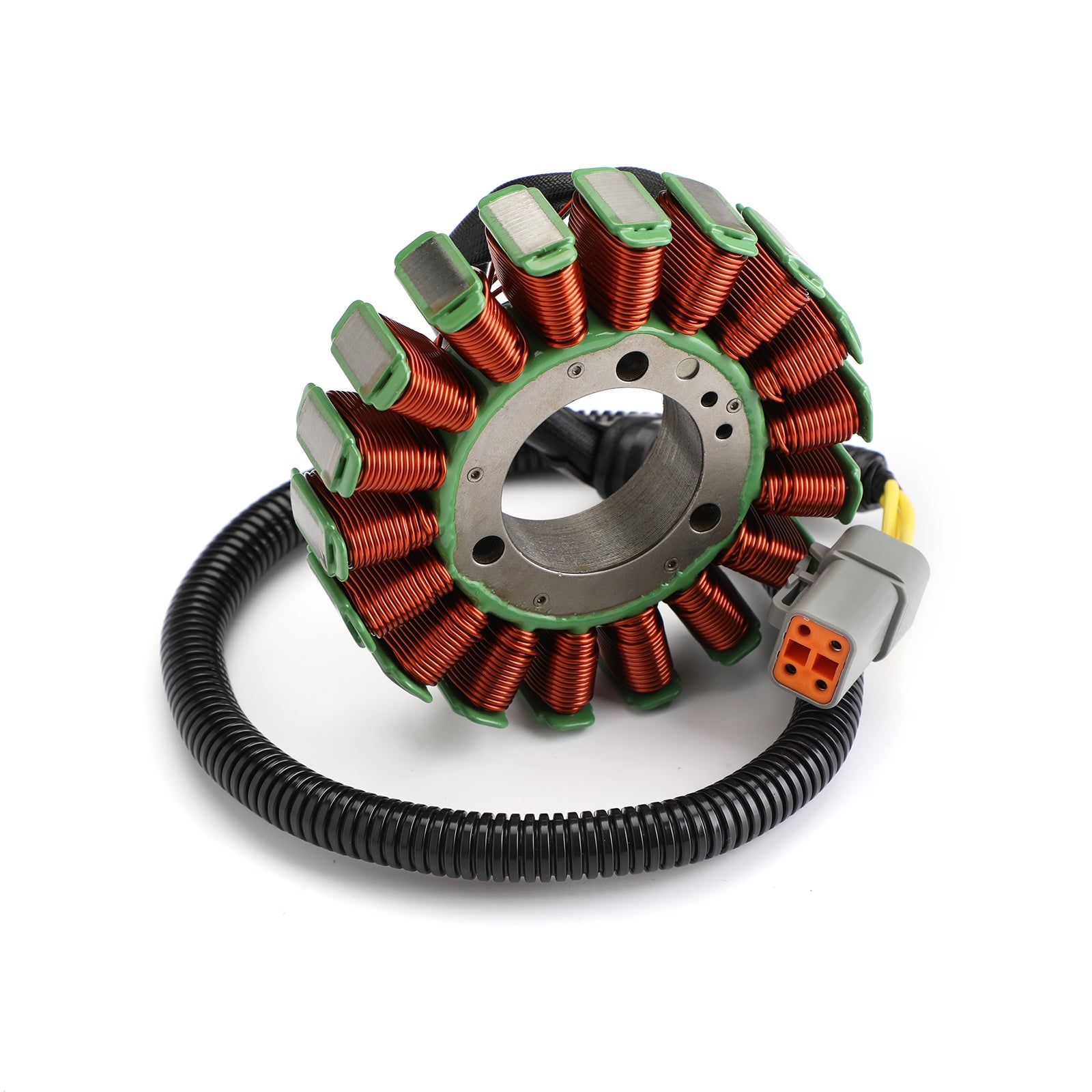

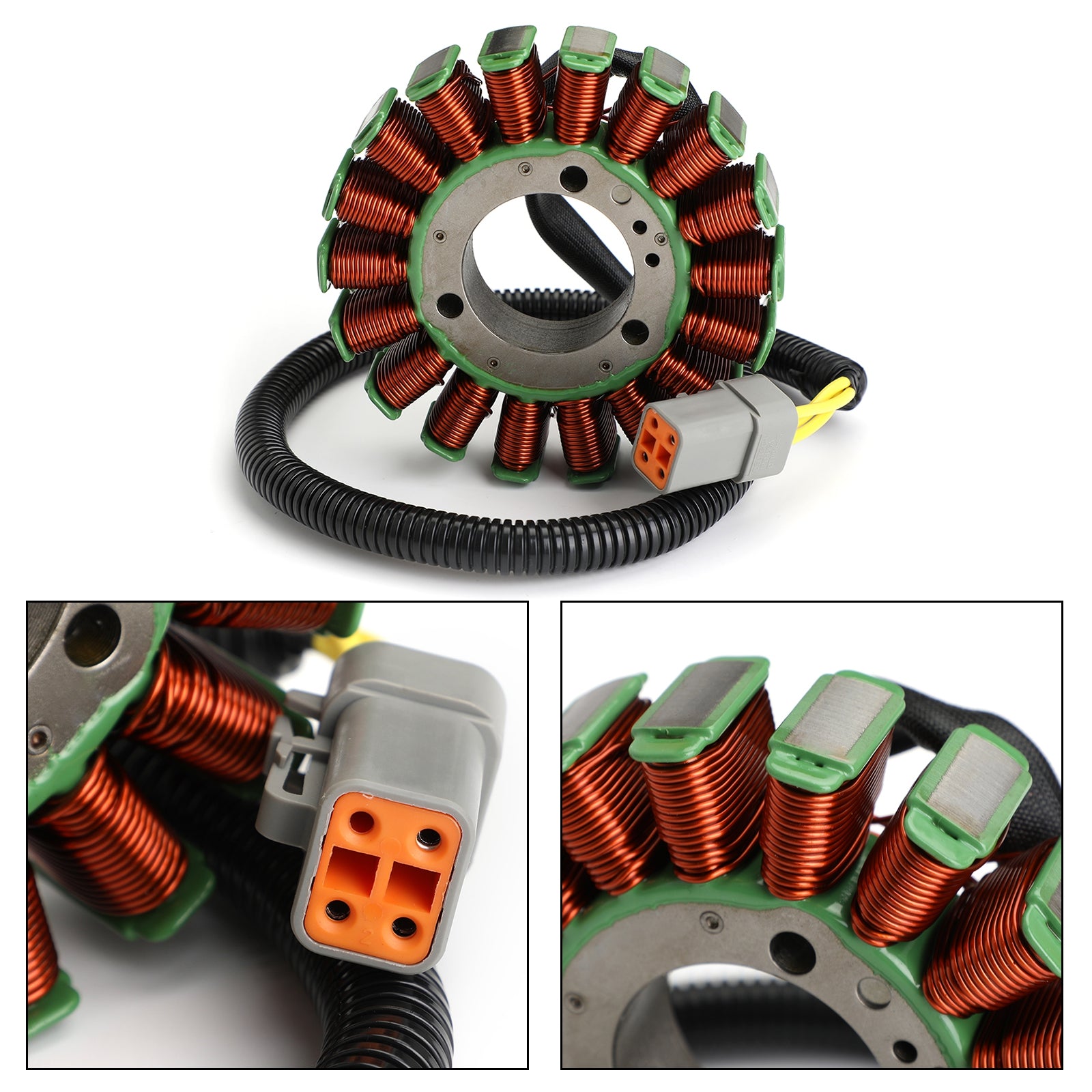

Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852
Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852

Stator Magneto For Ski-Doo Skandic Expedition Legend V800 420684853 420684852

Sale price$113.89
SKU: M550-A370
Quantity:

Fitment:
Fits Ski-Doo Skandic SWT 2009
Fits Ski-Doo Skandic SWT V-800 2007-2010
Fits Ski-Doo Skandic SWT V800 YetiII 2011
Fits Ski-Doo Skandic Tundra LT V 800 4-TEC EFI L/C 2009
Fits Ski-Doo Expedition TUV V800, 2007-2008
Fits Ski-Doo Expedition TUV V800 4-TEC 2009
Fits Ski-Doo Legend Trail V 800 EFI L/C 2009
Fits Ski-Doo Legend Touring V800 2009

Fits Lynx Rave RE 800 R 2011
Fits Lynx YETI Pro V-800 2007-2012
Fits Lynx YETI V-800 2006-2009

Replacement Part Number:
420684853
420684852
Please confirm the Replacement Part Number before ordering.

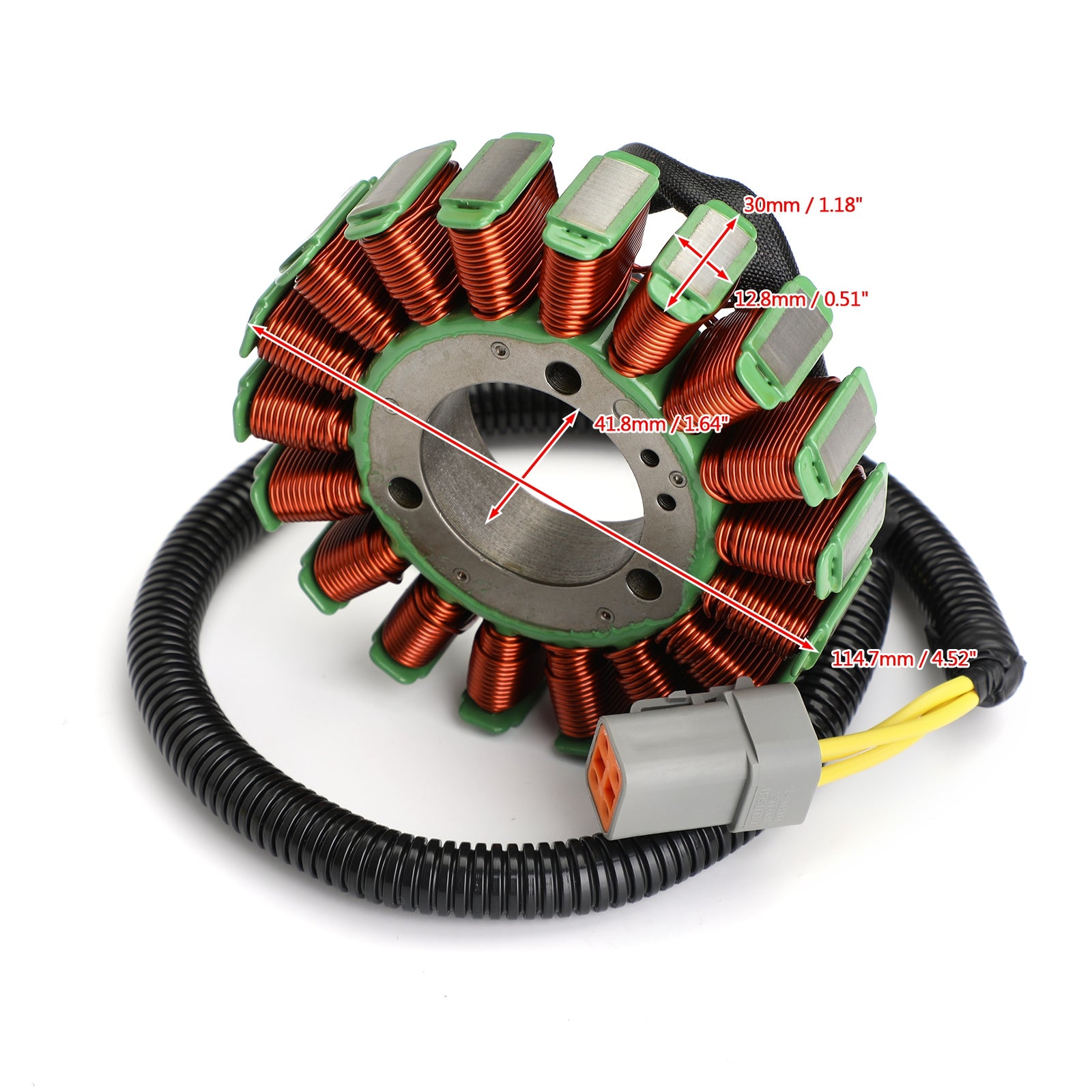

Dimensions:
Interior diameter : 41.8 mm / 1.64 inches
Exterior diameter : 114.7 mm / 4.52 inches
Pole's Thickness : 30 mm / 1.18 inches
Pole's Width : 12.8 mm / 0.51 inches

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 3
Number of pins: 3

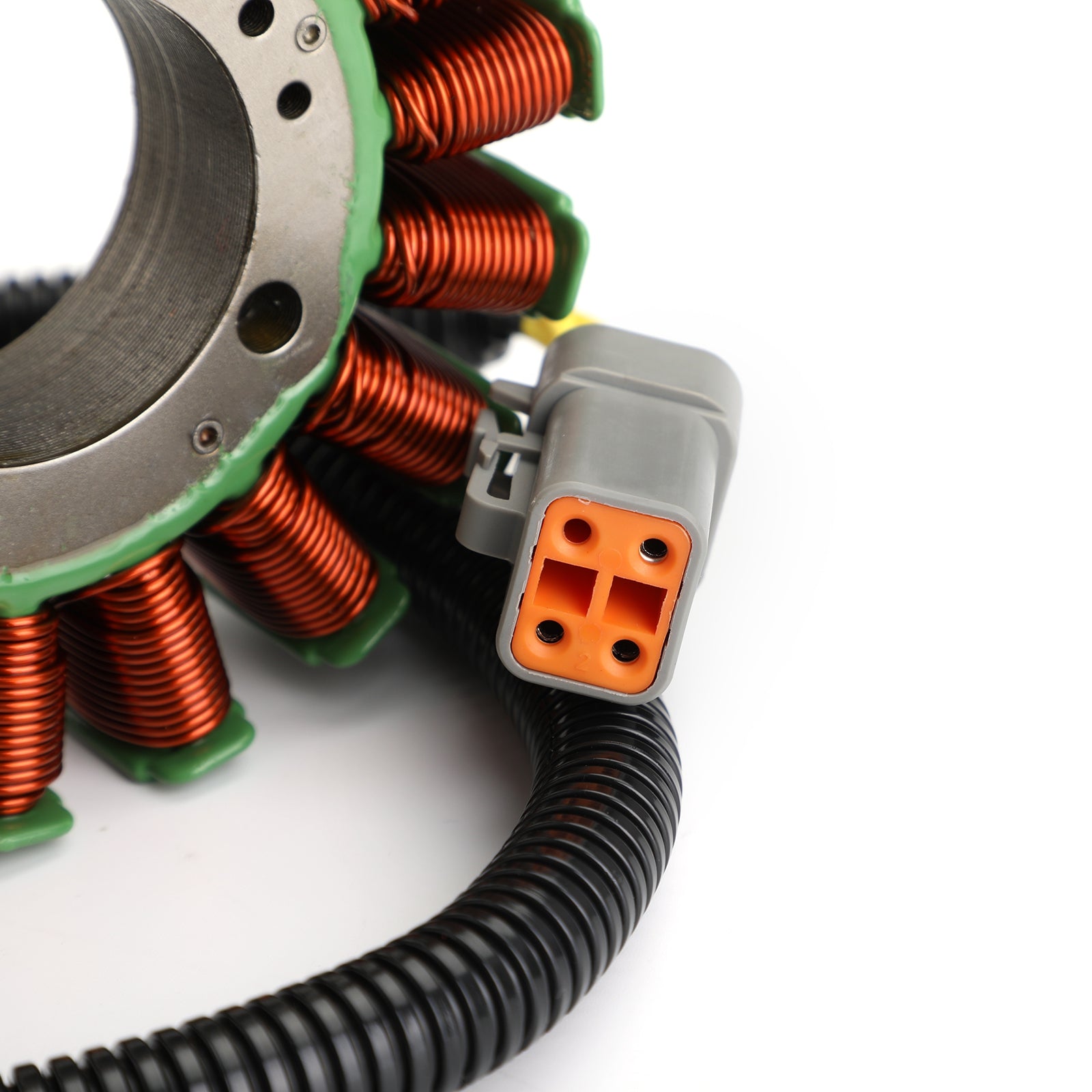

Number of plugs: 1
Number of fixation holes: 3(+1)

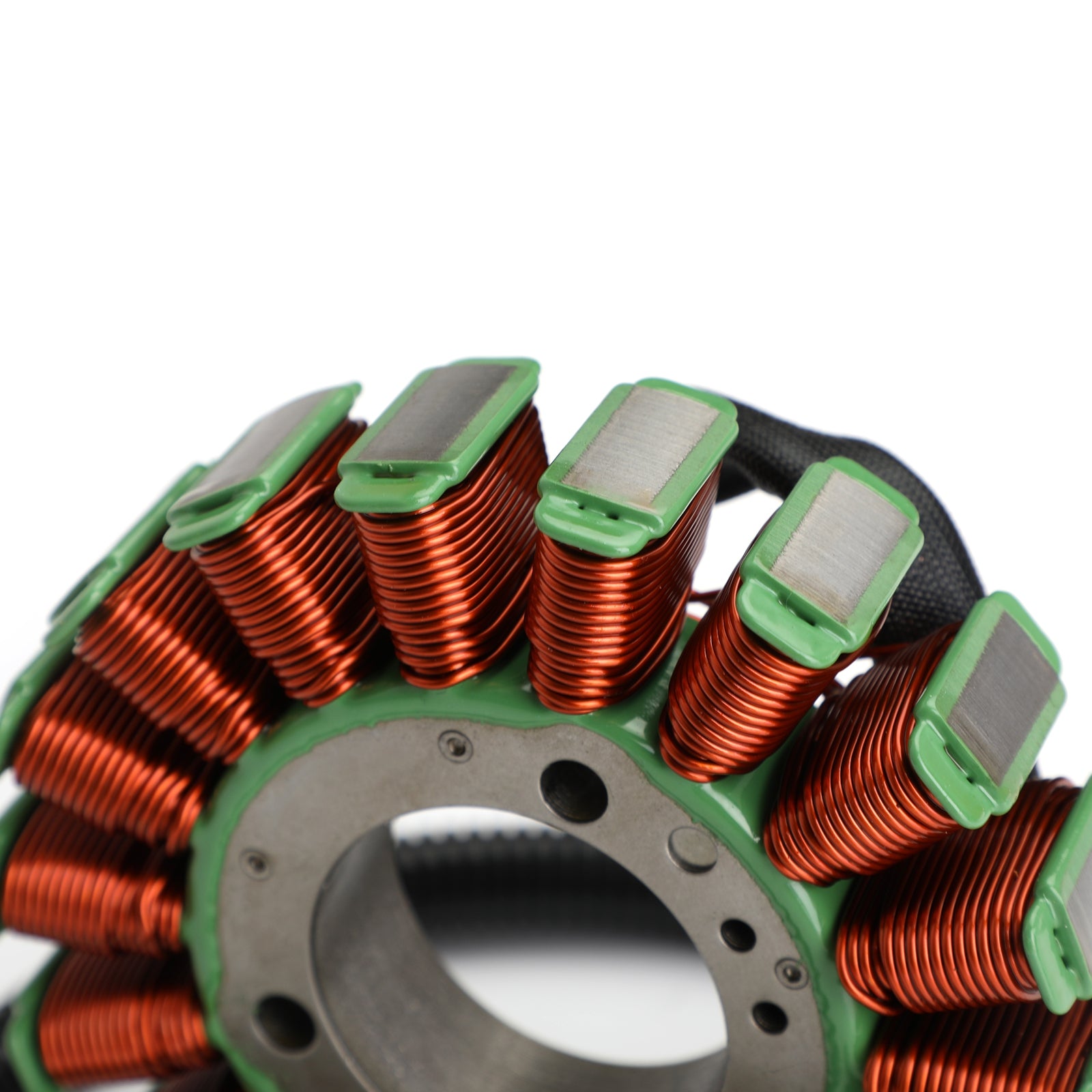

Number of poles: 18

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
