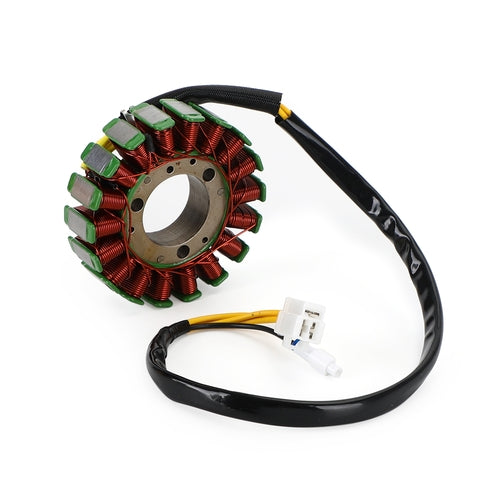

Stator Magneto For Aprilia Rx125 Rs125 Tuono Rx Sx Mx 125 Generator AP0295670 Generic FedEx Express Shipping
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:
AP0295670
Fitments:
Fit for Aprilia ETX125 1998
Fit for Aprilia RX125 Chassis 1995-1998
Fit for Aprilia RS125 Tuono 125 2003-2004
Fit for Aprilia RS125 (2T) RS 125 1999-2010
Fit for Aprilia RS125 engine 122cc 1996-1998
Fit for Aprilia RX-SX 125 RX SX 125 2008-2010
Fit for Aprilia MX125 SuperMotard 2004-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
