Stator Magneto Fit for KTM 125 SX EXC 200 250 300 05-16 54839204000 2K-3 Version
Quantity:
Other Specifications:

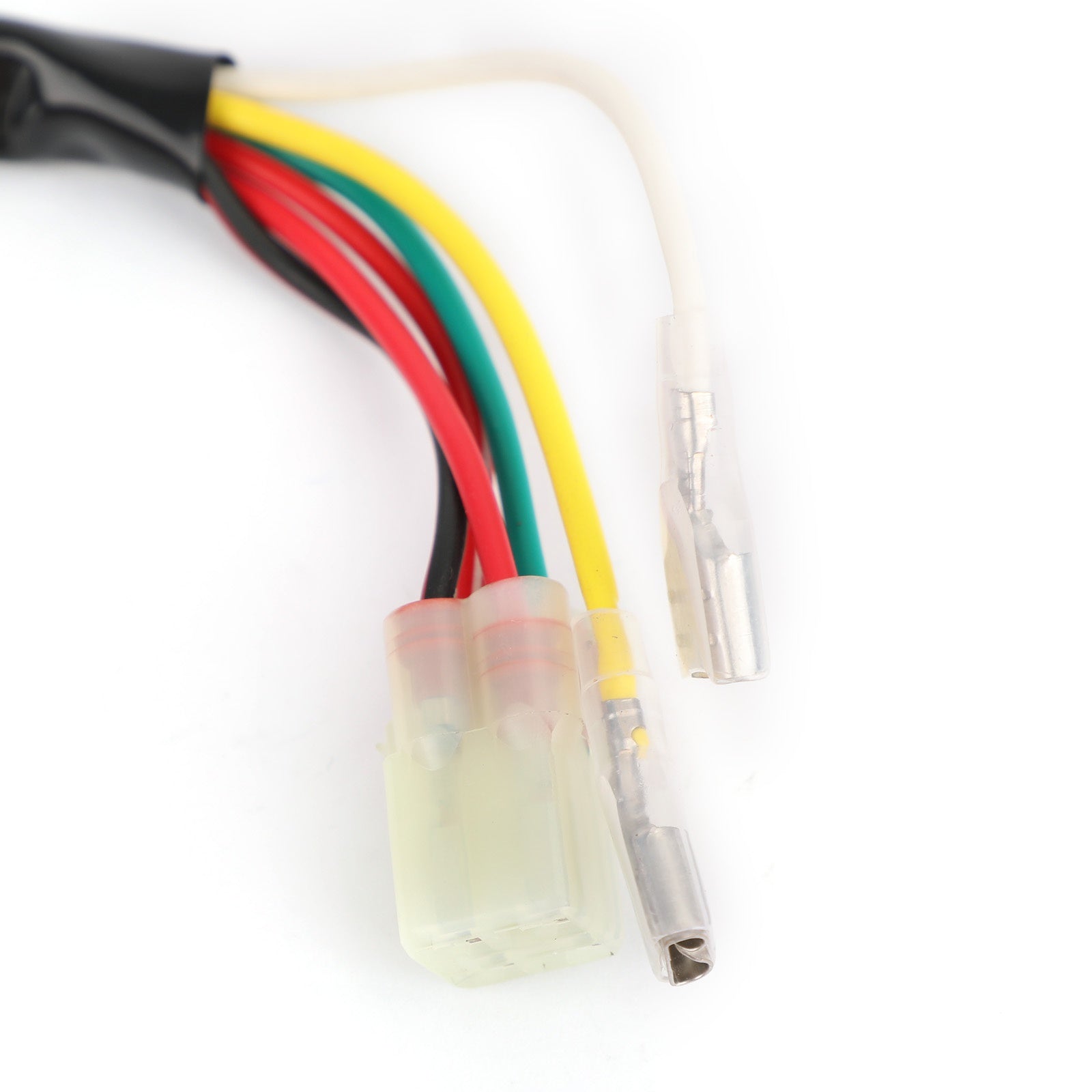

Number of wires: 6
Number of pins: 6
Number of plugs: 1(+2)
Number of fixation holes: 3
Number of poles: 8

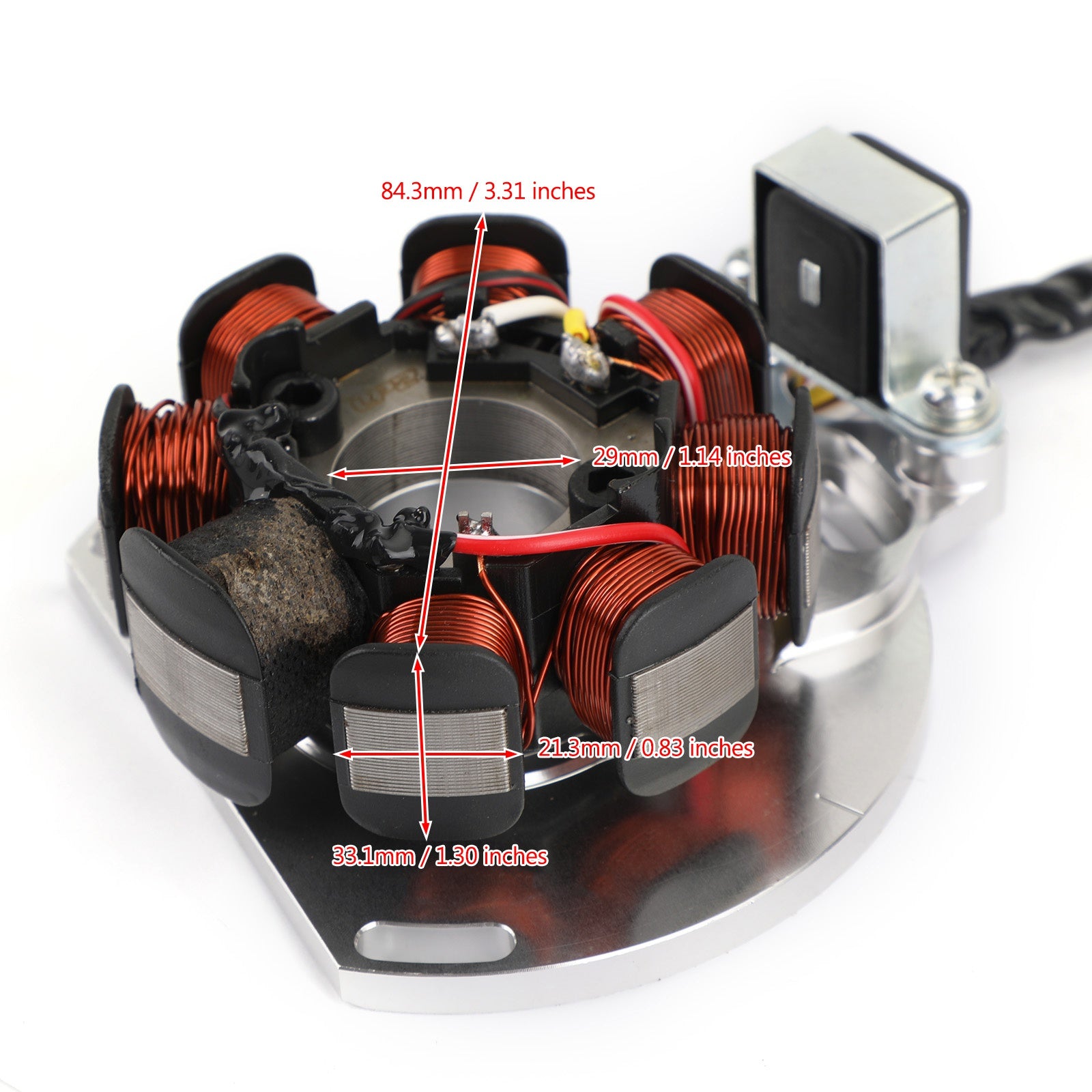

Dimensions:
Interior diameter : 29mm / 1.14 inches
Exterior diameter : 84.3mm / 3.31 inches
Pole's Thickness : 33.1mm / 1.30 inches
Pole's Width : 21.3mm / 0.83 inches
Replacement Part Number:
54839204000
Please confirm the Replacement Part Number before ordering.
Fitments:
THESE MODELS USE 3 DIFFERENT TYPE OF STATORS.
2K-1 (IGNITION ONLY), 2K-2 (AC ONLY) & 2K-3 (FULL DC).
THIS ONE IS THE 2K-3 (FULL DC) VERSION.
BEFORE BUYING PLEASE MAKE SURE YOUR BIKE USES THE 2K-3 (FULL DC)VERSION.
Fit for KTM 125/200/250/300 2K-3 Version
Fit for KTM 125 SX TYLA RATTRAY 2005
Fit for KTM 125 EXC 2005-2016
Fit for KTM 125 EXC SIX DAYS 2005-2016
Fit for KTM 125 Factory Edition 2011/2015
Fit for KTM 125 EXC CHAMPION EDITION 2010
Fit for KTM 200 XC 2008-2009
Fit for KTM 200 XC-W 2008-2012
Fit for KTM 200 EXC 2005-2012
Fit for KTM 250 EXC 2005-2007
Fit for KTM 250 EXC SIX DAYS 2005-2007
Fit for KTM 300 MXC 2005
Fit for KTM 300 EXC 2005-2007
Fit for KTM 300 EXC SIX DAYS 2005-2007
Fit for KTM 300 XC 2006-2007
Fit for KTM 300 XC-W 2006-2007
Fit for Husqvarna TE 125 2015-2016
Fit for Husaberg TE 125 2012-2014
Fit for Husaberg TE 125 HQV 2014
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Package Included:
1x Generator Stator Coil
Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
