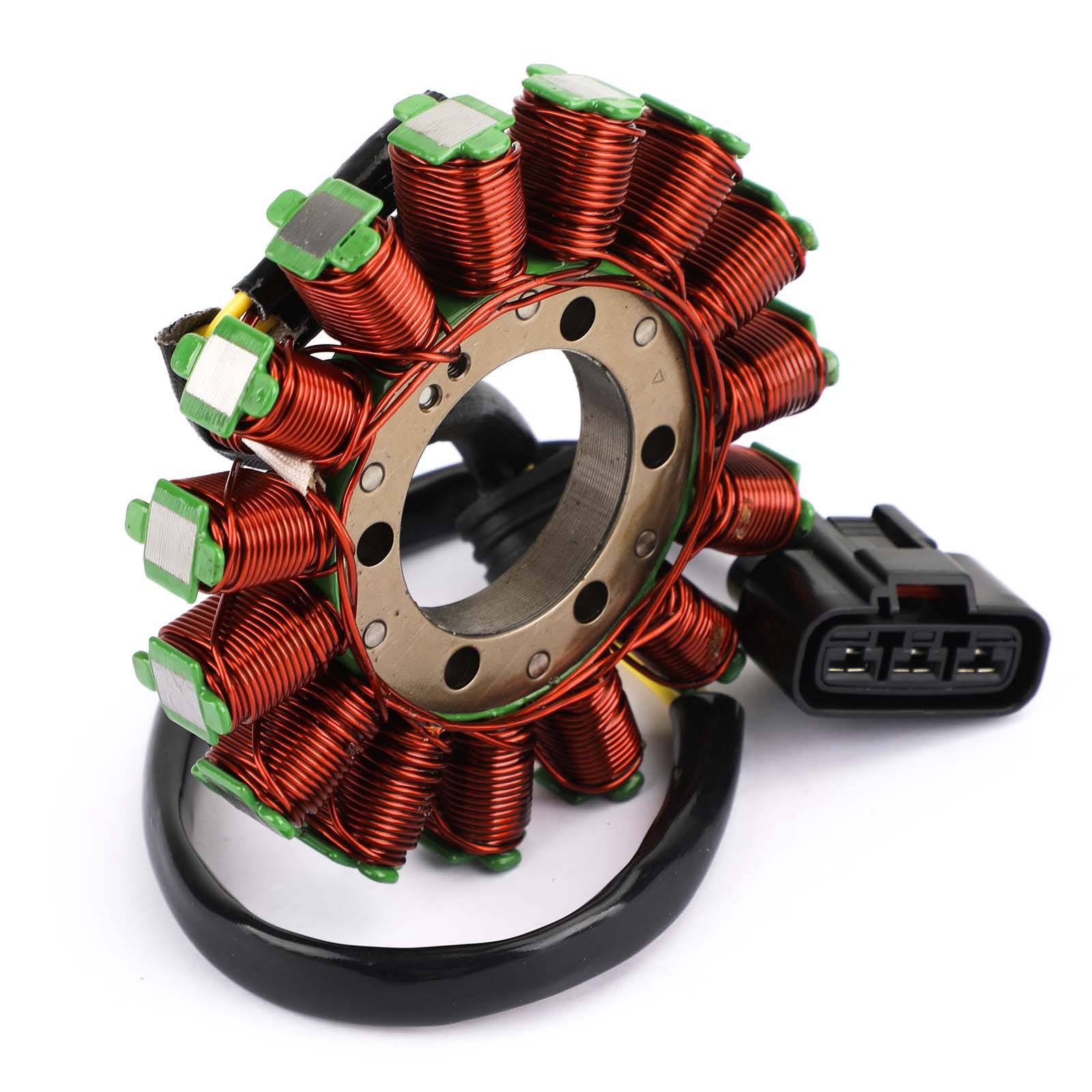

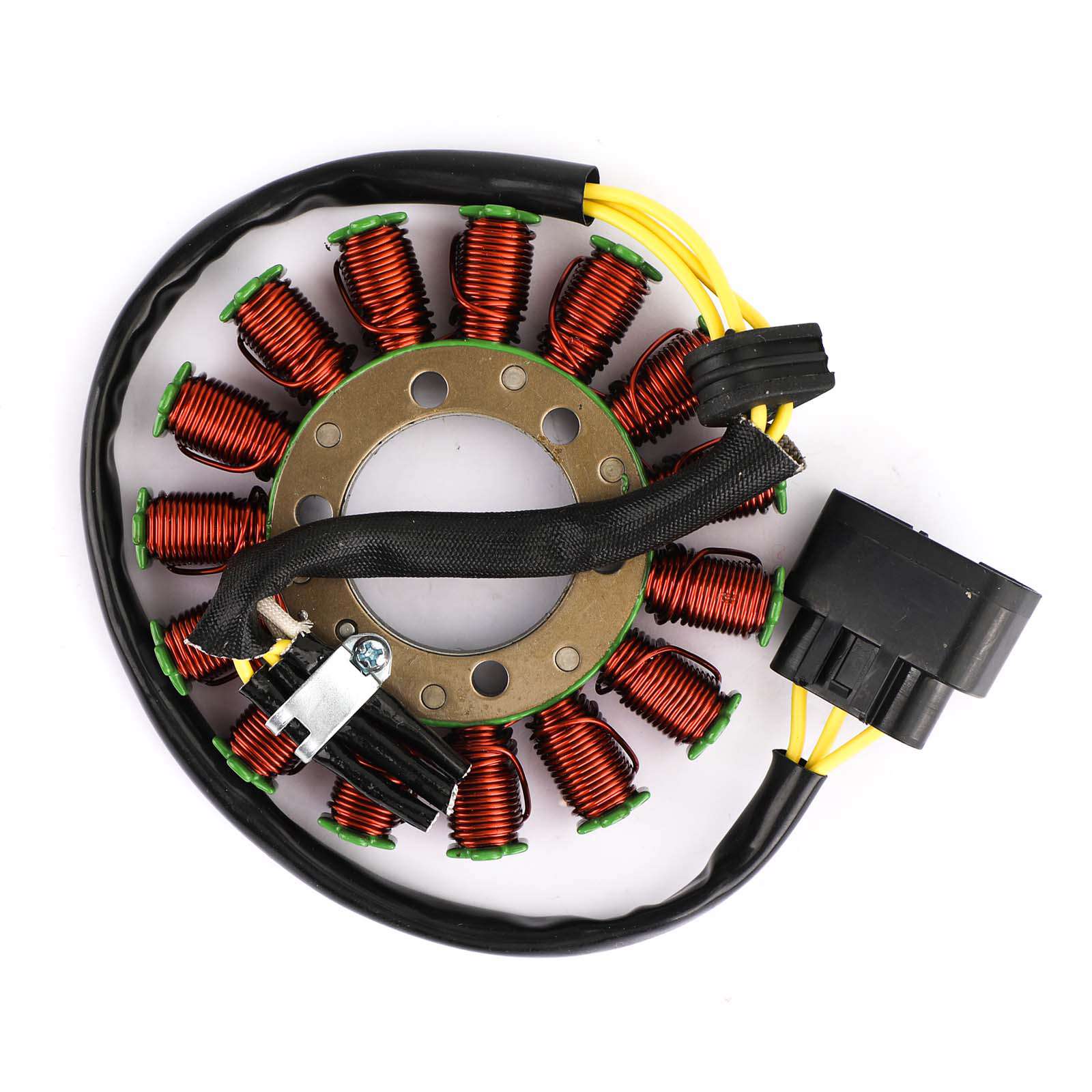

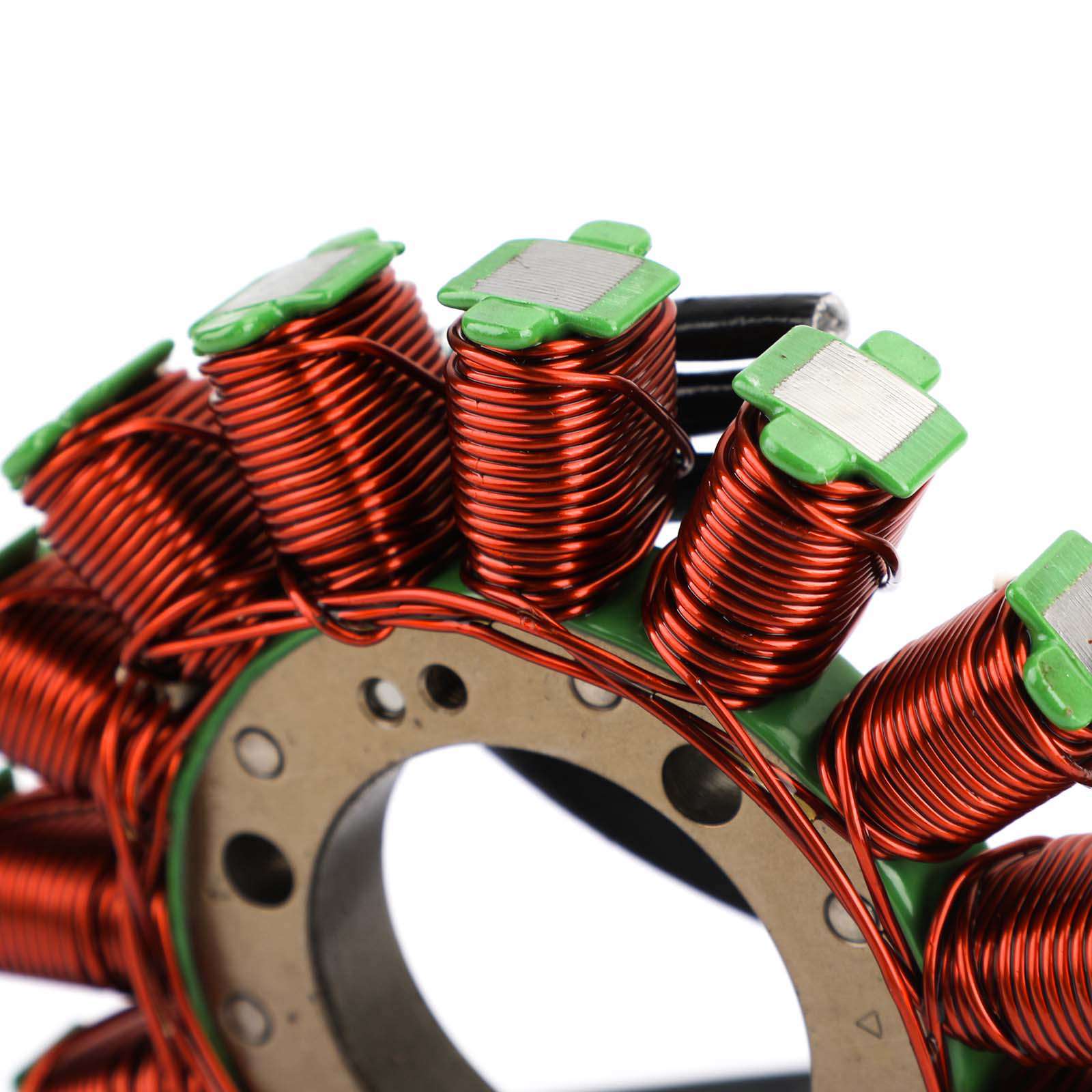

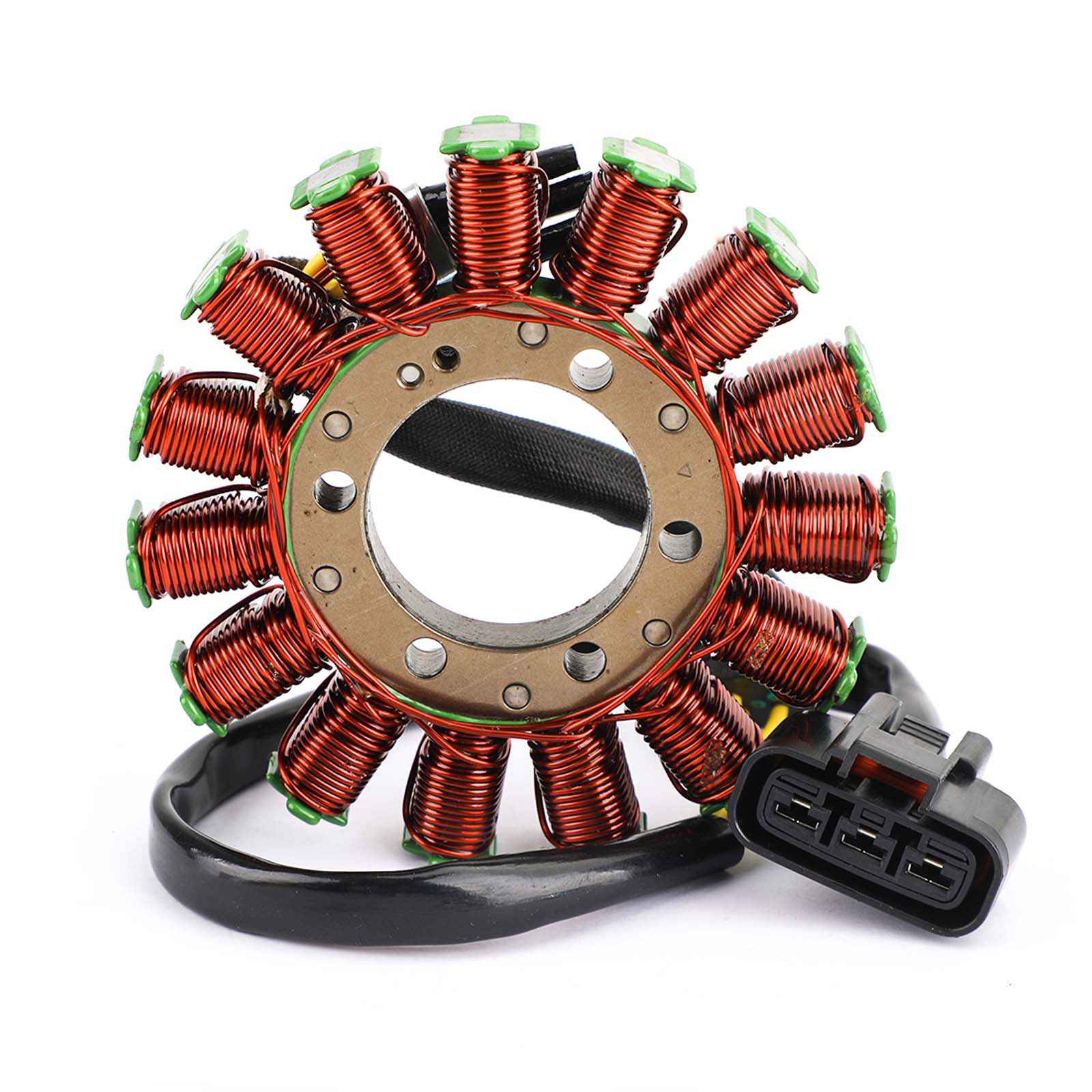

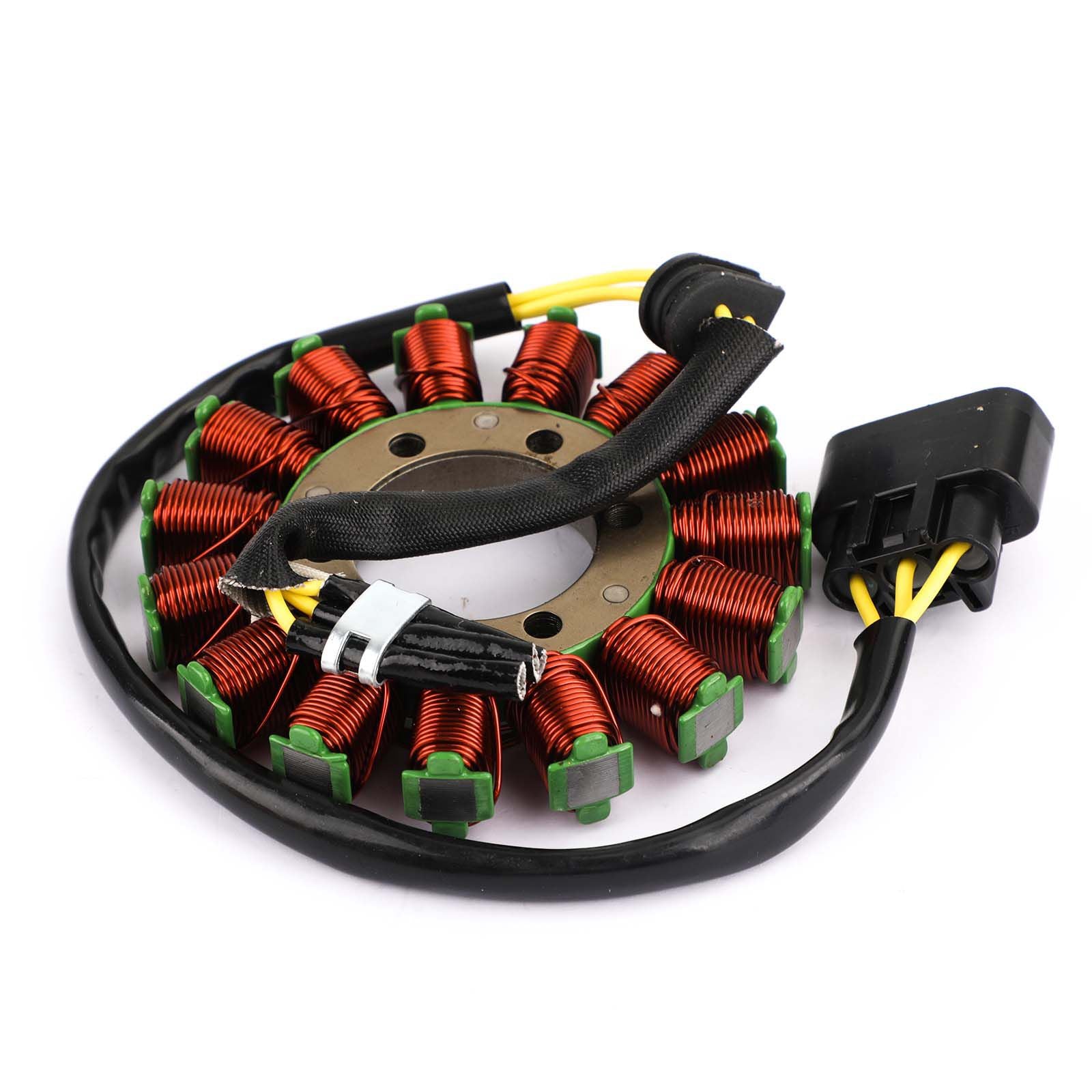

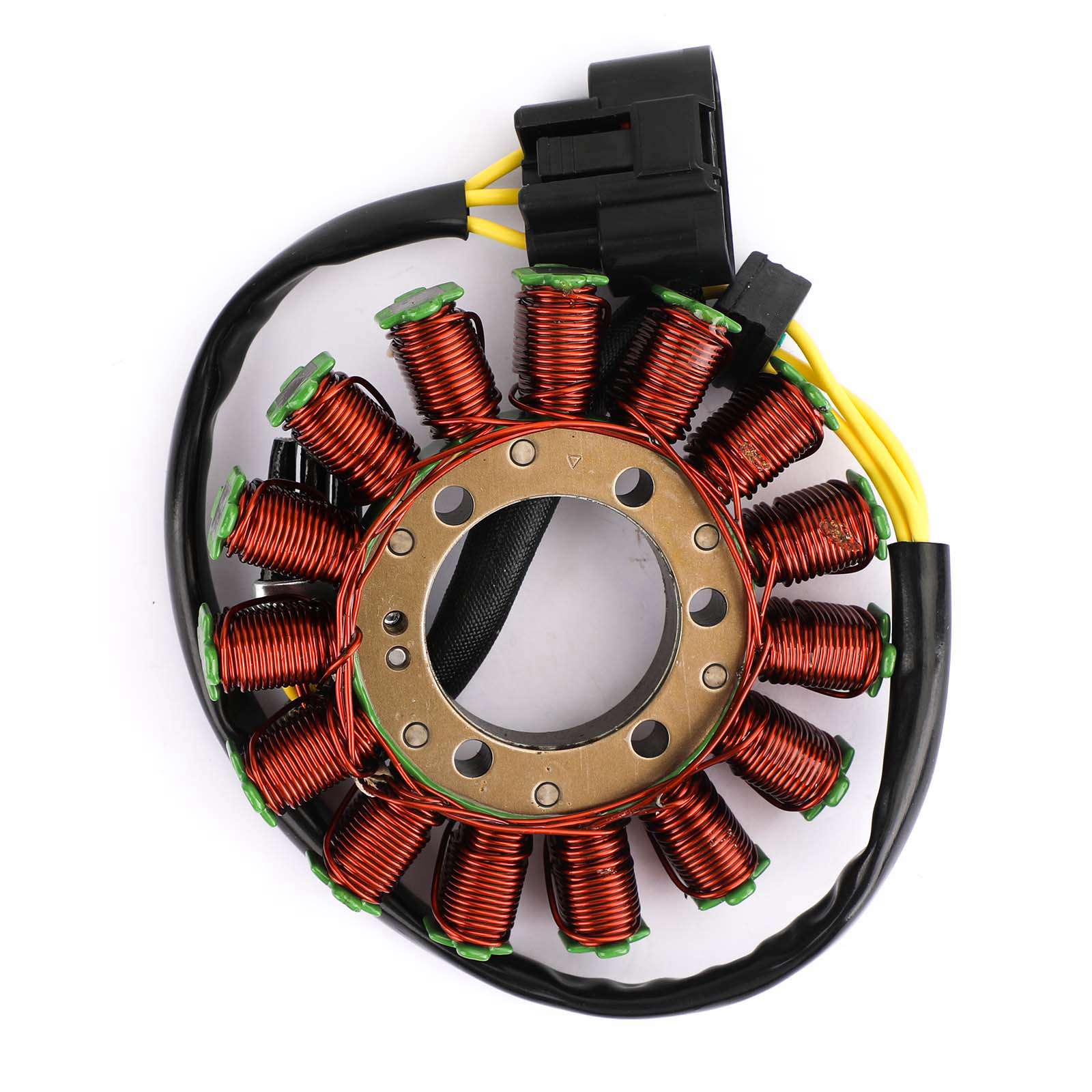

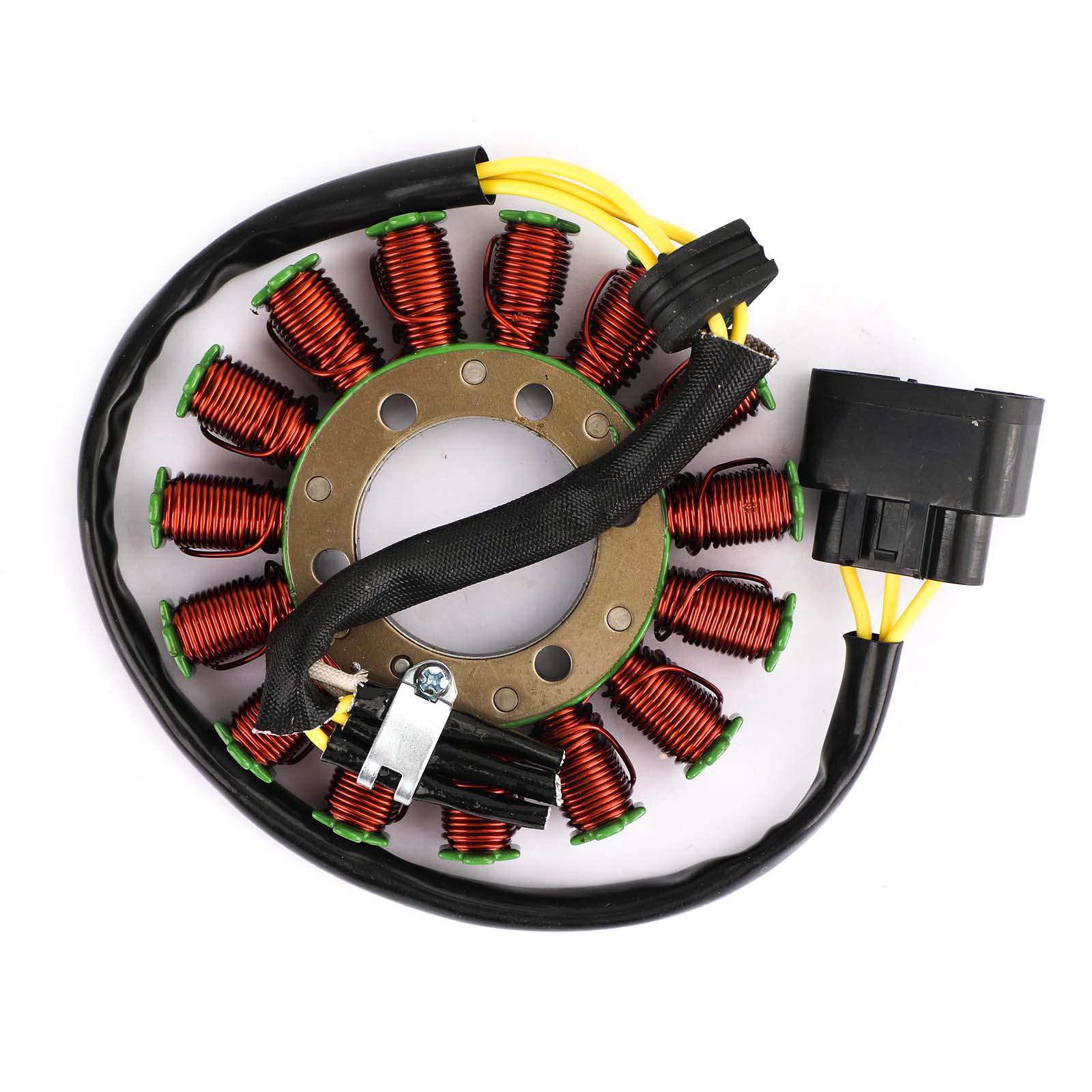

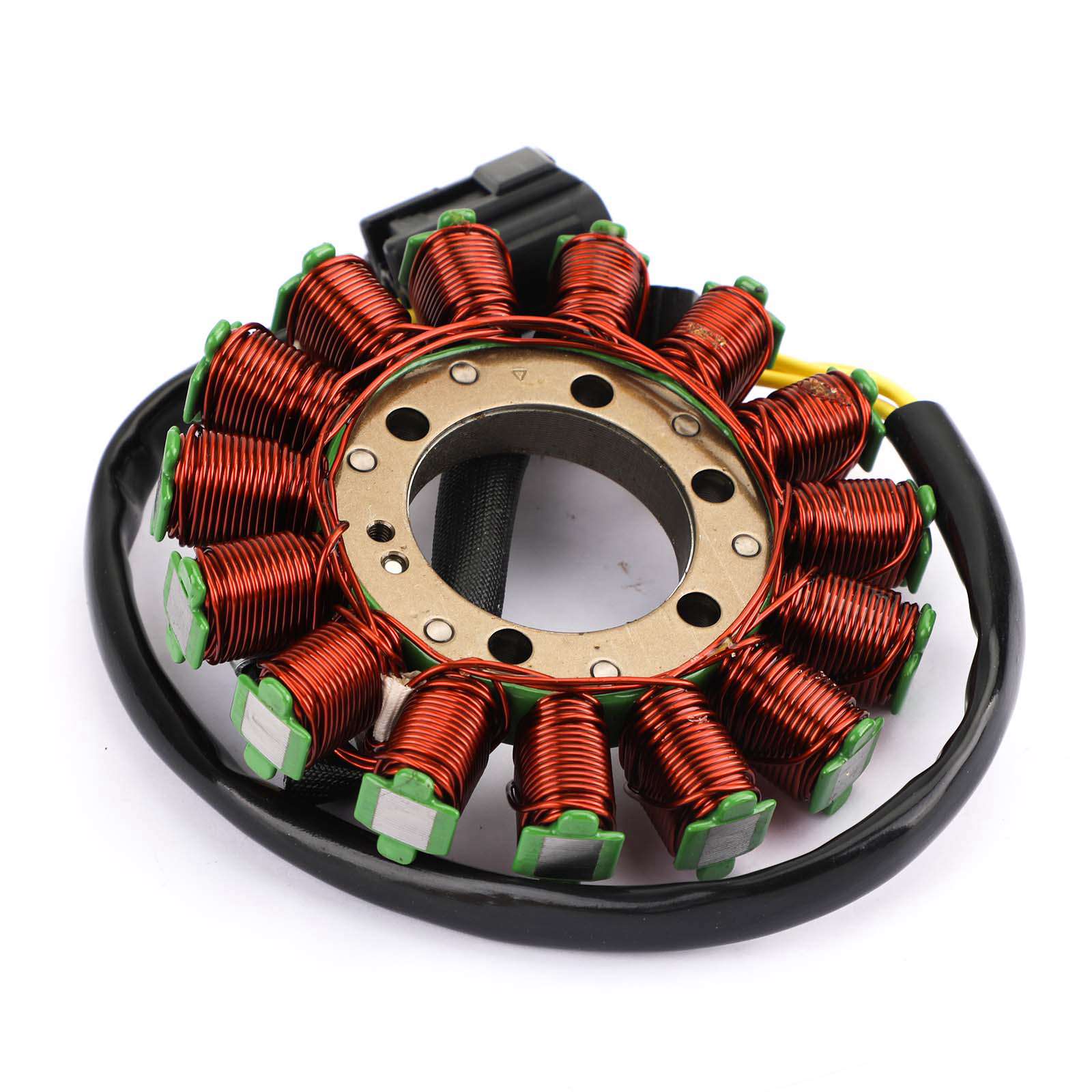

Stator Generator Magnet Fit for Ducati Multistrada 950 1260 2017 2018 2019

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

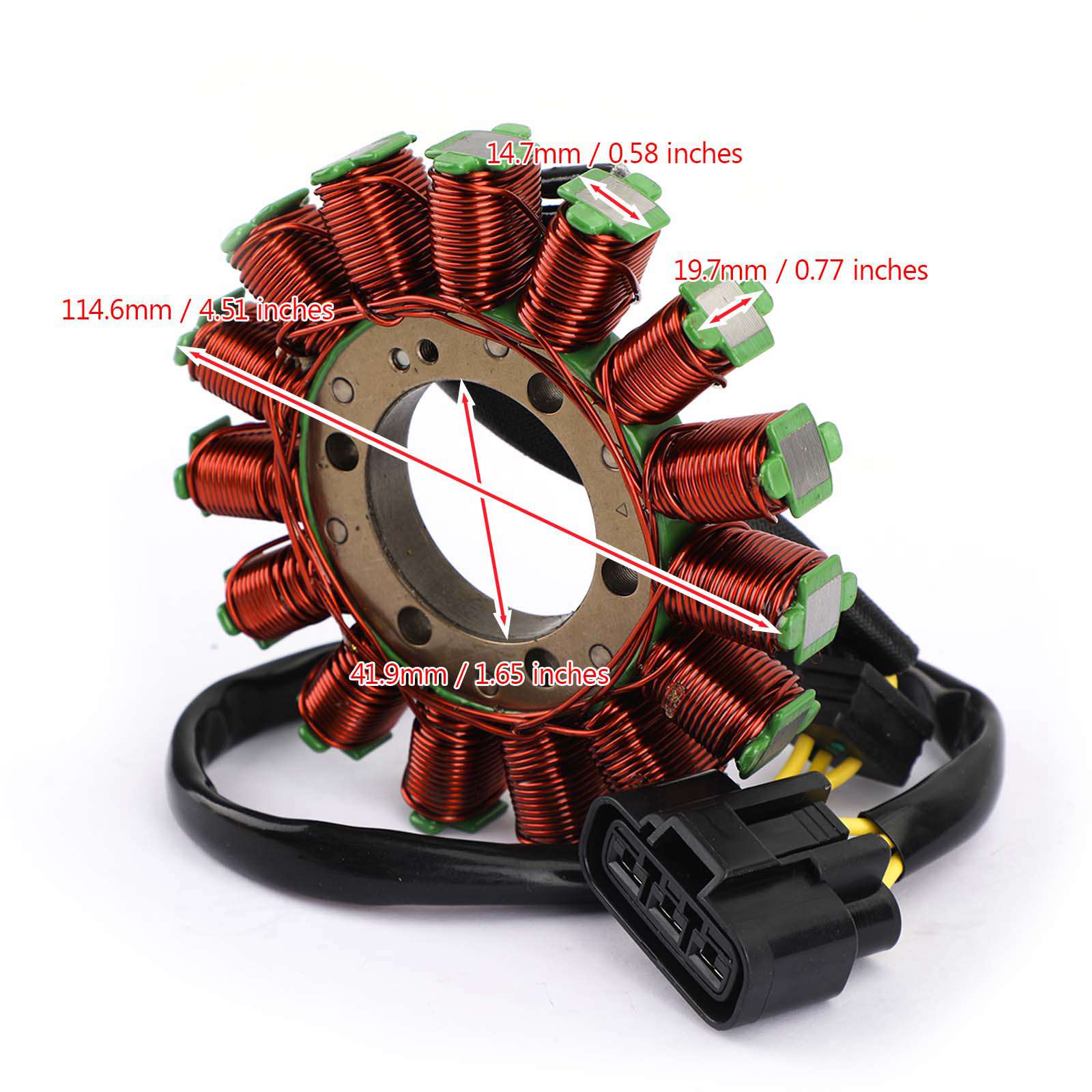

Dimensions :
Interior diameter : 41.9 mm / 1.65 inches
Exterior diameter : 114.6 mm / 4.51 inches
Pole's Thickness : 19.7 mm / 0.77 inches
Pole's Width : 14.7 mm / 0.58 inches

Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 5
Number of poles: 15

PART NUMBER(S):
26420481A
26420131A
26420541A

Fitments:
Fit for Ducati Multistrada 1200 2010-2014
Fit for Ducati Multistrada 1200 ABS 2010-2014
Fit for Ducati Multistrada 1200 Pikes Peak 2013-2014
Fit for Ducati Multistrada 1200 Touring ABS 2011-2012
Fit for Ducati MTS1200 Multistrada 1200S 2010-2014
Fit for Ducati Multistrada 1200S Sport 2010-2011
Fit for Ducati Multistrada 1200S Pikes Peak 2012-2014
Fit for Ducati Multistrada 1200S Touring 2010/2013-2014

Fit for Ducati Multistrada 950 2017-2018
Fit for Ducati Multistrada 950 Touring 2017-2018
Fit for Ducati Multistrada 950S 2019
Fit for Ducati Multistrada 950 SW SPOKED WHEELS 2018
Fit for Ducati Multistrada 1200 2015-2016
Fit for Ducati Multistrada 1200 ABS 2015-2017
Fit for Ducati Multistrada 1200 Enduro 2016
Fit for Ducati Multistrada 1200 Enduro Pro 2018
Fit for Ducati Multistrada 1260 Enduro Touring? 2017-2018
Fit for Ducati Multistrada 1200S 2015-2017
Fit for Ducati Multistrada 1200S ABS 2015
Fit for Ducati Multistrada 1200S D-Air 2017
Fit for Ducati Multistrada 1200S Touring 2015/2017
Fit for Ducati Multistrada 1200S Pikes Peak 2016-2017
Fit for Ducati Multistrada 1260 2018
Fit for Ducati Multistrada 1260 ABS 2018-2019
Fit for Ducati Multistrada 1260 Touring 2018-2019
Fit for Ducati Multistrada 1260 Pikes Peak 2018-2019
Fit for Ducati Multistrada 1260 Enduro 2019
Fit for Ducati Multistrada 1260 Enduro Touring 2019
Fit for Ducati Multistrada 1260S ABS 2018-2019
Fit for Ducati Multistrada 1260S Touring 2018-2019
Fit for Ducati Multistrada 1260S Pikes Peak 2018
Fit for Ducati Multistrada 1260S D-Air 2018-2019

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.

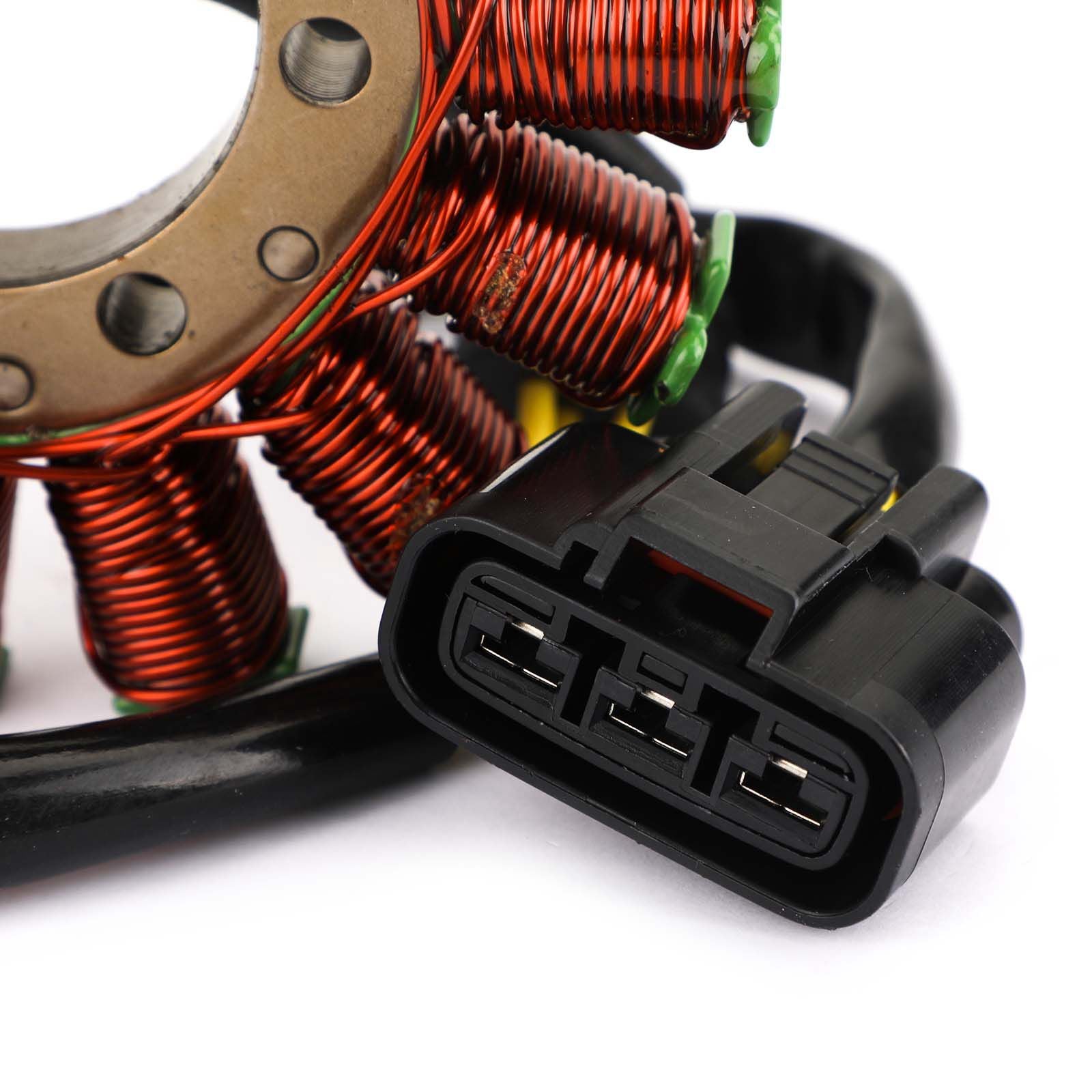

Connector included.
All products shipped are tested.

Package Included:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
