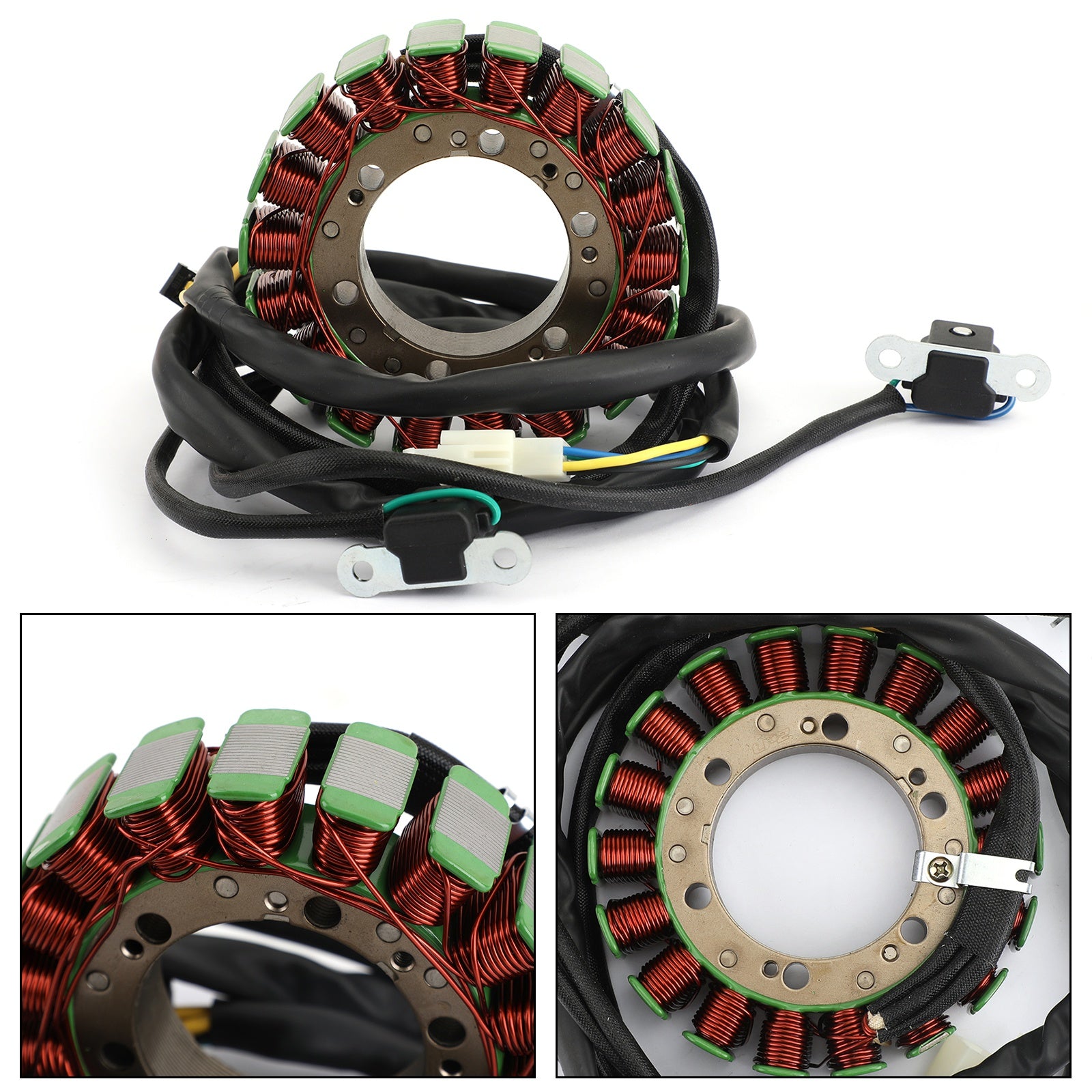

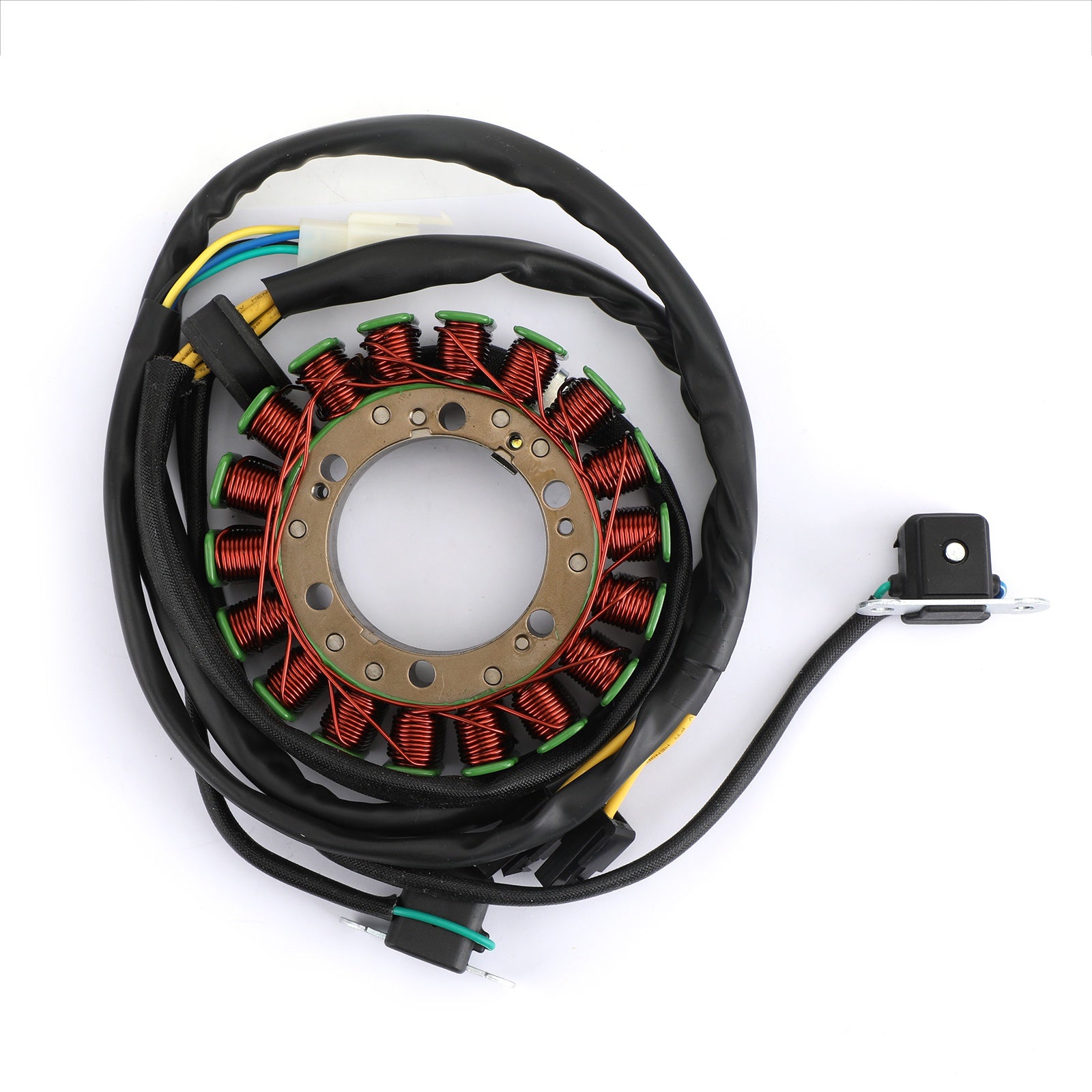

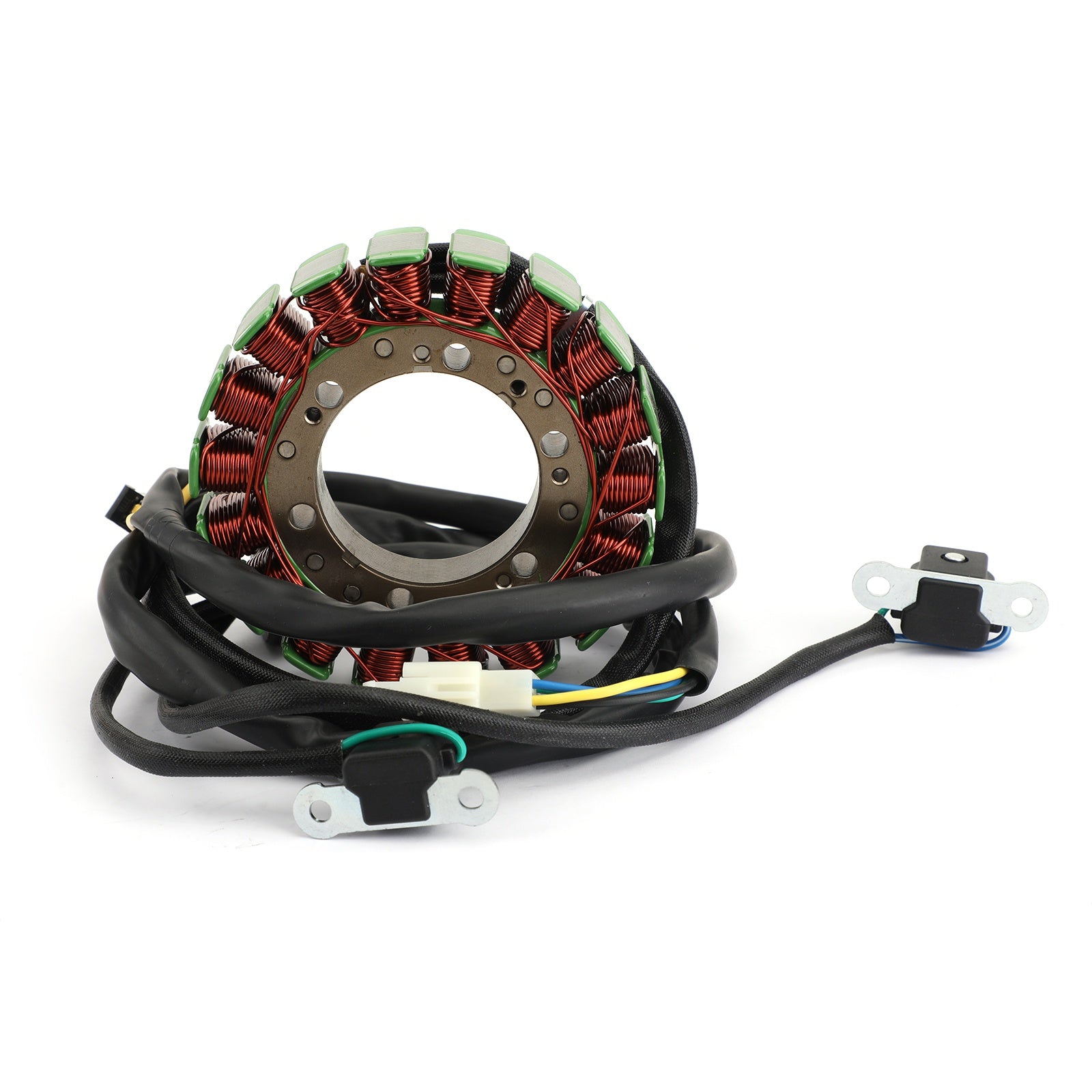

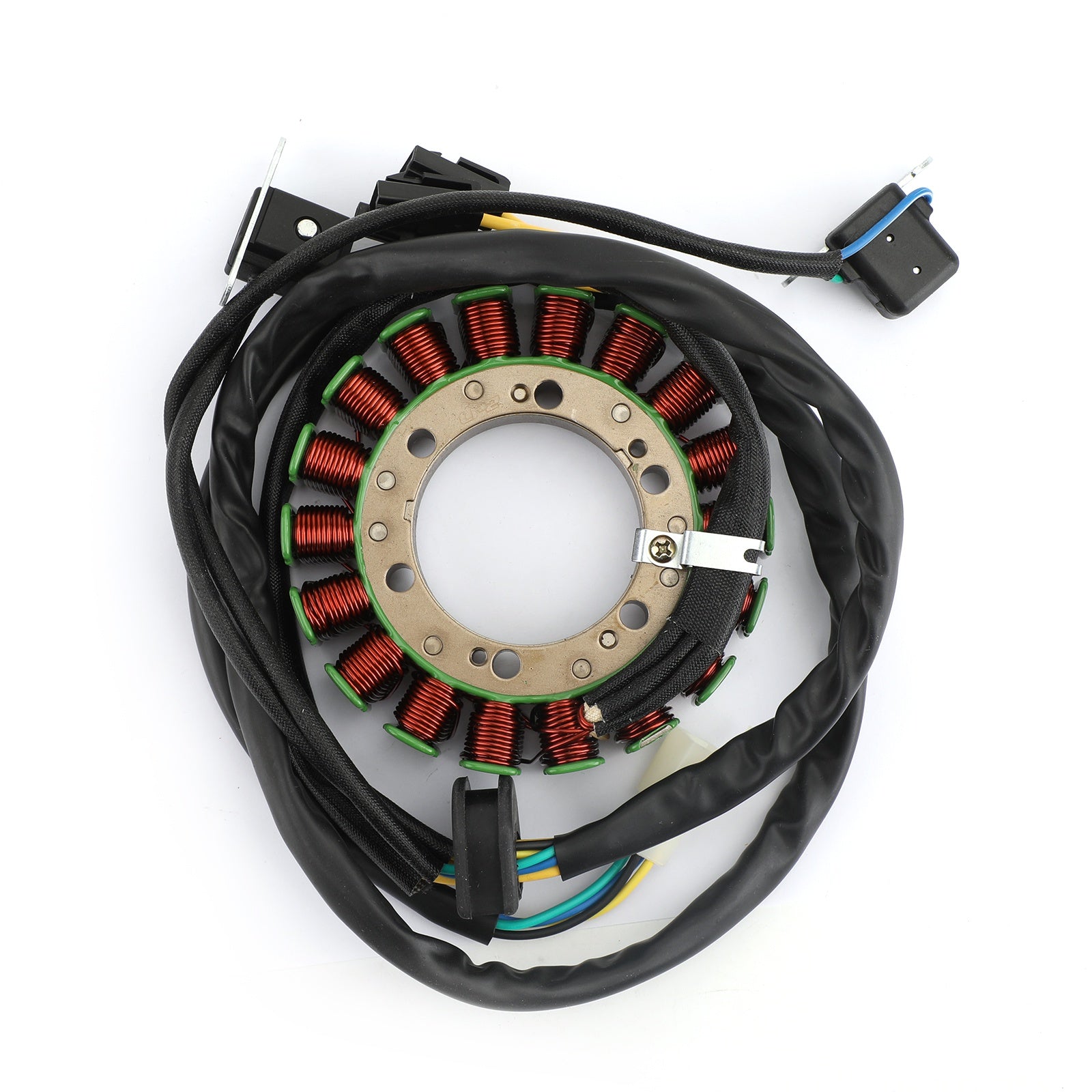

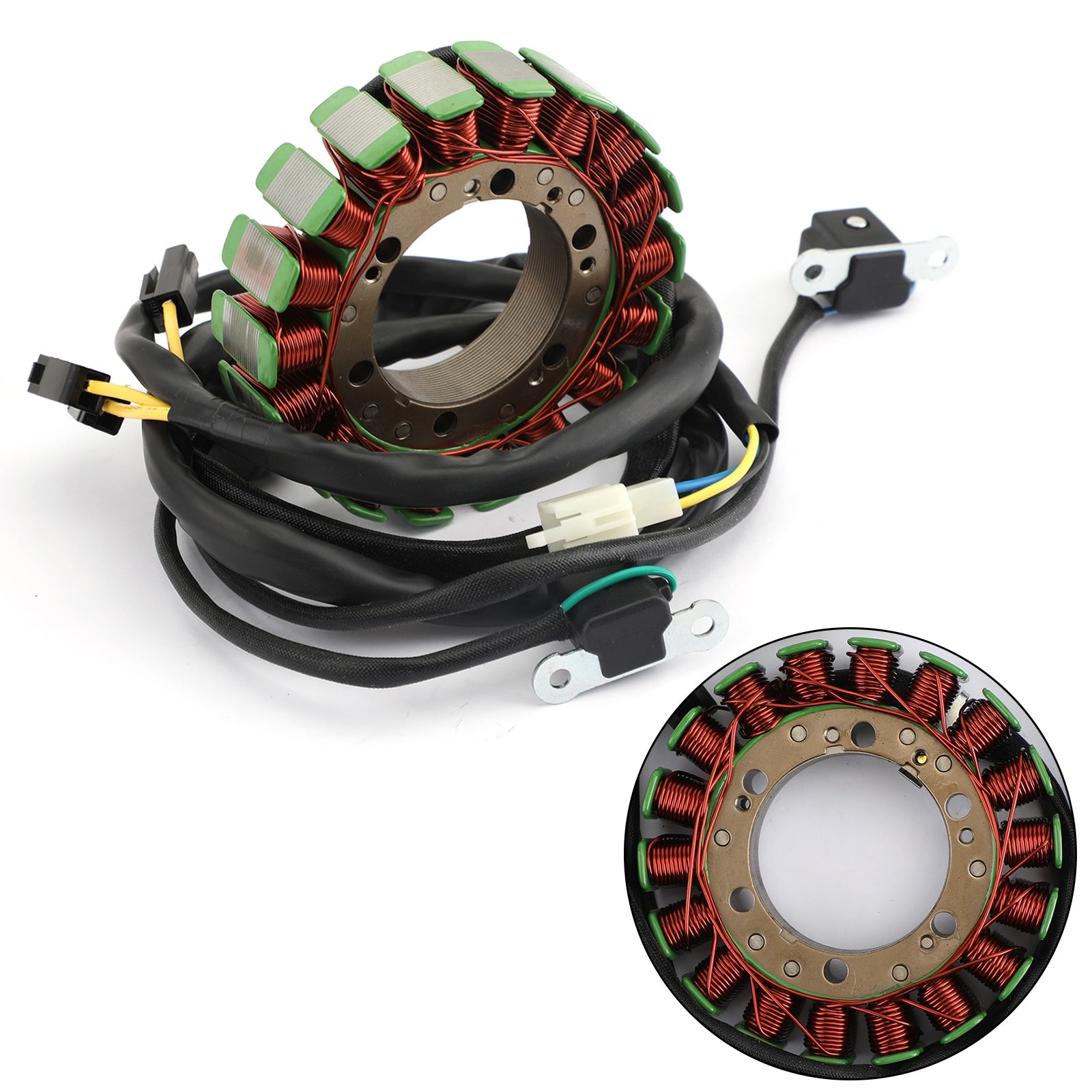

Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987
Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987

Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987

$116.89
SKU: M550-A415
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1x Generator Stator Coil
Type: Generator Stator Coil

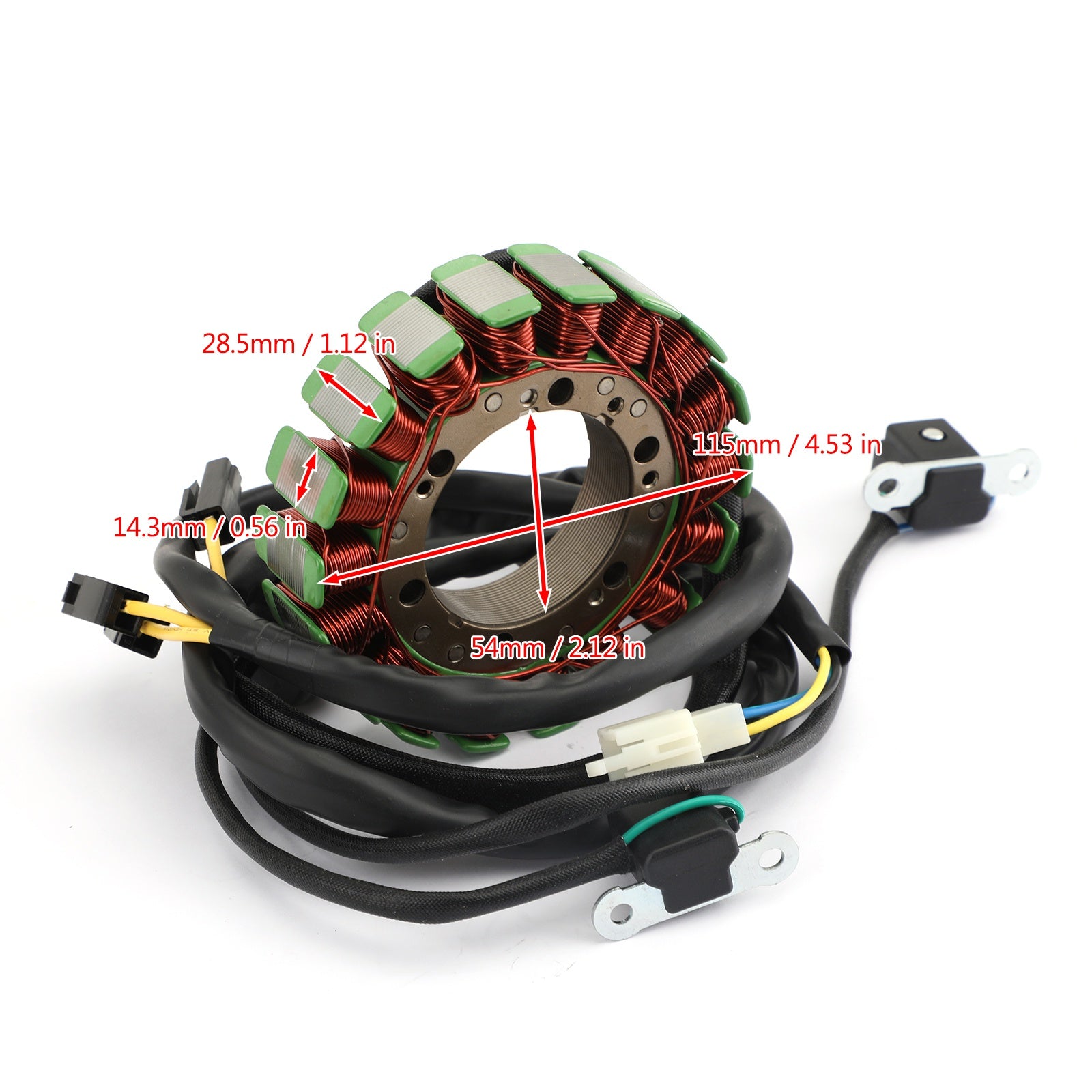

Dimensions :
Interior diameter : 54 mm / 2.12 inches
Exterior diameter : 115 mm / 4.53 inches
Pole's Thickness : 28.5 mm / 1.12 inches
Pole's Width : 14.3 mm / 0.56 inches

Magneto Generator Engine Stator Coil Fit For Suzuki Intruder 700 VS700GLP GL VS700GLF GL VS700GLEP GLE 1986-1987



Other specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 4
Number of fixation holes: 6(+2)
Number of poles: 18

PART NUMBER(S): 32101-38A00

FITMENT:
Fits Suzuki Intruder 700 VS700GLEF GLE 1986-1987
Fits Suzuki Intruder 700 VS700GLEP GLE 1986-1987
Fits Suzuki Intruder 700 VS700GLF GL 1986-1987
Fits Suzuki Intruder 700 VS700GLP GL 1986-1987
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsars coil included.
Connector included.
All products shipped are tested.

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
