Stator Generator Fit For Moto Guzzi V7 Racer Special Stone 08-2017 V7 III 18-2020
Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

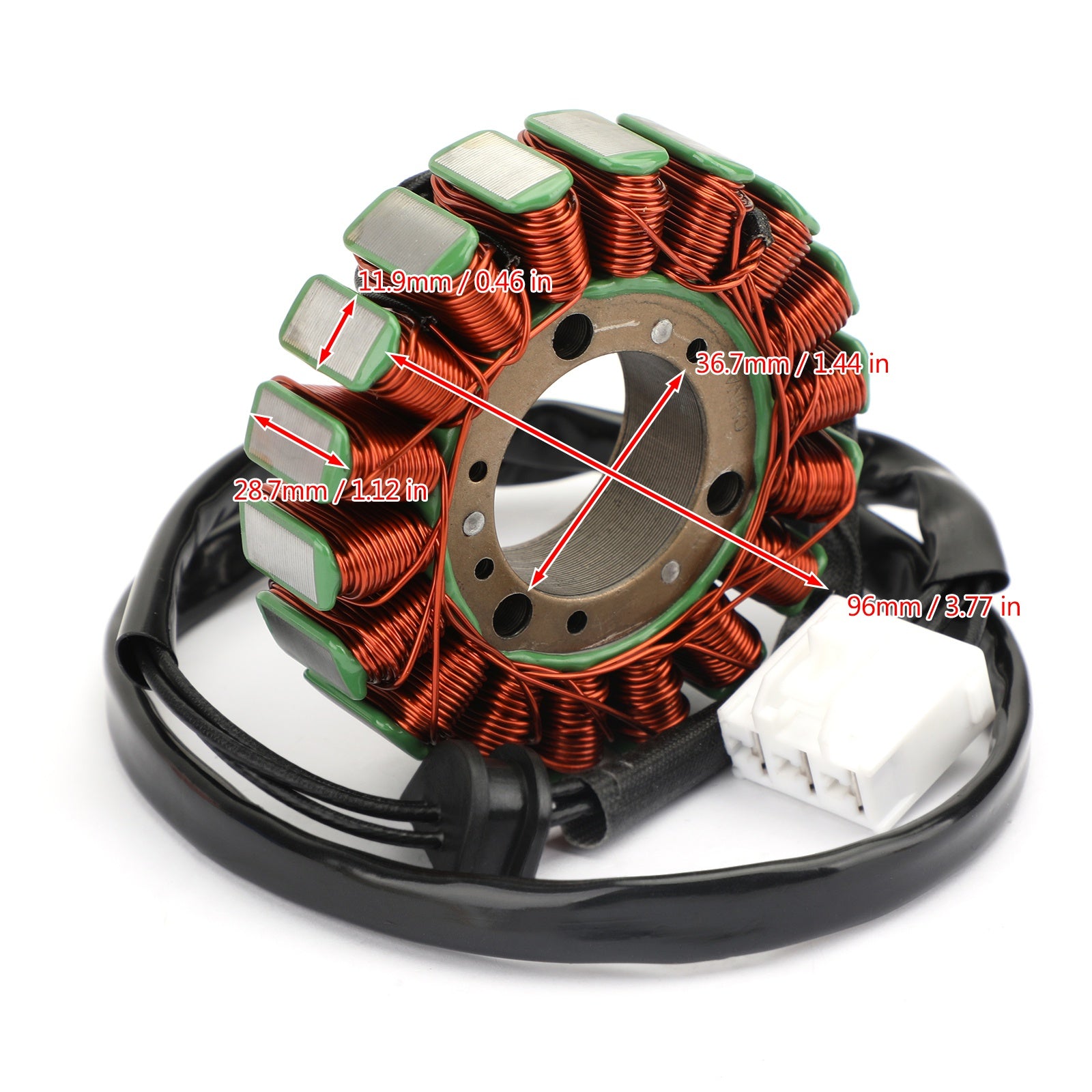

Dimensions :
Interior diameter : 36.7 mm / 1.44 inches
Exterior diameter : 96 mm / 3.77 inches
Pole's Thickness : 28.7 mm / 1.12 inches
Pole's Width : 11.9 mm / 0.46 inches
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+3)
Number of poles: 18
Replaces Part Number:
2D000024 1A011251
Fitment:
Fit for Moto Guzzi V7 Racer 750 2008-2016
Fit for Moto Guzzi V7 Racer 750 ABS 2008-2016
Fit for Moto Guzzi V7 Special 750 2008-2016
Fit for Moto Guzzi V7 Special 750 ABS 2008-2016
Fit for Moto Guzzi V7 Stone 750 2008-2016
Fit for Moto Guzzi V7 Stone 750 ABS 2008-2016
Fit for Moto Guzzi V7 Racer 750 E4 2017
Fit for Moto Guzzi V7 Special 750 E4 2017
Fit for Moto Guzzi V7 Stone 750 E4 2017
Fit for Moto Guzzi V7 Anniversario 750 E4 2017
Fit for Moto Guzzi V7 III 2018-2020
Fit for Moto Guzzi V7 III Rough 750 E4 ABS 2018
Fit for Moto Guzzi V7 III Milano 750 E4 ABS 2018
Fit for Moto Guzzi V7 III Carbon Dark 750 E4 2018
Fit for Moto Guzzi V7 III Carbon Shine 750 E4 2018
Fit for Moto Guzzi V7 III Special 750 E4 ABS 2017-2020
Fit for Moto Guzzi V7 III Racer Limited 750 E4 ABS 2019
Fit for Moto Guzzi V7 III Racer 10th Anniversary e4 ABS 2020
Fit for Moto Guzzi V9 Bobber 850 ABS E4 2016-2020
Fit for Moto Guzzi V9 Roamer 850 ABS E4 2016-2020
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Package Includes:
1 x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
