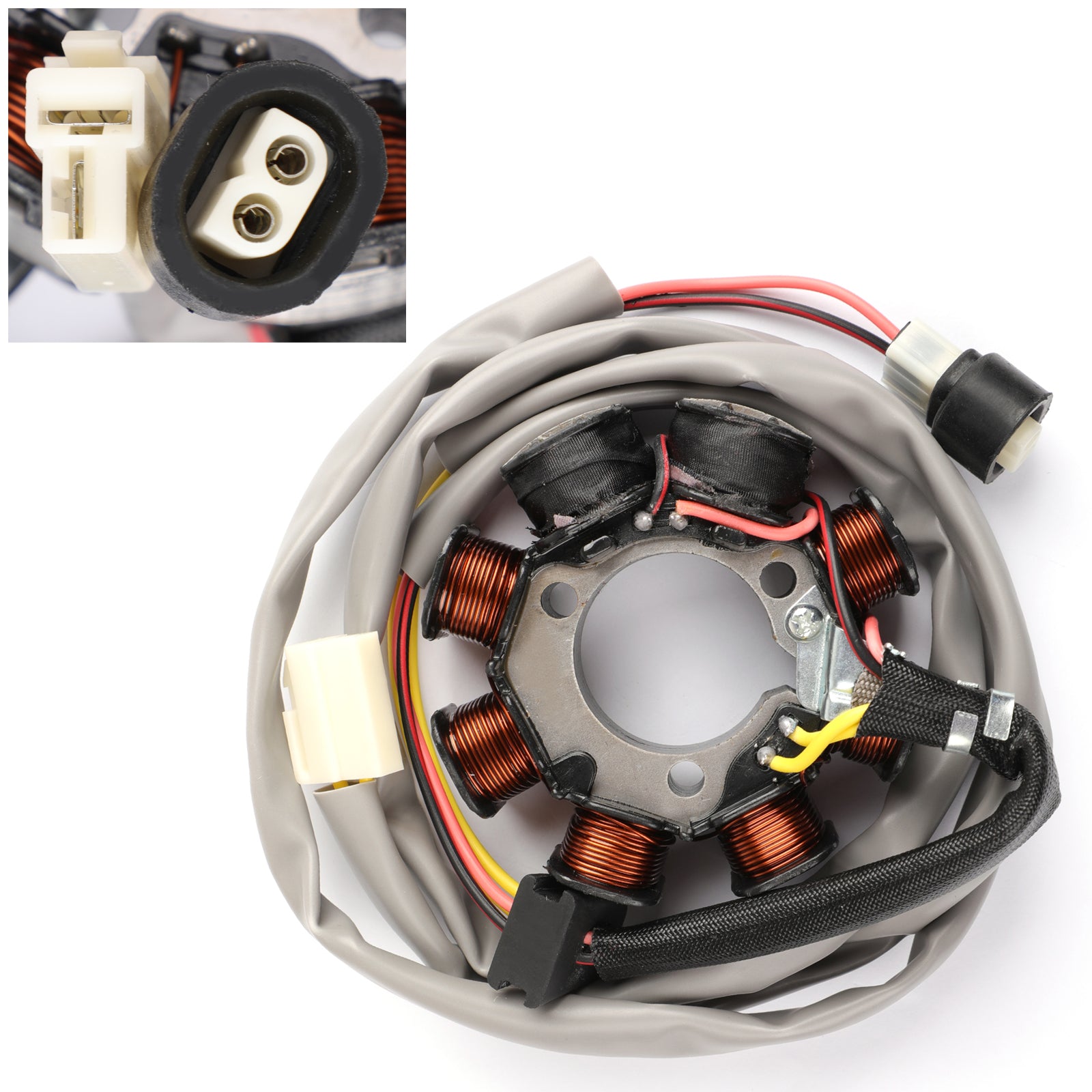

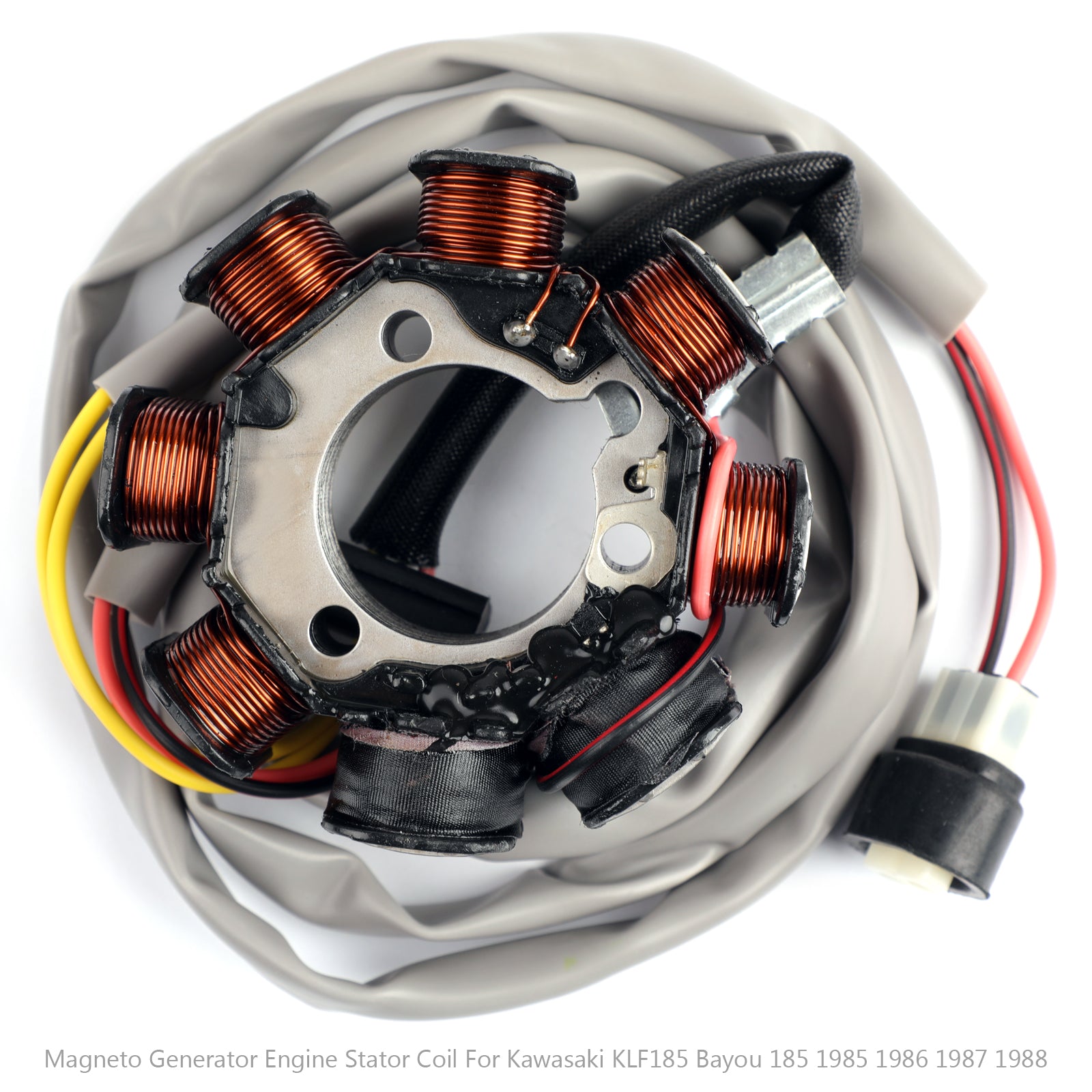

Kawasaki Magneto Generator Engine Stator Coil 21003-1135 Fit For Kawasaki KLF185 Bayou 185 1985-1988
Kawasaki Magneto Generator Engine Stator Coil 21003-1135 Fit For Kawasaki KLF185 Bayou 185 1985-1988
Kawasaki Magneto Generator Engine Stator Coil 21003-1135 Fit For Kawasaki KLF185 Bayou 185 1985-1988

Kawasaki Magneto Generator Engine Stator Coil 21003-1135 Fit For Kawasaki KLF185 Bayou 185 1985-1988

Sale price$76.89
SKU: M550-A214
Quantity:

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 x Generator Stator Coil
Type: Generator Stator Coil


Dimensions :
Interior diameter : 33 mm / 1.30in
Exterior diameter : 87 mm / 3.44in
Thickness : 21 mm / 0.83in

Kawasaki Magneto Generator Engine Stator Coil 21003-1135 Fit For Kawasaki KLF185 Bayou 185 1985-1988



Other Specifications :
Number of wires : 4
Number of pins : 4

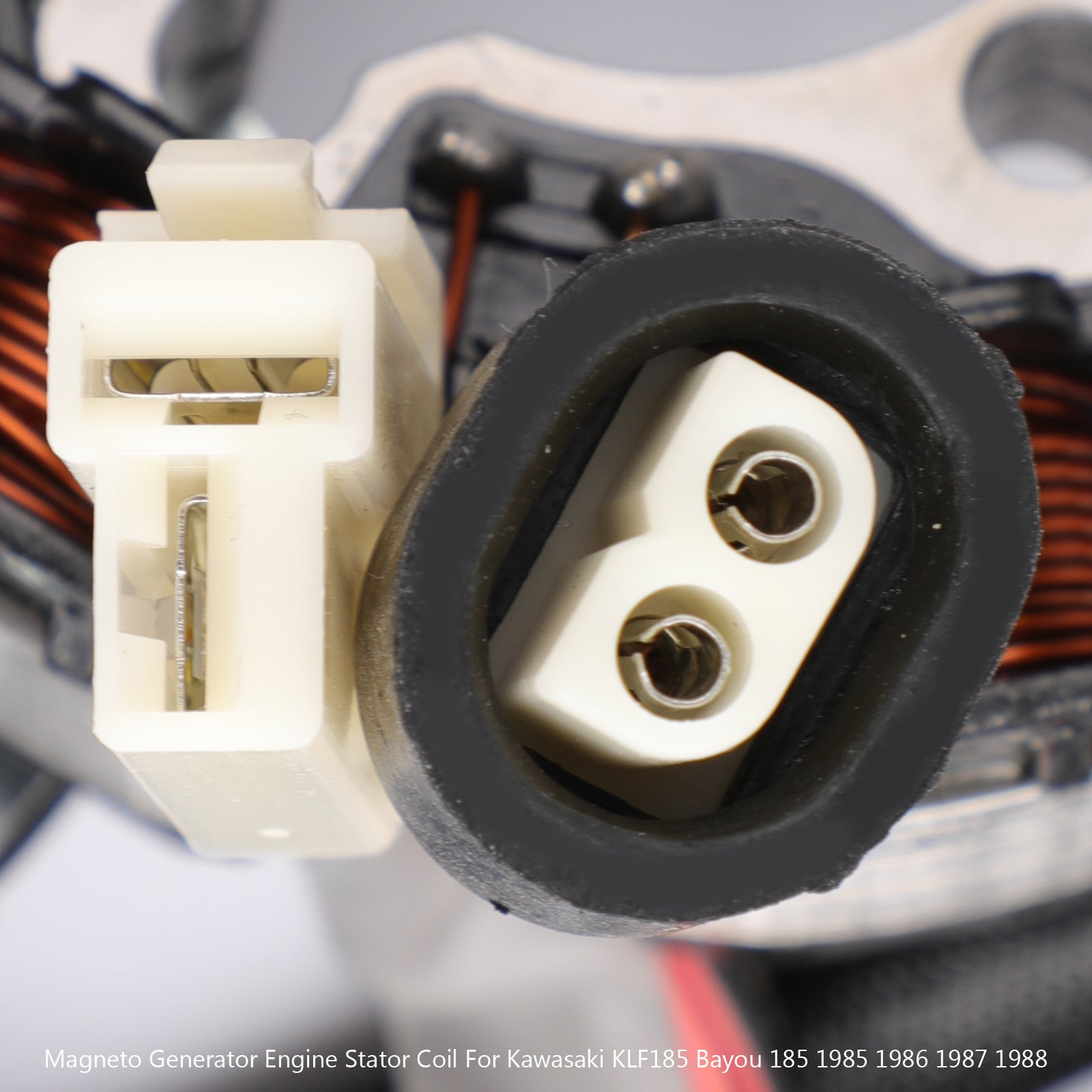

Number of plugs : 2
Number of fixation holes: 3

Replacement Part Number: 21003-1134 ; 21003-1135

Fitments: For Kawasaki KLF185 Bayou 185 1985-1988

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
