Stator Generator Fit for Yamaha YZF-R1 YZF R1 YZFR1 1998 1999 2000 2001
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

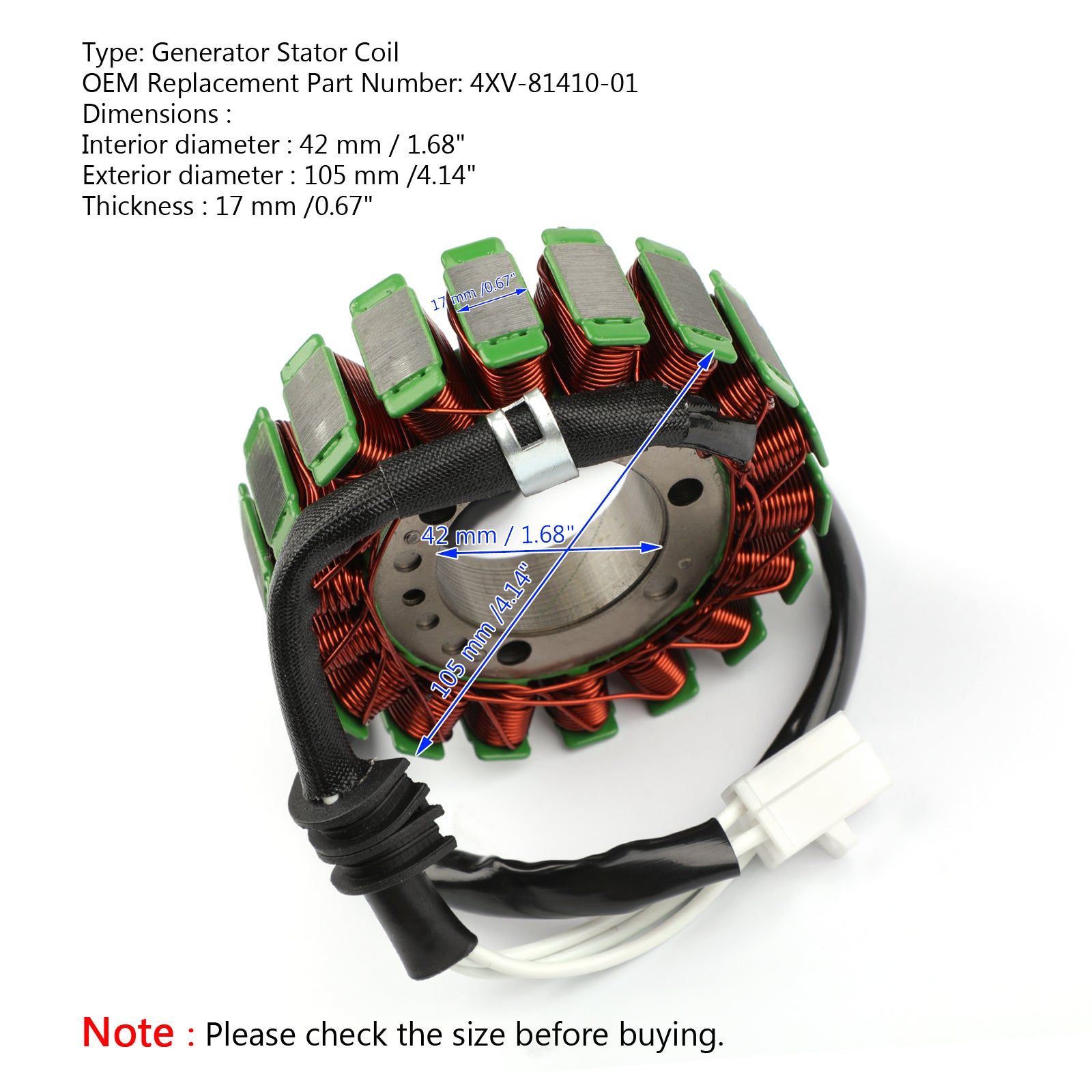

Dimensions :
Interior diameter : 42 mm / 1.68in
Exterior diameter : 105 mm / 4.14in
Thickness : 17 mm / 0.67in
Other Specifications :
Number of wires : 3

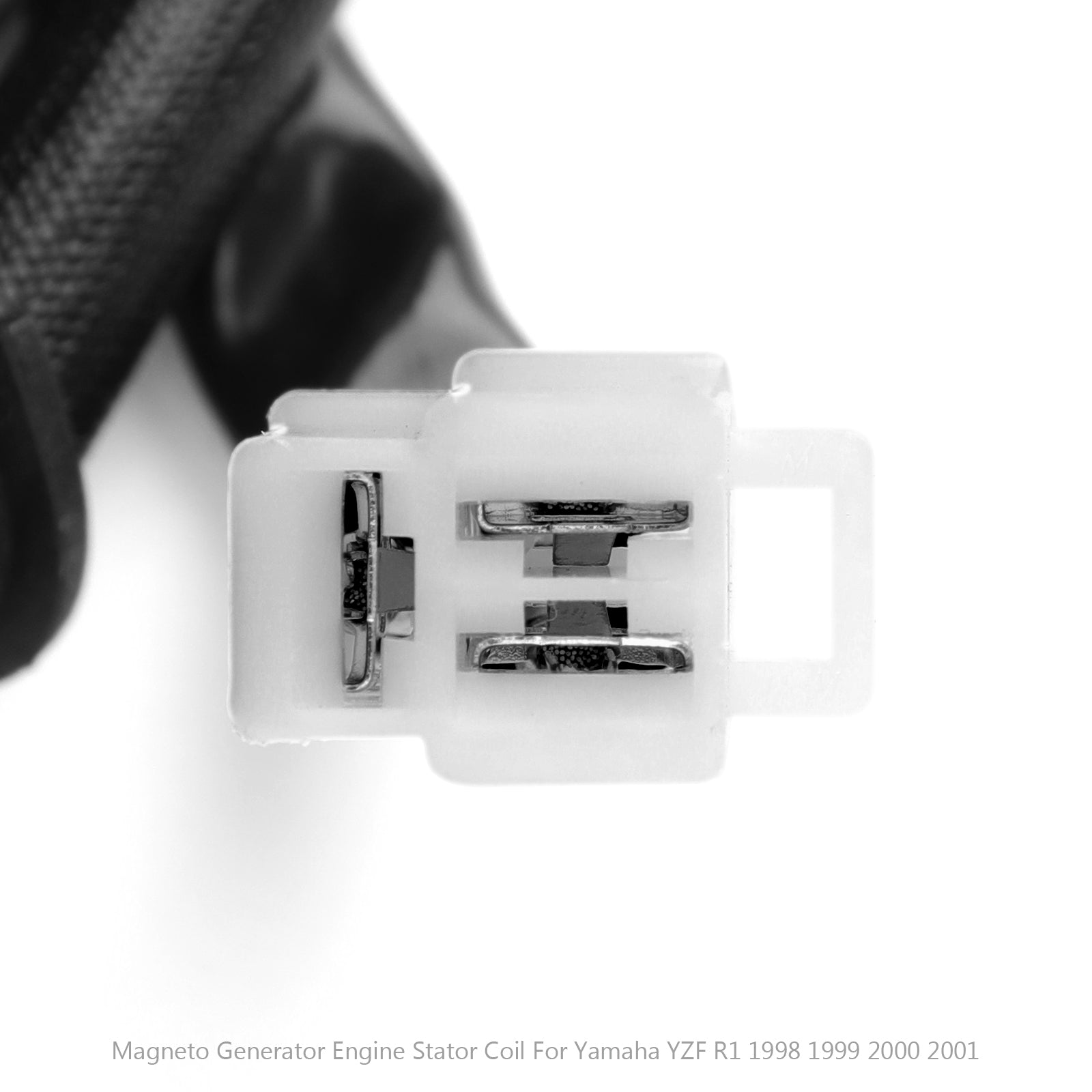

Number of plugs : 1
Number of pins : 3
Replacement Part Number:
4XV-81410-00
4XV-81410-01
Fitments:
Fit for Yamaha YZF-R1 1000 (RN01) 1998-1999
Fit for Yamaha YZF-R1 1000 (RN04) 2000-2001
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Package Includes:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
