Condition: Aftermarket 100% Brand New

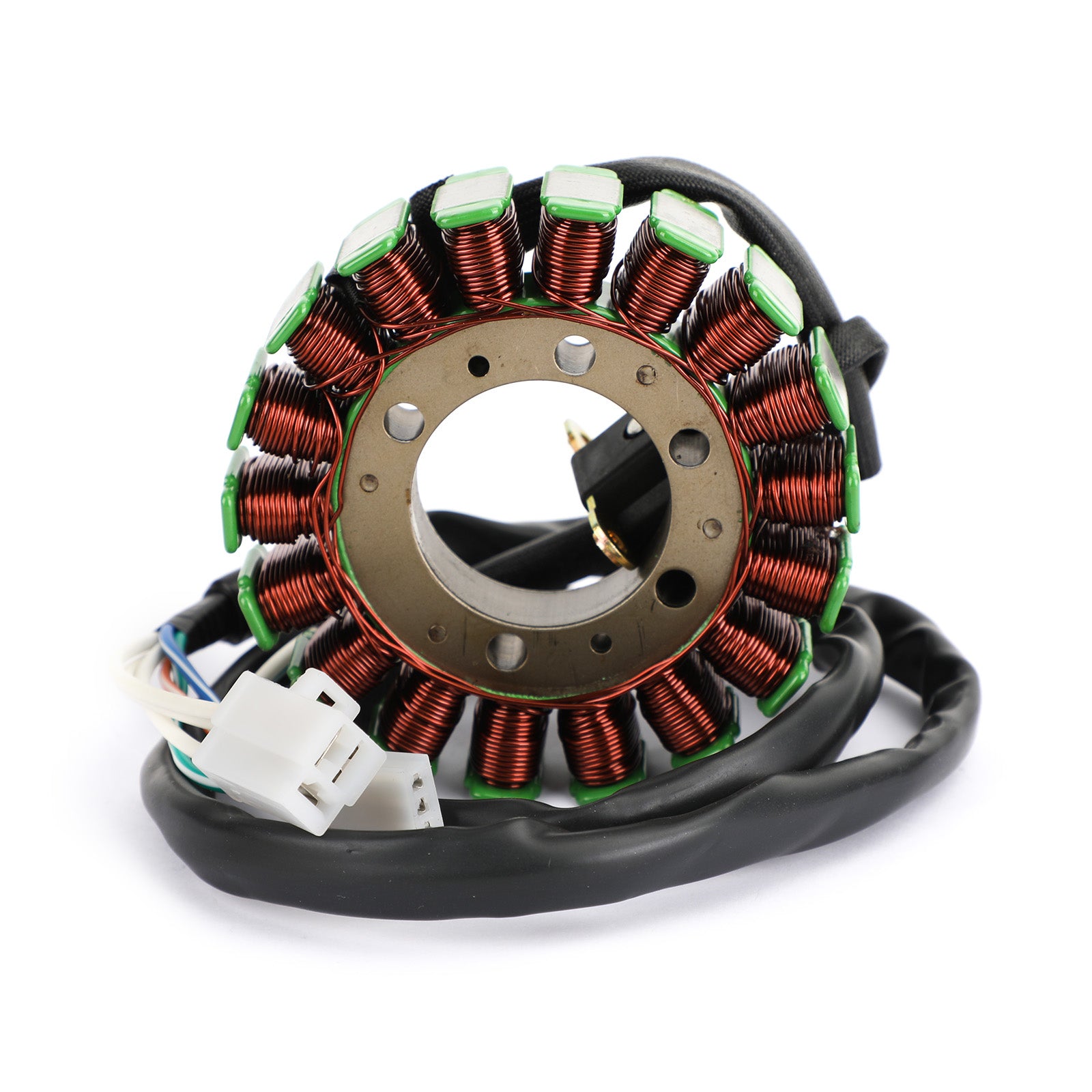

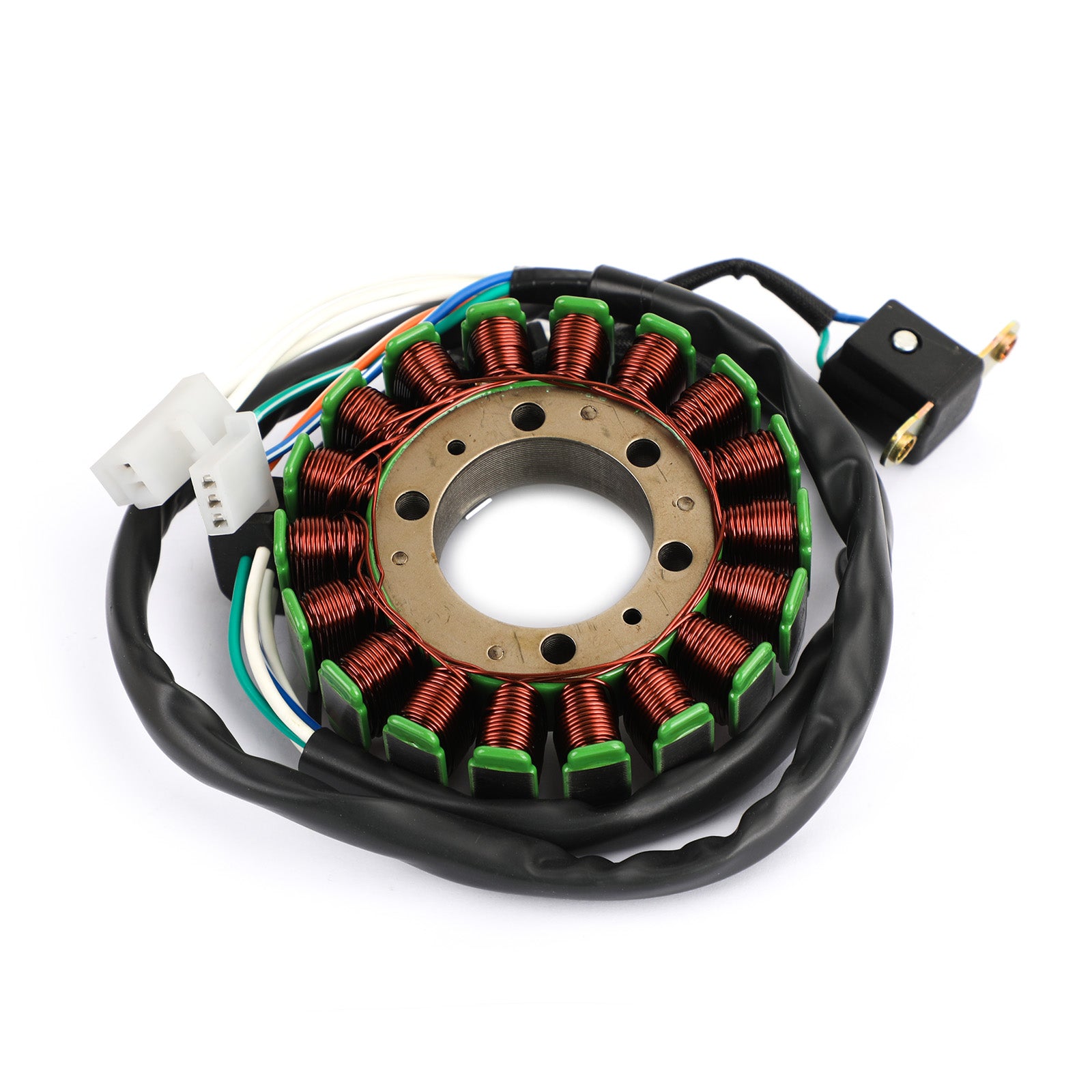

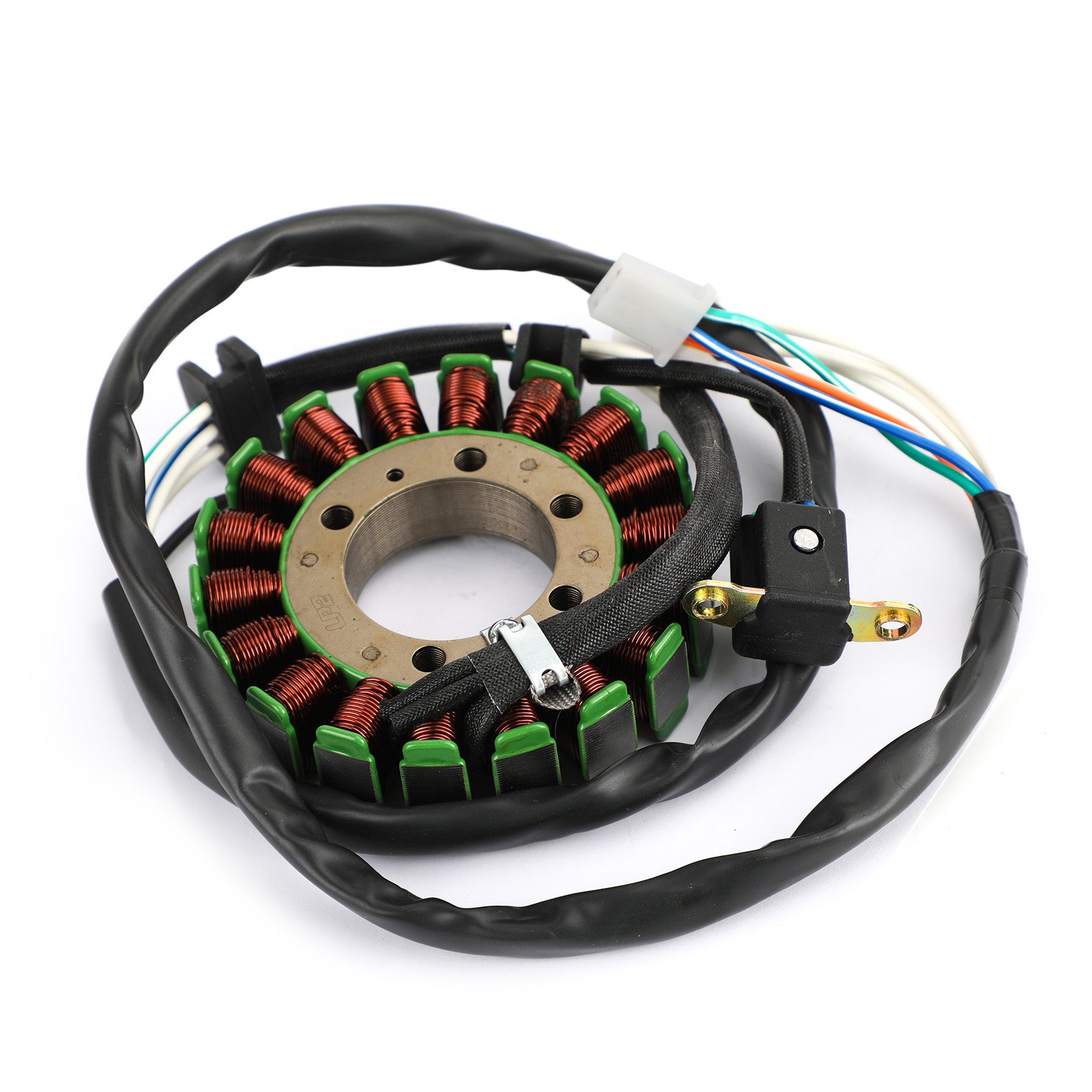

Type: Generator Stator Coil
Interior diameter : 41.8mm
Exterior diameter : 103mm
Pole's Thickness : 27mm
Pole's Width : 13mm
Other Specifications :
Number of wires: 6
Number of pins: 6(+1)
Number of plugs: 3
Number of fixation holes: 5
Number of poles: 18
REPLACEMENT PART NUMBER: 5JX-81410-00-00
Fit for Yamaha XVS125 Drag Star 2000-2004
Fit for Yamaha XVS250 Drag Star 2000-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

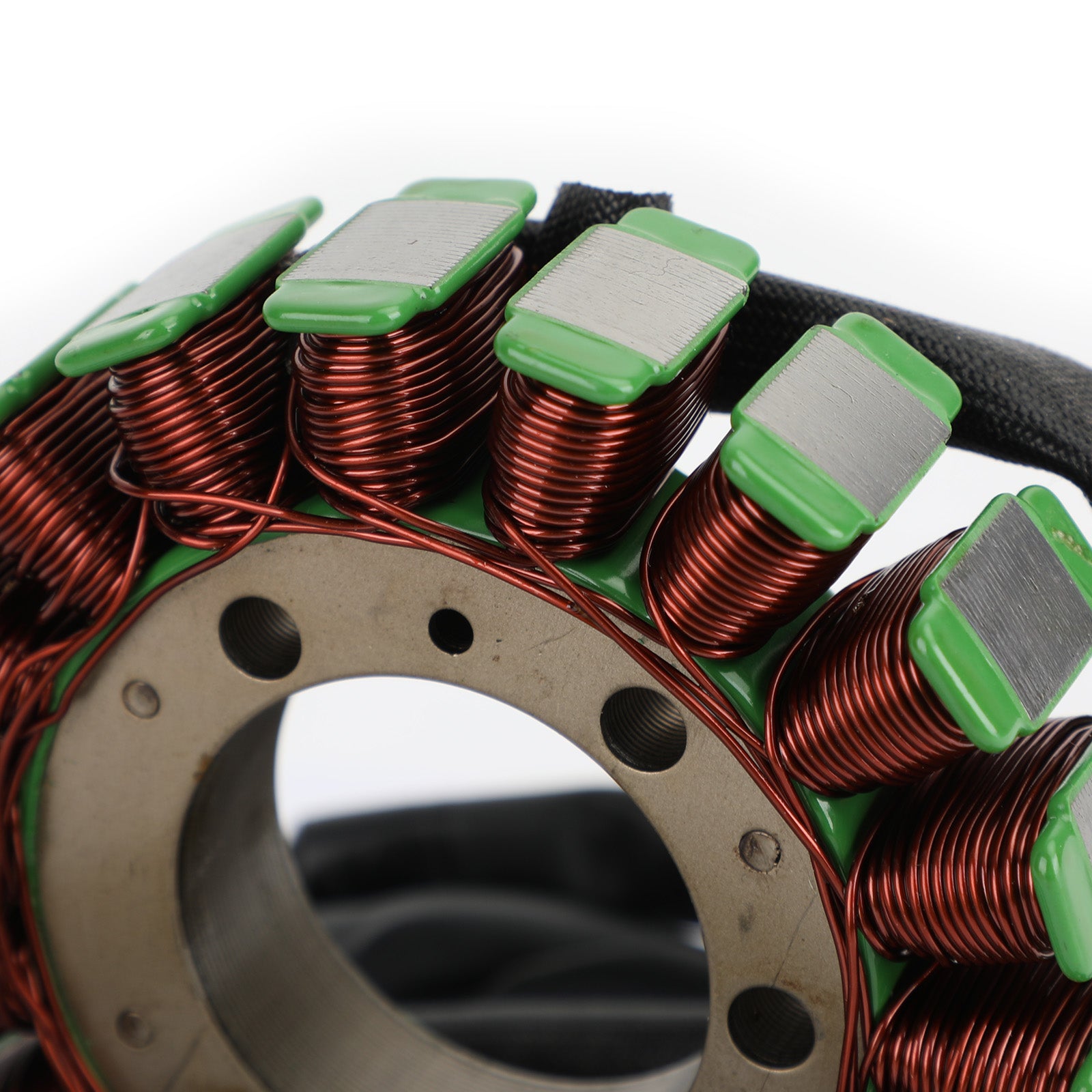

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
Package Included: 1 x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
