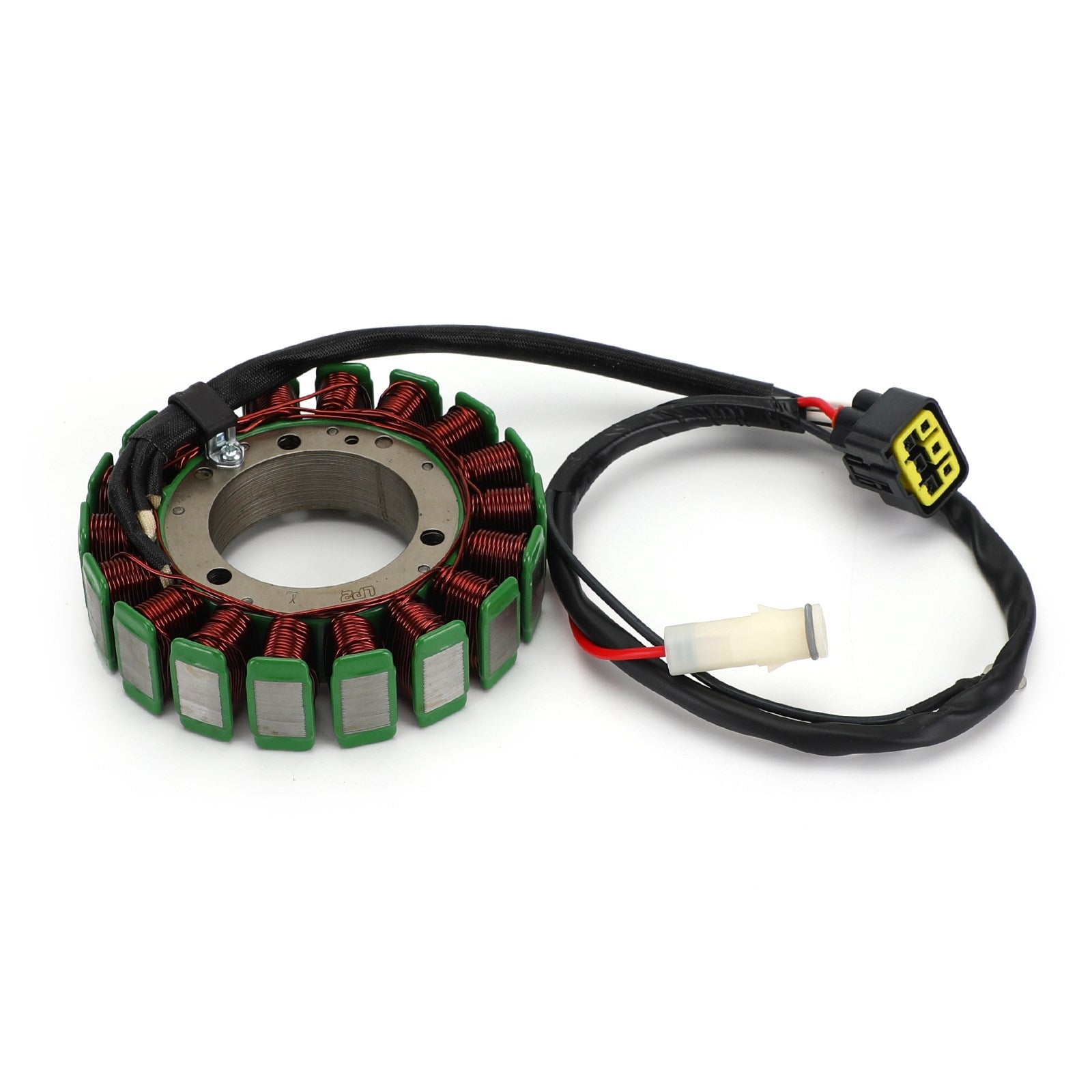

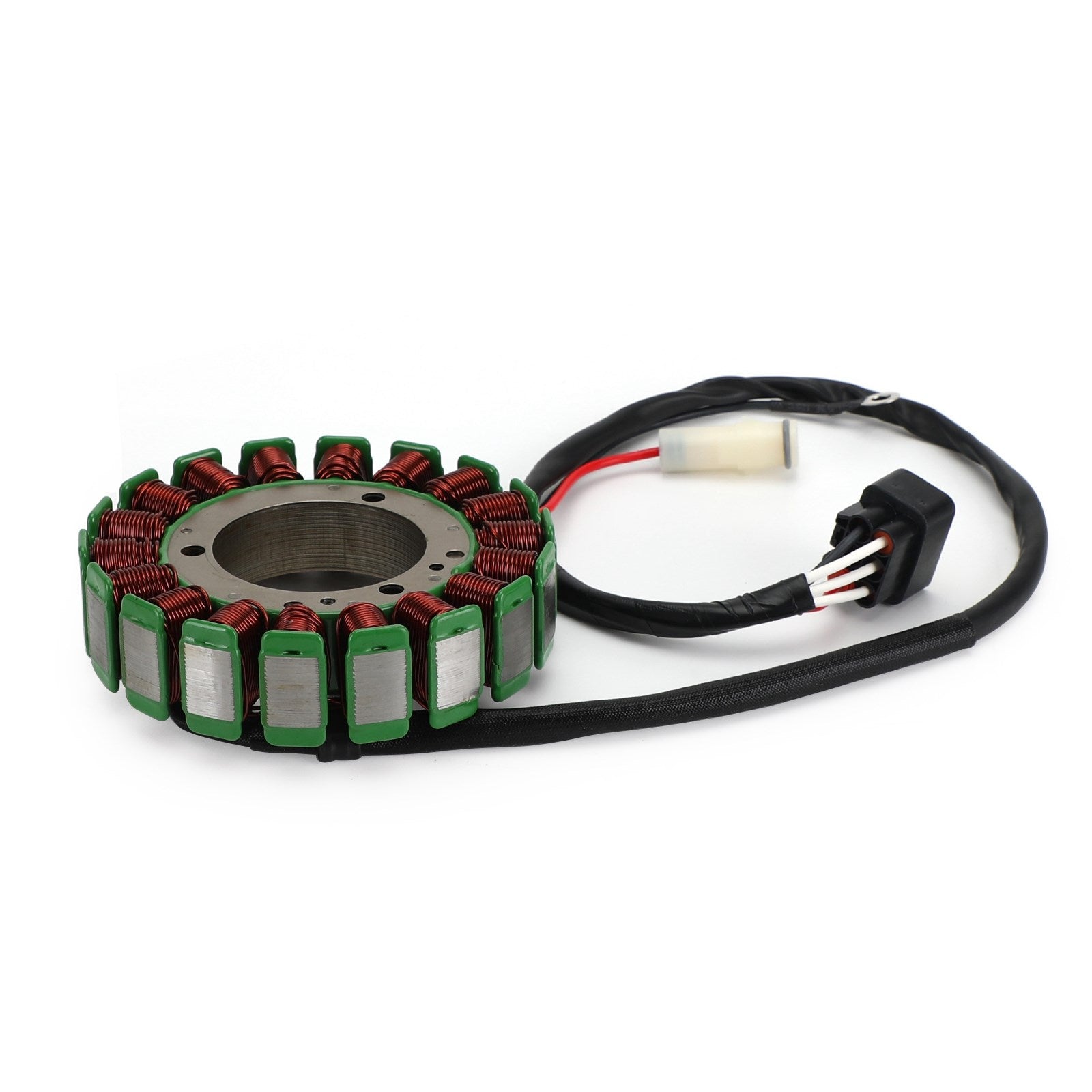

Stator Generator Fit for Yamaha Outboard 75hp 80hp 90hp 100hp 05-17 6D8-81410-00
Stator Generator Fit for Yamaha Outboard 75hp 80hp 90hp 100hp 05-17 6D8-81410-00
Stator Generator Fit for Yamaha Outboard 75hp 80hp 90hp 100hp 05-17 6D8-81410-00

Stator Generator Fit for Yamaha Outboard 75hp 80hp 90hp 100hp 05-17 6D8-81410-00

Sale price$108.89 USD
SKU: M550-A535
Quantity:

Replacement Part Number:
6D8-81410-00
Please confirm the Replacement Part Number before ordering.

Fitments:
Fit for Yamaha F75 2005-2017
Fit for Yamaha F80 2005-2017
Fit for Yamaha F90 2005-2017
Fit for Yamaha F100 2005-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

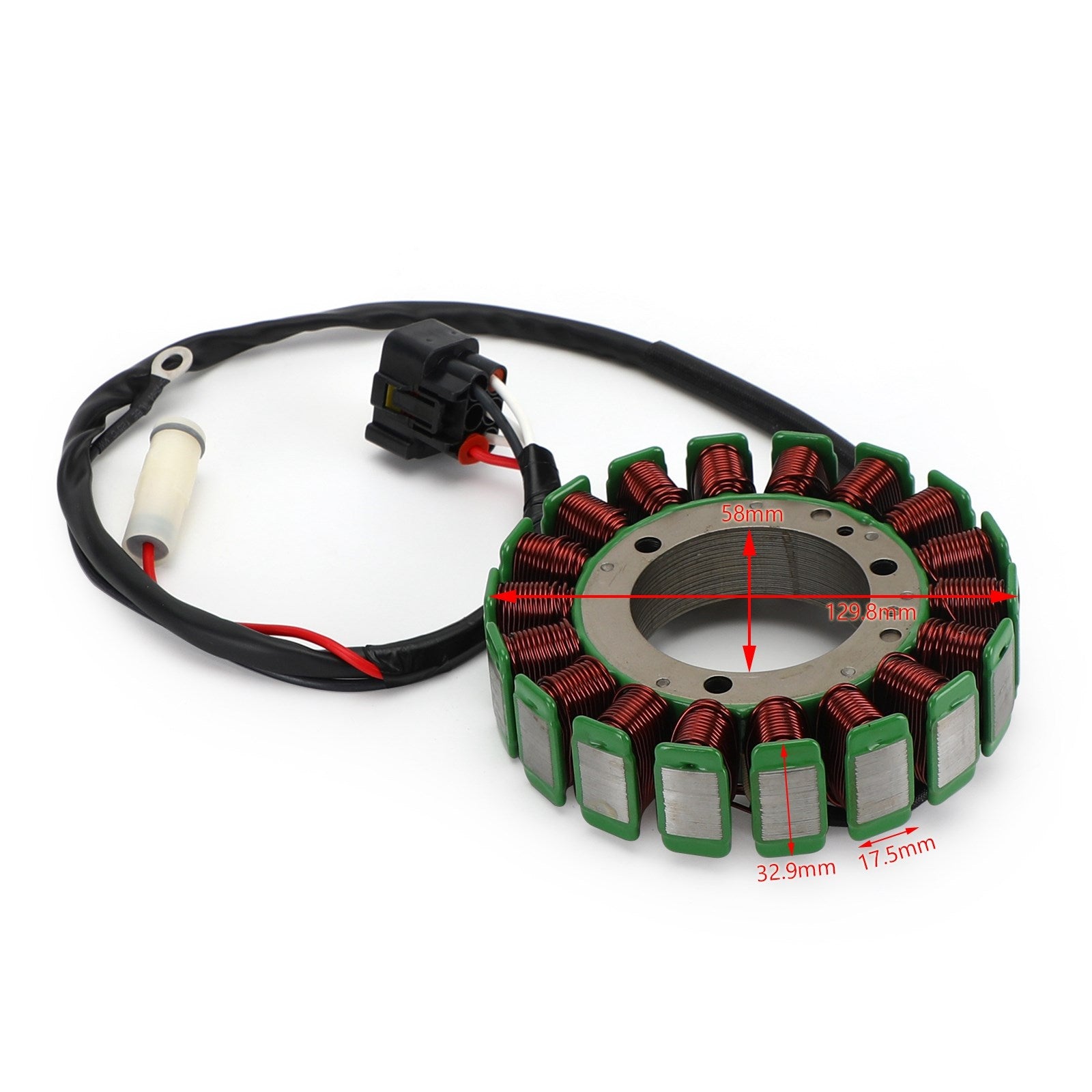

Dimensions:
Interior diameter : 58mm
Exterior diameter : 129.8mm
Pole's Thickness : 32.9mm
Pole's Width : 17.5mm

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other Specifications:
Number of wires: 5
Number of pins: 7
Number of plugs: 1�?3)
Number of fixation holes: 3(+1)
Number of poles: 18

Package Included:
1x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
