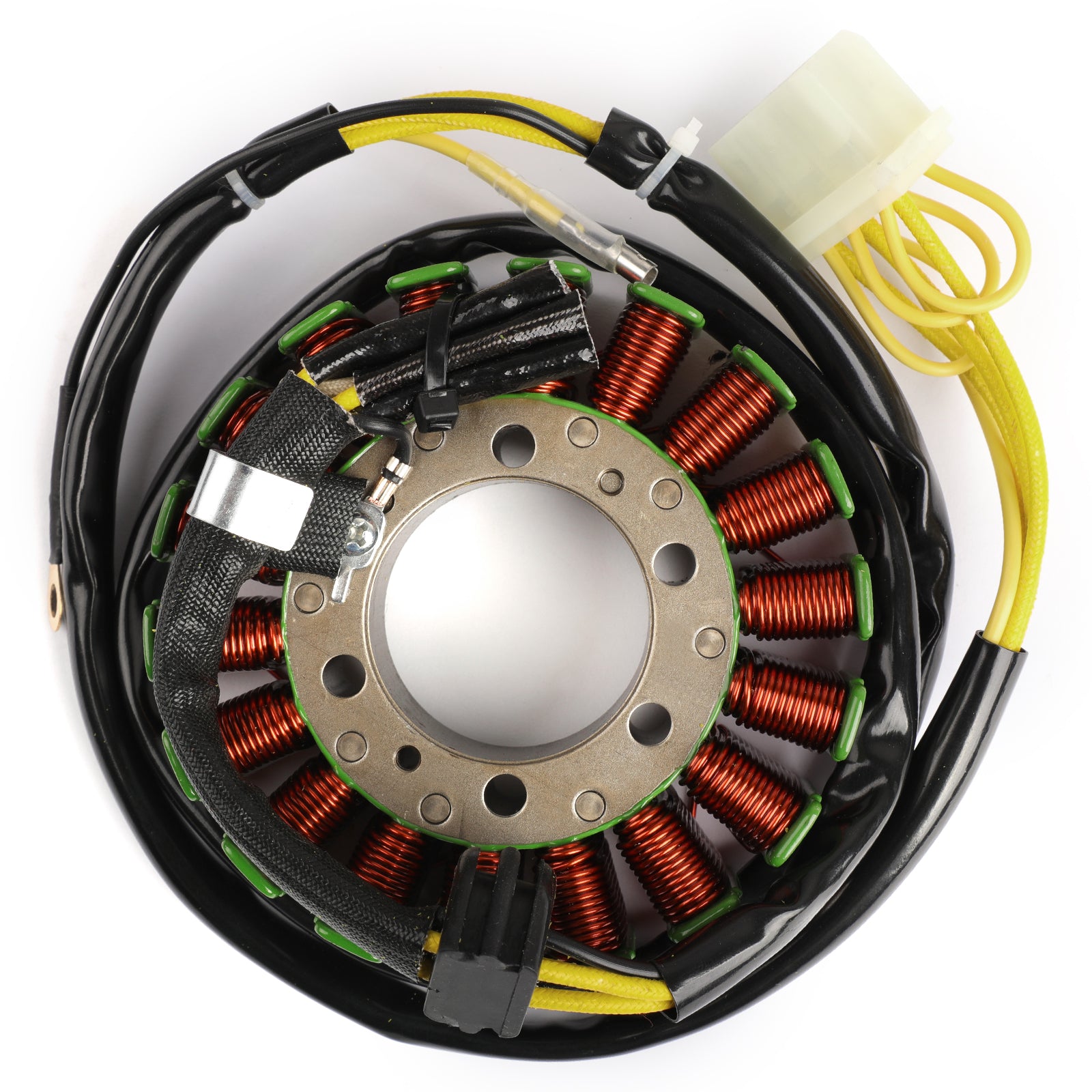

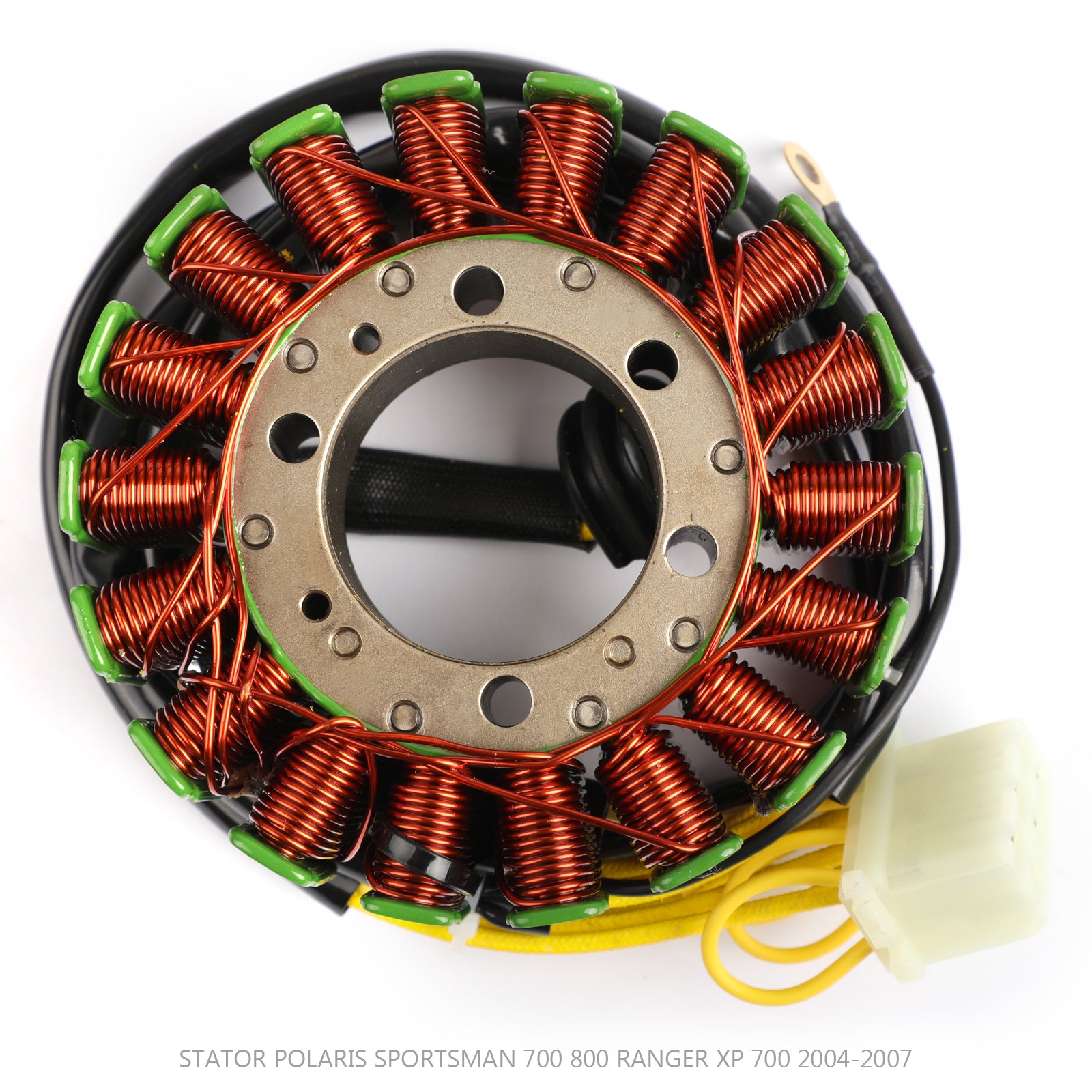

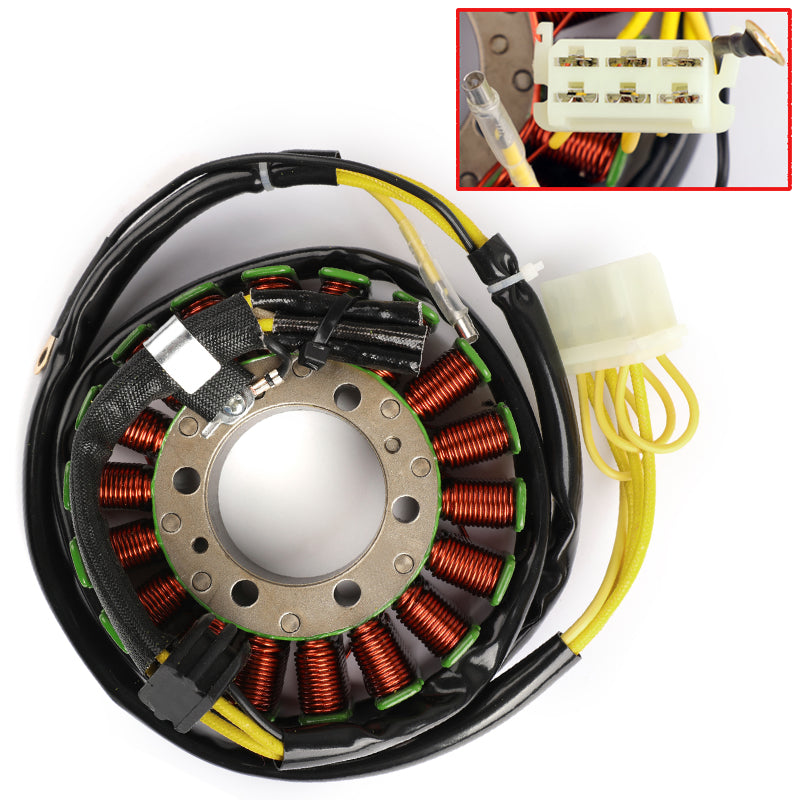

Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006
Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006
Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006
Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006
Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006

Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006

Sale price$118.78
SKU: M550-A202
Quantity:

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

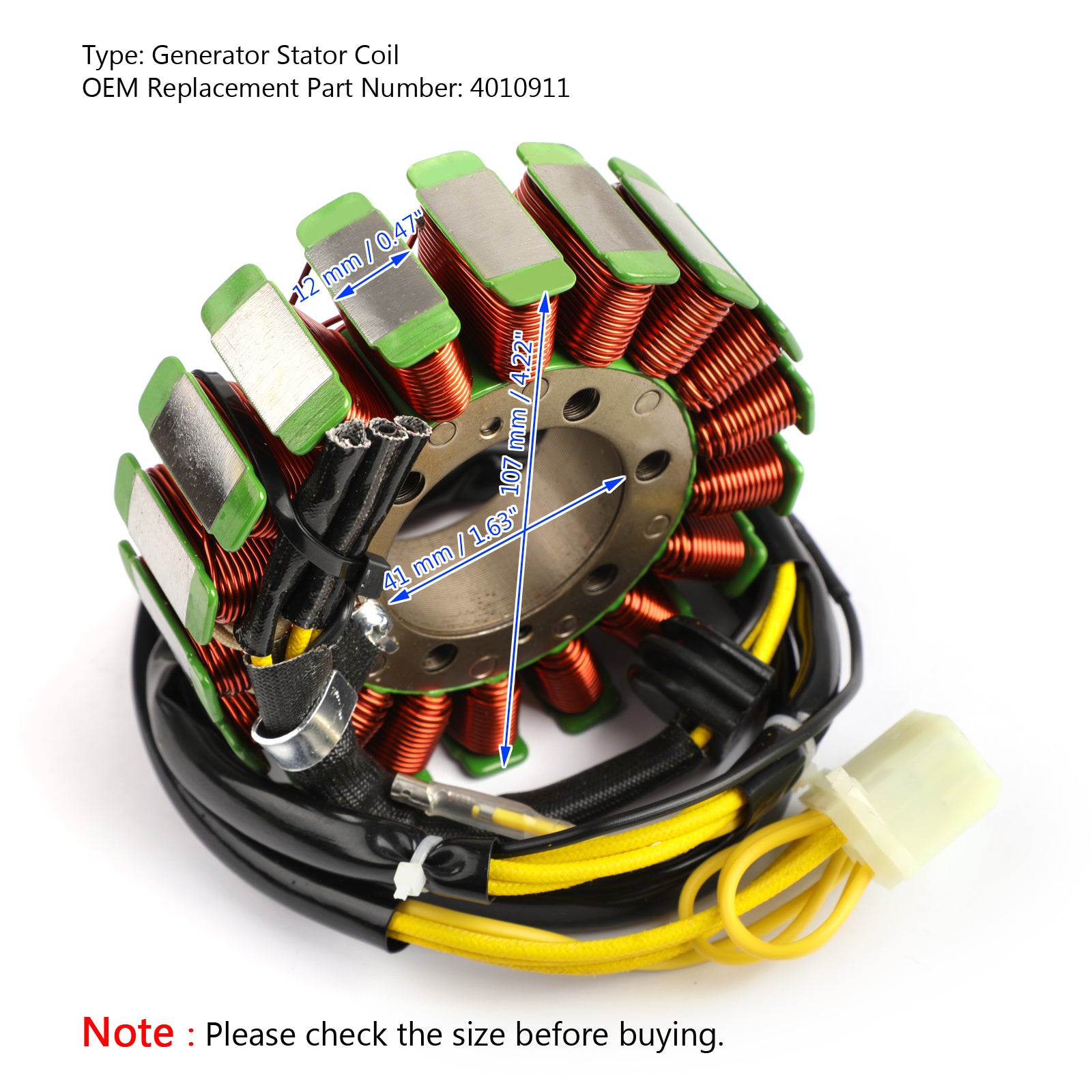

Dimensions :
Interior diameter : 41mm / 1.63in
Exterior diameter : 107mm / 4.22in
Thickness : 12mm / 0.47in

Stator Generator Fit for Polaris Sportsman 700 800 Ranger 700 XP 2004-2006 via fedex



Other Specifications :
Number of wires : 4
Number of pins : 8
Number of plugs : 3
Number of fixation holes: 5

Replacement Part Number:
4010911

Fitments:
Fit for Polaris Sportsman 800 2005-2006
Fit for Polaris Sportsman 700 EFI 2004-2006
Fit for Polaris Ranger 700 XP 2005
Fit for Polaris Sportsman 800 INTL 2007
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.

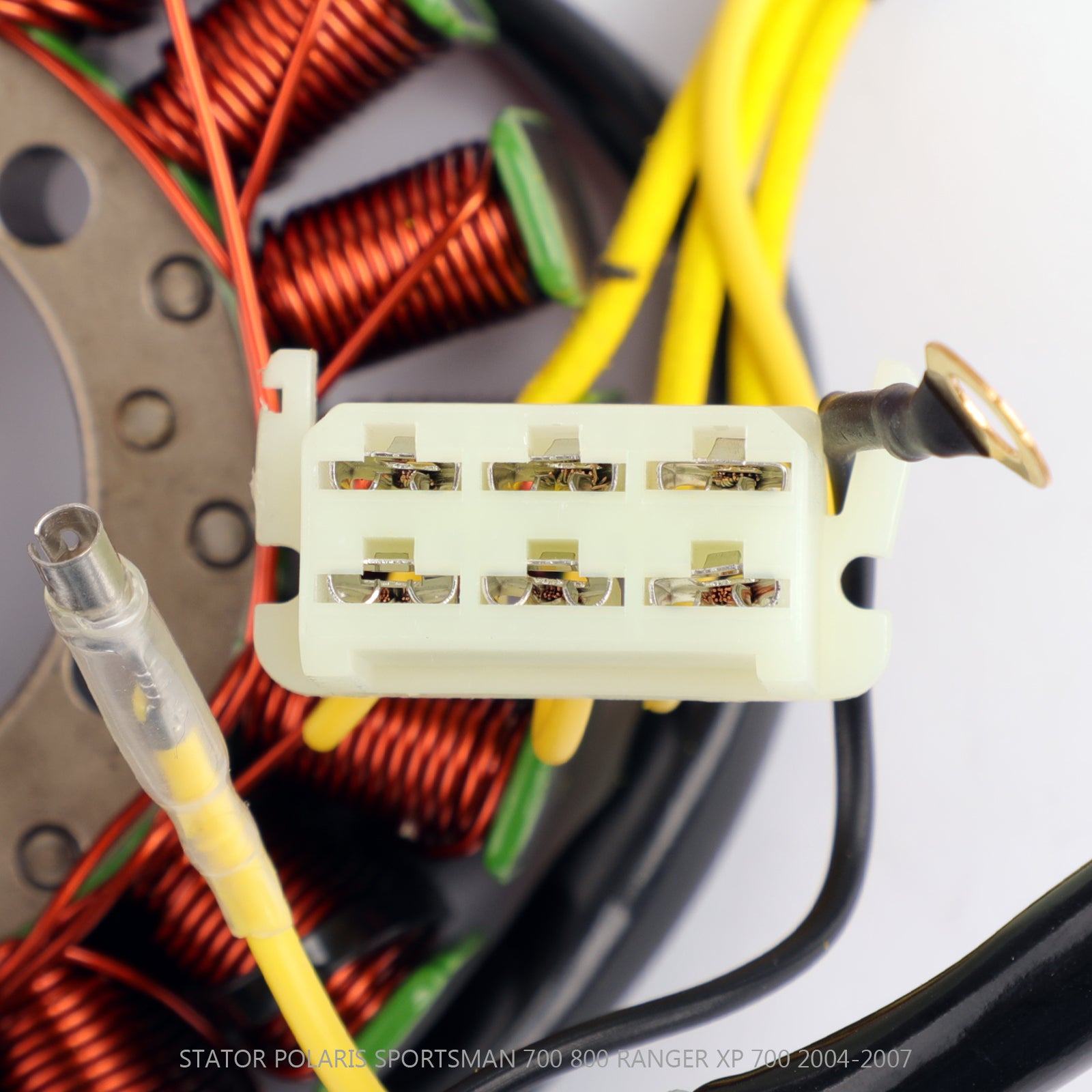

Connector included.
All products shipped are tested.

Package Includes:
1x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
