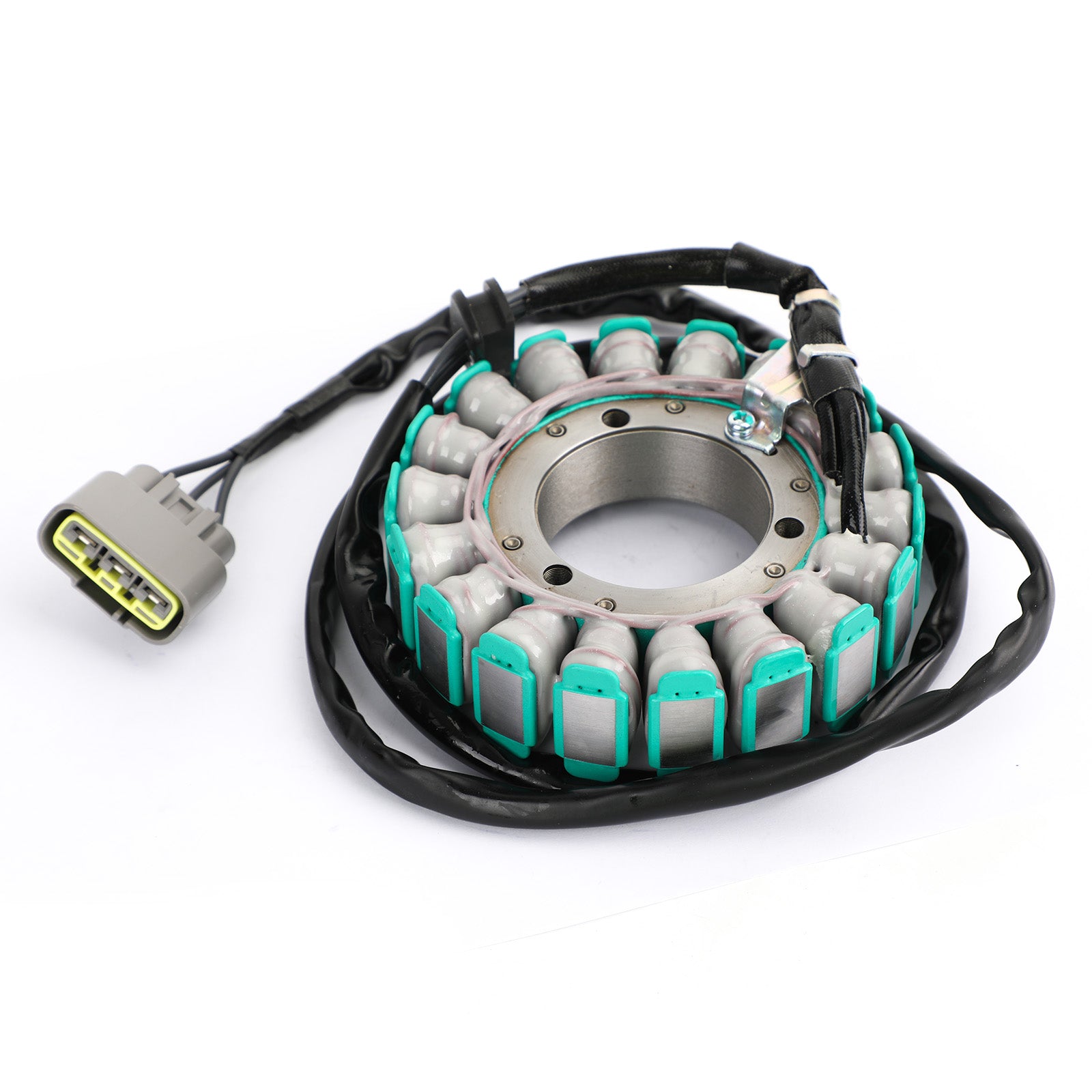

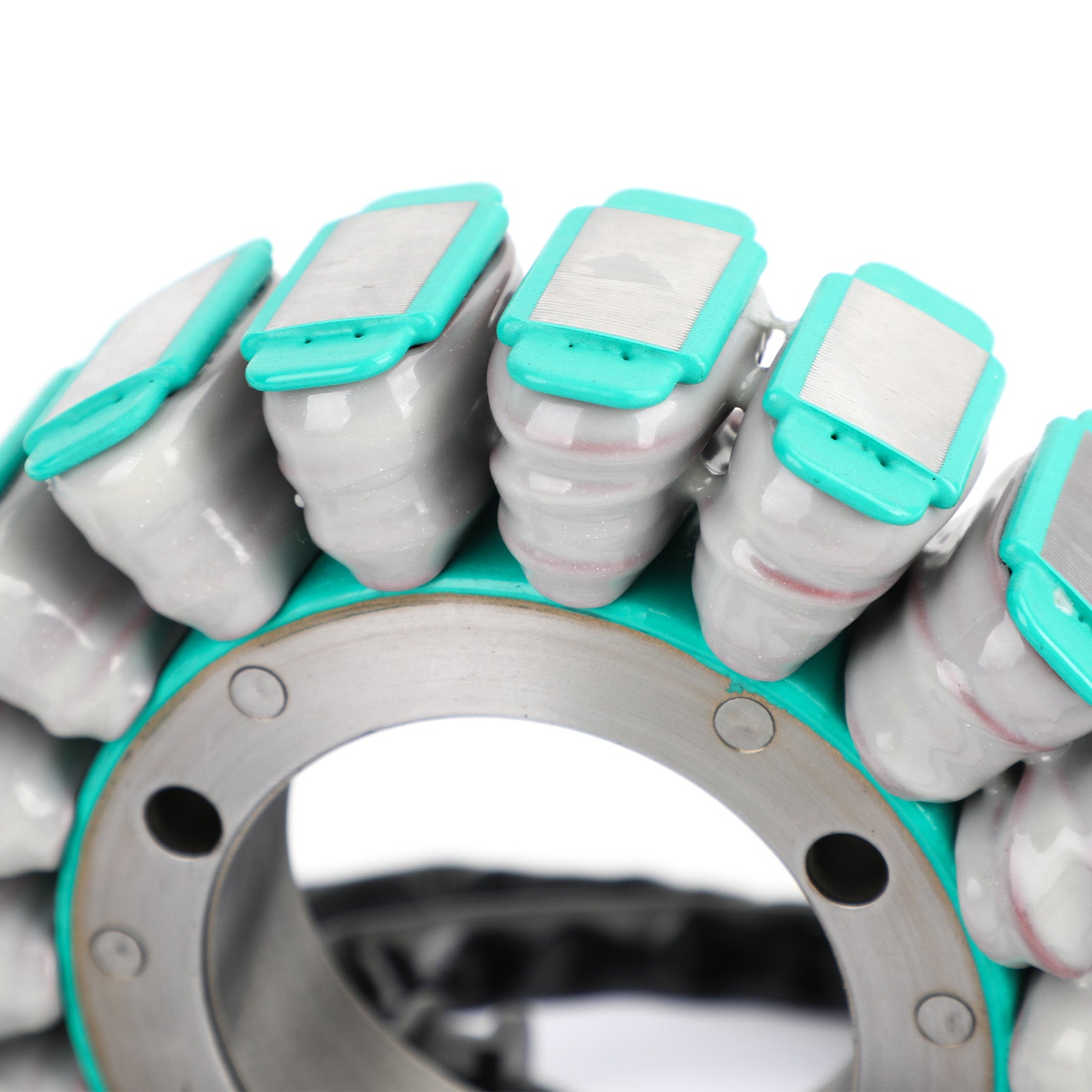

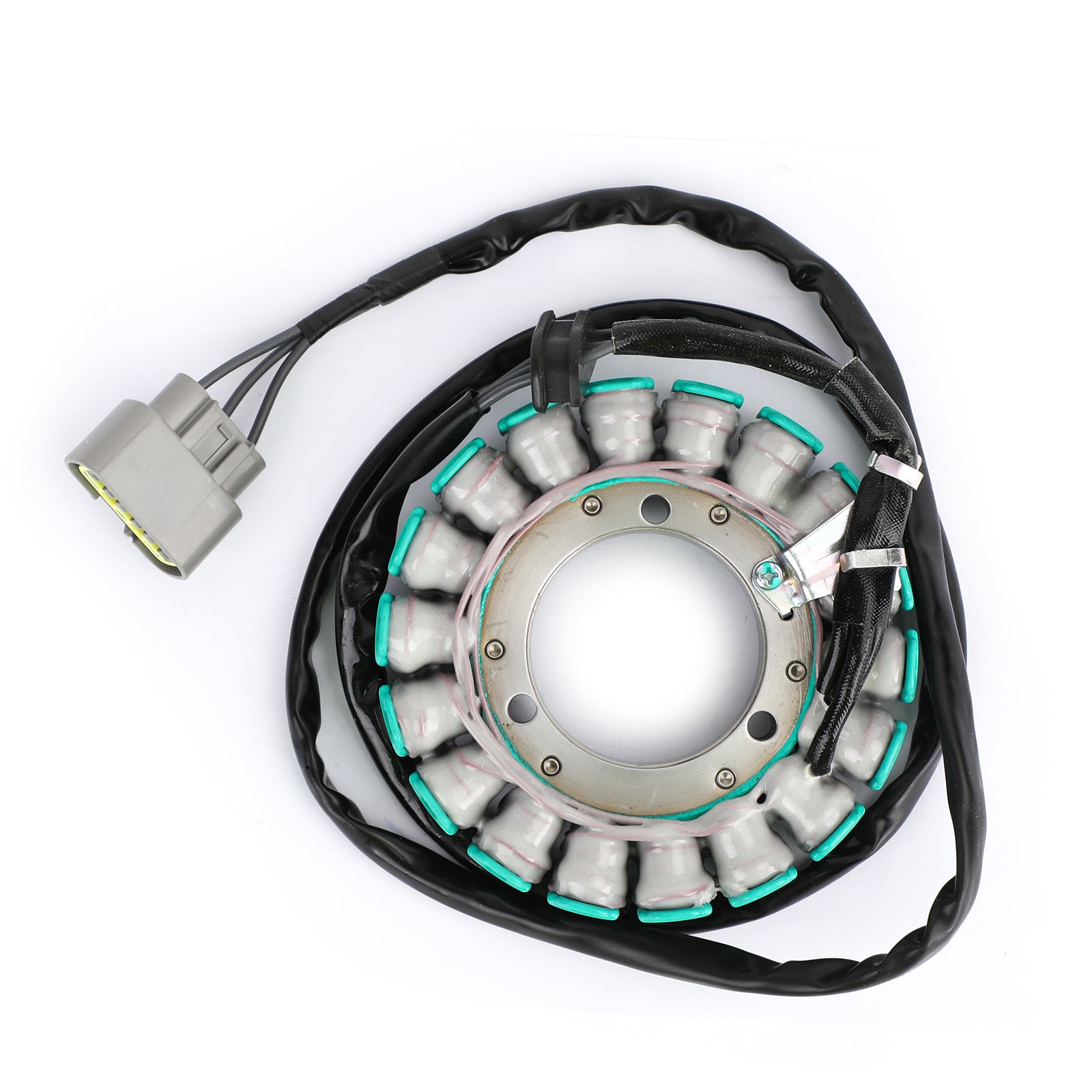

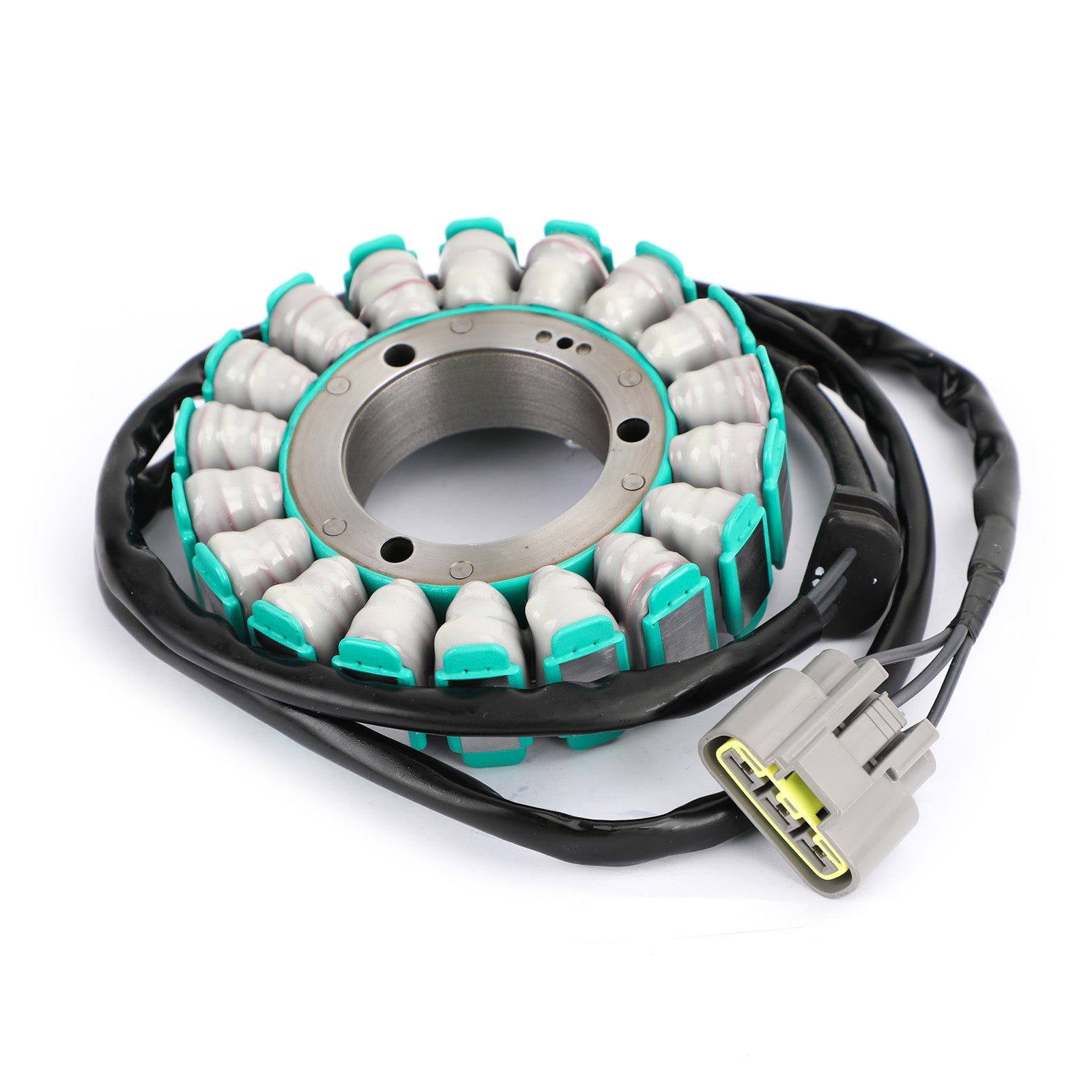

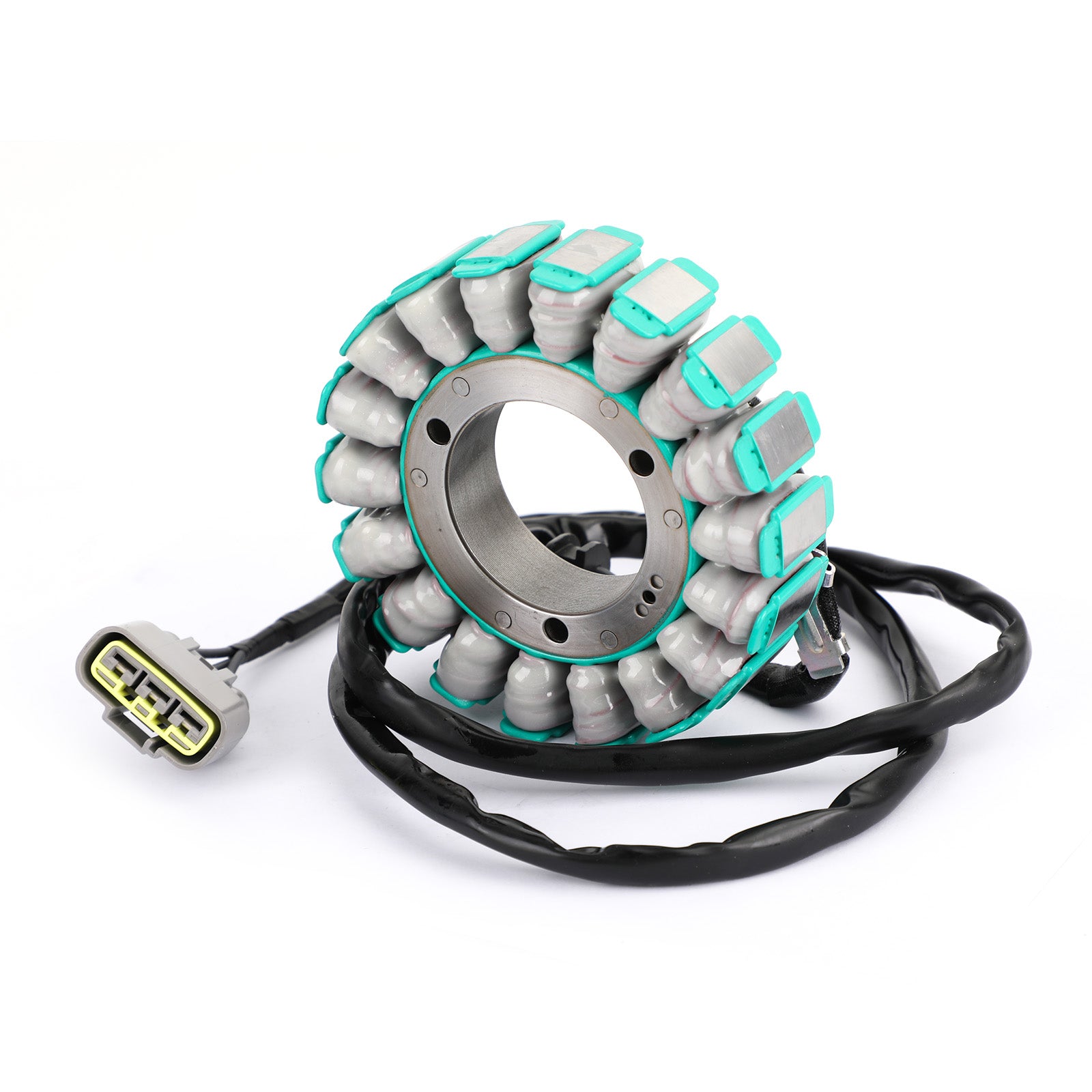

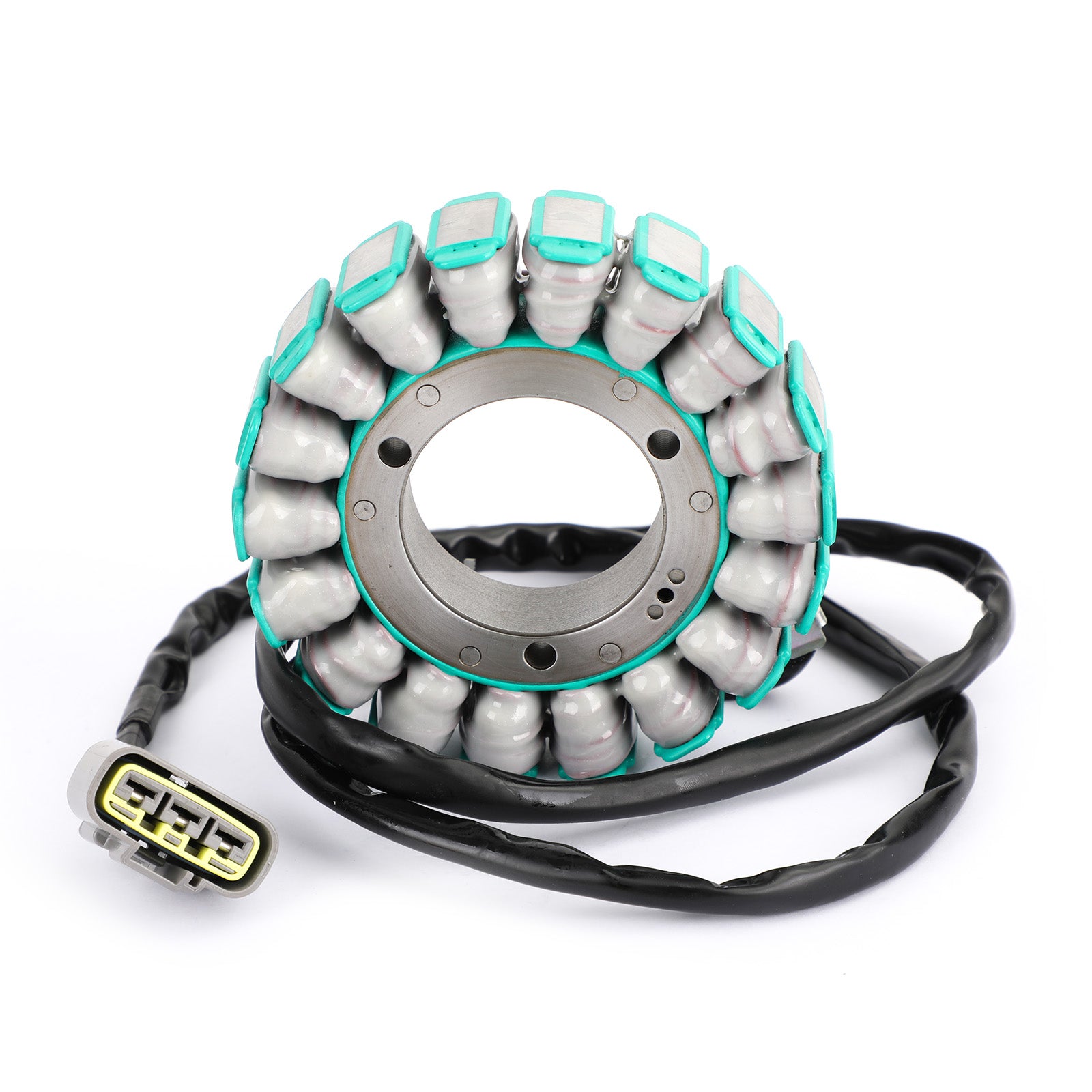

Magneto Generator Engine Stator Coil Fit For BMW F 750 850 GS 16-20 / F 850 Adventure 17-20 / F 900 R, XR 18-19
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

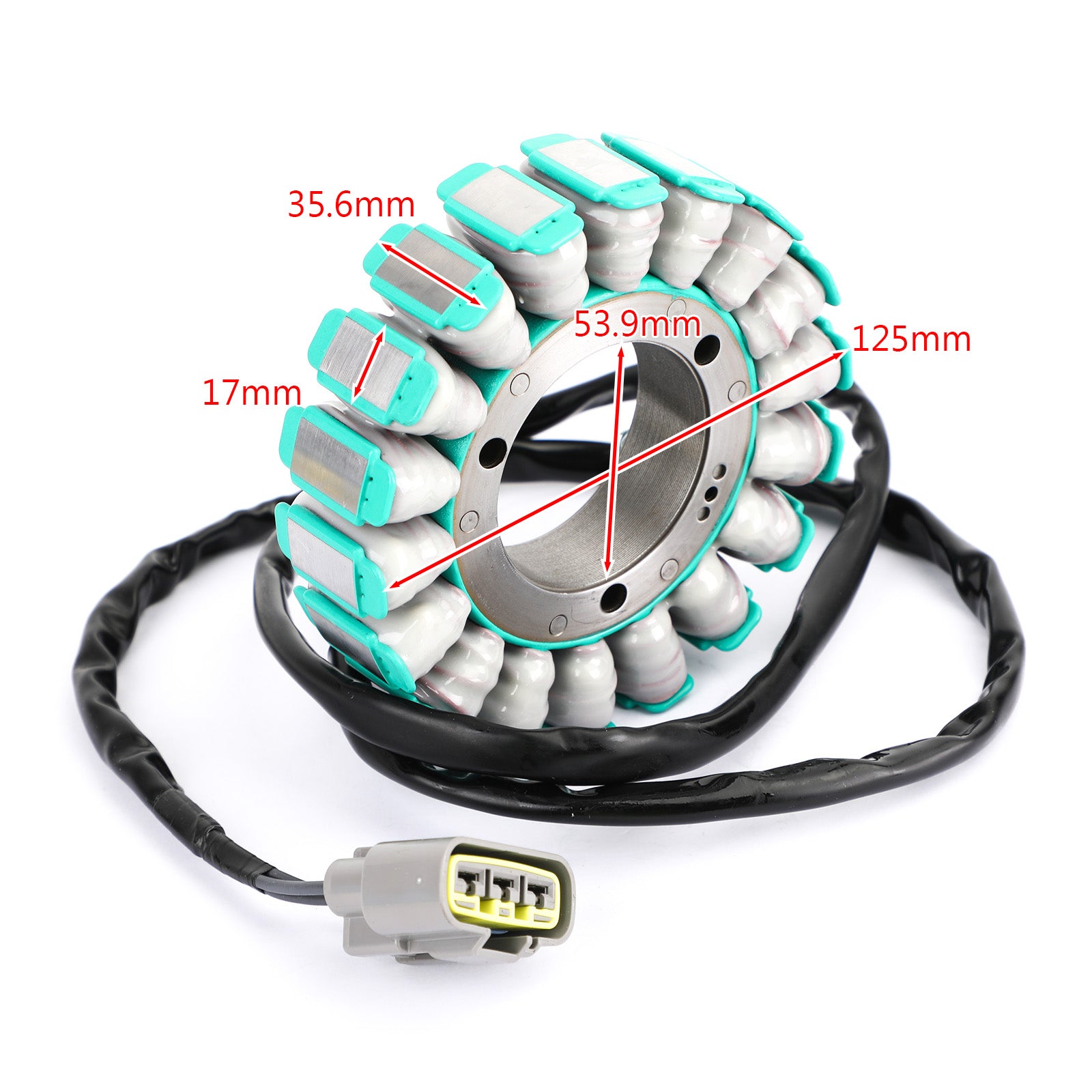

Dimensions :
Interior diameter : 53.9mm
Exterior diameter : 125mm
Pole's Thickness : 35.6mm
Pole's Width : 17mm
![Magneto Generator Engine Stator Coil Fit For BMW F 750 850 GS 16-20 / F 850 Adventure 17-20 / F 900 R, XR 18-19](https://cdn.shopify.com/s/files/1/0524/8273/6299/files/M550-A505-2.jpg?v=1658540729)
Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 18
REPLACEMENT PART NUMBER: 12317722639
Fitments:
Fit for BMW F750GS K80 2016-2020
Fit for BMW F850GS K81 2016-2019
Fit for BMW F850 Adv K82 2017-2020
Fit for BMW F900R K83 2018-2019
Fit for BMW F900XR K84 2018-2019
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.
Package Included:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
