Condition: Aftermarket 100% Brand New

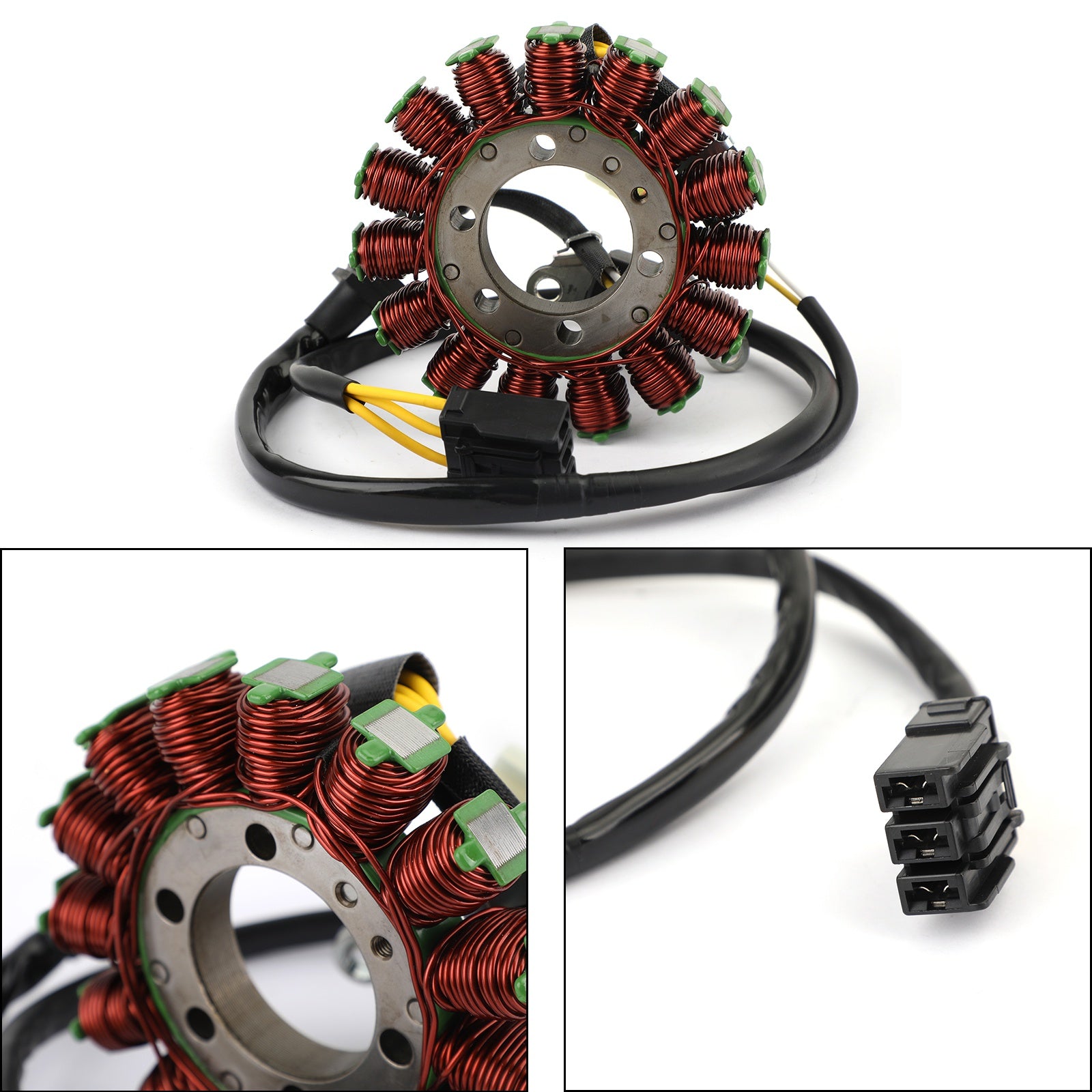

Type: Generator Stator Coil

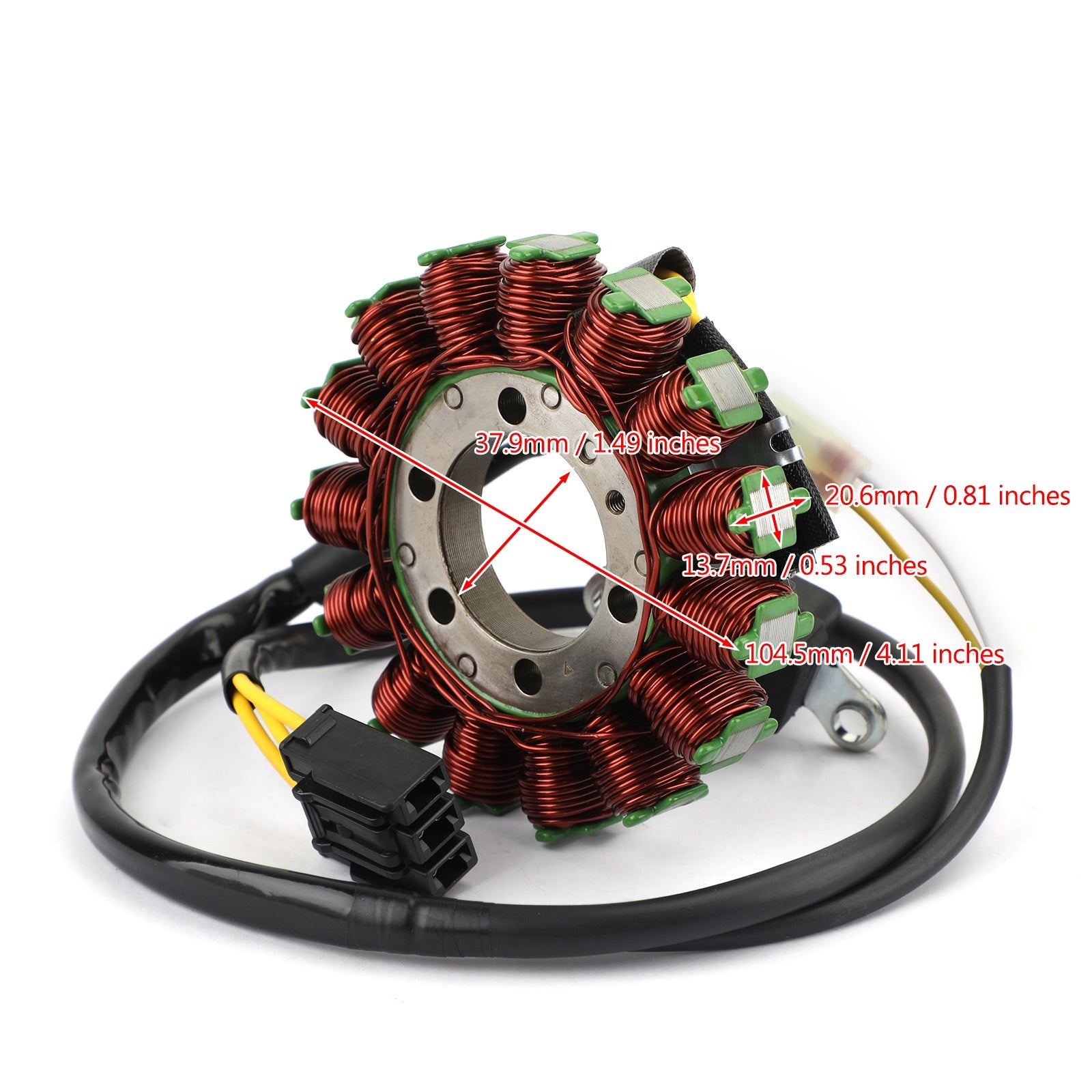

Interior diameter : 37.9mm / 1.49 inches
Exterior diameter : 104.5mm / 4.11 inches
Pole's Thickness : 20.6mm / 0.81 inches
Pole's Width : 13.7mm / 0.53 inches
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5
Number of poles: 15
Fit for Honda CBR1000RR Fireblade CBR1000RR8 2008
Fit for Honda CBR1000RR Fireblade CBR1000RR9 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
