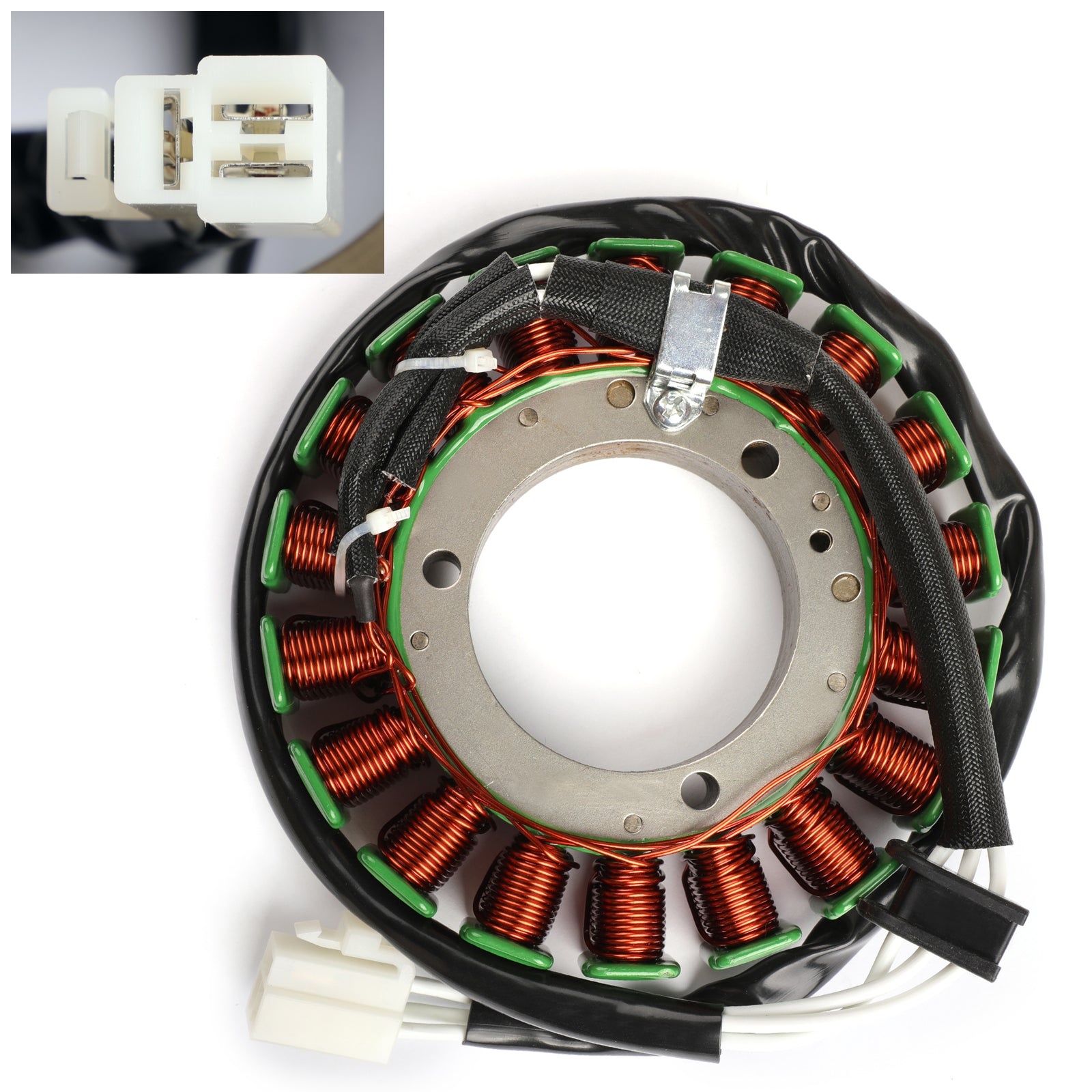

Stator Fit for Yamaha Royal Star 1300 4XY-81410-00 4XY-81410-02 4NK-81410-00

Stator Fit for Yamaha Royal Star 1300 4XY-81410-00 4XY-81410-02 4NK-81410-00

$107.78
SKU: M550-A195
Quantity:

Replacement Part Number:
4XY-81410-00
4XY-81410-02
4NK-81410-00
Please confirm the Replacement Part Number before ordering.

Stator Fit for Yamaha Royal Star 1300 4XY-81410-00 4XY-81410-02 4NK-81410-00



Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 57mm / 2.23in
Exterior diameter : 130mm / 5.13in
Thickness : 13mm / 0.51in

Other Specifications:
Number of wires : 3
Number of pins : 3
Number of plug : 1
Number of fixation holes: 3

Fitments:
Fit for Yamaha XVZ1300A (Royal Star) 1996-2001
Fit for Yamaha XVZ1300AT (Royal Star Tour Classic) 1996-2000
Fit for Yamaha XVZ1300CT (Royal Star Midnight Tour Deluxe/ Royal Star Tour Deluxe S) 2006-2009
Fit for Yamaha XVZ1300LT/ CT (Royal Star Tour Deluxe) 1997-2001/2005-2009
Fit for Yamaha XVZ1300TF (Royal Star Midnight Venture/ Royal Star Venture S) 2000/2002-2013
Fit for Yamaha XVZ1300TF (Royal Star Venture) 1999-2010
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Includes:
1x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
