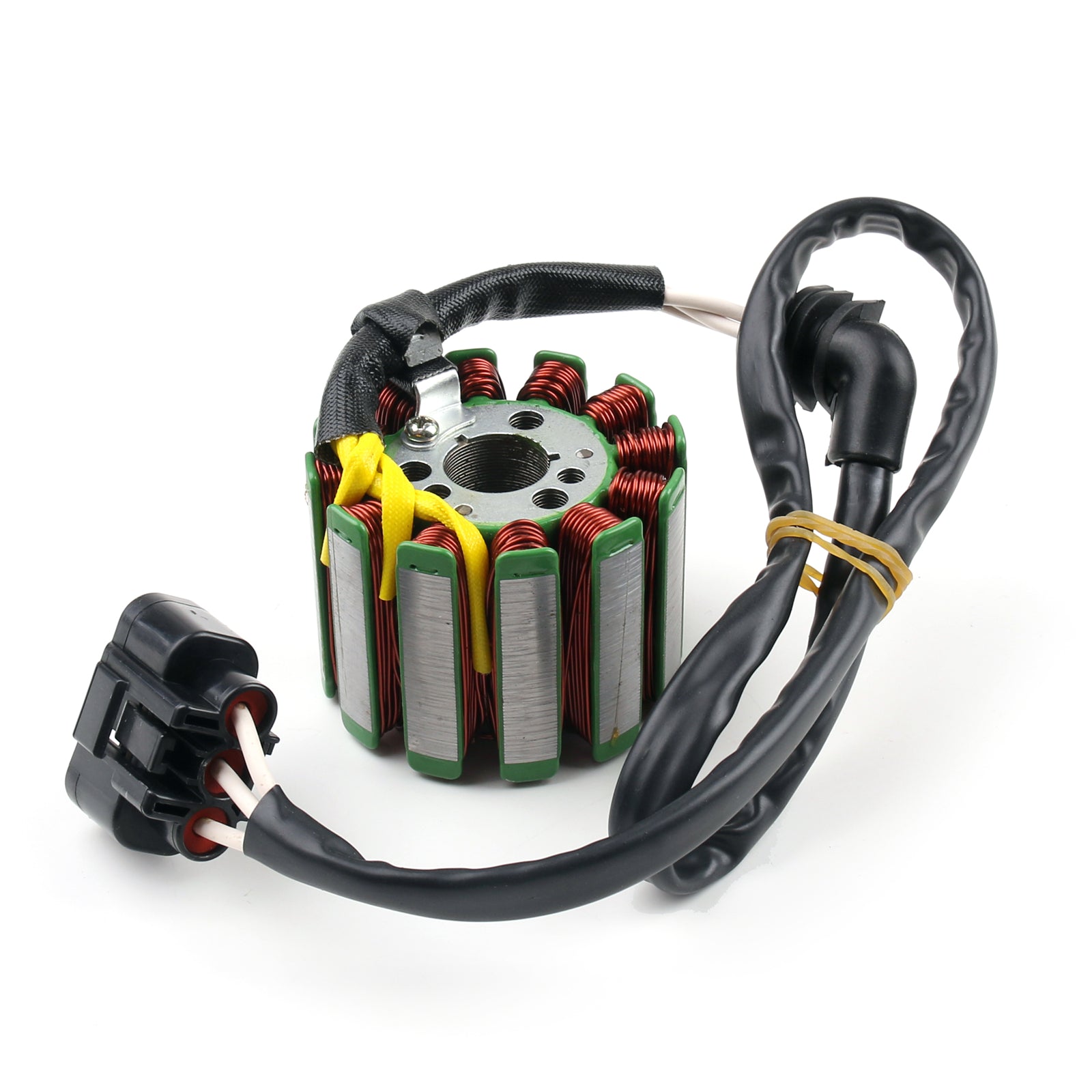

Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013
Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013
Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013
Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013
Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013

Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013

Sale price$100.89
SKU: M550-A009
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
PACKAGE INCLUDED: 1 x Generator Stator Coil
Type: Generator Stator Coil

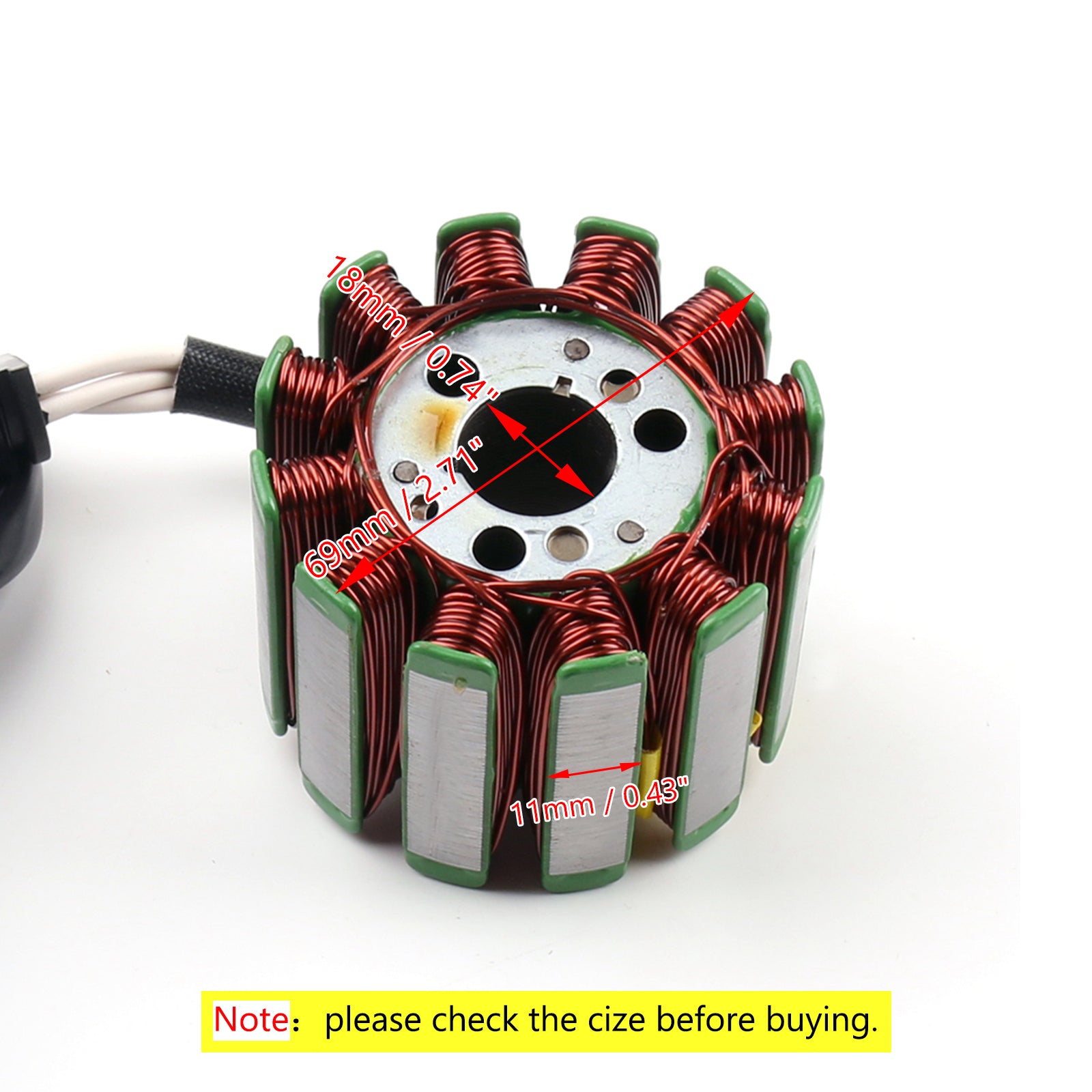

Dimensions :
Interior diameter : 1mm / 0.74"
Exterior diameter : 69 mm / 2.71"
Thickness : 11 mm / 0.43"

Mageneto Generator Stator Coil Fit For Yamaha YZF R1 LE 2006 YZF R1 2004-2008 FZ8-SA FZ8 2011-2013



Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+2)

FITMENT:
Yamaha FZ8 2011-2013
Yamaha FZ8-N 2011-2013
Yamaha FZ8-NA 2011-2013
Yamaha FZ8-SA 2011-2013

Yamaha FZ1 2006-2014
Yamaha FZ1-N 2006-2014
Yamaha FZ1-NA 2006-2014
Yamaha FZ1-SA 2006-2014
Yamaha YZF R1 2004-2008
Yamaha YZF R1 LE 2006

FEATURES:
-Direct replacement to your original unit
-Plug-and-play, direct fit, easy installation.
-Highest grade lamination materials.
-Highest grade copper windings, resistant to 200 degrees Celsius.
-Connector included.

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
