Stator Coil For Suzuki TU125 1999 GS125 82-94 GN125 82-01 Mageneto Generator
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:32101-05300

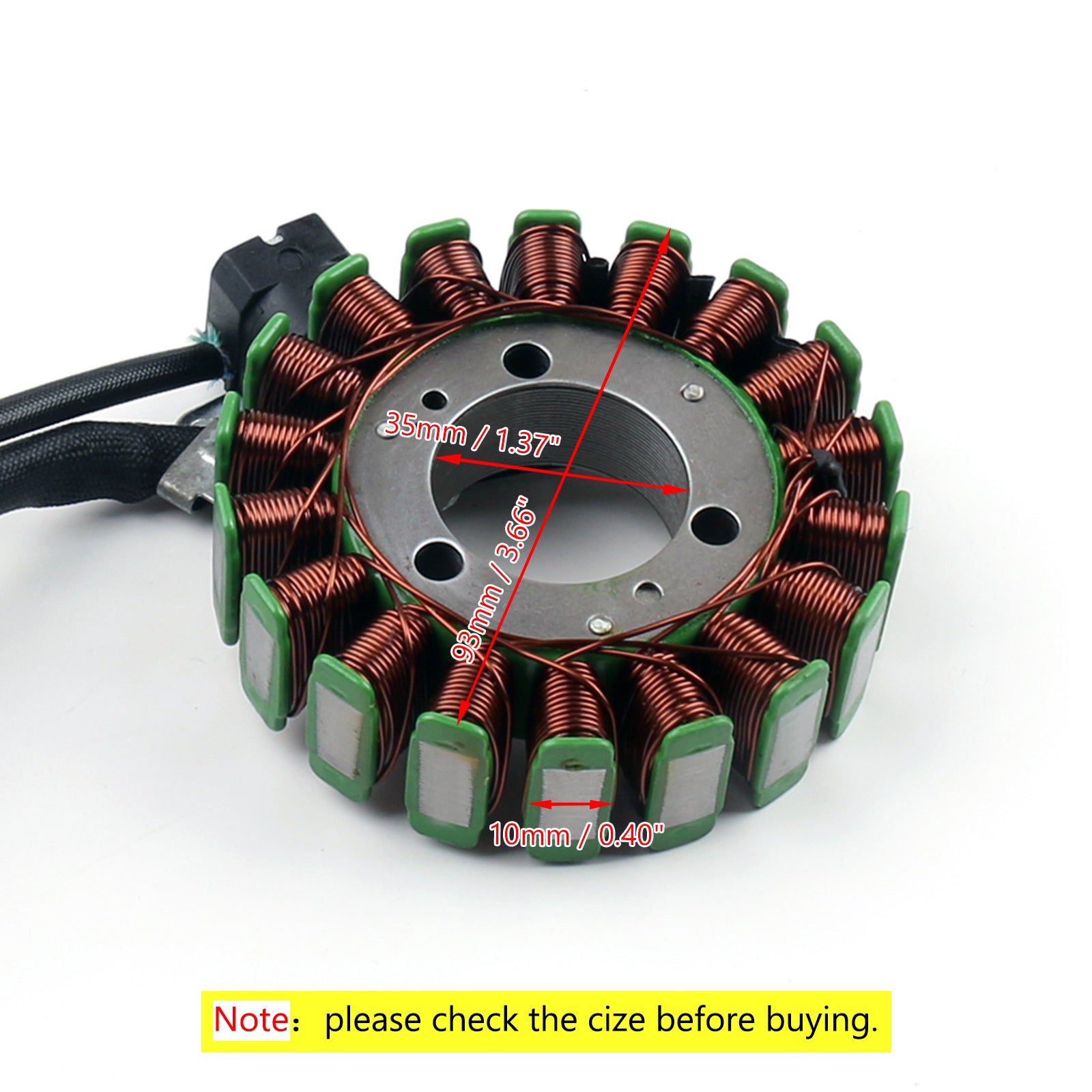

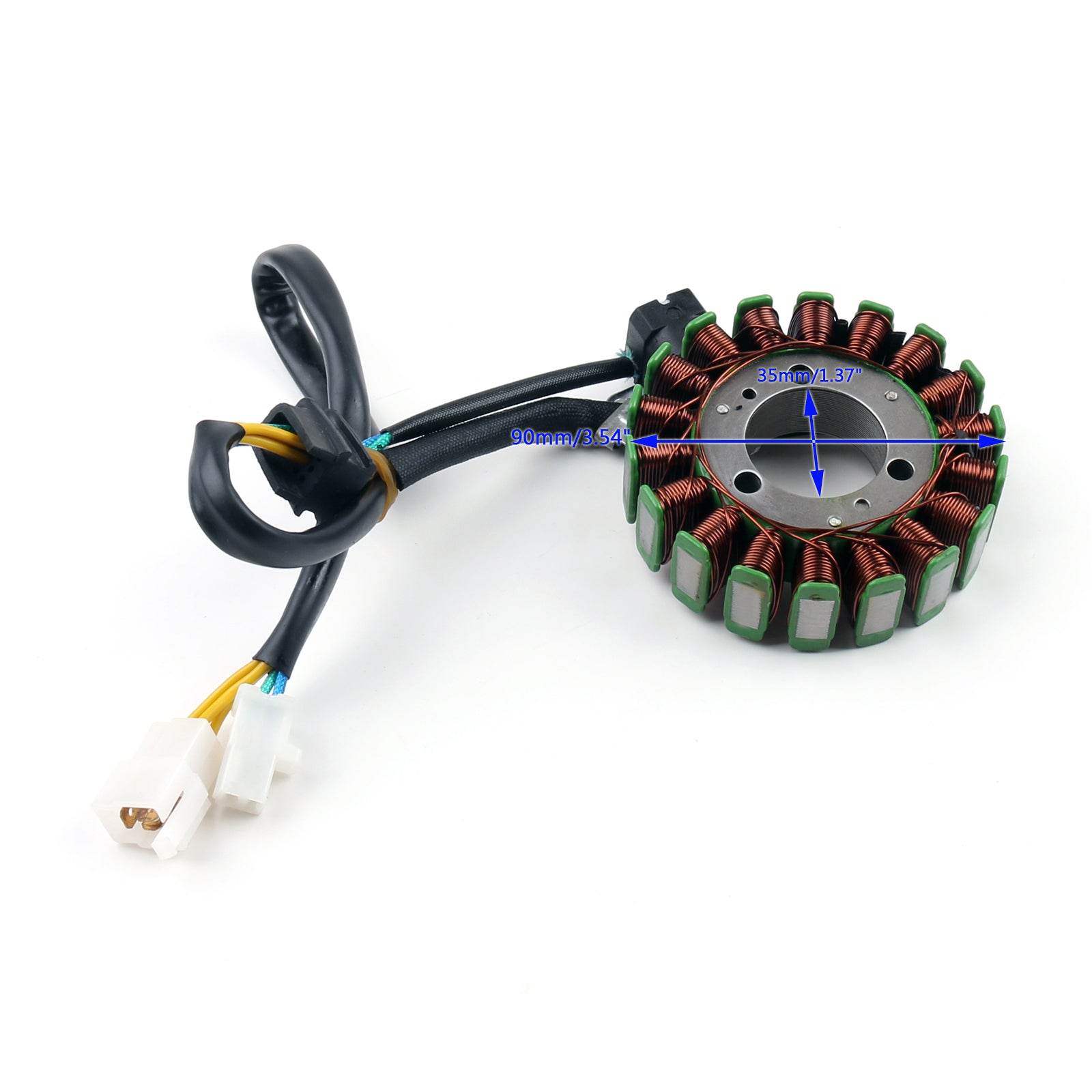

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 93mm / 3.66"
Thickness : 10mm / 0.40"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3
FITMENT:
Suzuki TU125 1999
Suzuki GS125 1982-1994
Suzuki GN125 1982-2001
PACKAGE INCLUDED:
1x Generator Stator Coil
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
