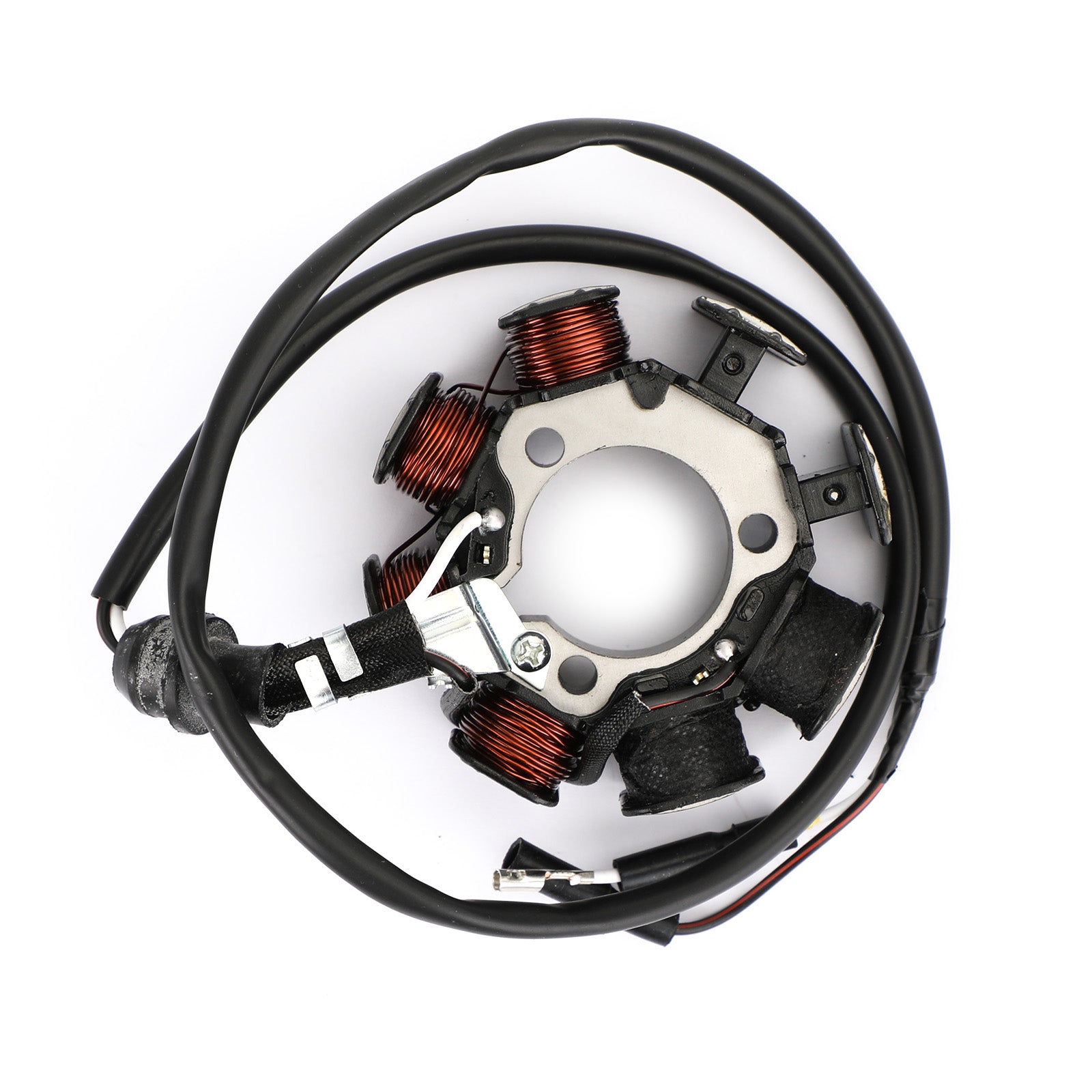

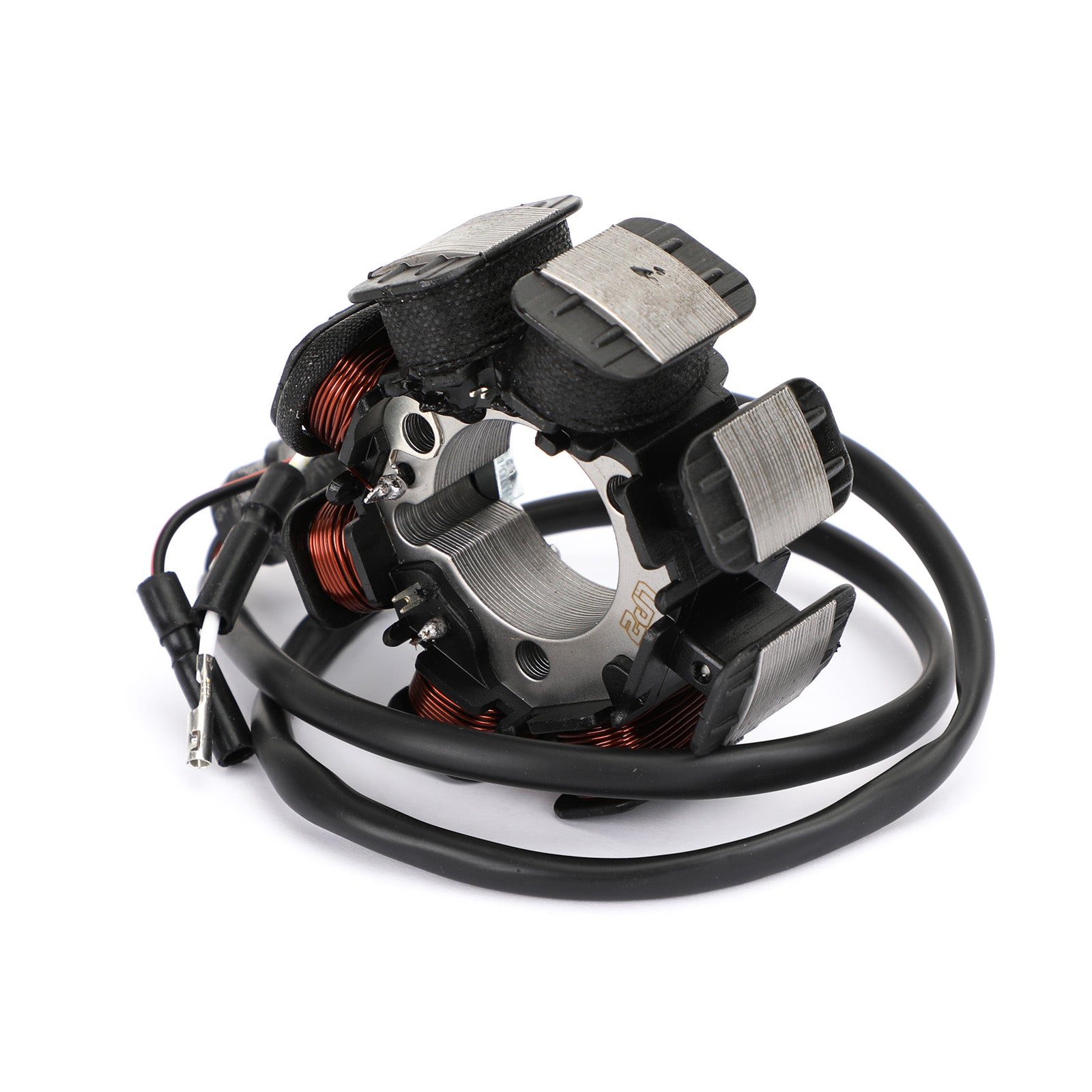

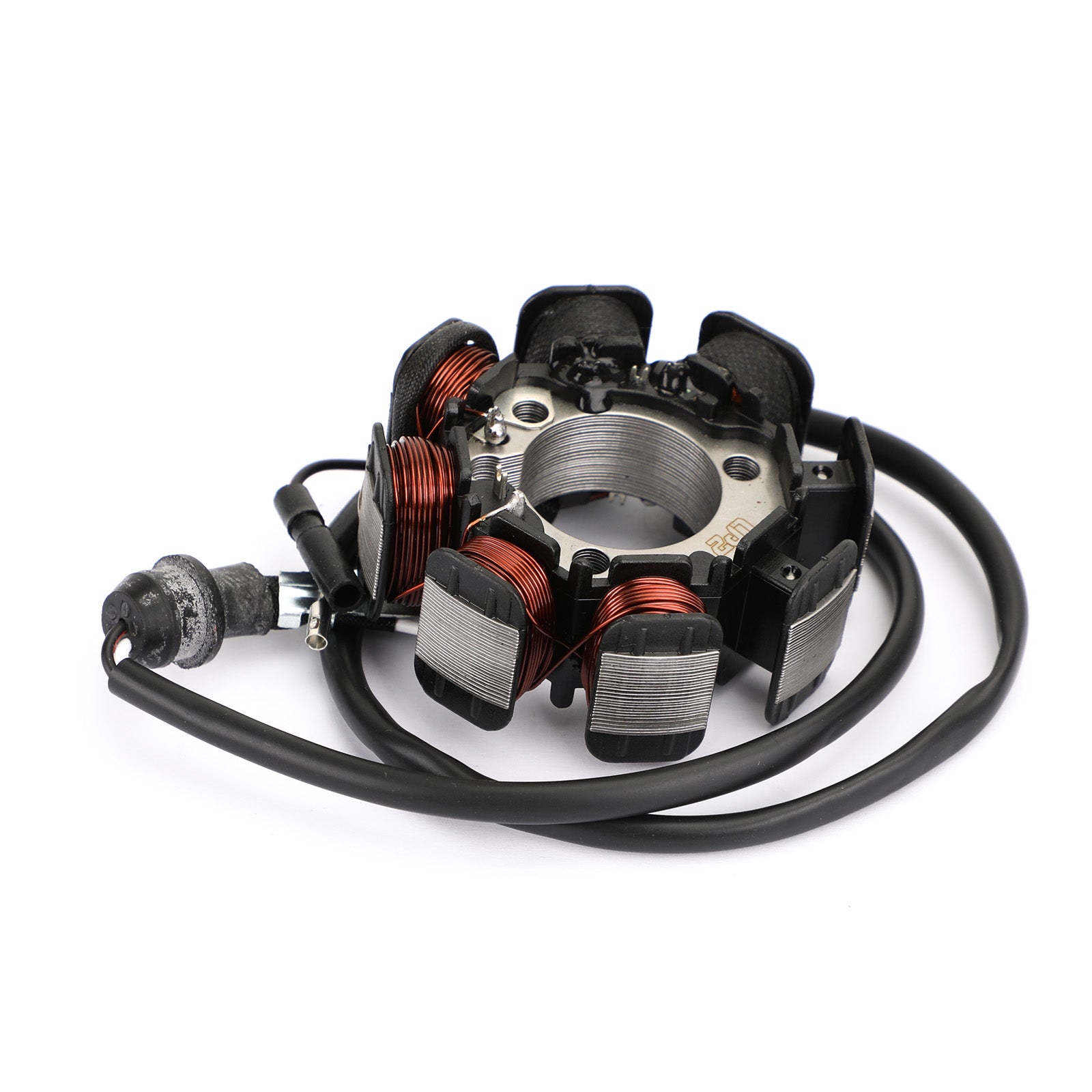

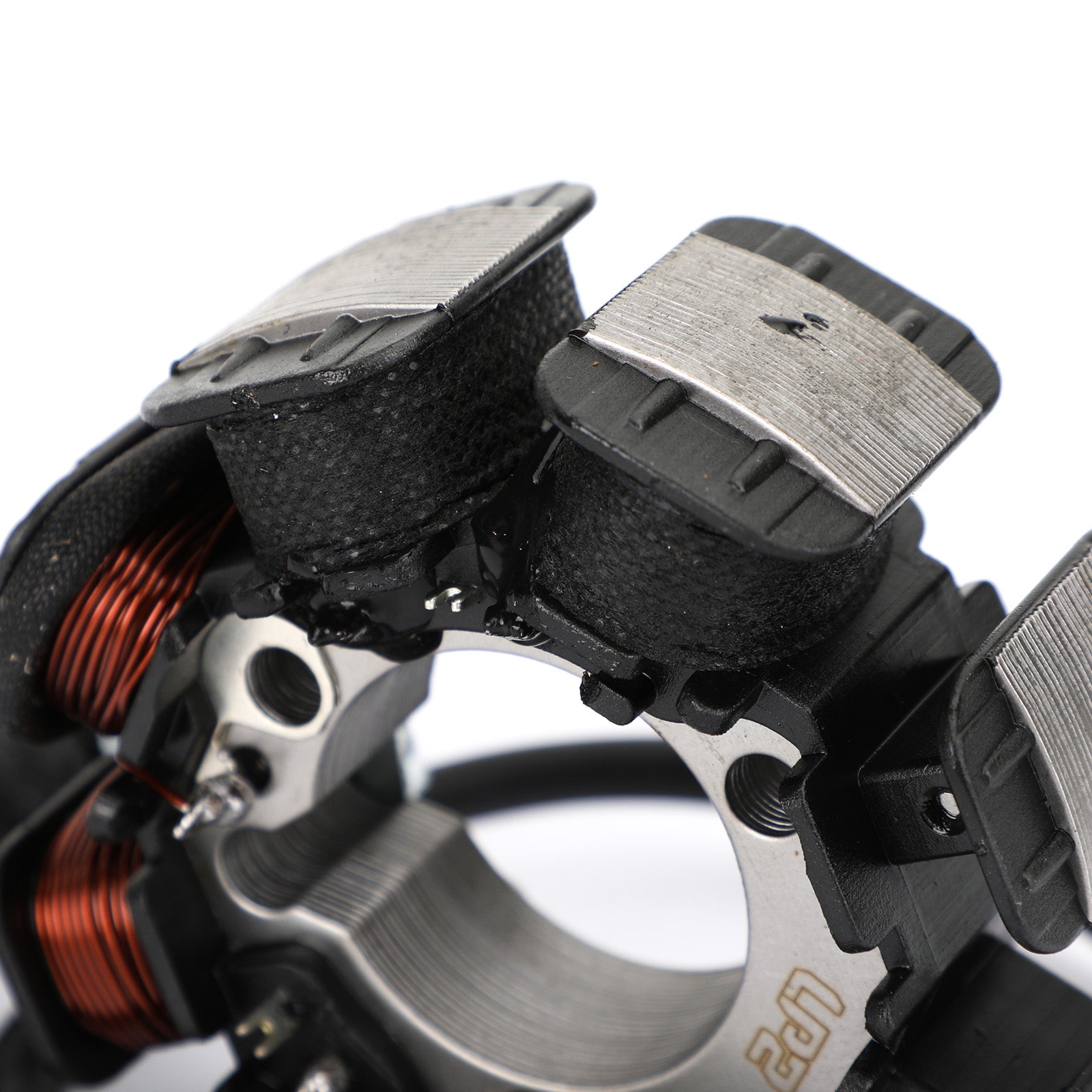

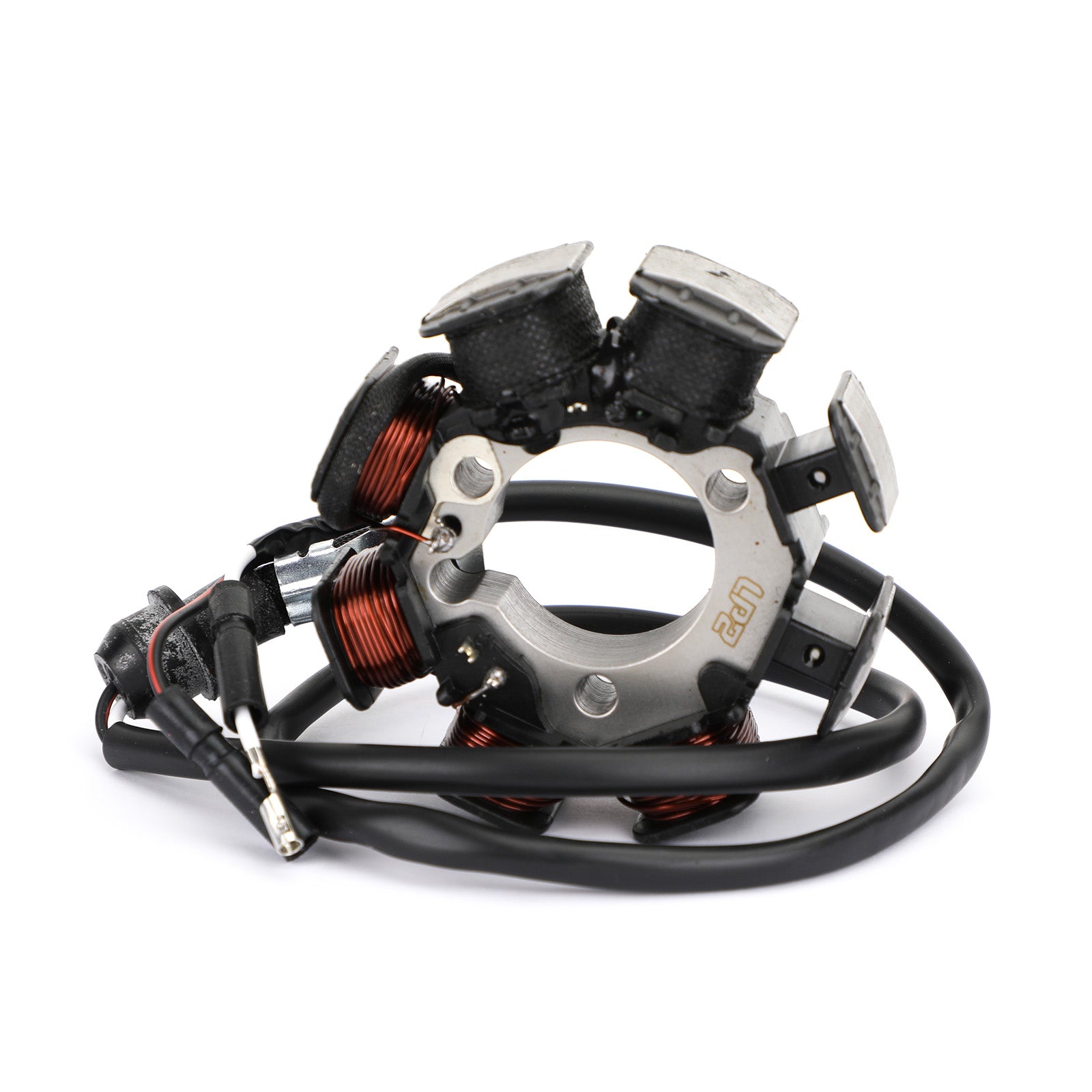

Magneto Generator Engine Stator Coil Fit For Honda XR200R XR200 200R 200 1986 1987 1988
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil

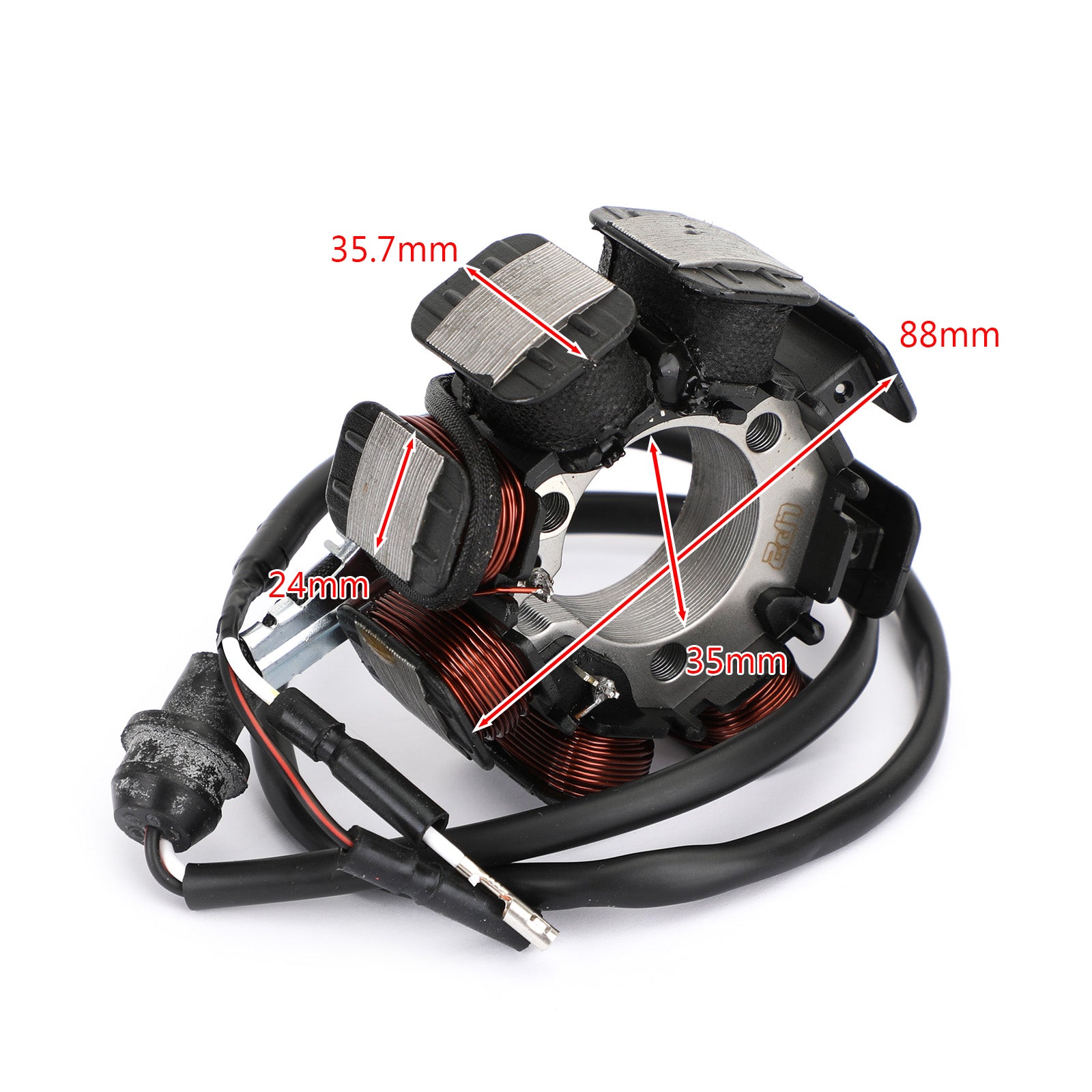

Interior diameter : 35 mm
Exterior diameter : 88 mm
Pole's Thickness : 35.7 mm
Pole's Width : 24 mm
Other Specifications :

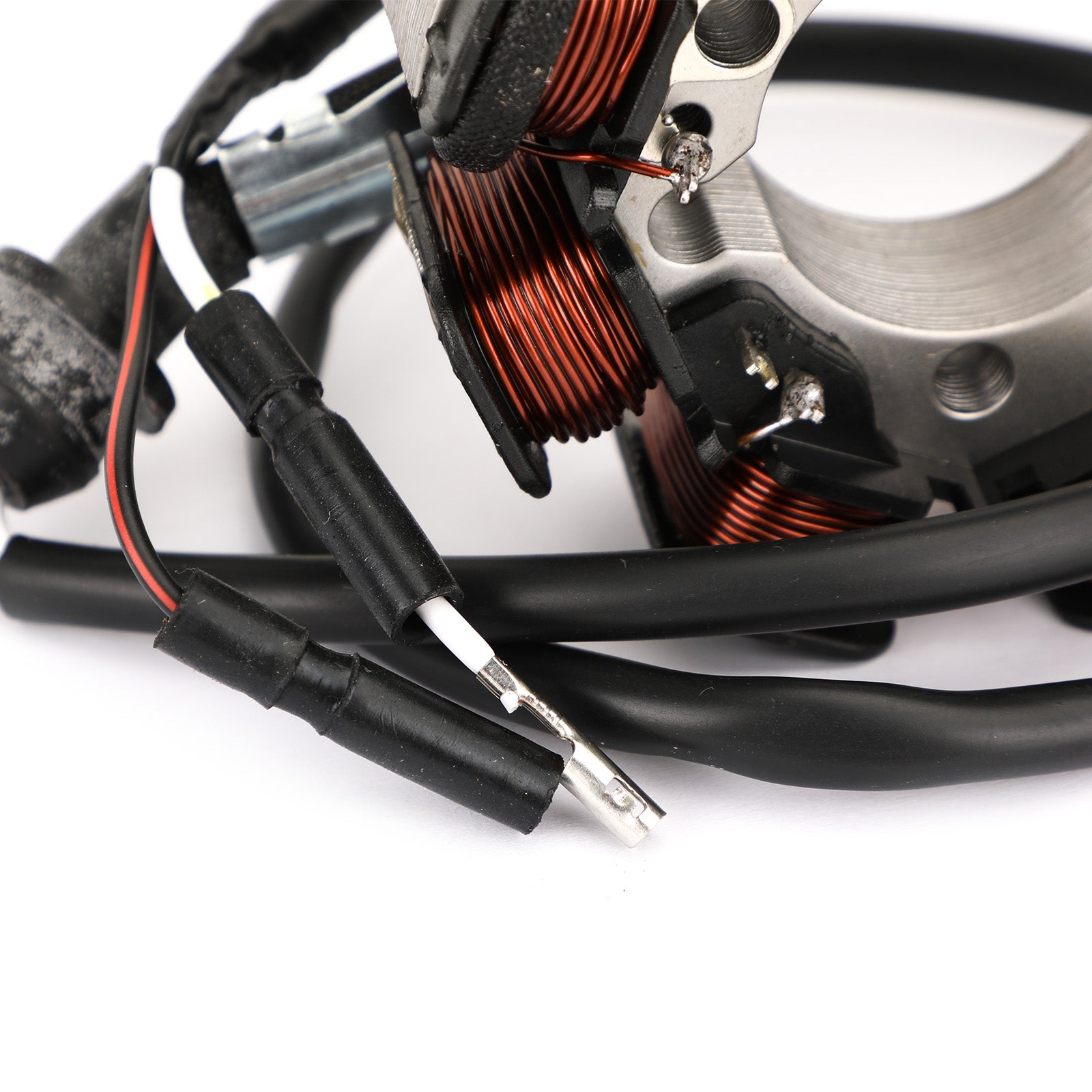

Number of wires: 2
Number of pins: 2
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 8
Reference Part Number: 31120-KT0-004
Fit for Honda XR200R XR200R A 1986-1988
Fit for Honda XR200R XR200RG 1986
Fit for Honda XR200R XR200RH 1987
Fit for Honda XR200R XR200RJ 1988
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
All products shipped are tested.
Package includes: 1 x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
