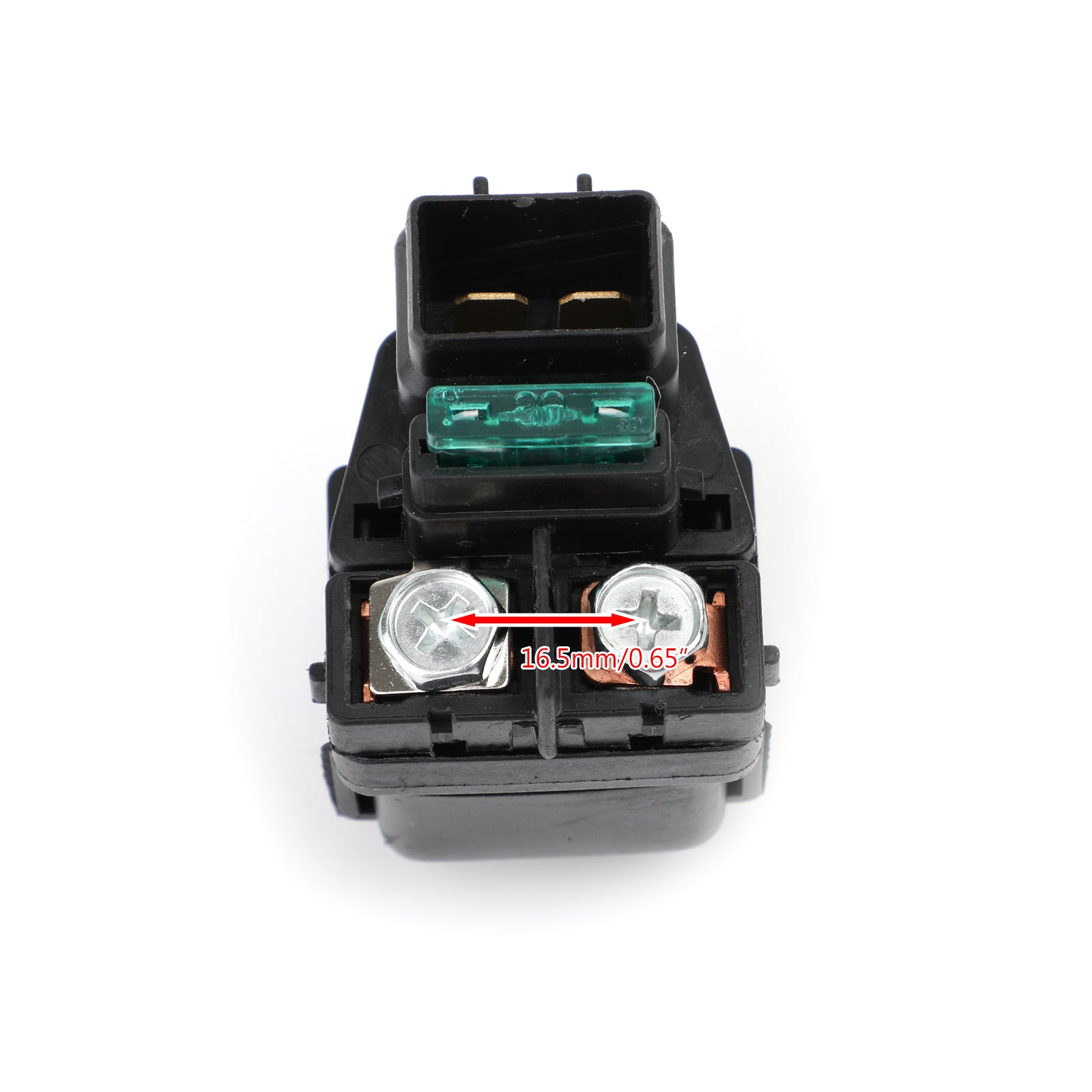

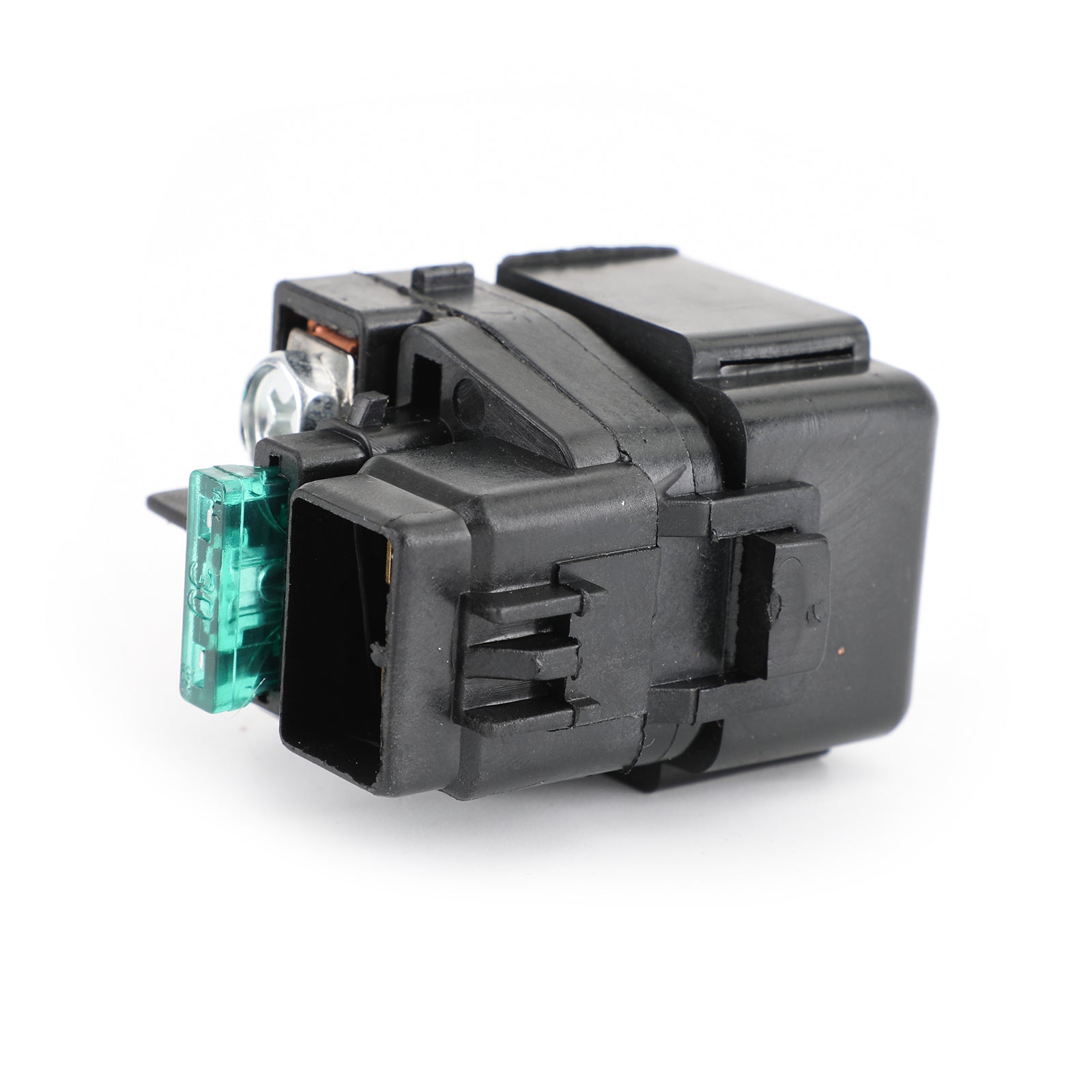

Kawasaki Starter Relay Solenoid Switch 27010-S024 Fit For Kawasaki KSF400 KFX400 2003-2007
OEM Replacement Part Number:
31800-07G00 , 27010-S024
31800-35F00 , 3409-025
Suzuki 31800-26E00
Please confirm the Replacement Part Number before ordering.
Fitment:
For Kawasaki 27010-S024
For Kawasaki KSF400 KFX400 2003-2007
Features:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
Installation Instruction NOT Included
Specifications:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
Package Incleded:
1 x Starter Relay Solenoid
Testing Procedure:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
