Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.

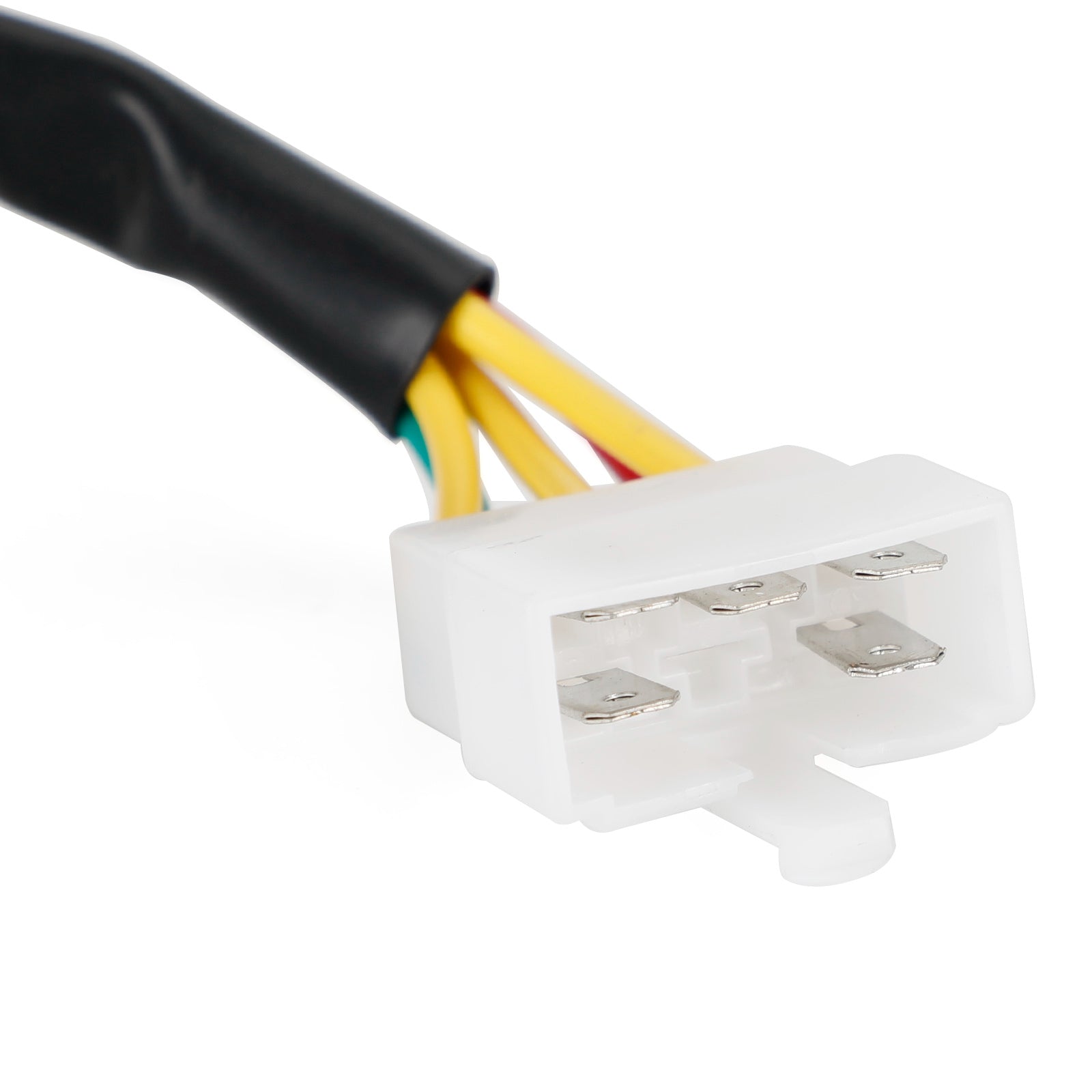

There are 5 leads, 3AC and 2 DC.
3x phase Lima (yellow), 1x terminal 15 (red / white), 1x mass (green).
Fixing screw M8 with fixing groove.
The rectifier receives AC power from the stator and converts it into DC power for the battery.
All products shipped are tested.
Replacement Part Number:
31700-333-008 (replaces 31700-323-015)
Please confirm the���������Replacement Part Number before ordering.
Fit for Honda CB350 Four CB350F 1972
Fit for Honda CB350 Four CB350F1 1974
Fit for Honda CB400 Super Sport CB400F 1975
Fit for Honda CB400 Super Sport CB400F 1976
Fit for Honda CB400 Super Sport CB400F 1977
Fit for Honda CB500 Four CB500K1 1972
Fit for Honda CB500 Four CB500K2 1973
Fit for Honda CB550 Super Sport CB550F-K2 1975
Fit for Honda CB550 Super Sport CB550F-K3 1976
Fit for Honda CB550 Super Sport CB550F-K4 1977
Fit for Honda CB550 Four CB550-K0 1974
Fit for Honda CB550 Four CB550-K1 1975
Fit for Honda CB550 Four CB550-K2 1976
Fit for Honda CB550 Four CB550-K3 1977
Fit for Honda CB550 Four CB550-K4 1978
Fit for Honda CB750 Four CB750K 1969
Fit for Honda CB750 Four CB750-K0 1970
Fit for Honda CB750 Four CB750-K1 1971
Fit for Honda CB750 Four CB750-K2 1972
Fit for Honda CB750 Four CB750-K3 1973
Fit for Honda CB750 Four CB750-K4 1974
Fit for Honda CB750 Four CB750-K5 1975
Fit for Honda CB750 Four CB750-K6 1976
Fit for Honda CB750 Four CB750-K7 1977
Fit for Honda CB750 Four CB750-K8 1978
Fit for Honda CB750 Super Sport CB750F-K5 1975
Fit for Honda CB750 Super Sport CB750F-K6 1976
Fit for Honda CB750 Super Sport CB750F-K7 1977
Fit for Honda CB750 Super Sport CB750F-K8 1978
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Before installing your new rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
It took almost two weeks to get the part but it fit perfectly and works great it was free shipping so I am very happy with the product
The regulator was a perfect fit. Received it in a timely manner.
Finally fixed my charging issue! Perfect fit the last one I ordered from another supplier did not fit correctly,Changed out this regulator and we're good to go.
Within lasted about a mounth this one it's working fine, haven’t had any problems out of it! with mid range in price and it doesn't get as hot as the cheap one....
Came in, it looks almost identical to the original rectifier
So far, it is working well and it's producing about 15 volts across the rev band.
I will come back in a couple of months once and comment on its reliability
Worked as it should, no issues....can't beat the price. . Will update if anything changes
This is well-built part and corrected the charging issue immediately. The connector is exact and I had 14.75 at idle - perfect. Bolt width is perfect.
GREAT REPLACEMENT for the price. cheaper then an O.E.M. replacement. Had no spark on my bike swapped this on and it fired right up
