Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25
Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25
Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25
Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25
Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25

Regulator Stator Coil Gasket Kit For Yamaha R1 R1S RN12 RN19 FZ1 FZ8 RN16 RN25

Sale price$127.88
SKU: M550-C031

Replacement Part Number:
Stator Assy: 5VY-81410-00, 2D1-81410-00, 2D1-81410-01, 2D1-81410-10, 22C-81410-10
Rectifier, regulator: 5VY-81960-00, 1D7-81960-00, 1D7-81960-01
Gasket, generator cover: 5VY-15451-00, 5VY-15451-10, 2D1-15451-10

Fit for Yamaha YZF R1 2004-2008
Fit for Yamaha YZF R1 RaceBase 2005-2008
Fit for Yamaha YZF R1S 2006
Fit for Yamaha FZ1 FZ1-N FAZER Naked 2006-2012
Fit for Yamaha FZ1 FZ1-S FAZER S-TYPE 2006-2015
Fit for Yamaha FZ1 FZ1-NA FAZER Naked ABS 2008-2012
Fit for Yamaha FZ1 FZ1-SA FAZER S-TYPE ABS 2007-2012
Fit for Yamaha FZ8 FZ8-N Naked 2011-2015
Fit for Yamaha FZ8 FZ8-NA Naked ABS 2011-2015
Fit for Yamaha FZ8 FZ8-S FAZER 2011-2015
Fit for Yamaha FZ8 FZ8-SA FAZER ABS 2011-2015

Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.

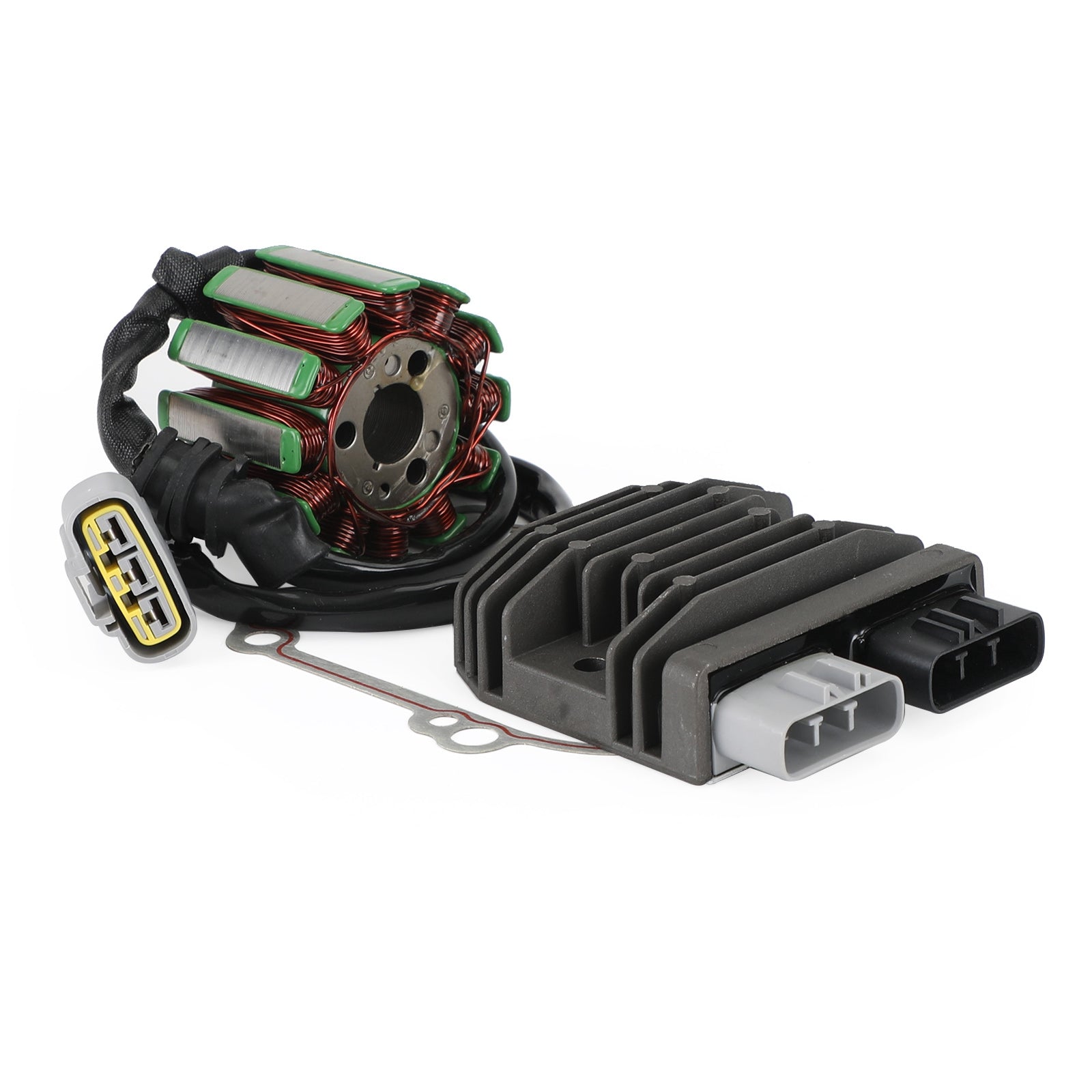

Package Includes:

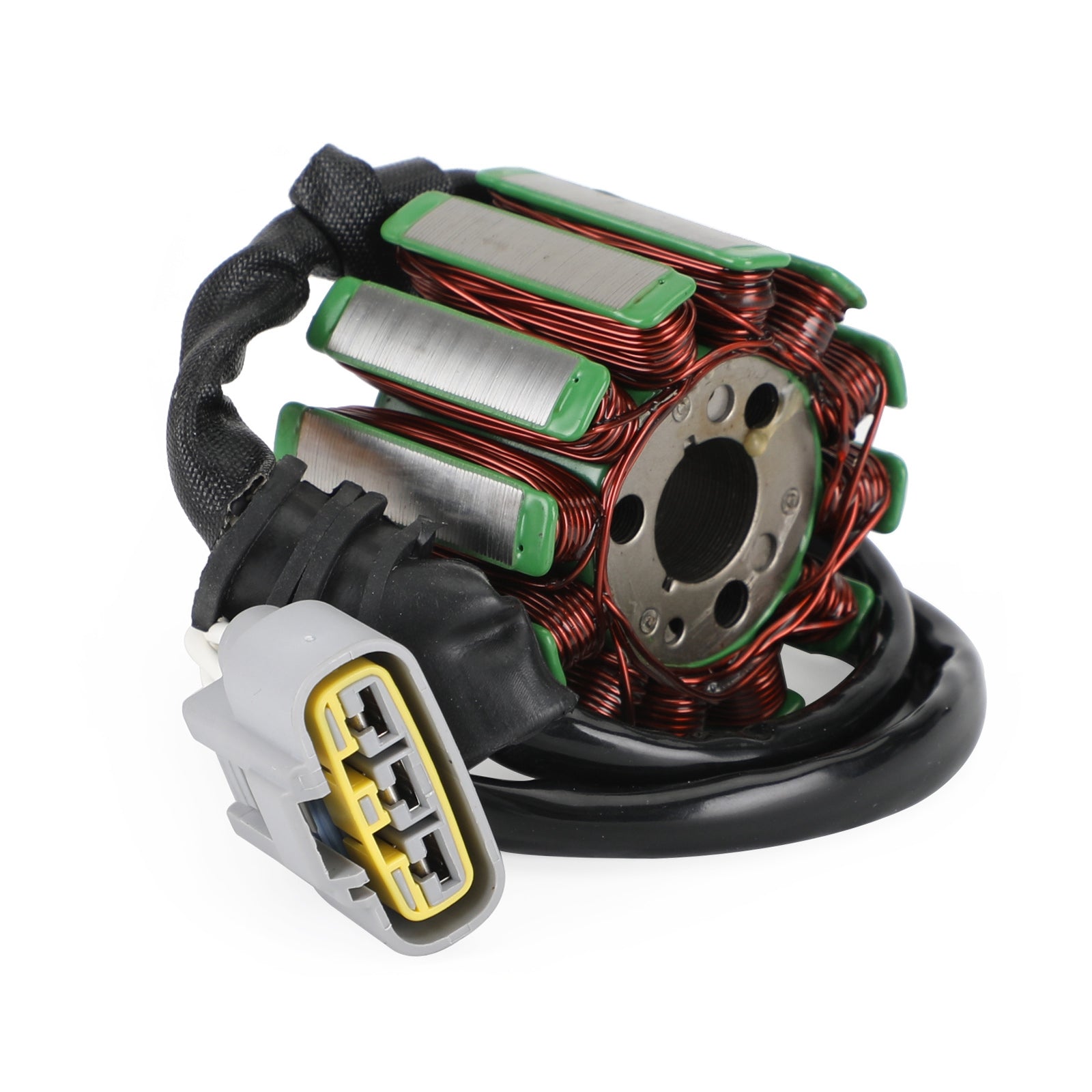

1 x Stator Coil

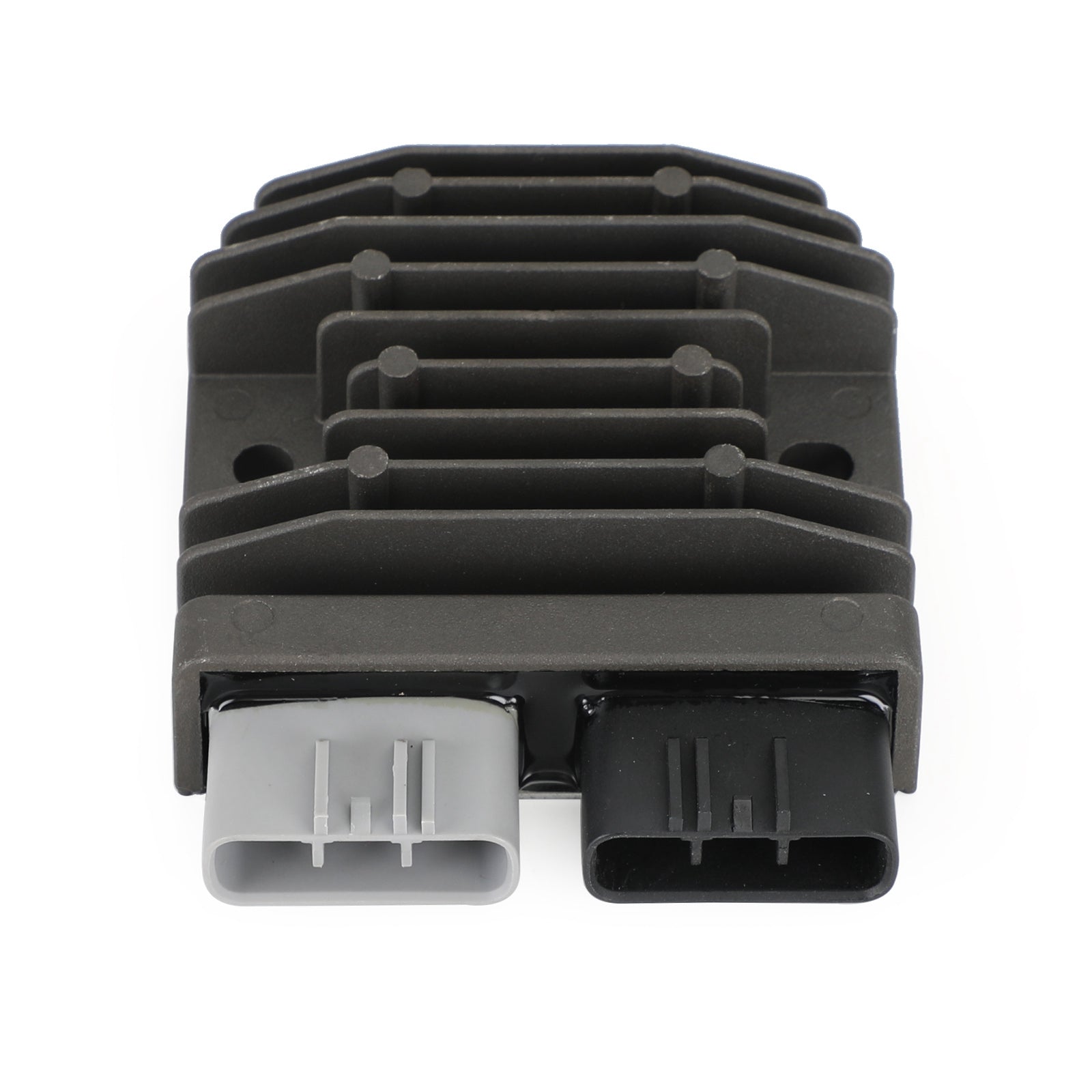

1 x Regulator Rectifier

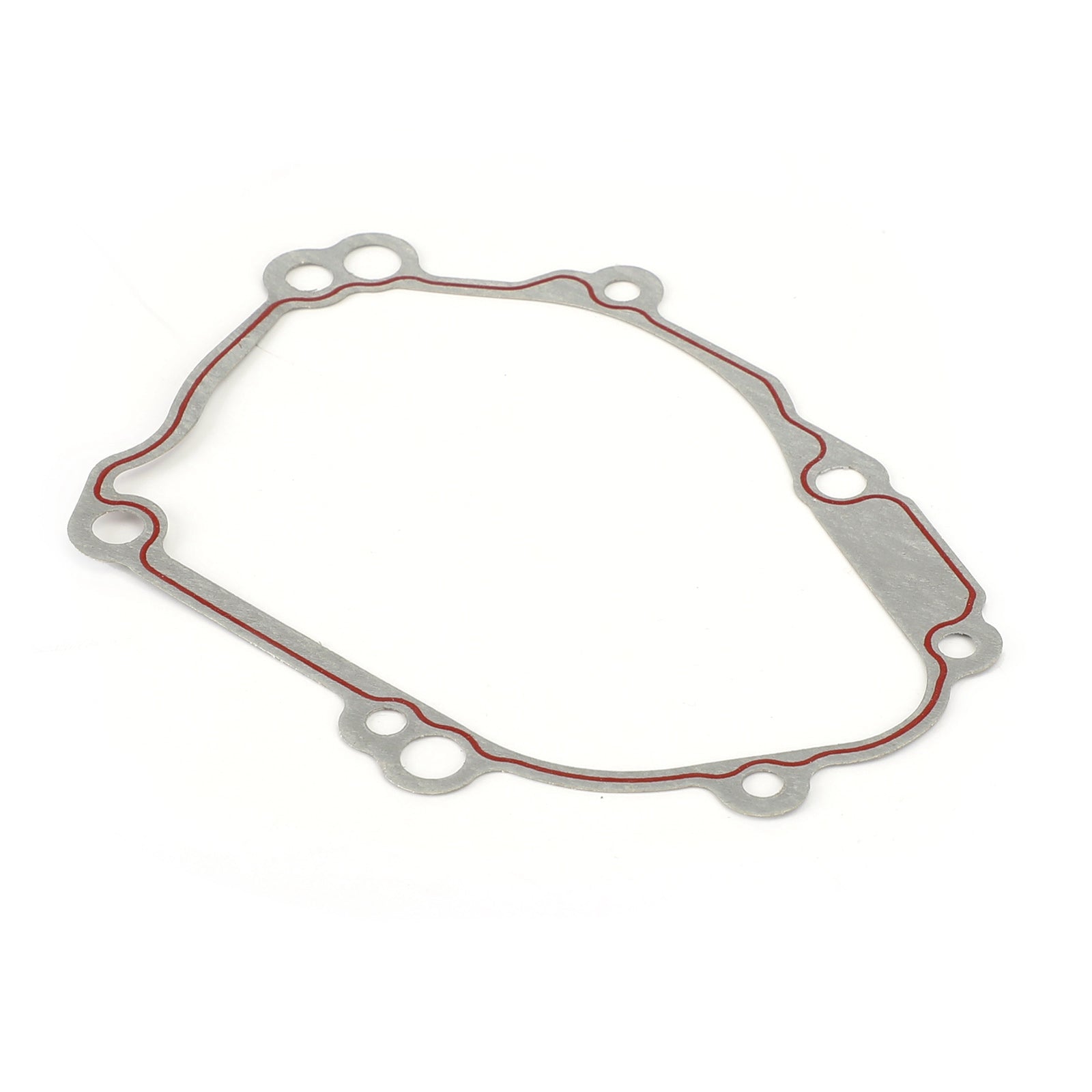

1 x Generator Gasket

Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.

Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support

Customer Reviews

Based on 117 reviews
Bryce Steele
It’s alright

I have the Amotopart stator cover aswell and that was phenomenal, but for whatever reason the rubber seal on this stator was about a half inch longer than the oem. So it required a lot of trimming to get it to fit, but other than that the cable is long, it looks to be nice quality, and from how I’ve used it it works. (Only bad thing was the fitment of the rubber seal)

Jonathan Hunter
Works, sort of.

This fixed the charging issue on my SV650, but had to repin two of the connectors as they were not wired correctly. I do not know if this is specific to my bike or if it was a manufacturing error.

Gerard Heberlein
Stator for 2004 Sportsman 600

Stator is exact fit for 2004 Sportsman 600, and way more reasonably priced relative to Polaris OEM. However I have not installed it as I determined the rectifier was the problem. I inspected & just carefully cleaned a light haze of grease off the existing stator's lamination's. It made a major difference in power generation! But I will hang onto it based on the age & model of the machine with the machine being electronically a "tweener" model between 2/17/2003 & 4/5/2004. electronically.

Fits like a glove

It showed up ahead of schedule! Stator was easy to install on my bike and working great! 3 hours ride time so far. Will update if there are any issues.

Delano McBride

Service was good quick and easy and they respond to your emails fast. Everything was fast except for the shipping. Took a week to leave wherever they ship products from.

Great than expected

This was delivered faster than expected. I installed it on the ATV and it fixed my no spark problem. Easy installation, replacement according to the original.Hopefully it lasts a long time

James Parks
Right stuff

Item fitted great. Haven’t installed it on my because I’m waiting on the gasket that I had to order the dealership.

Anthony Farinola
06 R6

Fitted the stator and rectifier and when starting my bike could notice the difference instantly. There was better response and sounded like it should again
