Pick-up Pulsar Pulse Sensor Fit For Suzuki DF 40 50 60 70 90 100 115 140 Hp Outboard 32160-87J00

Replacement Part Number:
32160-87J00
Please confirm the Replacement Part Number before ordering.

Fitments:
Fit for Suzuki DF40 1999-2009
Fit for Suzuki DF50 1999-2010
Fit for Suzuki DF60 1999-2009
Fit for Suzuki DF70 1998-2009
Fit for Suzuki DF90 2001-2008
Fit for Suzuki DF100 2009-2011
Fit for Suzuki DF115 2001-2010
Fit for Suzuki DF140 2002-2011
(Compatibility Chart is for Reference ONLY!!!)(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

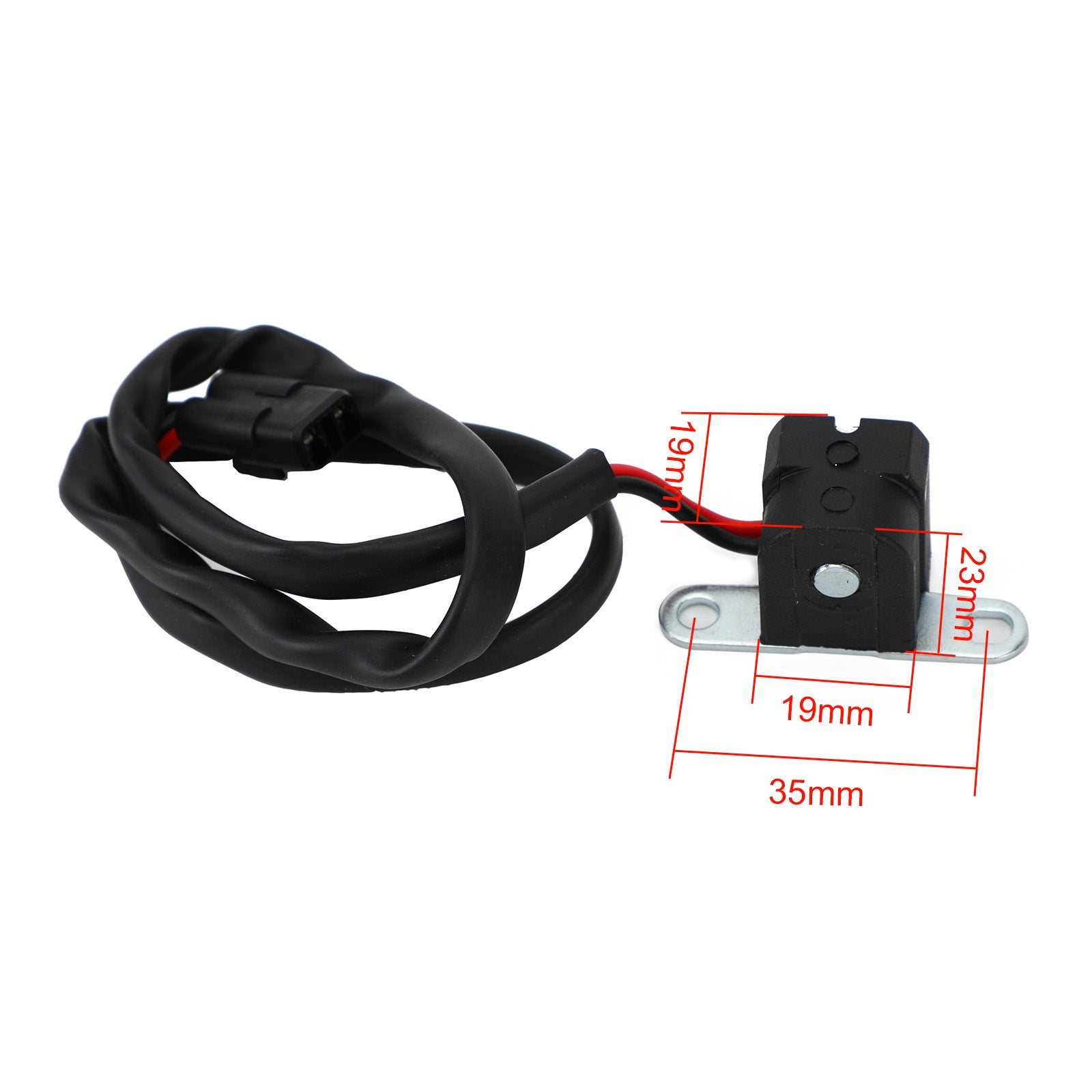

Dimensions:
Height: 19mm
Length: 23mm
Width: 19mm
Bracket center to center: 35mm

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Pick up pulsar coil

Other Specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Package Included:
1 x Pick up pulsar coil

Notice:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
