Replacement Part Number:
Please confirm the?Replacement Part Number before ordering.
Fits Kawasaki VN900 Vulcan 900 Classic 2006-2019
Fits Kawasaki VN900 Vulcan 900 Classic LT 2006-2019
Fits Kawasaki VN900 Vulcan 900 Custom 2006-2019
Bracket center to center: 35mm
Wires length: Approx.680mm
Condition: Aftermarket 100% Brand New

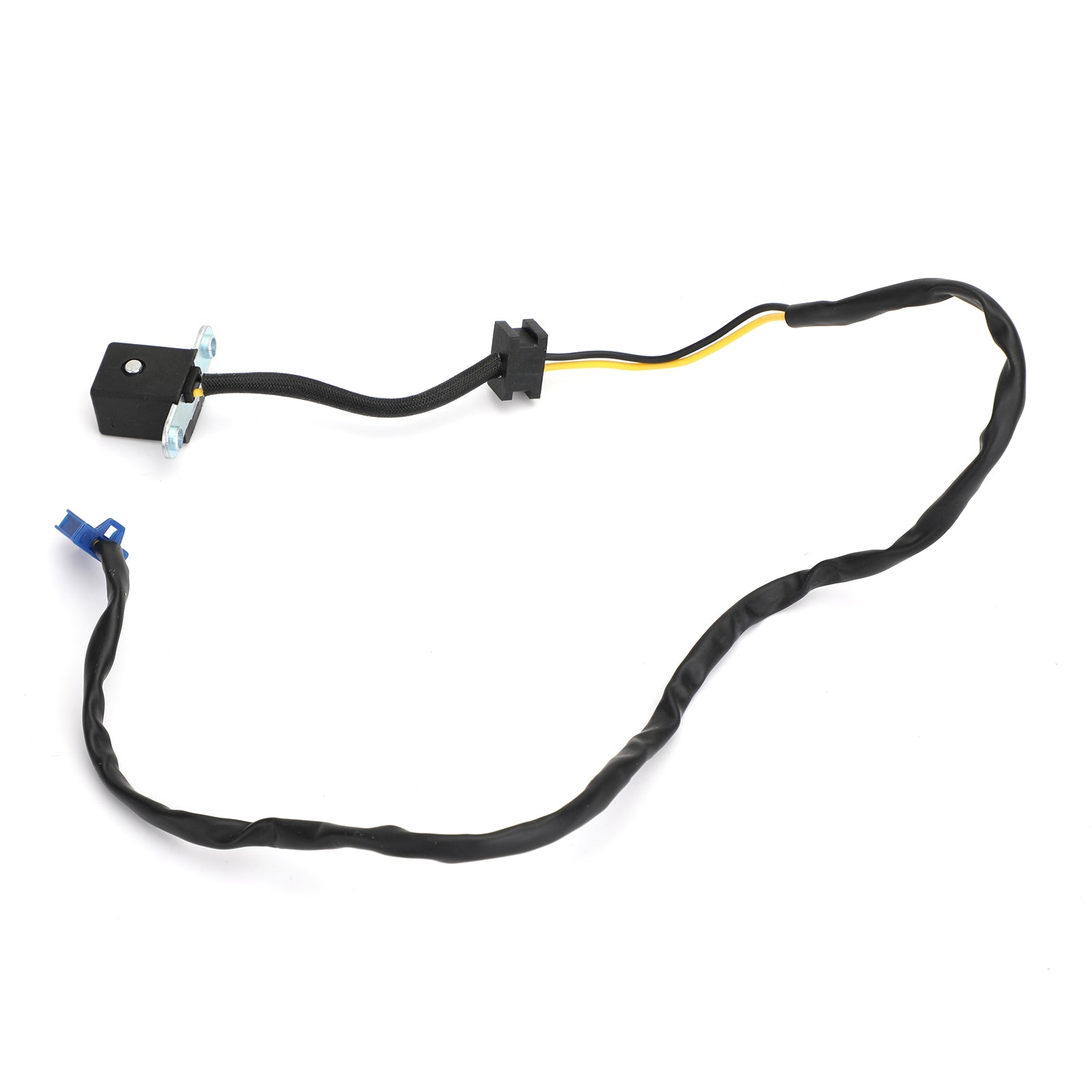

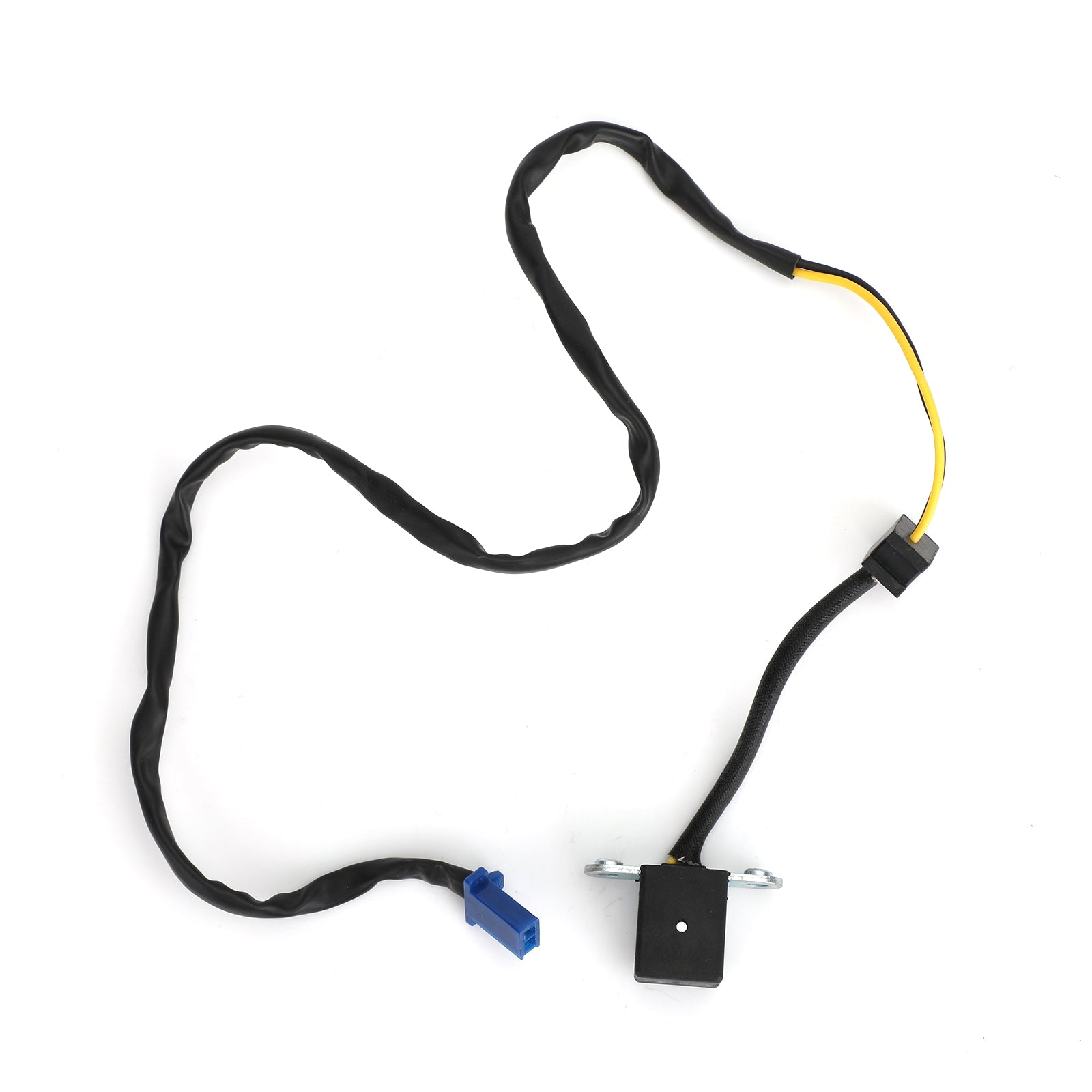

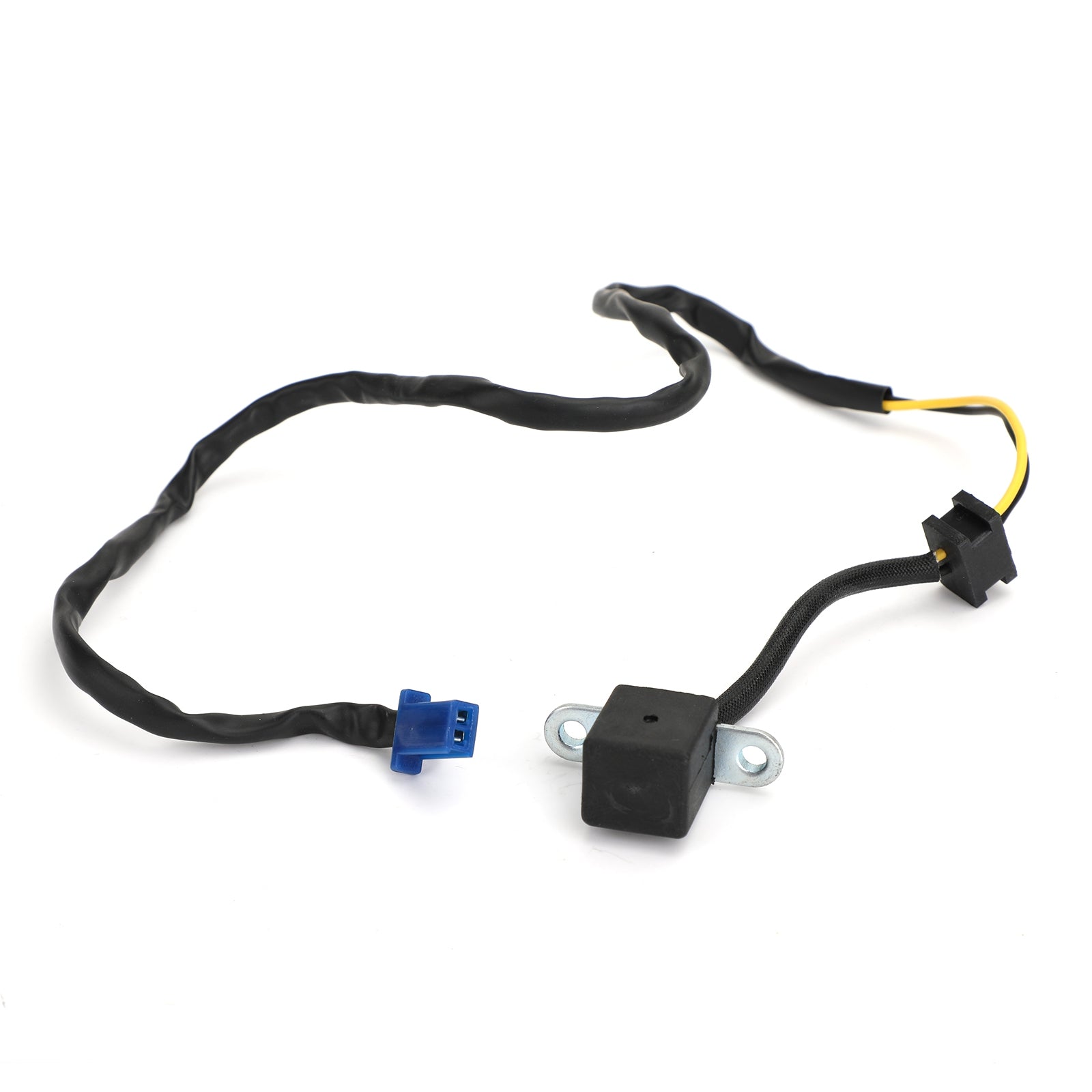

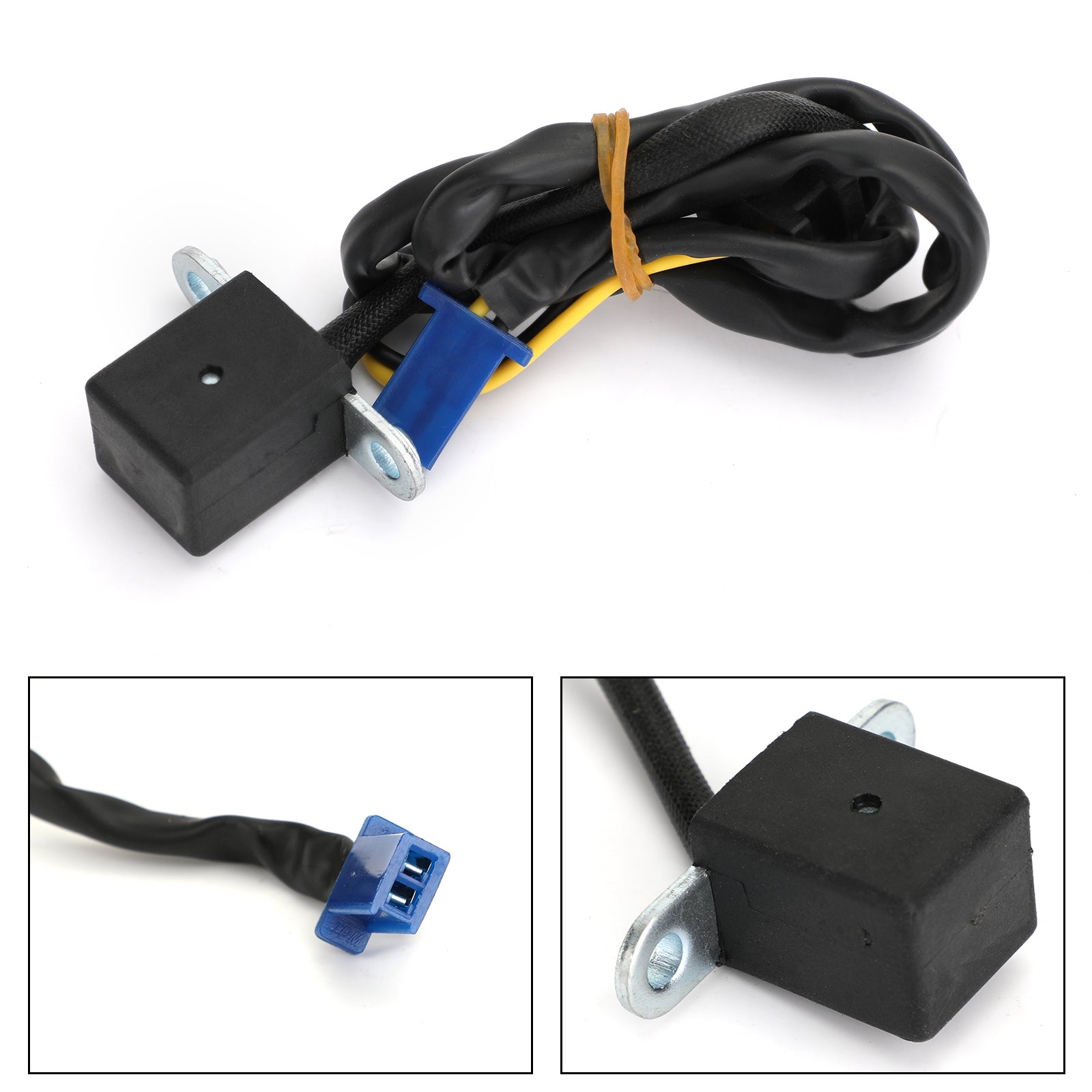

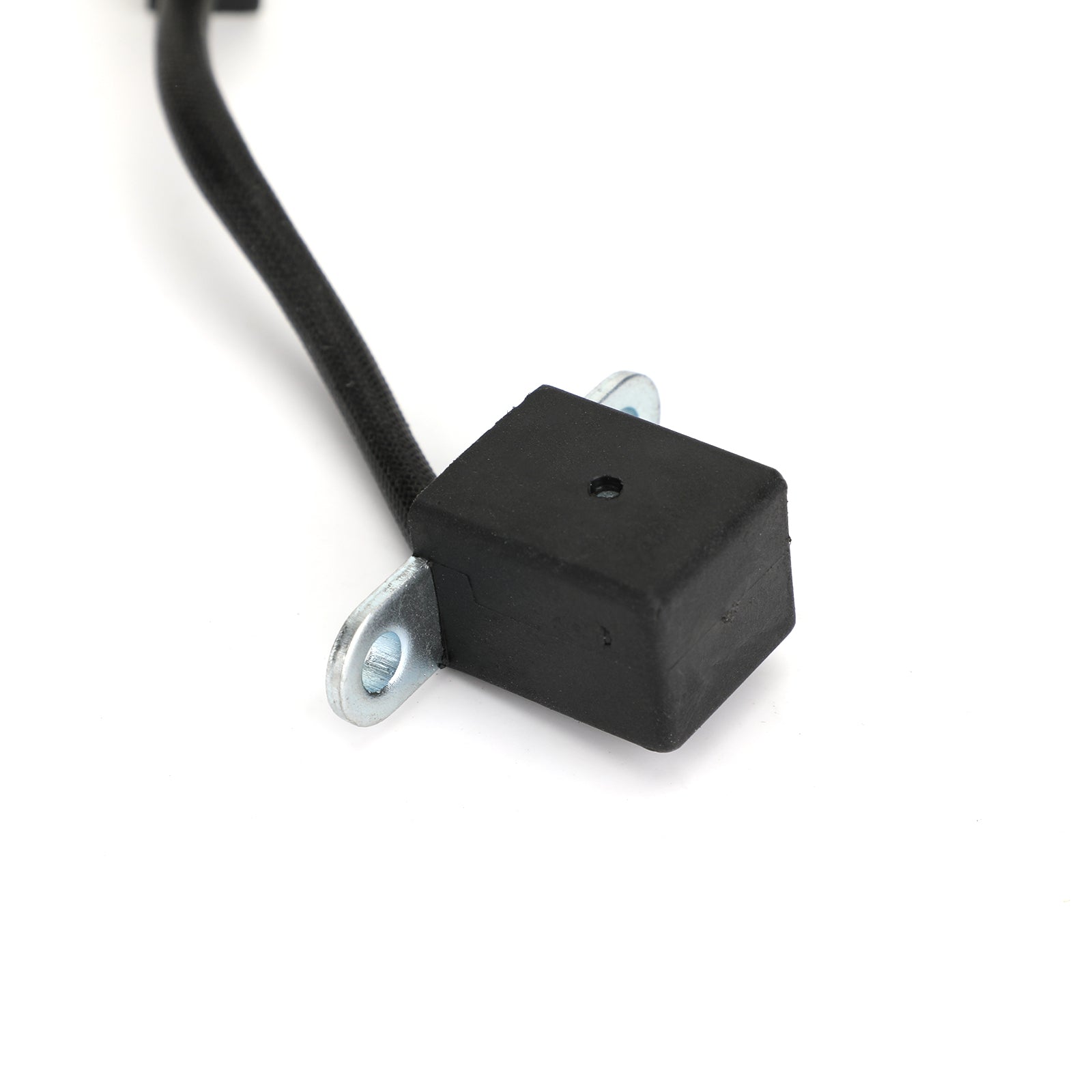

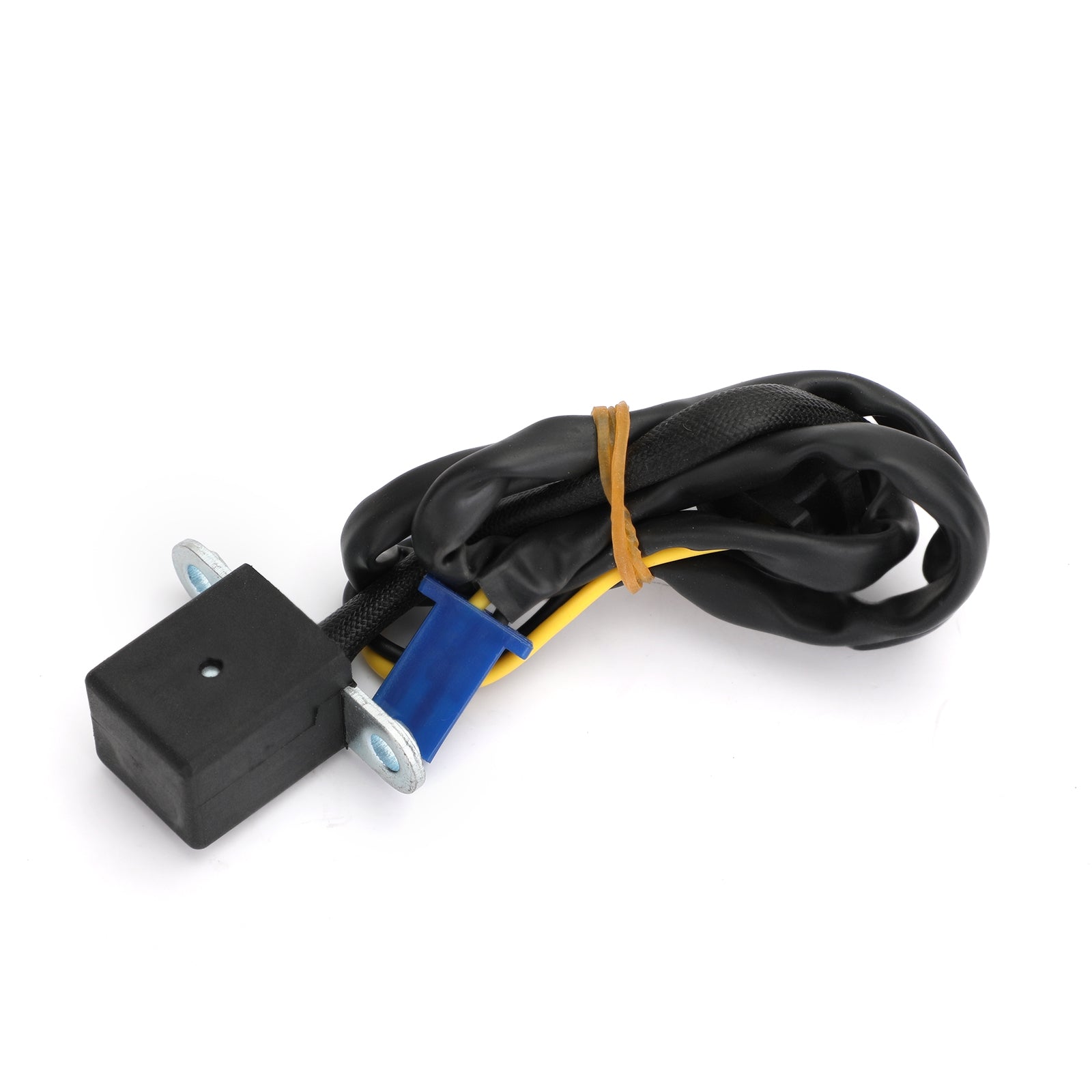

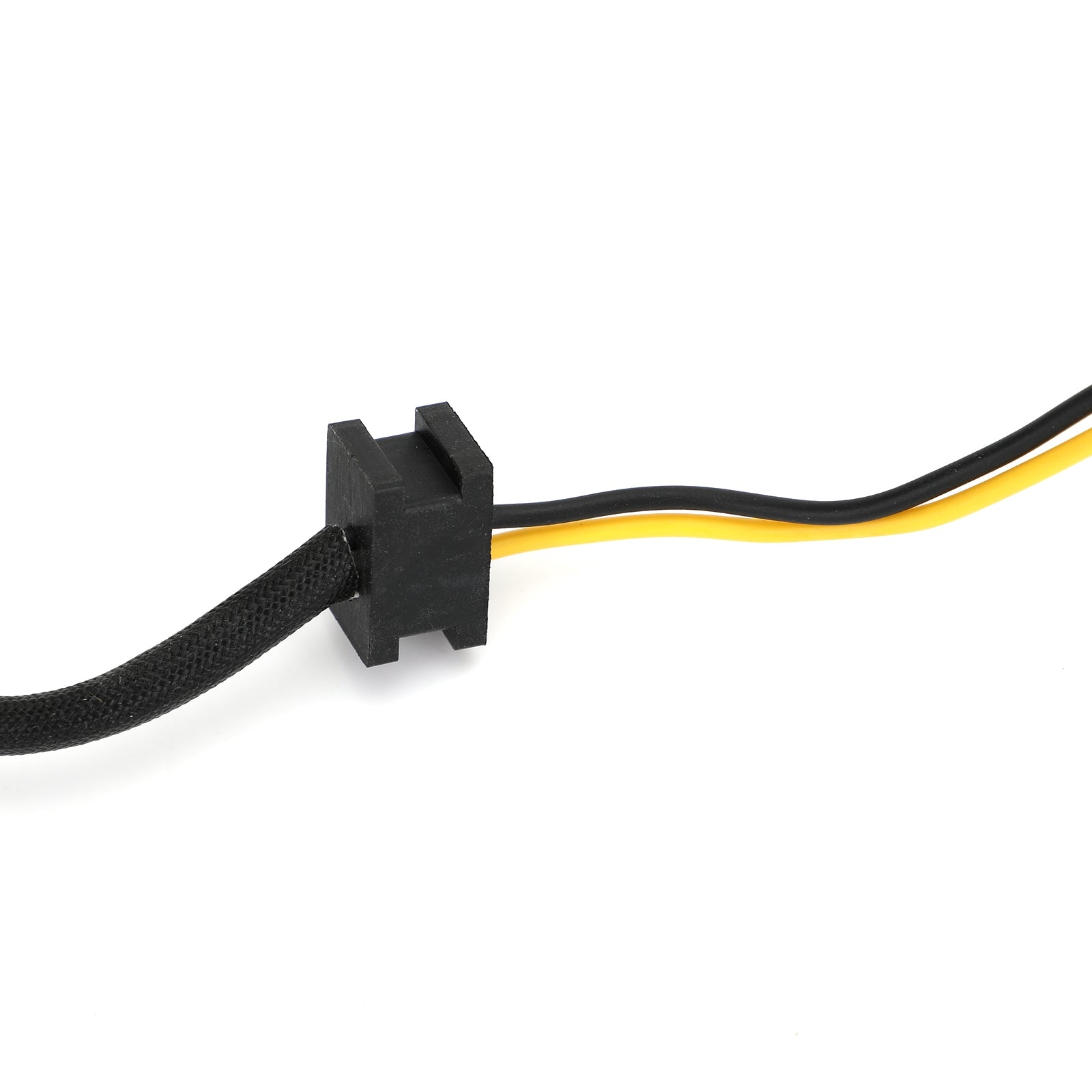

Type: Pick up pulsar coil
Number of wires: 2
Number of plugs: 1
Number of pins: 2
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
1x Pick up pulsar coil
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
Stator is exact fit for 2004 Sportsman 600, and way more reasonably priced relative to Polaris OEM. However I have not installed it as I determined the rectifier was the problem. I inspected & just carefully cleaned a light haze of grease off the existing stator's lamination's. It made a major difference in power generation! But I will hang onto it based on the age & model of the machine with the machine being electronically a "tweener" model between 2/17/2003 & 4/5/2004. electronically.
It showed up ahead of schedule! Stator was easy to install on my bike and working great! 3 hours ride time so far. Will update if there are any issues.
Service was good quick and easy and they respond to your emails fast. Everything was fast except for the shipping. Took a week to leave wherever they ship products from.
This was delivered faster than expected. I installed it on the ATV and it fixed my no spark problem. Easy installation, replacement according to the original.Hopefully it lasts a long time
Item fitted great. Haven’t installed it on my because I’m waiting on the gasket that I had to order the dealership.
Fitted the stator and rectifier and when starting my bike could notice the difference instantly. There was better response and sounded like it should again
This product was an exact replacement for my stator and fixed my problem. fit the machine just fine and provided spark output right away. No issues.I would definitely buy from this seller again.
Received as promised. A quick install and the bike started on the first try. This 12 coil stator looks to be very well made as to fit and finish and function. Highly recommend as an OEM type replacement.
