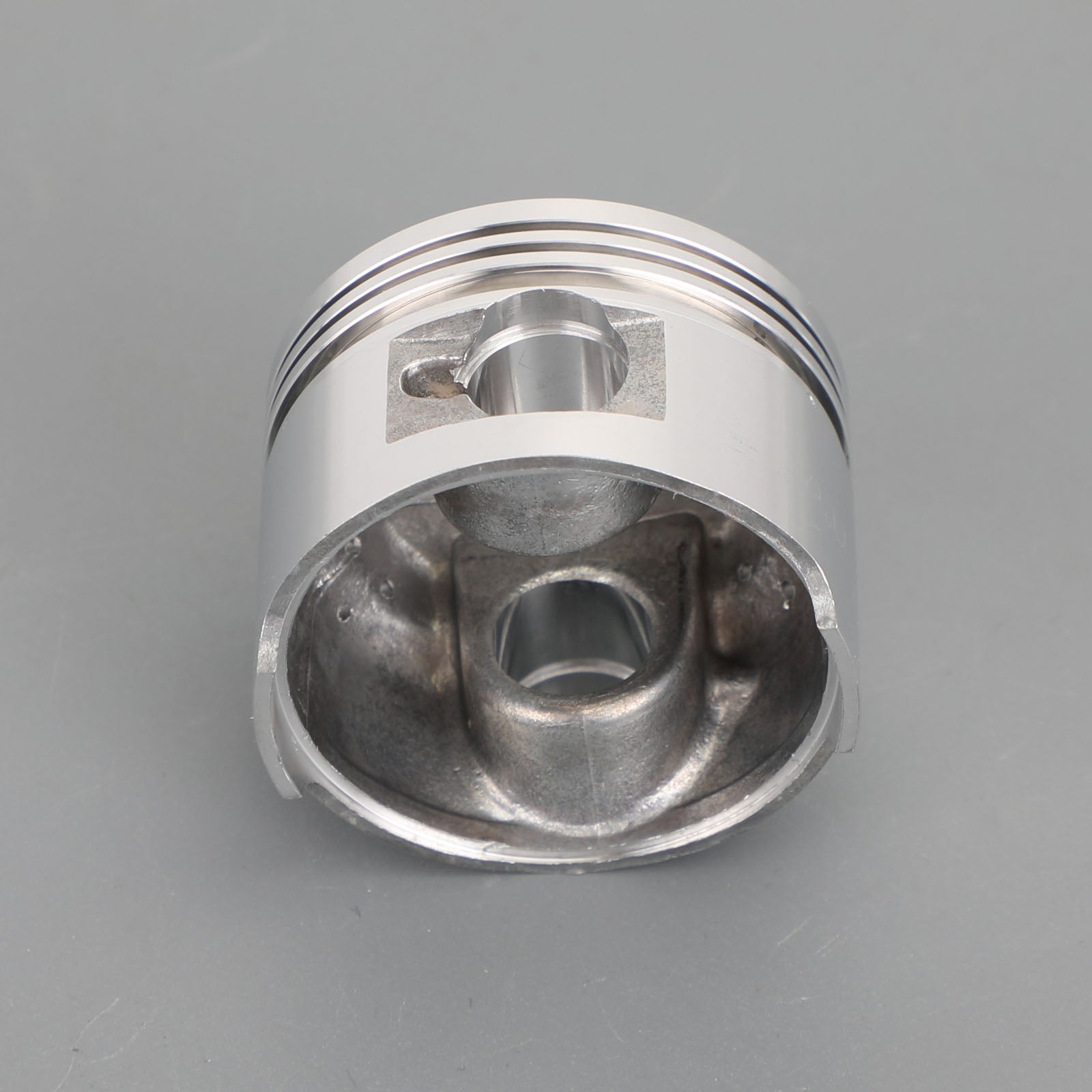

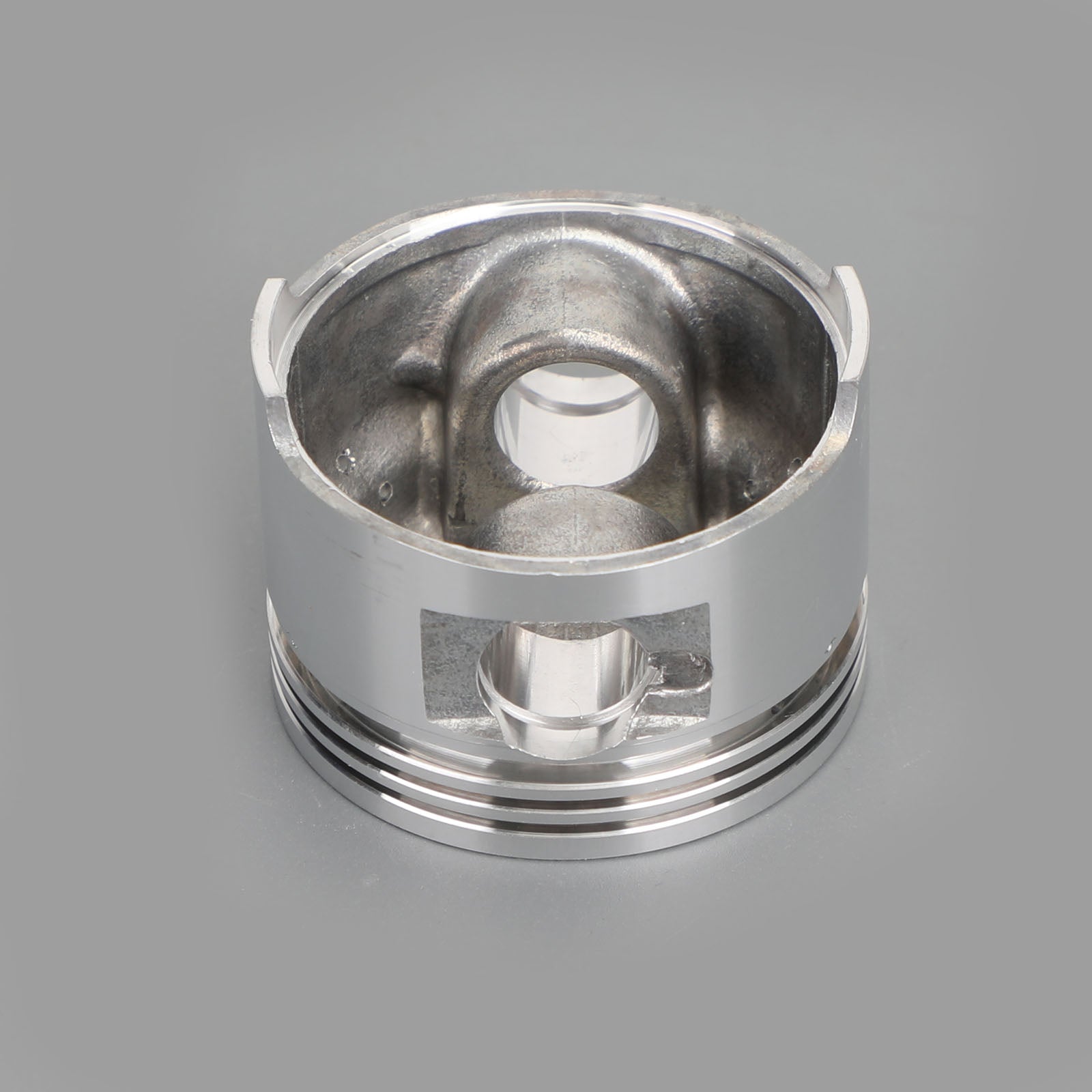

Yamaha Piston Kit Standard Bore Fit For Yamaha YFM90R RAPTOR 90 2009-2013 Polaris Sportsman 90 07-16 Outlaw 90 08-16
Piston Pin Ring Set STD / +0.25 / +0.50 / +0.75 Bore Size Fit for YAMAHA 2009-2013 RAPTOR YFM 90 YFM90R ATV
Features:
Manufactured using the latest computerized technologies derived from GP and F1.
Forged pistons are more temperature resistant and longer lasting than cast pistons.
These pistons additionally have a piston skirt coating.
The piston sets are supplied complete with rings, bolts and clips.
Airtight function,prevent gas leakage from the top of the piston.
This piston ring also achieve the heat dissipation effect.
Prevent excessive oil from entering the combustion chamber and to fully lubricate the cylinder wall.
Maintain the direction of movement of the piston,so please select the best piston ring for the engine.
This kit includes a piston, rings, wrist pin, and cir-clips.
Professional install will be highly recommended. No installation instruction included.
Specifics:
Condition: Aftermarket 100% Brand New
Material: Aluminum
Bore Type: STD / +0.25 / +0.50 / +0.75
Bore Size: 47.00 / 47.25 / 47.50 / 47.75
Wrist-pin diameter: 13 mm
Wrist-pin height: 36 mm
Piston height: Approx 34 mm
Attention: Modified piston,check out the bore size and height fits your motorcycle or not before you purchase.
Part Number:
Piston:
0453430
43D-E1631-00
Piston Ring set:
0453429
43D-E1610-00
Fitment:
Fit for Yamaha YFM90R RAPTOR 90 2009-2013
Fit for Polaris Outlaw 90 2008-2016
Fit for Polaris Sportsman 90 2007-2016
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

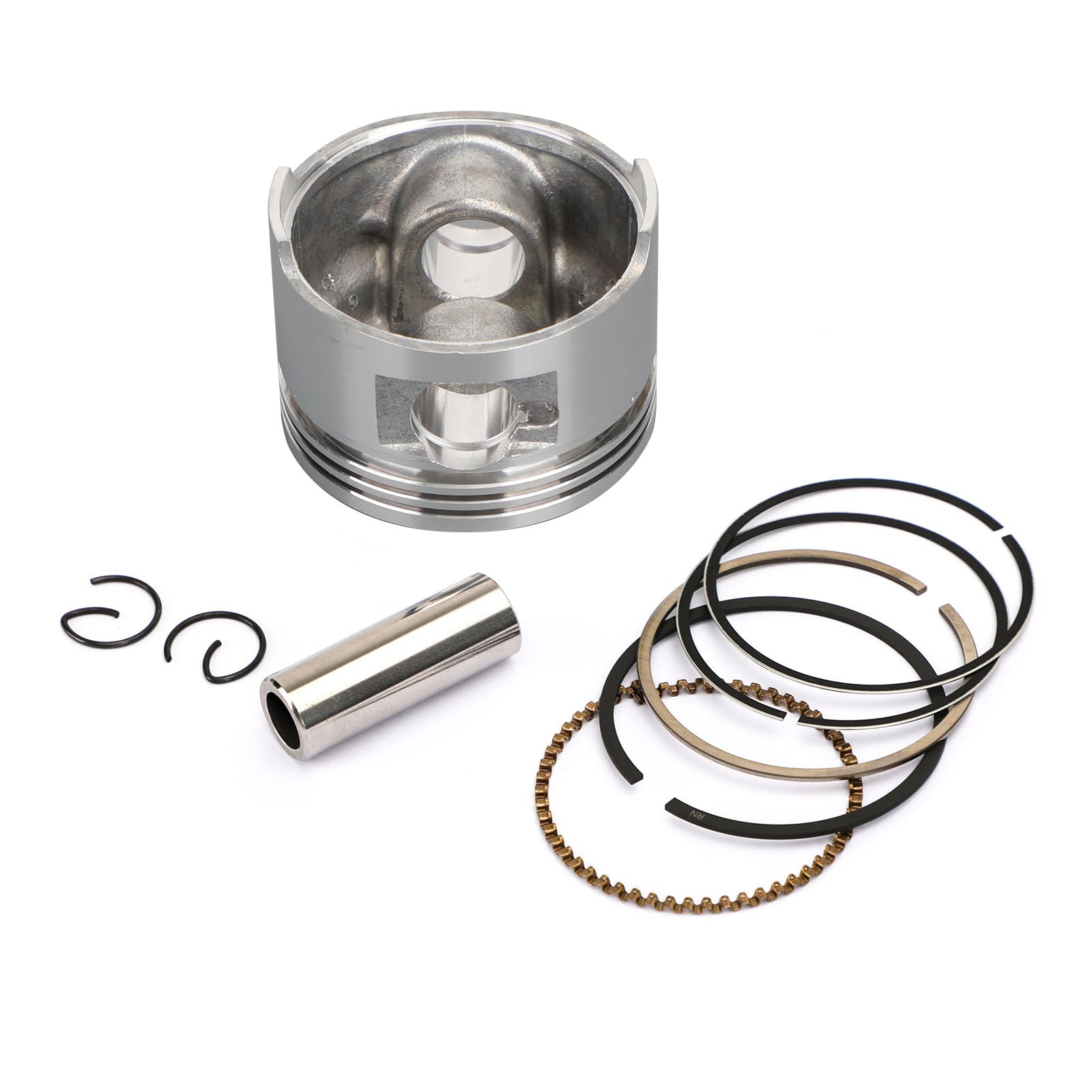

Package includes:
1 x Piston

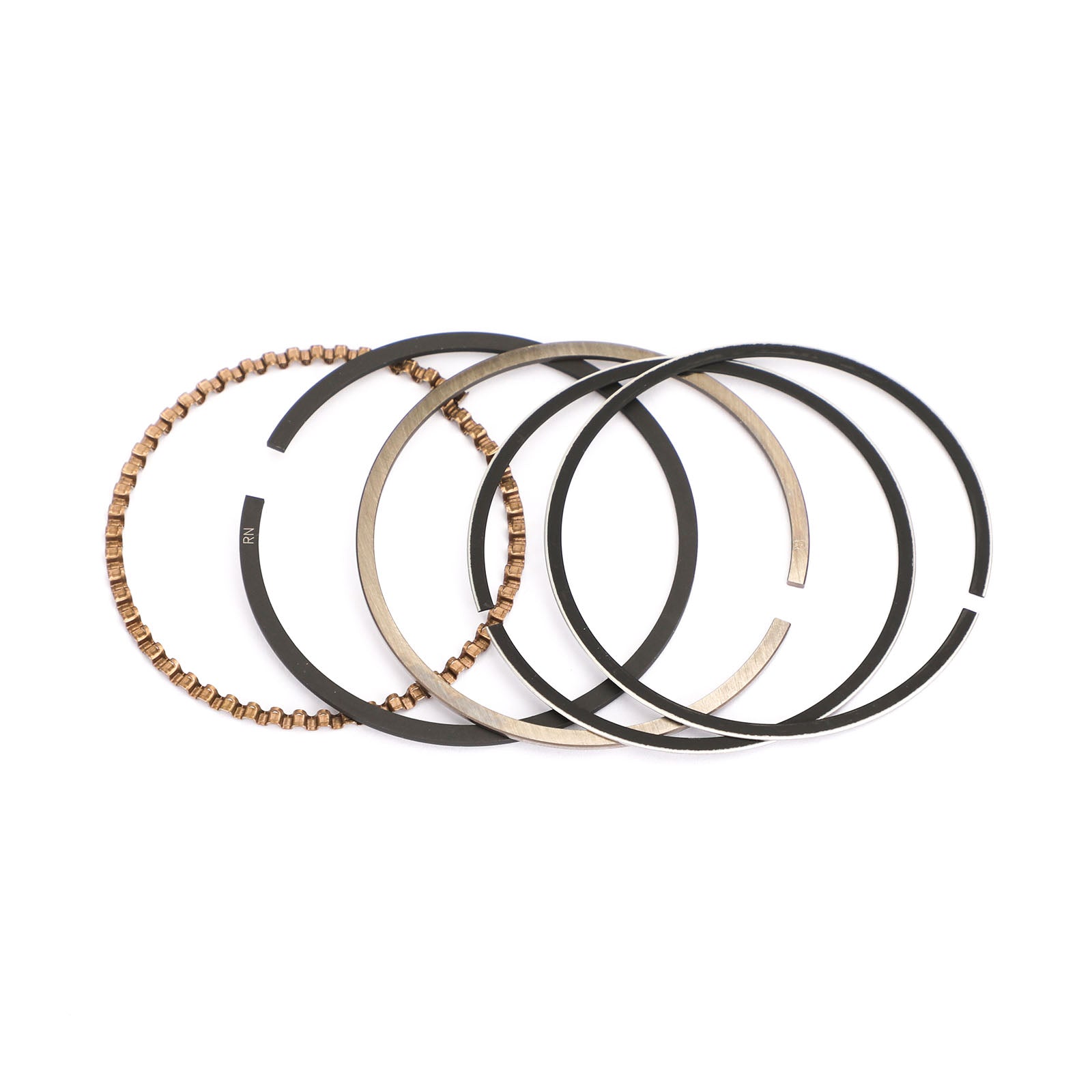

1 x Piston Ring Set

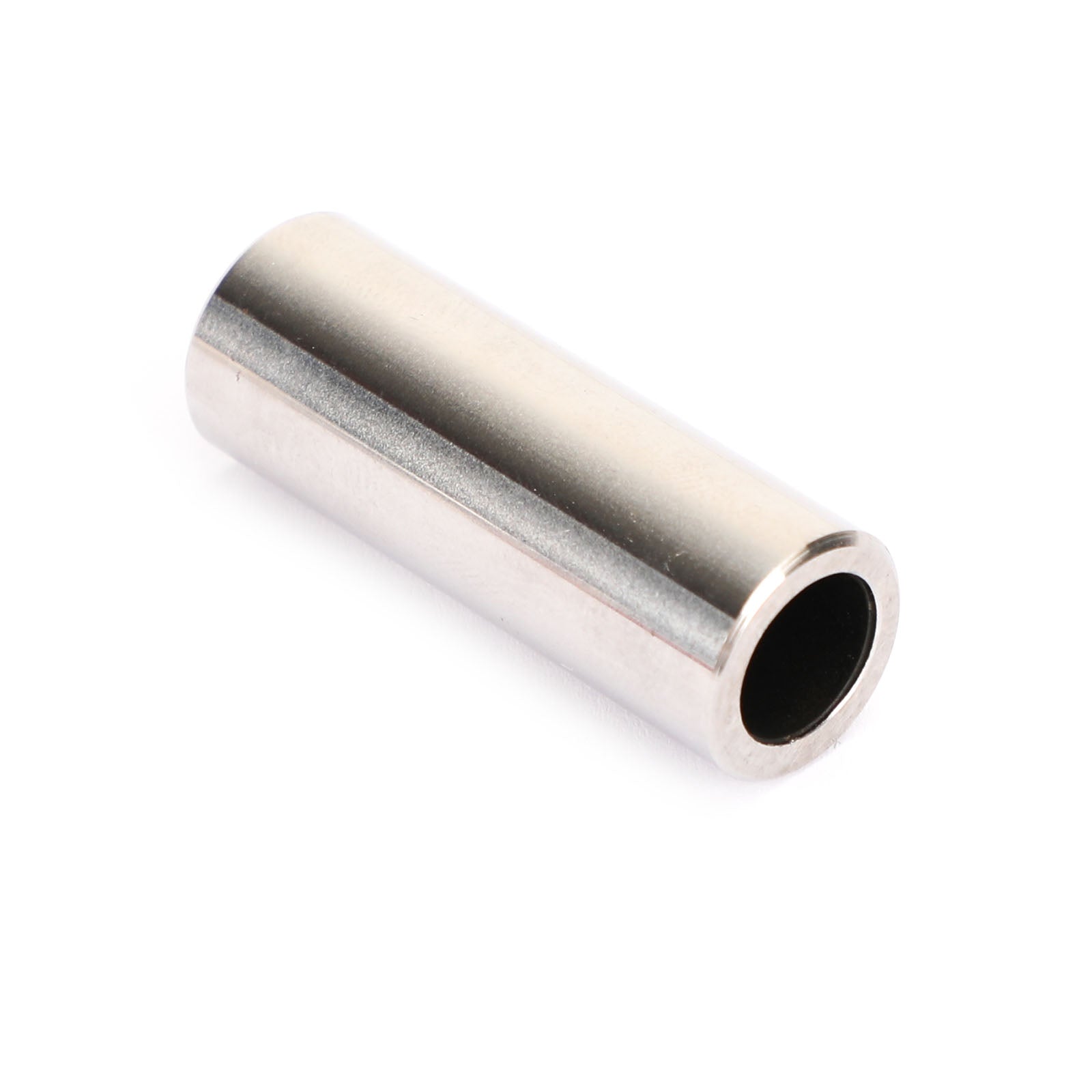

1 x Wrist-pin

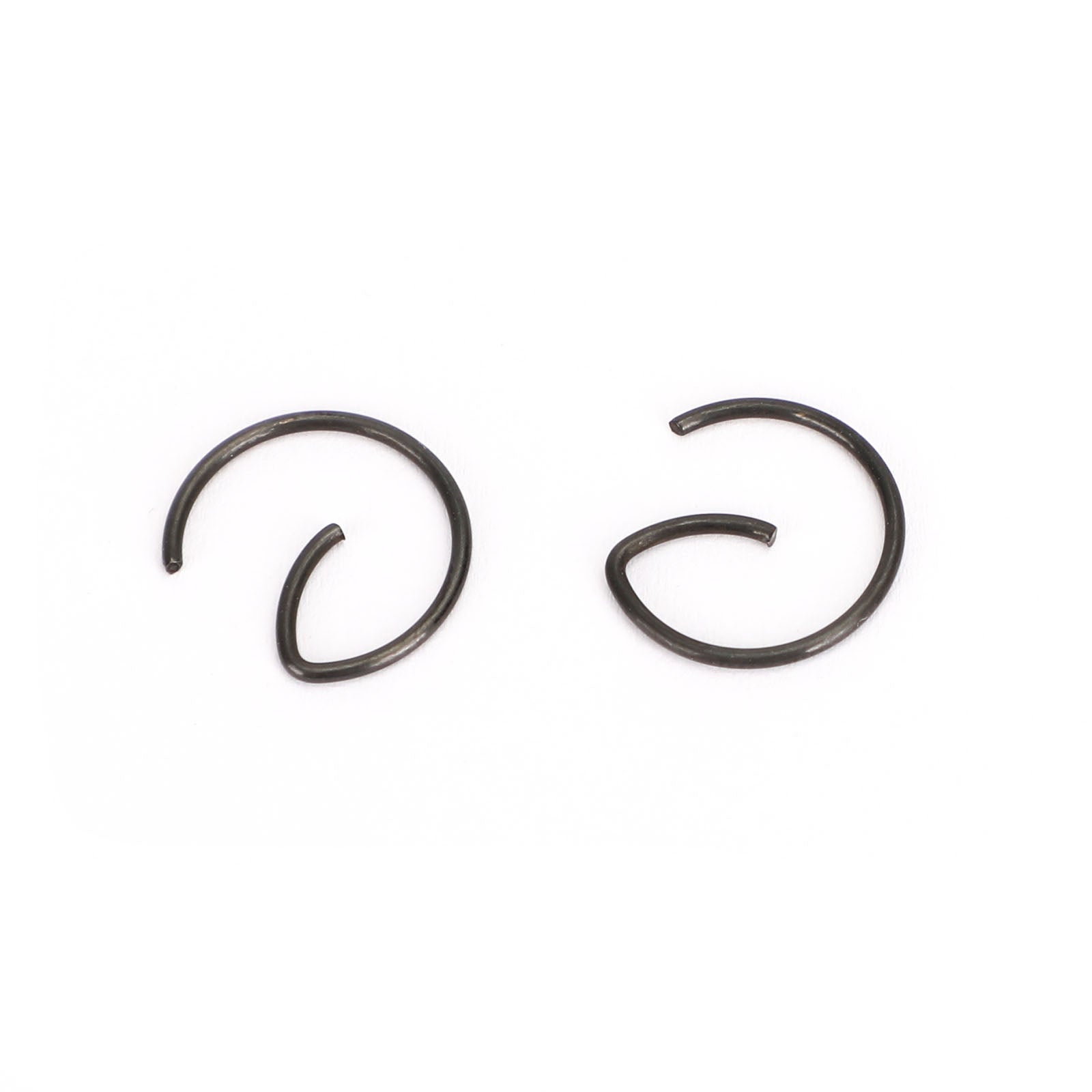

2 x Cir-clips
Note:
Please check out the P/N & height fits your motorcycle or not before you purchase.
