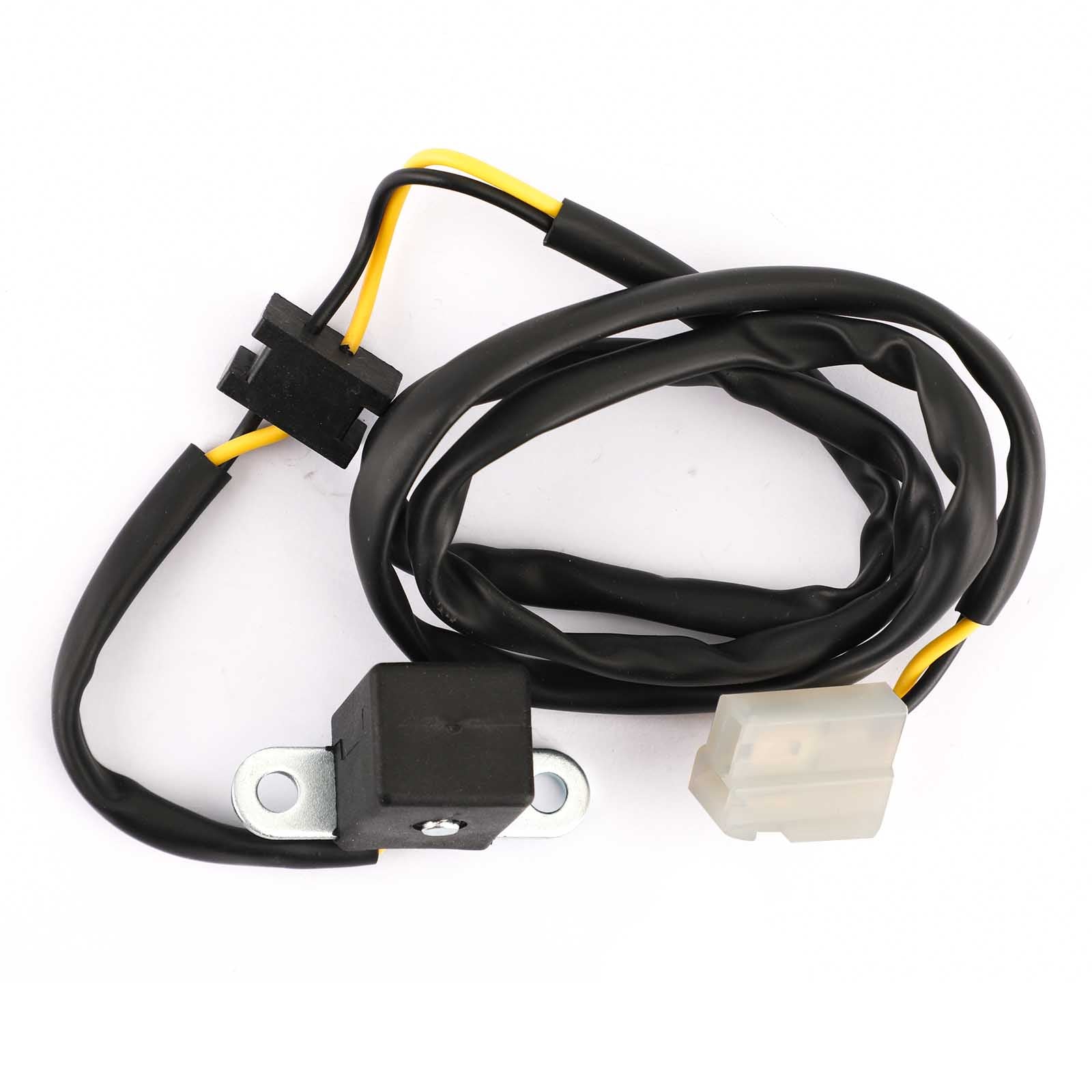

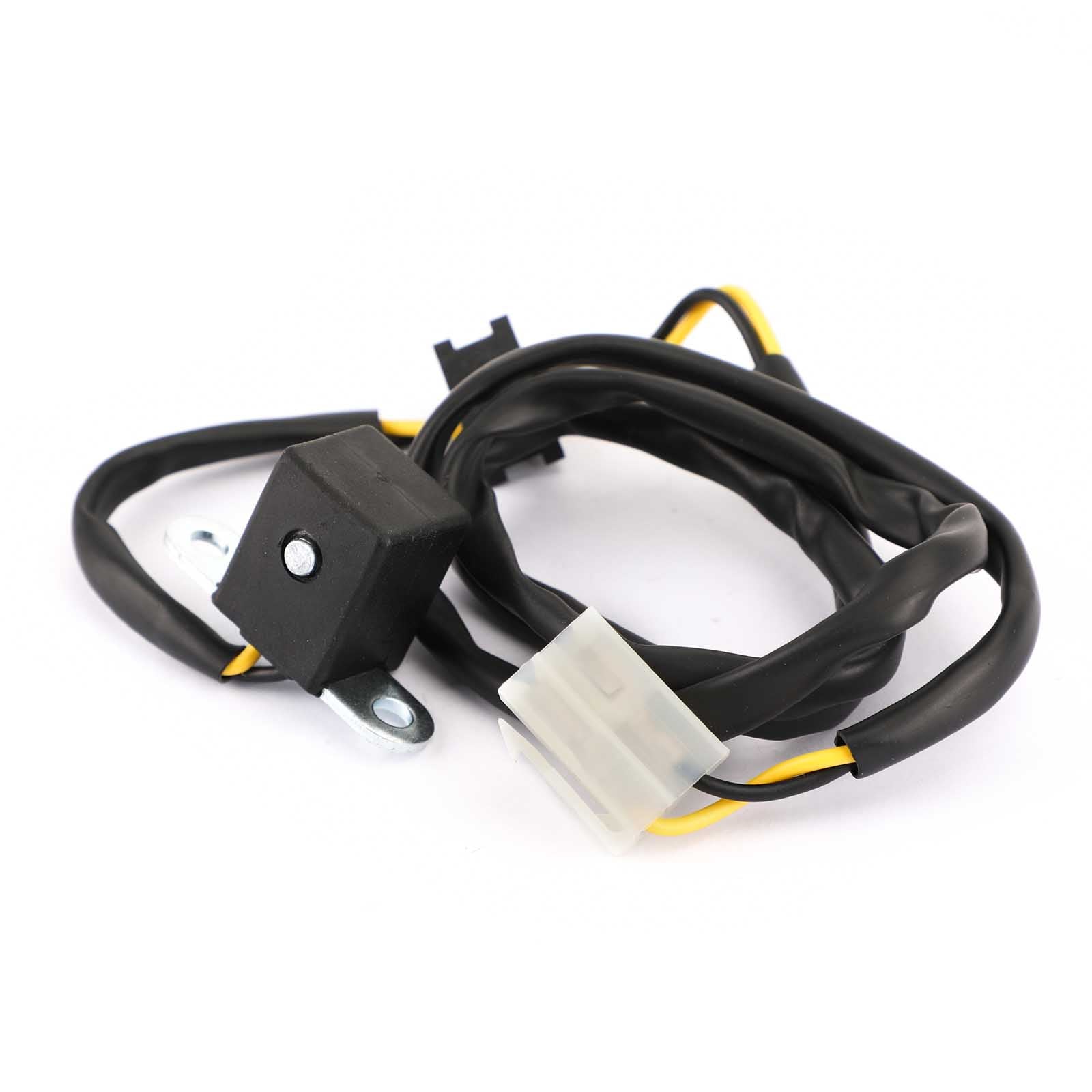

Pick-up Pulsar Coil Fit for Kawasaki ZX 11 Ninja ZZR 1100 1200 93-05 59026-1118
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil
Dimensions:
Height: 18.8mm
Length: 26mm
Width: 20.8mm
Bracket center to center: 35mm
Other Specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
PART NUMBERS:
59026-1118
Fitments:
Fit for Kawasaki Ninja ZX-11 ZX1100 1993-2001
Fit for Kawasaki ZZR1100 1993-2001
Fit for Kawasaki ZZR1200 2002-2005
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Package Included:
1x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
