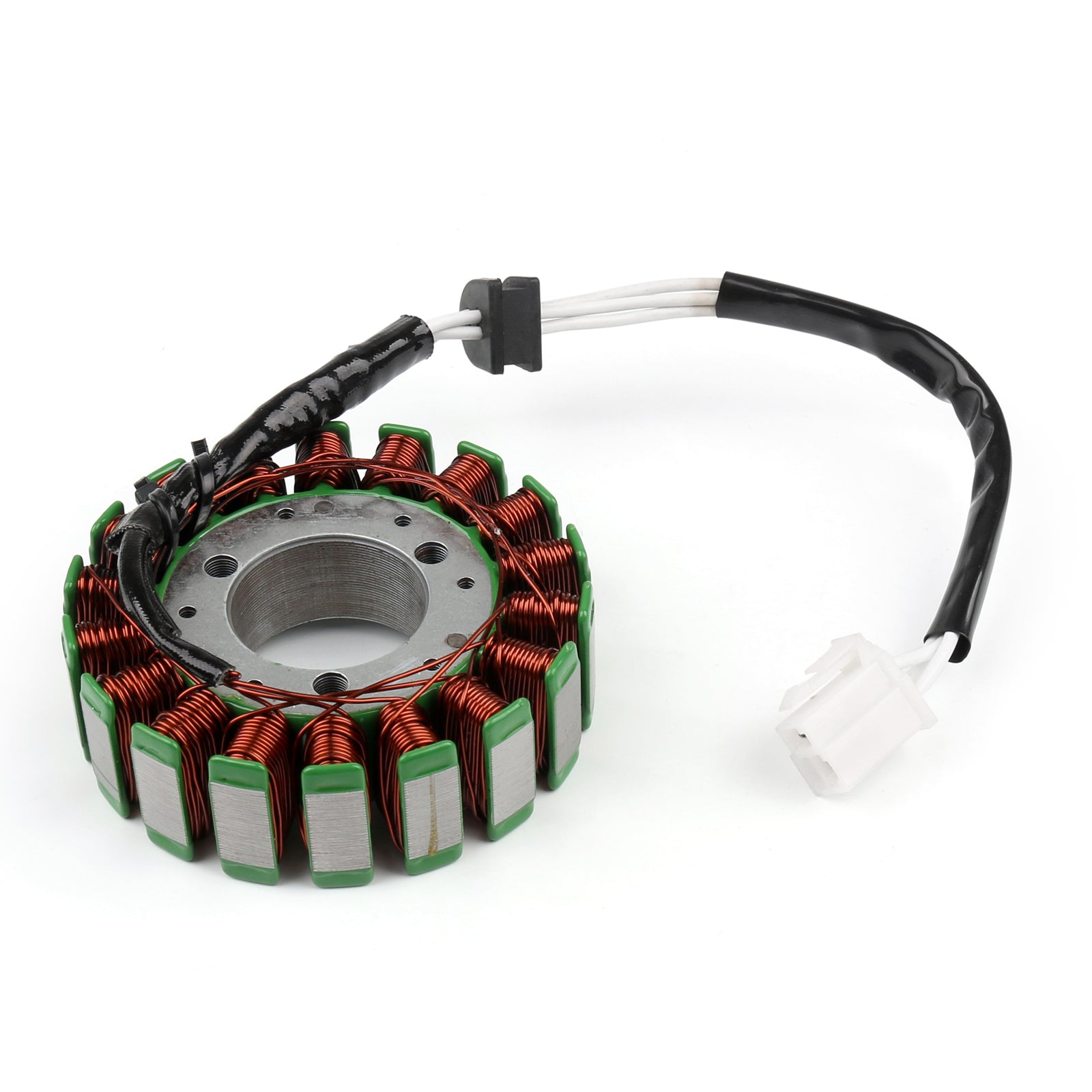

New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04
New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04
New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04
New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04
New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04

New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04

Sale price$85.78
SKU: M550-A047
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

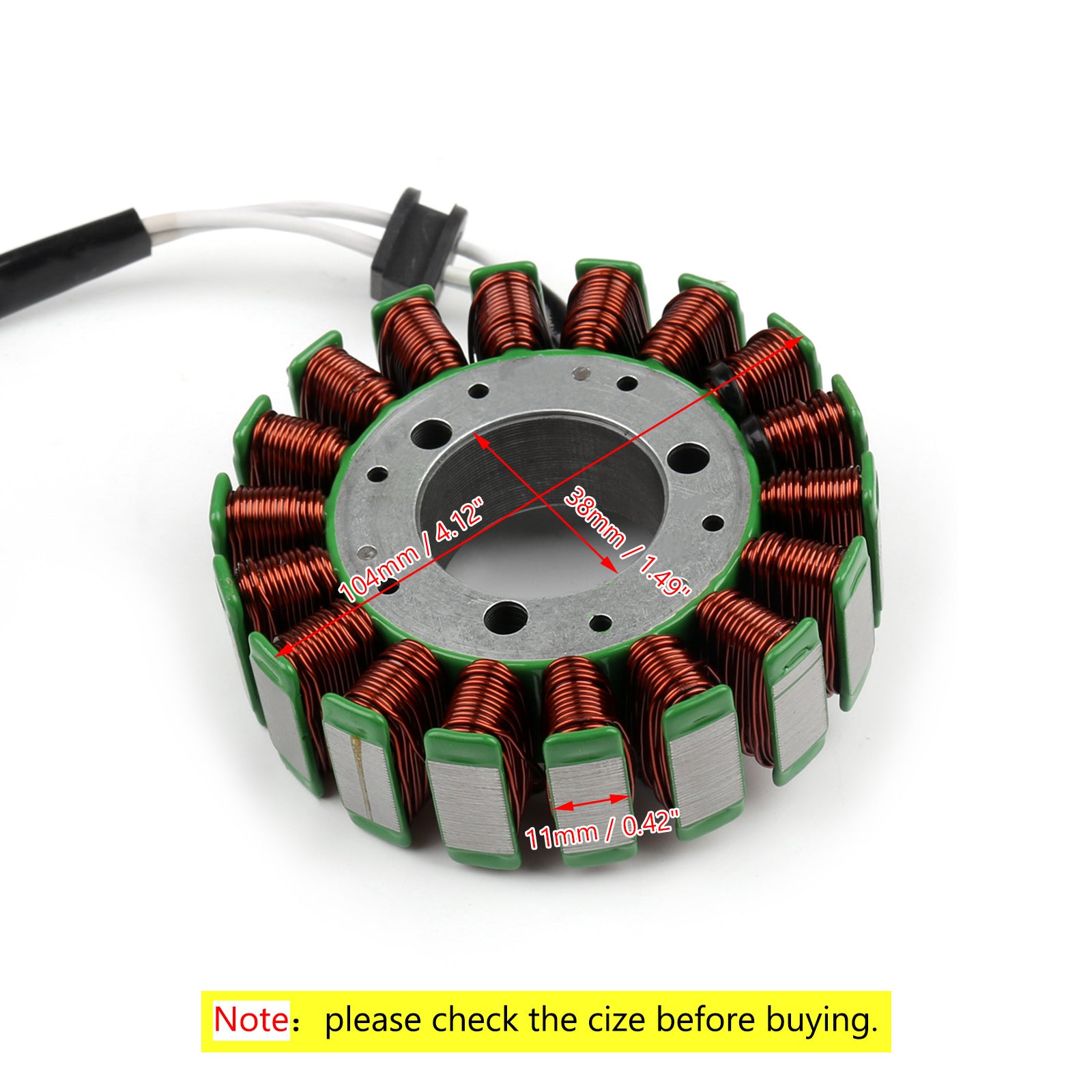

Dimensions :
Interior diameter : 38mm / 1.49"
Exterior diameter : 104mm / 4.12"
Thickness : 11mm / 0.42"

New Stator Coil Fit For Suzuki GSXR750 2000-2005 GSXR600 GSXR1000 01-04 via fedex



Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3

FITMENT:
For Suzuki GSXR600 2001-2005
For Suzuki GSXR750 2000-2005
For Suzuki GSXR1000 2001-2004

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
