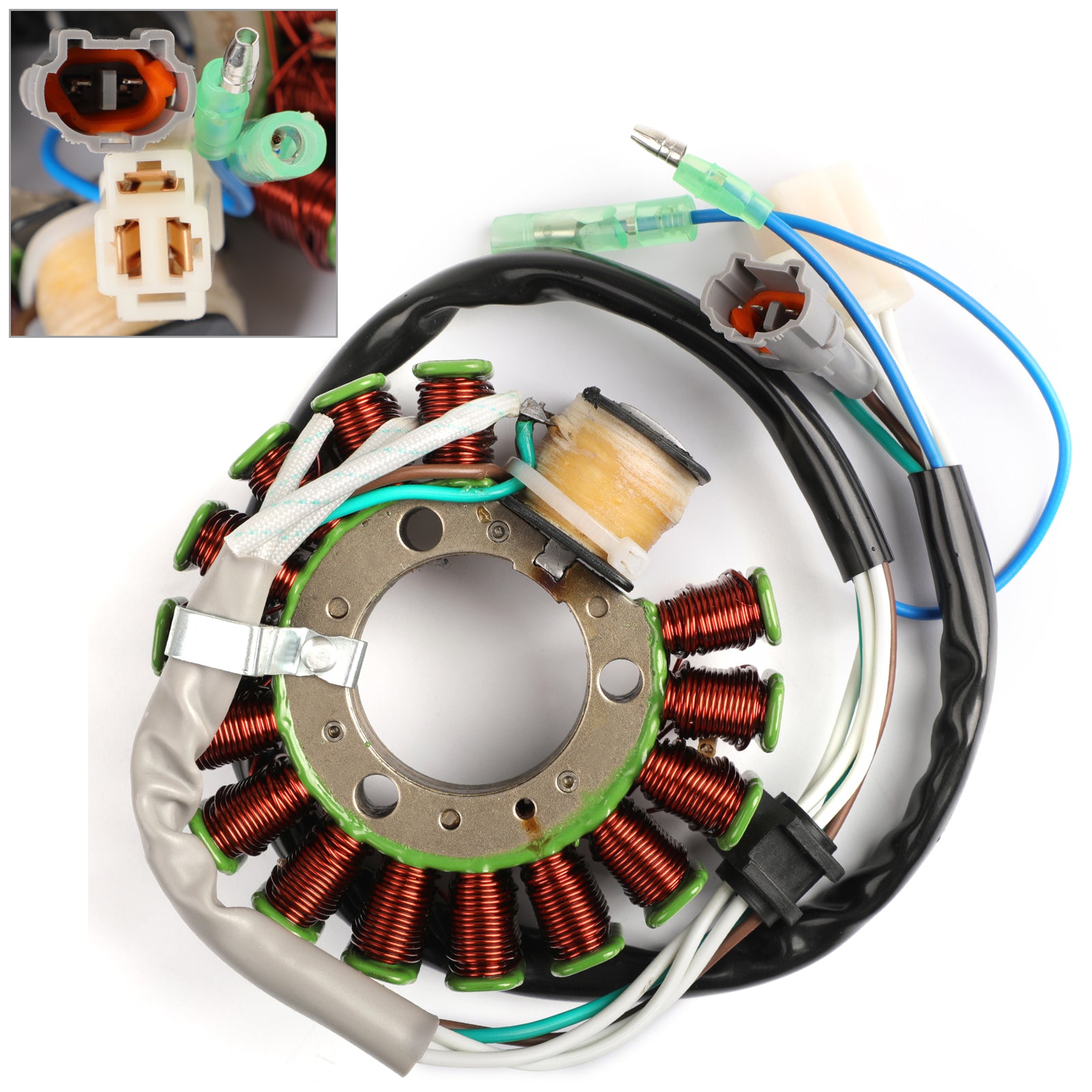

Magneto Stator Coil For Yamaha 99-17 TW 125 225 200 Trailway 200 4WP-85510-10-00
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil
OEM Replacement Part Number: 4WP-85510-10-00
Interior diameter : 37 mm / 1.44"
Exterior diameter : 97 mm / 3.82"
Thickness : 12 mm / 0.48"
Other specifications :
Number of wires : 5
Number of pins : 5(+1)
Number of plug : 2
Number of fixation holes: 3
Fits Yamaha TW125 1999-2004
Fits Yamaha TW200 Trailway 200 2001-2017
Fits Yamaha TW225 2002-2007
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included
All products shipped are tested
1 x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
