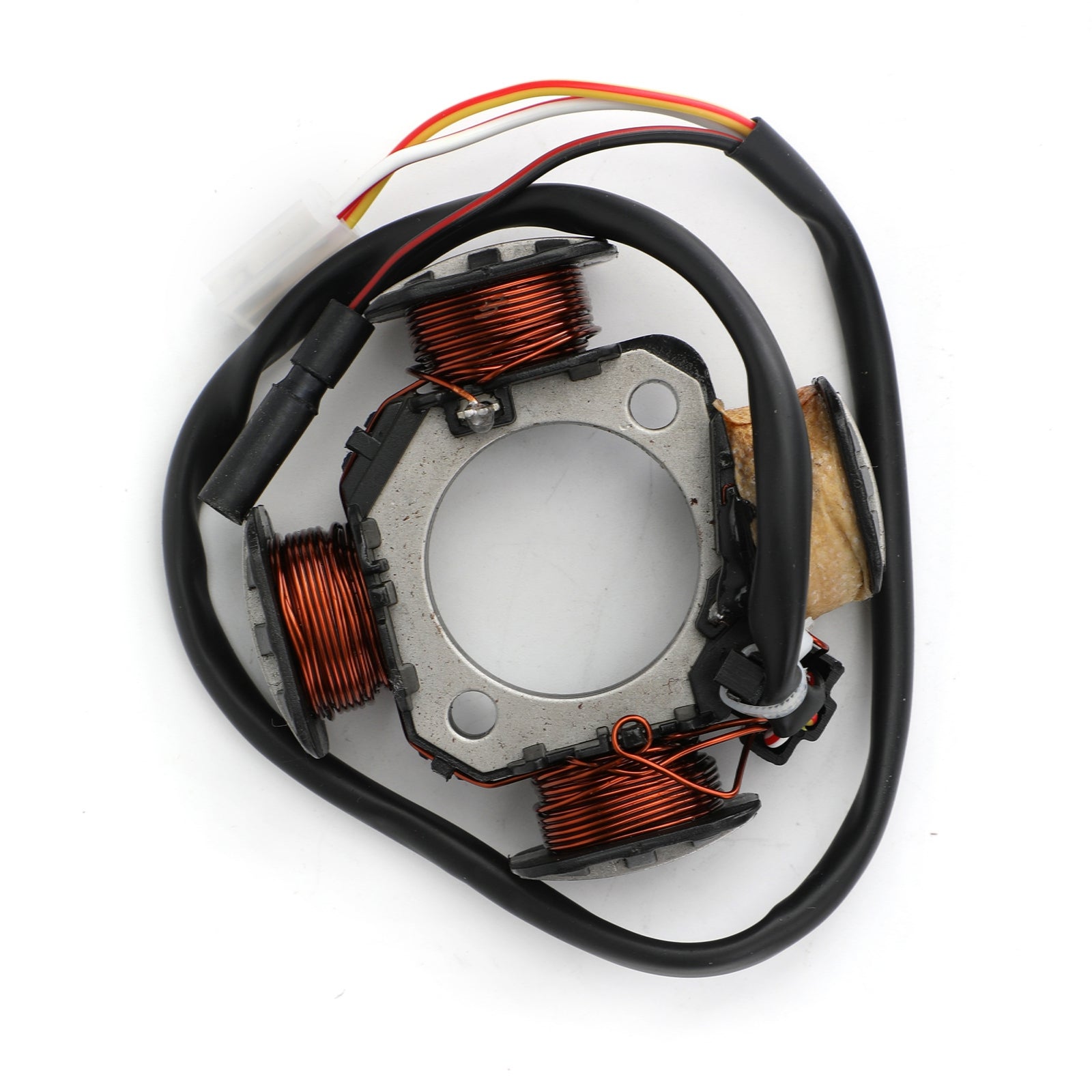

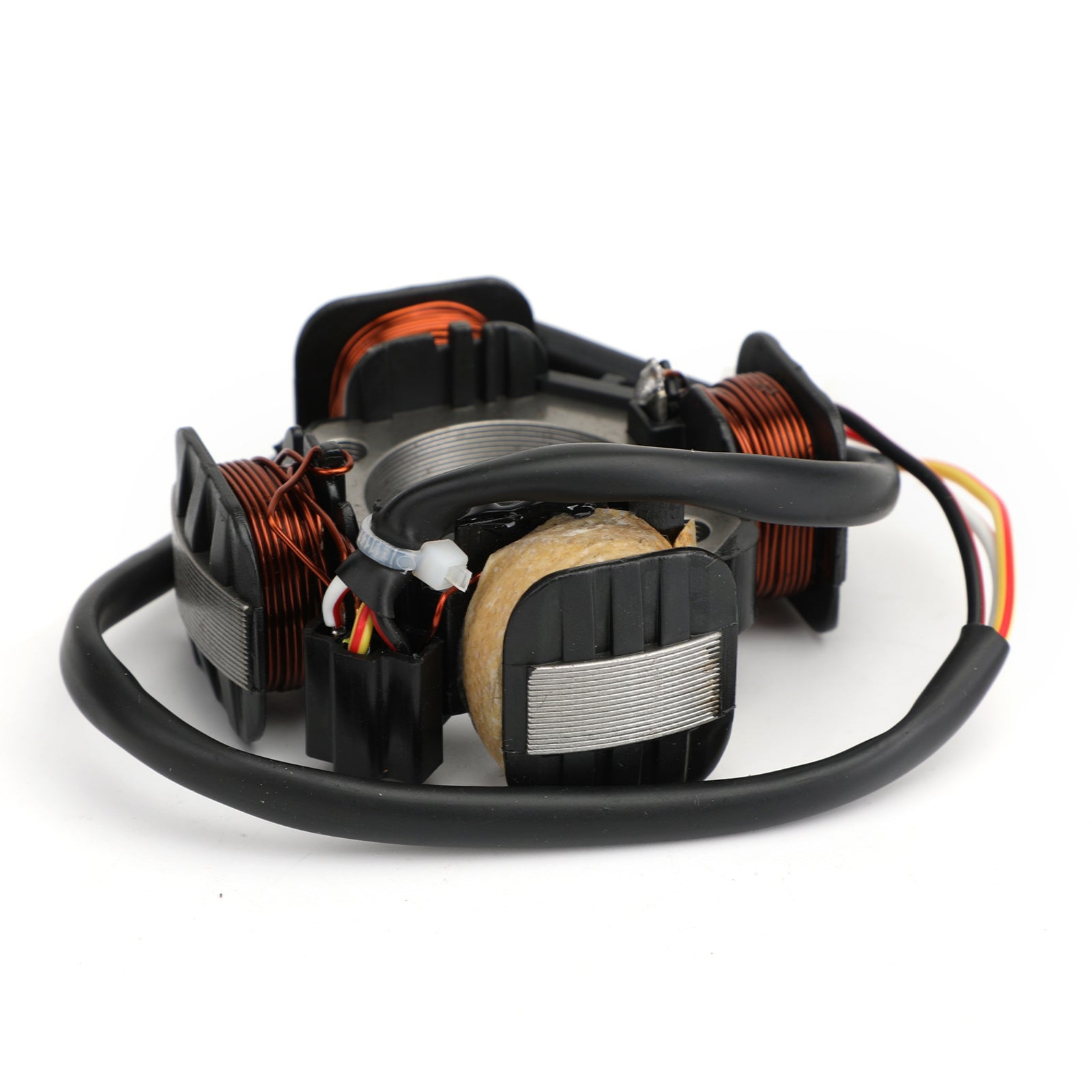

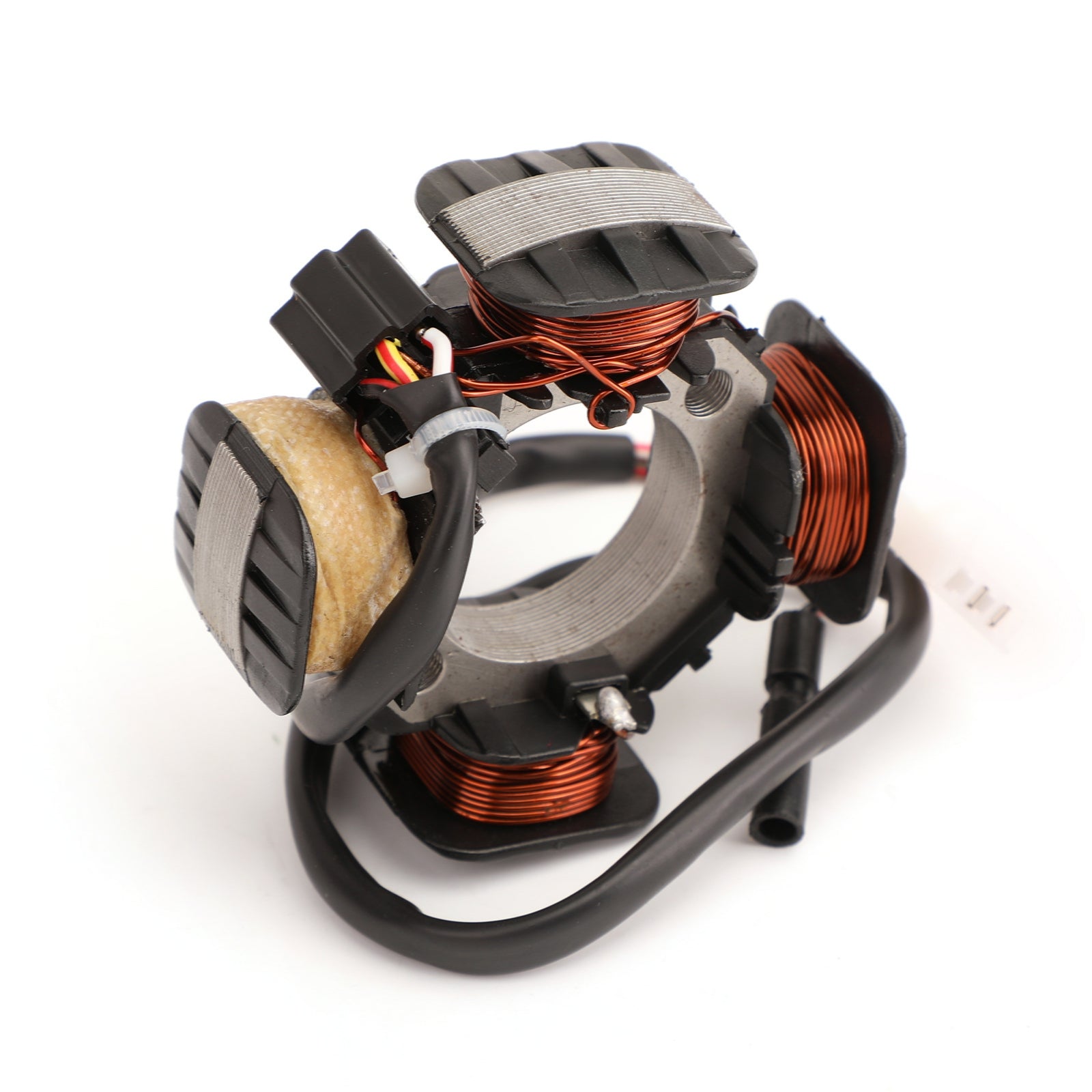

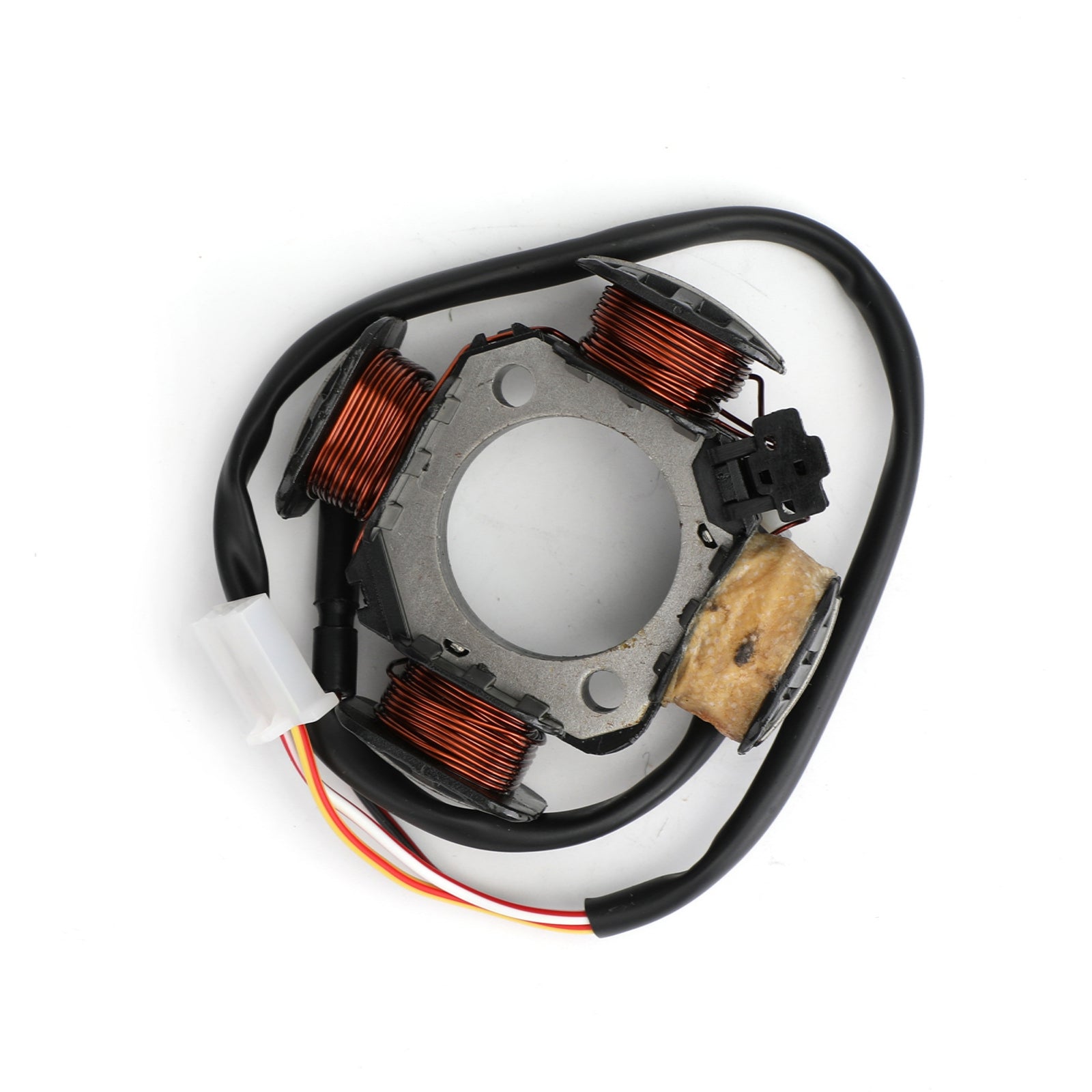

Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999
Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999

Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999

Sale price$49.78 USD
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-29C01, 32101-29C02, 32101-29C03

Dimensions :
Interior diameter : 36mm / 1.41"
Exterior diameter : 84.2mm / 3.31"
Pole's Thickness : 32.6mm / 1.28"
Pole's Width : 34mm / 1.33"

Magneto Stator Coil For Suzuki AD50 AG50 AH50 AP50 Address 50 1989-1999



Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 2
Number of fixation holes: 2
Number of poles: 4

FITMENT:
For Suzuki AD50 Address 1989-1994
For Suzuki AG50 Address 1992
For Suzuki AH50 Address 1992-1994
For Suzuki AP50 1995-1999

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
