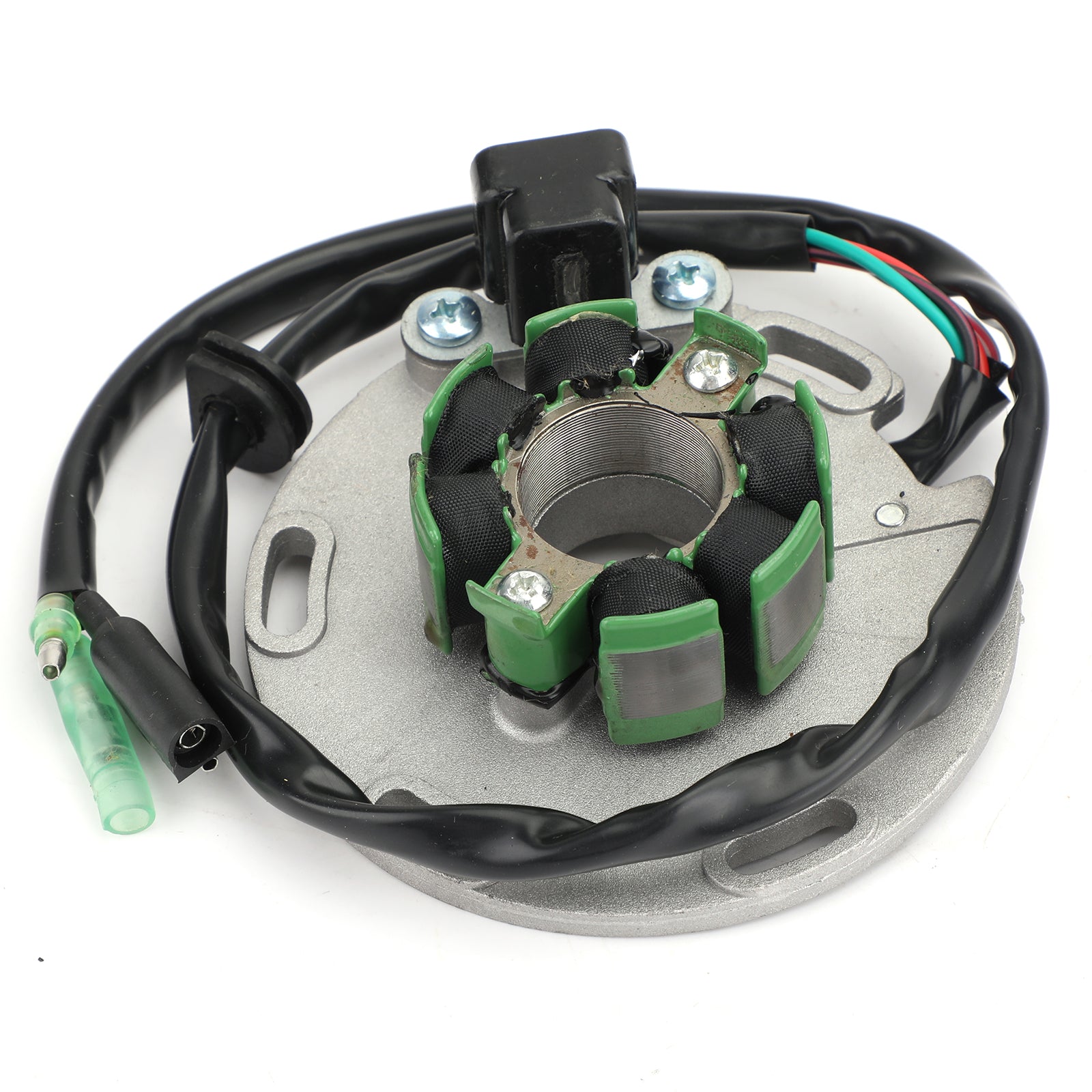

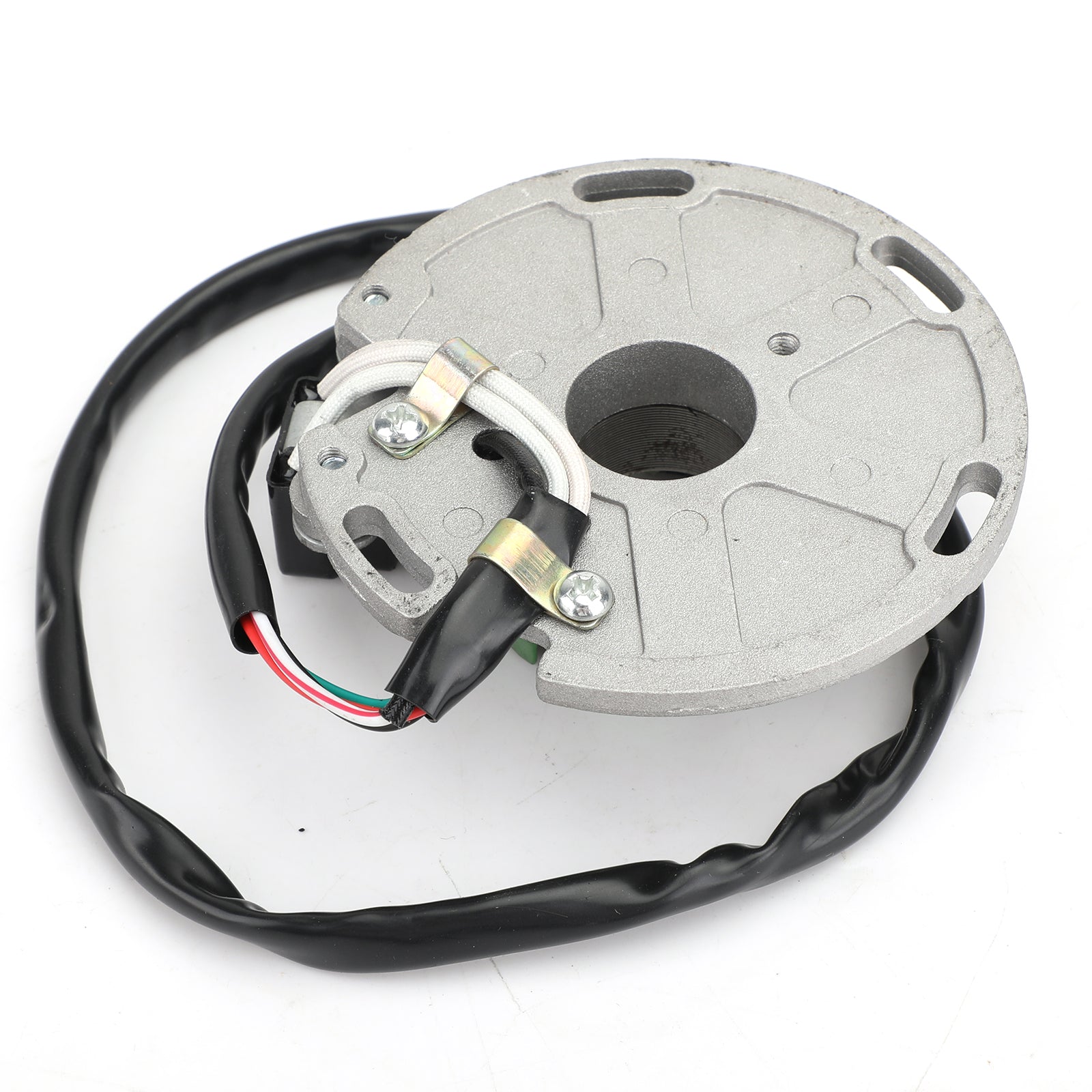

Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995
Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995

Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995

Sale price$78.89
SKU: M550-A333
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 32101-01B30, 32101-01B31, 32101-00B30, 32101-28C01, 32101-28C02, 32101-28C03, 32101-00B31,32101-01B32, 32101-28C00

Dimensions :
Interior diameter : 27 mm / 1.08"
Exterior diameter : 57 mm / 2.27"
Pole's Thickness : 30 mm / 1.18"
Pole's Width : 17 mm / 0.67"



Magneto Stator Coil 32101-01B30 32101-28C00 Fit For Suzuki RM125 1986-1988 RM250 1986-1995



Other specifications :
Number of wires: 4
Number of pins: 4
Number of plugs: 4
Number of fixation holes: 4

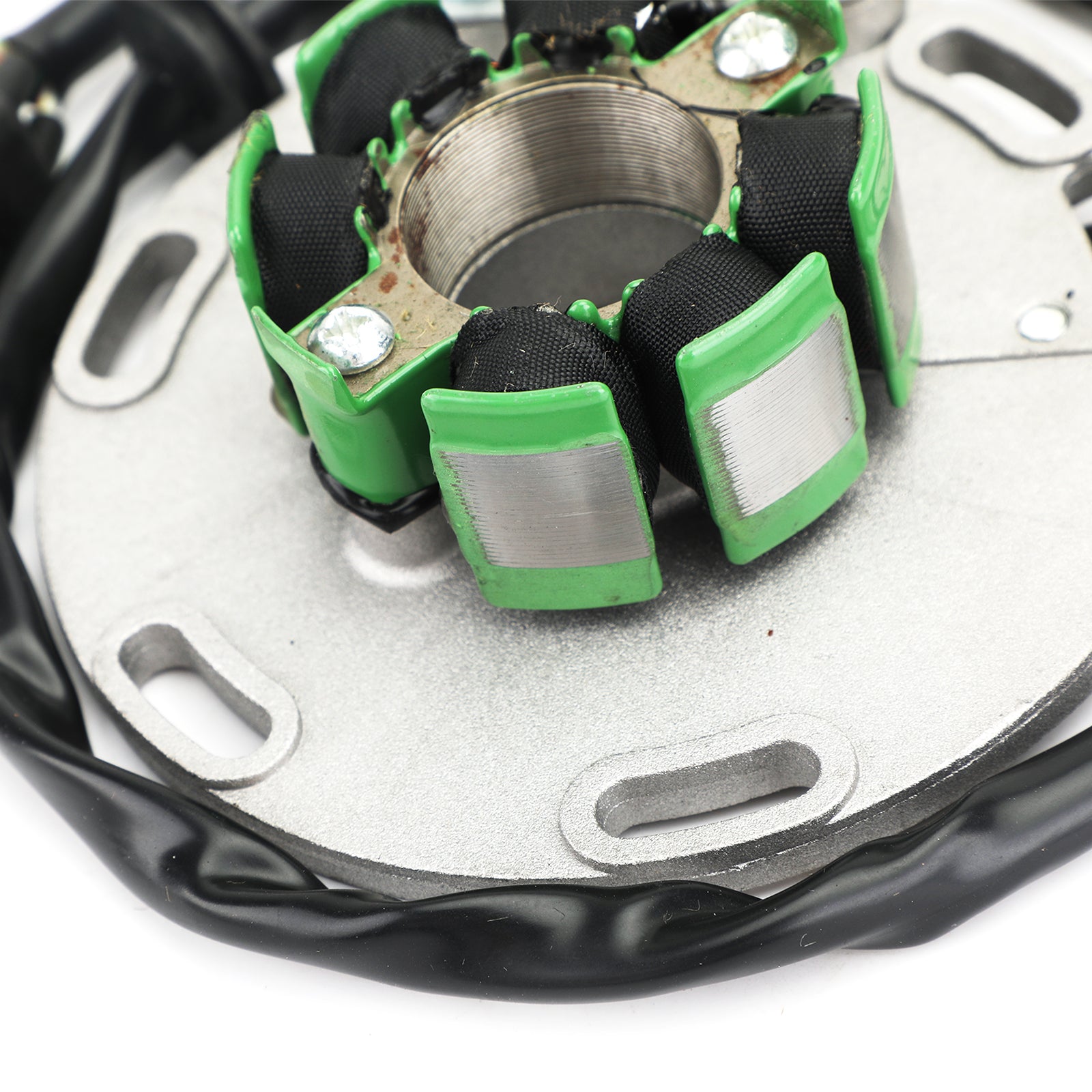

Number of poles: 8
Fixation holes length: 19 mm / 0.75"
Bottom Length: 110 mm/4.33"

FITMENT:
For Suzuki RM125 1986-1988
For Suzuki RM250 1986-1995

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.

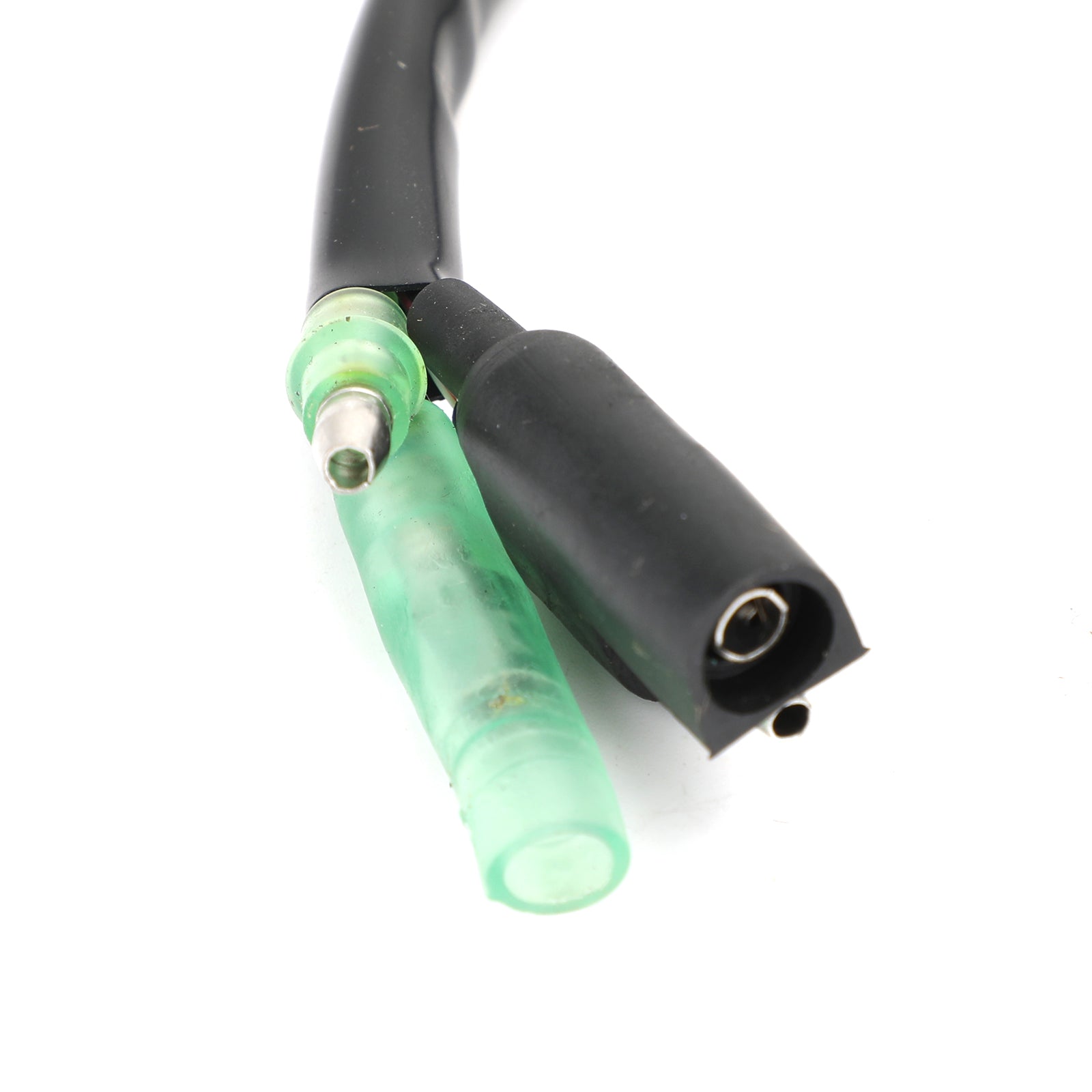

Connector included.
All products shipped are tested.

PACKAGE INCLUDED: 1 x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

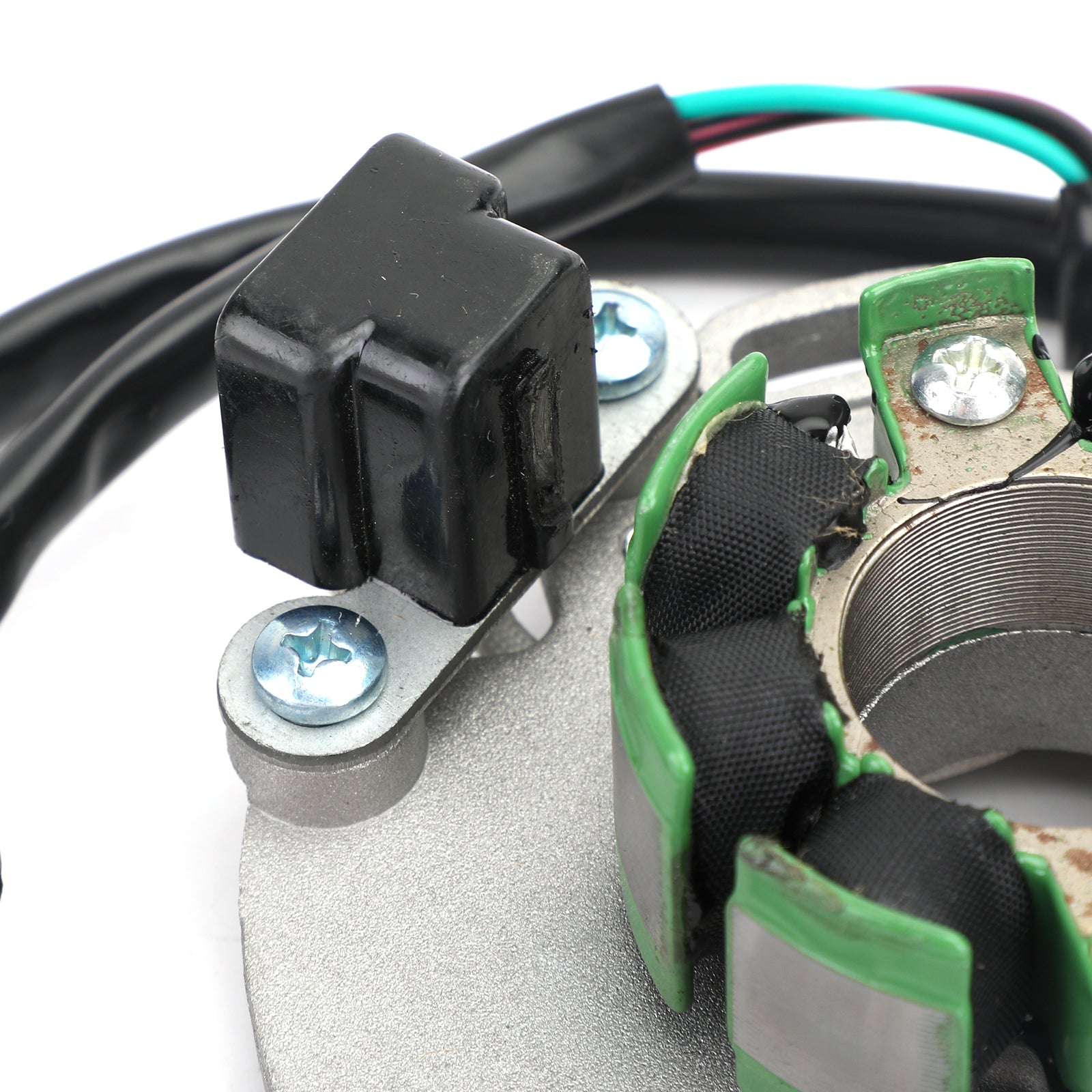

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
