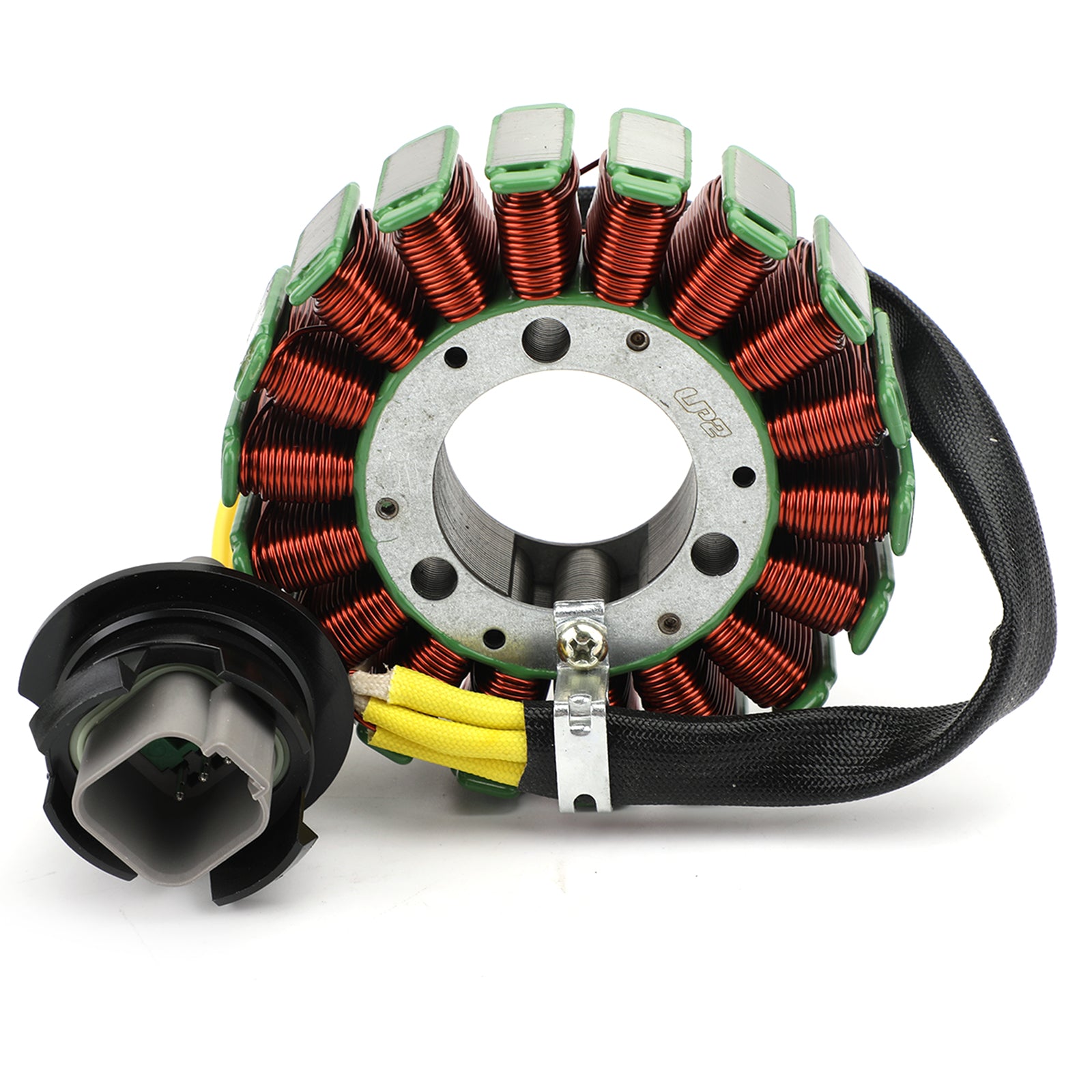

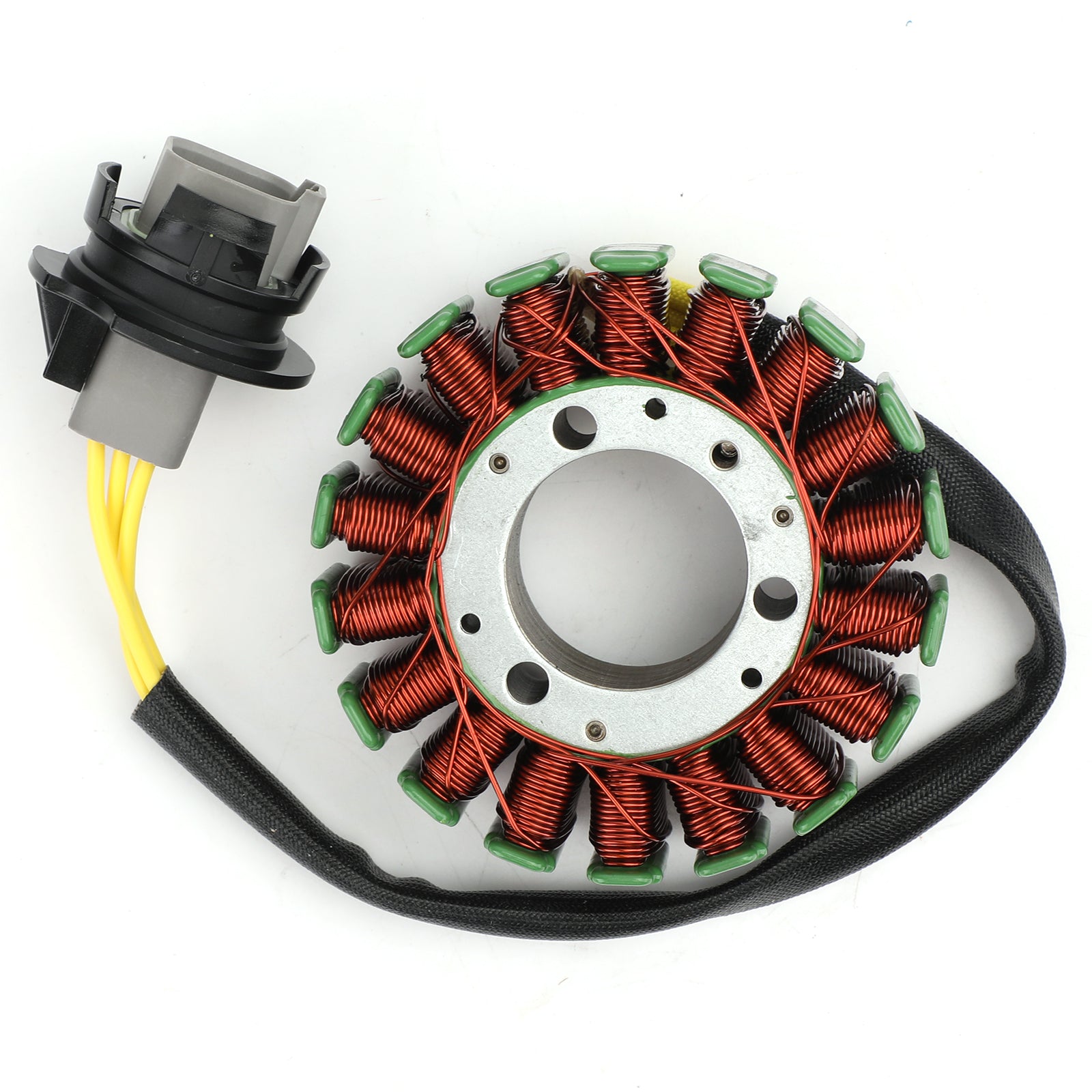

Magneto Stator Coil For Sea-Doo Watercraft GTX/RX/LRV/XP DI 420888652 290888650
Magneto Stator Coil For Sea-Doo Watercraft GTX/RX/LRV/XP DI 420888652 290888650
Magneto Stator Coil For Sea-Doo Watercraft GTX/RX/LRV/XP DI 420888652 290888650

Magneto Stator Coil For Sea-Doo Watercraft GTX/RX/LRV/XP DI 420888652 290888650

Sale price$96.89 USD
SKU: M550-A327
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Interchange Part Number:290888650,290888651,290888652,420888652,420888656

Dimensions :
Interior diameter : 34 mm / 1.37 inches
Exterior diameter : 93 mm / 3.66 inches
Pole's Thickness : 32 mm / 1.27 inches
Pole's Width : 11 mm / 0.43 inches

Magneto Stator Coil For Sea-Doo Watercraft GTX/RX/LRV/XP DI 420888652 290888650



Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Plug's Length: 24 mm/0.95 inches
Plug's Width: 21 mm/0.83 inches
Number of fixation holes: 3(+3)
Number of poles: 18
Fixation holes length: 36 mm / 1.42 inches

FITMENT:
For Sea-Doo 3D DI 950 cc 2006-2007
For Sea-Doo 951 GTX DI 2000-2003
For Sea-Doo 951 LRV DI 2002-2003
For Sea-Doo 951 RX DI 2000-2003
For Sea-Doo 951 RX DI LE 2002
For Sea-Doo 951 XP DI 2003-2004
For Sea-Doo Sportster LE 950 cc 130 HP 2004-2006

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

PACKAGE INCLUDED:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
