Sale price$108.89 USD
SKU: M550-A330
Quantity:
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.

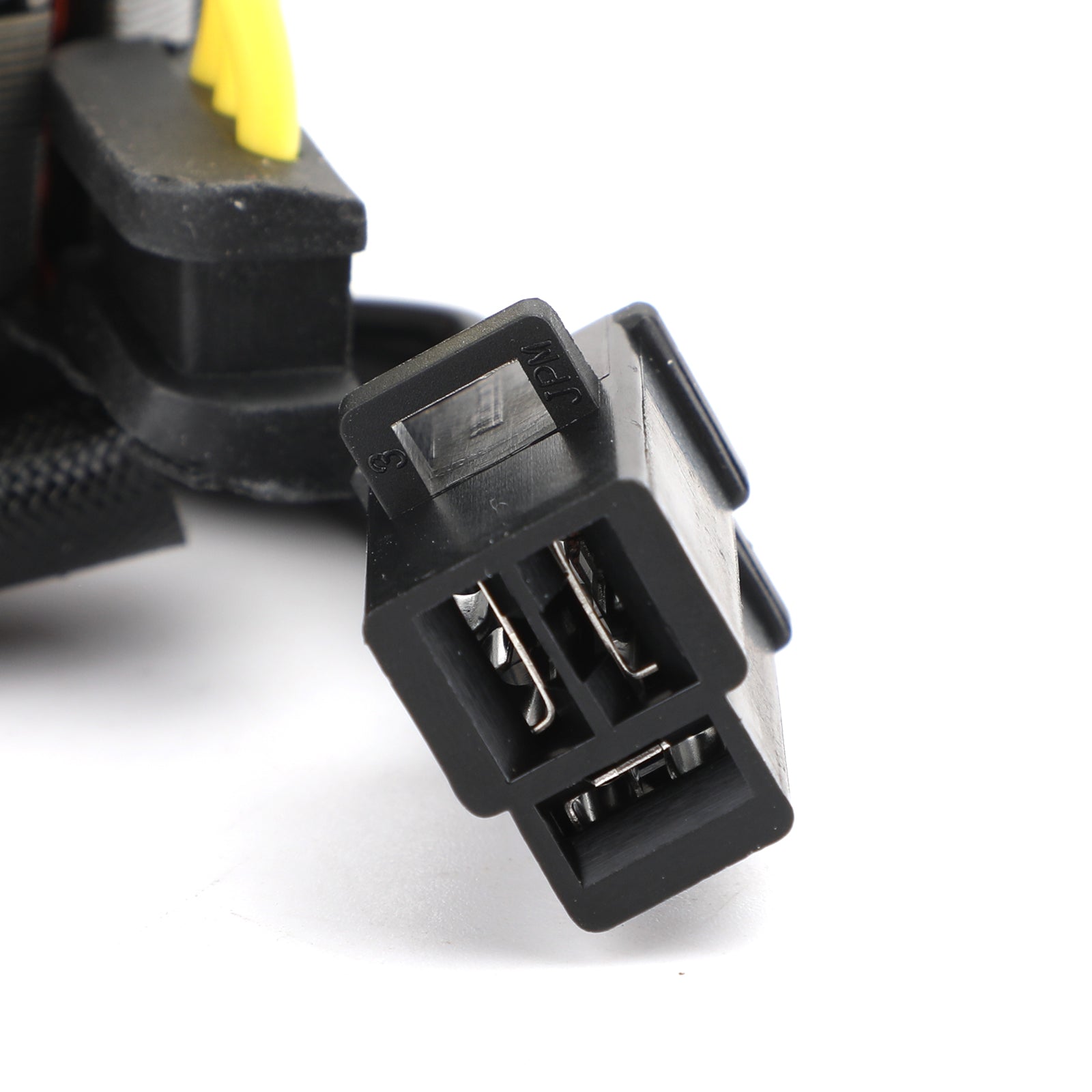

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

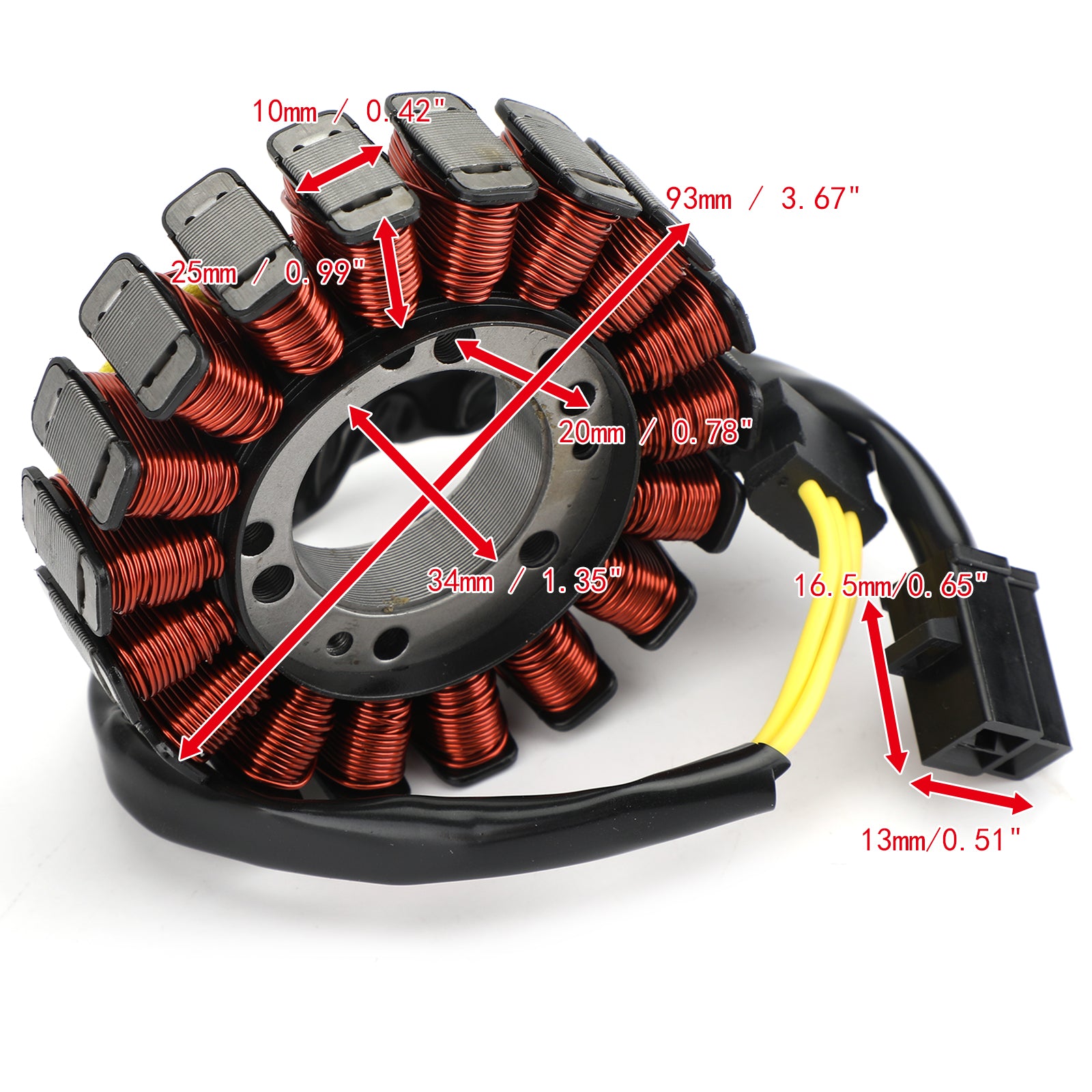

Dimensions:
Interior diameter : 34 mm / 1.35 inches
Exterior diameter : 93 mm / 3.67 inches
Pole's Thickness : 25 mm / 0.99 inches
Pole's Width : 10 mm / 0.42 inches

Other specifications:
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Plug's L*W:16.5 mm/0.65 inches*13 mm/0.51 inches
Number of fixation holes: 8
Number of poles: 18
Fixation holes length: 20 mm / 0.78 inches

Fitment:
For MV Agusta Stradale 800 2015-2017
For MV Agusta Brutale 990 2010-2012
For MV Agusta Brutale 675 F3 2011-2018
For MV Agusta Dragster 800 2011-2017

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
