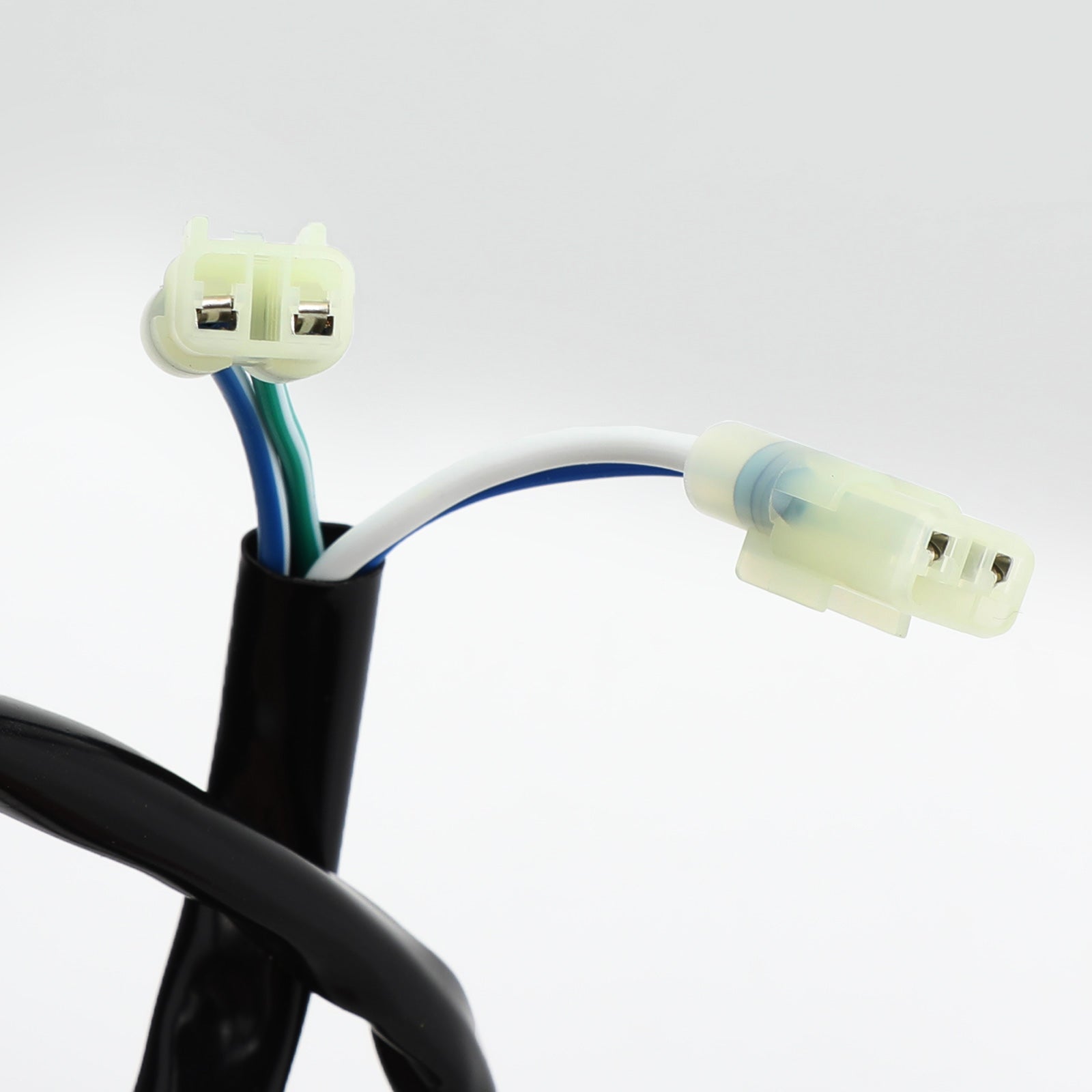

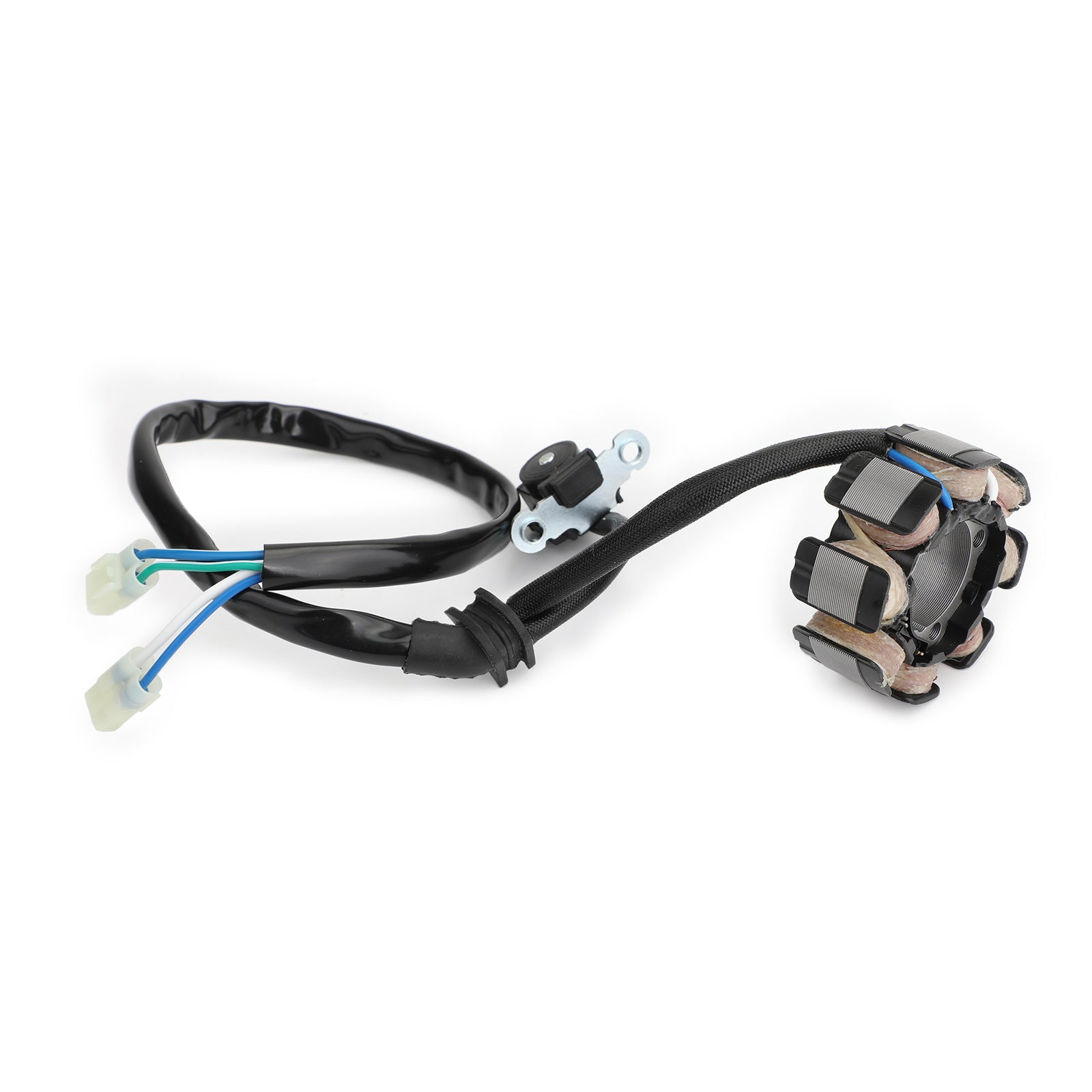

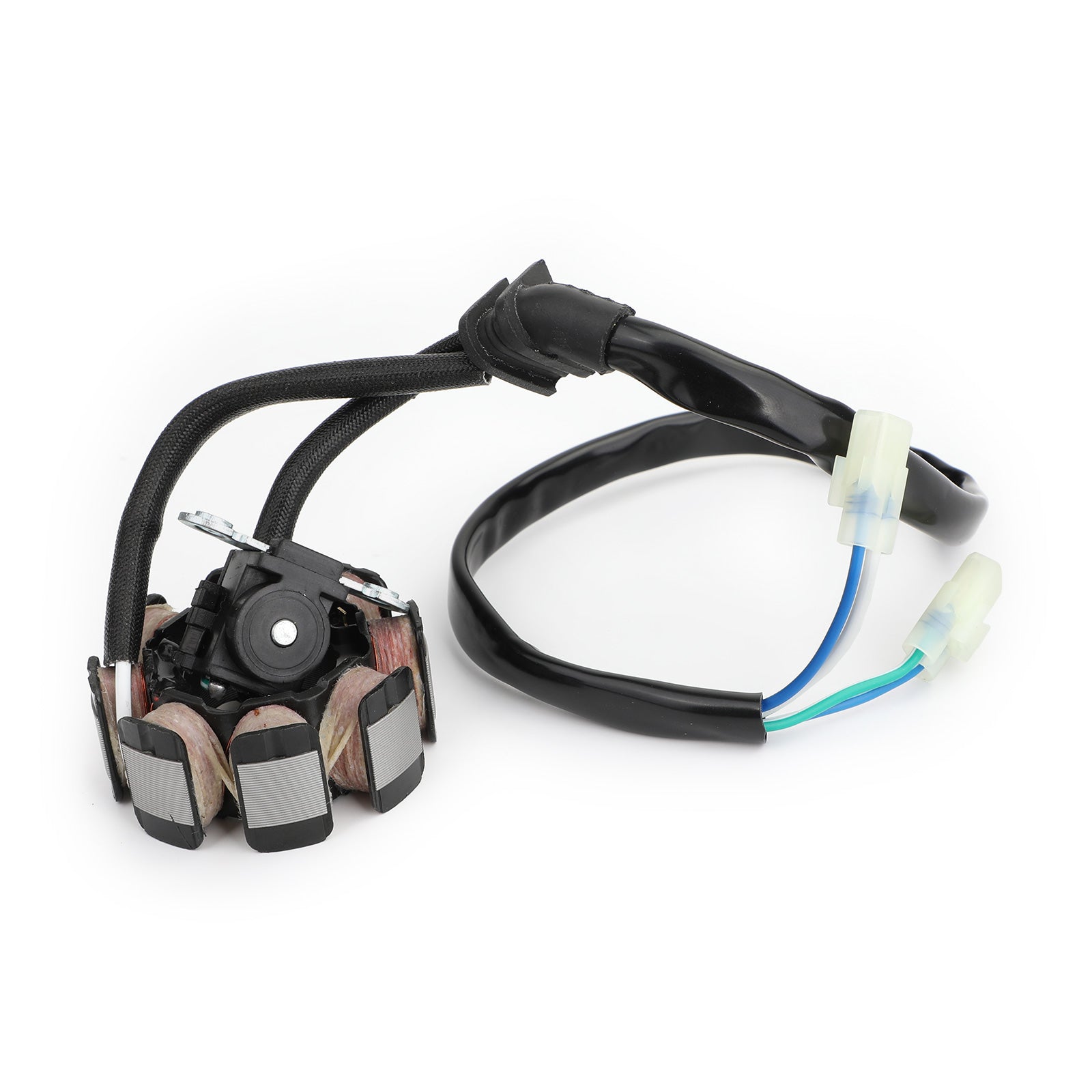

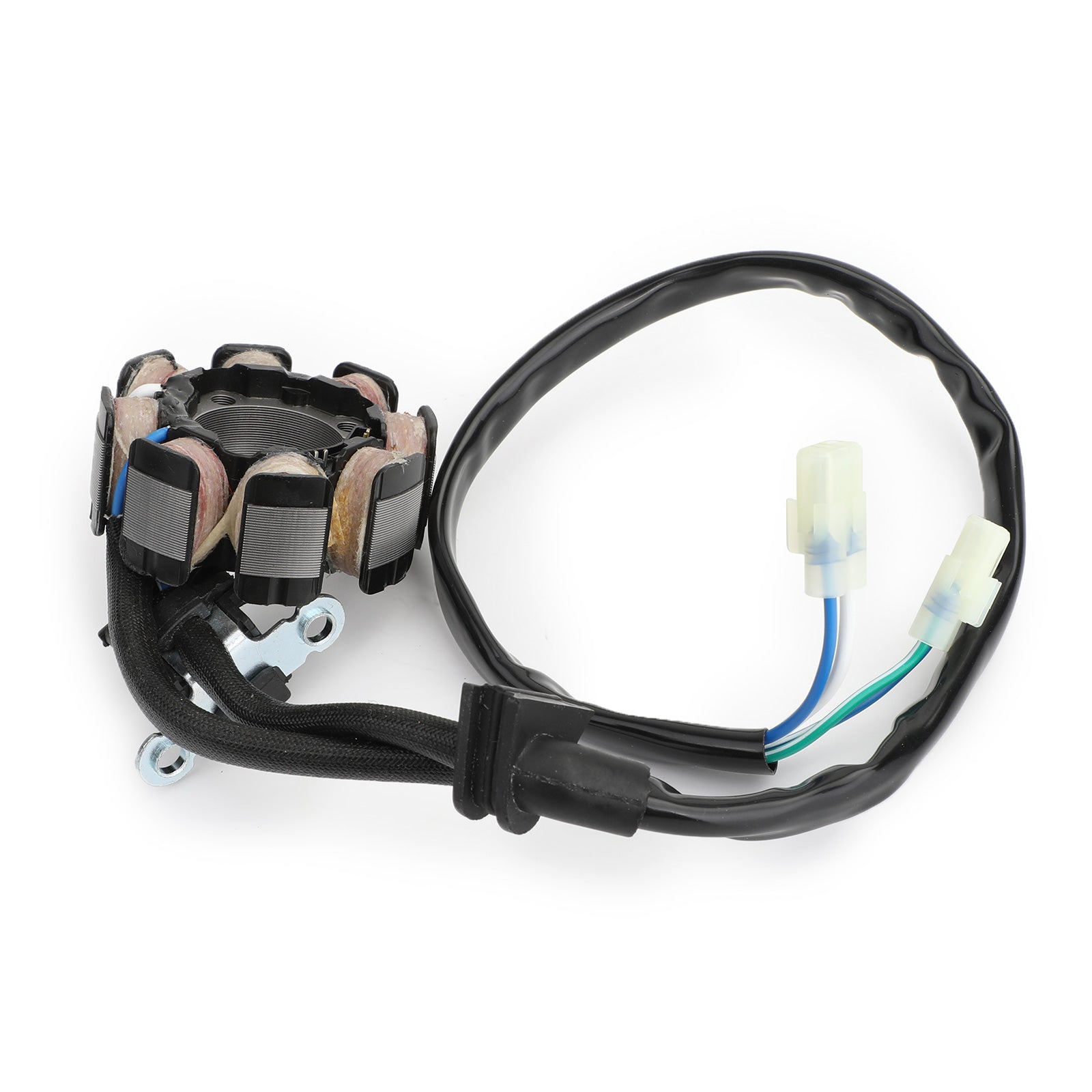

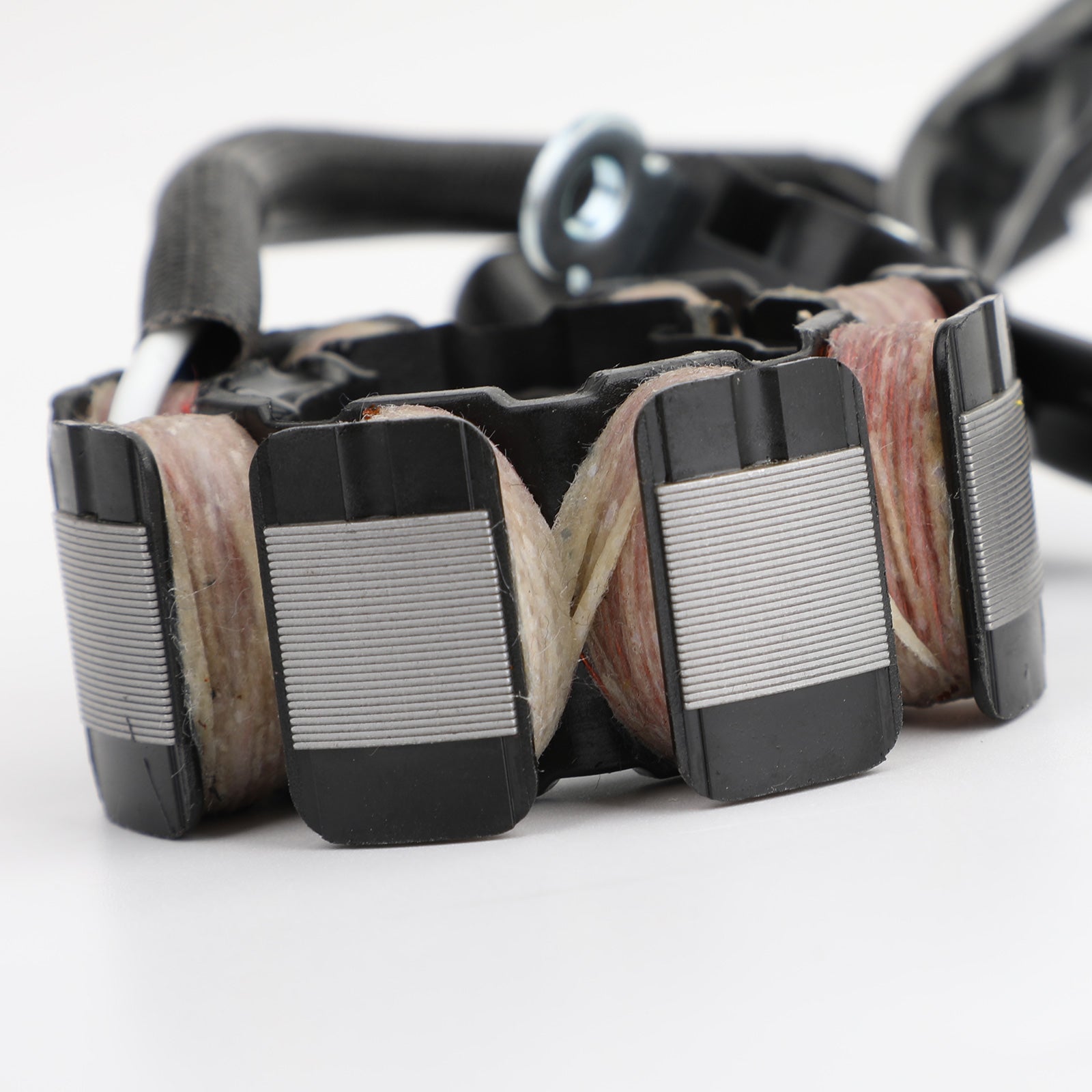

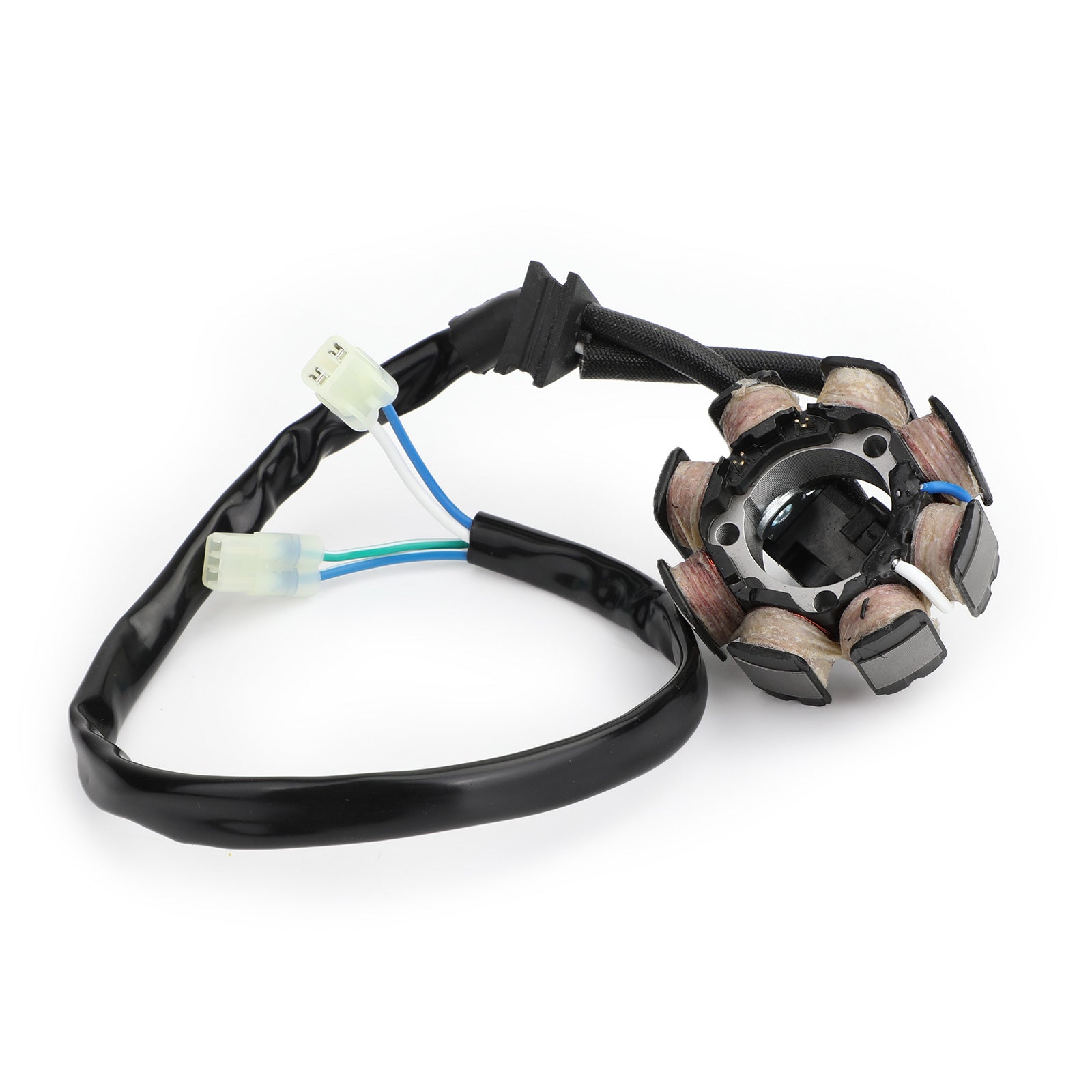

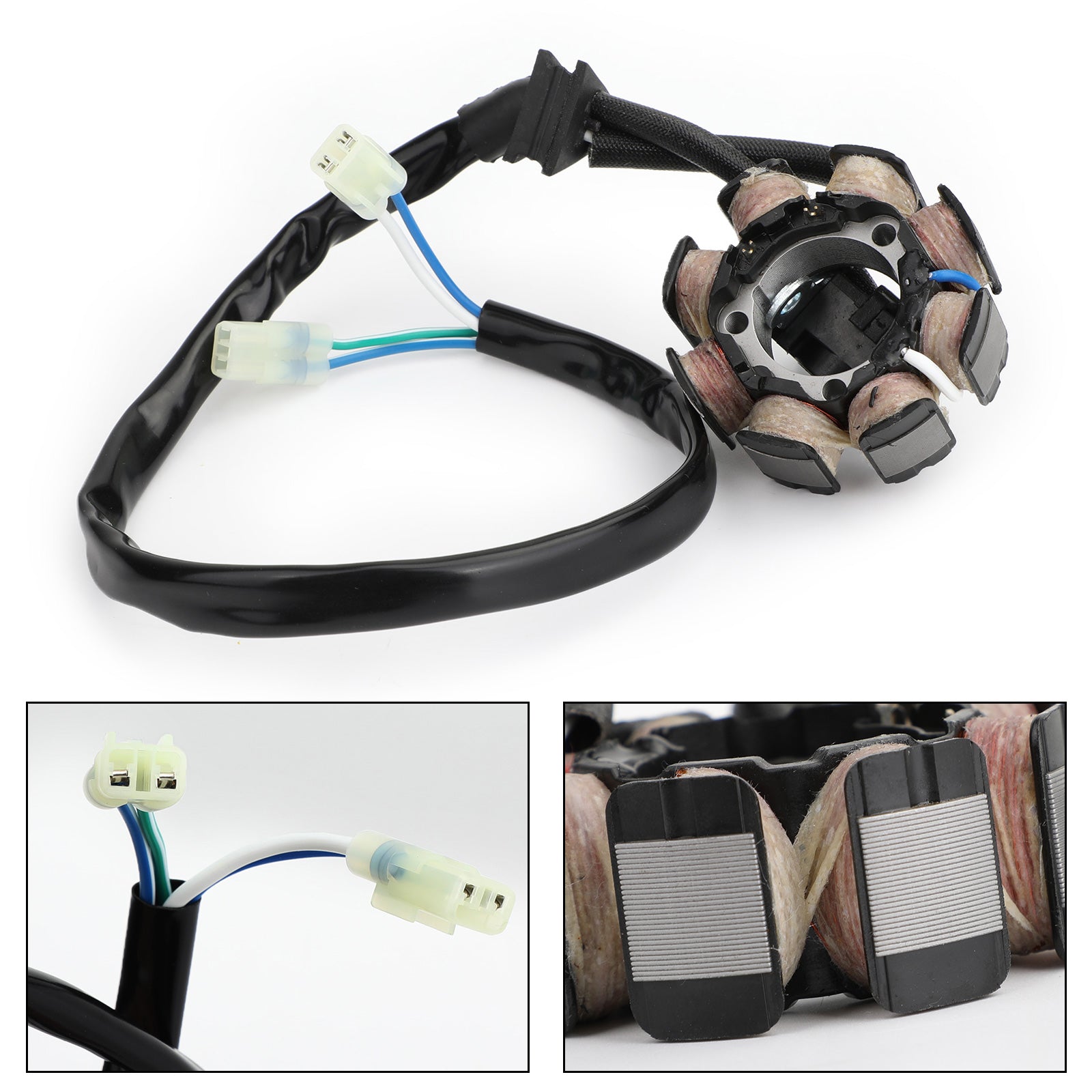

Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17
Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17

Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17

Sale price$68.88 USD
Quantity:

Fitment:
For Honda CRF150R 2007-2009/2012-2017
For Honda CRF150RB 2007-2009/2012-2017

Replacement Part Number:
31120-KSE-671

31120-KSE-A71
Please confirm the?Replacement Part Number before ordering.

Dimensions:
Interior diameter : 27.5 mm/1.08"
Exterior diameter : 61 mm/2.40"
Pole's Thickness : 24.8 mm/0.97"
Pole's Width : 15.3 mm/0.60"

?

Magneto Stator Coil For Honda CRF 150 CRF150R CRF150RB Expert 2007-09/2012-17



Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 4
Number of pins: 4
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 8

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
