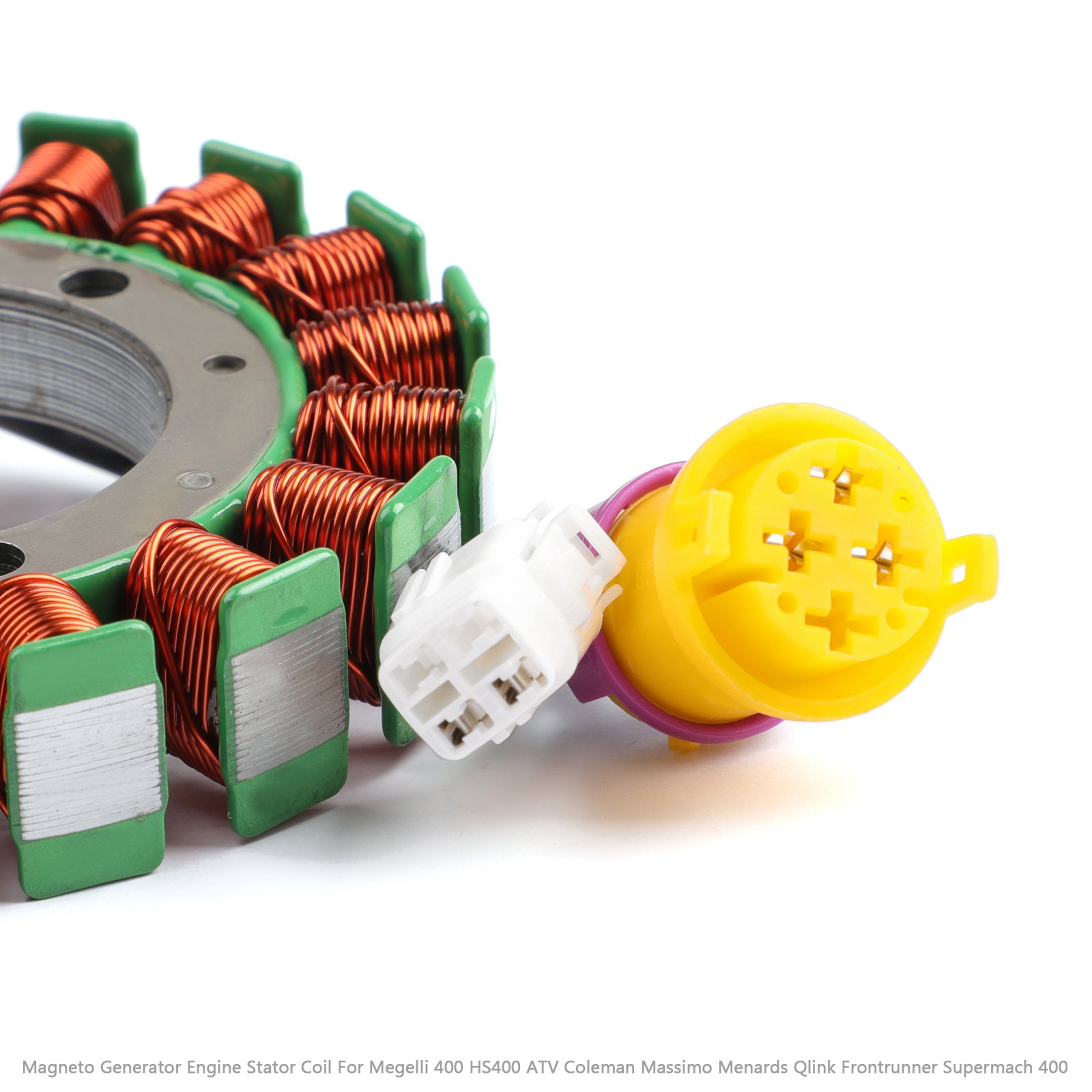

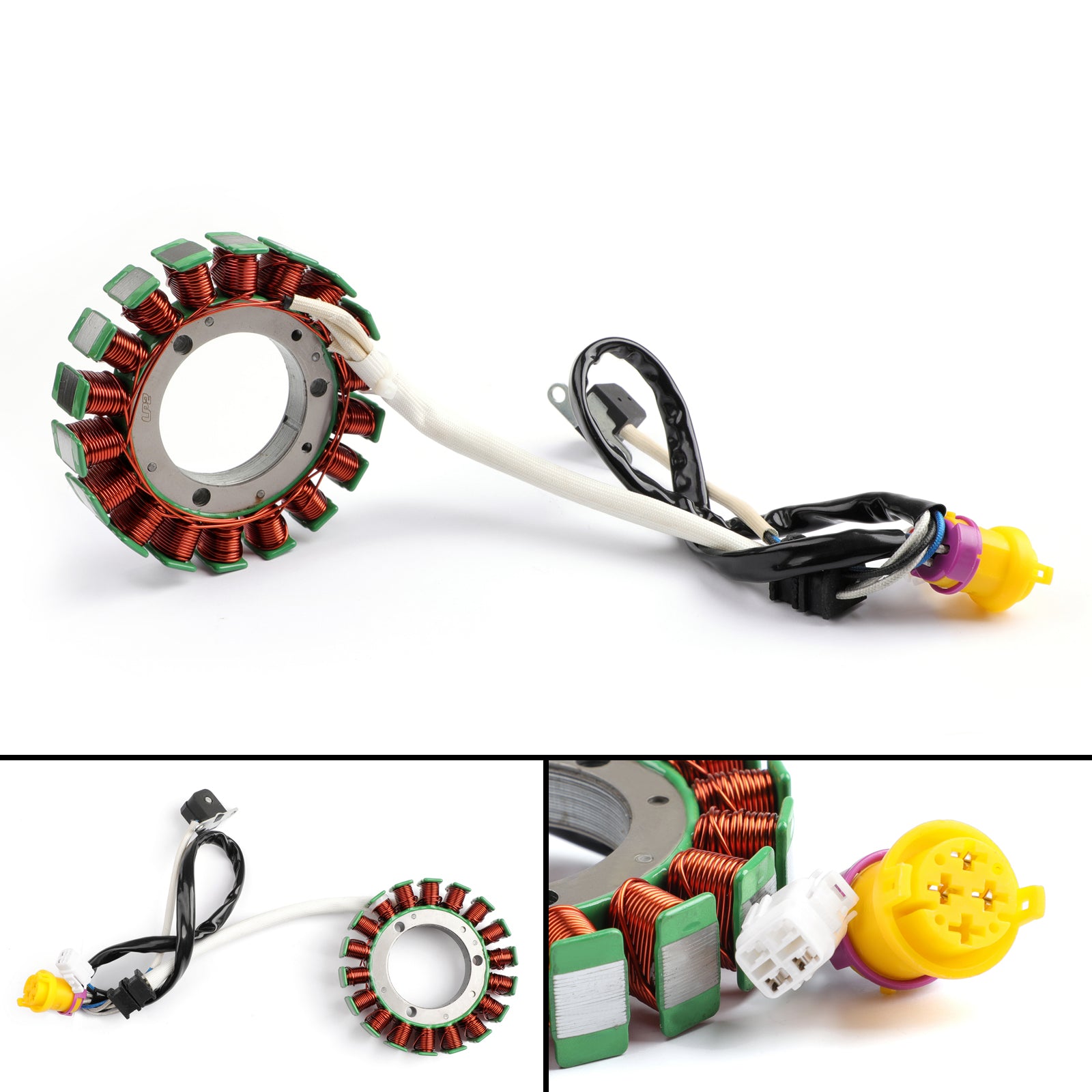

Magneto Stator For UTV ATV 400 Hisun HS400 MSU400 31100-F12-0000 31120-003-0000

Fitment:
Should fit most HiSun UTV CARB & EFI MODELS 400cc Units BUT NOT ALL.
Does not fit the Massimo Buck 400S, and perhaps will not fit more.
Check your connector and wiring along with part numbers and cross reference accordingly.

Fit for Hisun ATV 400H
Fit for Hisun ATV 450H
Fit for Hisun HS400 ATV-7
Fit for Hisun HS400 ATV-6
Fit for Hisun HS400 UTV
Fit for Hisun HS400 UTV-2
Fit for Hisun Tactic 400
Fit for Hisun Motors Forge 400
Fit for Hisun Motors Corp USA Forge 400 2016-2017
Fit for Hisun Motors Corp USA HS400 2014-2017
Fit for Hisun Motors Corp USA Vector 400 2016
Fit for Bennche UTV Bighorn 400 2011-2016
Fit for Bennche Cowboy 400 2015-2016
Fit for Massimo MSU 400 2012-2017
Fit for Qlink Rodeo 400 2007-2009
Fit for Qlink Frontrunner 400 EFI 2012-2014
Fit for Stels ATV 400H
Fit for Stels ATV 450H
Fit for Stels UTV 400H
Fit for BaltMotors ATV 400H
Fit for BaltMotors ATV 450H
Fit for BaltMotors UTV 400H
Fit for NissaMaran ATV 400H
Fit for NissaMaran ATV 450H
Fit for NissaMaran UTV 400H
Fit for Menards Yardsport YS400 2012-2013
Fit for Supermach UTV400-BF-TL 2012-2014
Fit for Big Muddy 400
Fit for Coleman Outfitter 400 2012-2015
Fit for Coleman UTV UT400
Fit for Crossfire UTV 400GT
Fit for Powermax  ATV Bearclaw 400
Fit for Powermax  UTV Renegrade 400
Fit for Nordik ATV Storm 400 EFI
Fit for Nordik UTV Tornado 400

OEM Replacement Part Number:
LU020557
31100-F12-0000
31120-003-0000
Please confirm the Replacement Part Number before ordering.

Dimensions:
Interior diameter : 54 mm / 2.14"
Exterior diameter : 115 mm / 4.52"
Thickness : 13 mm / 0.51"

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires : 5
Number of pins : 5
Number of plugs : 2
Number of fixation holes: 3

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested

Package Incleded:
1x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
