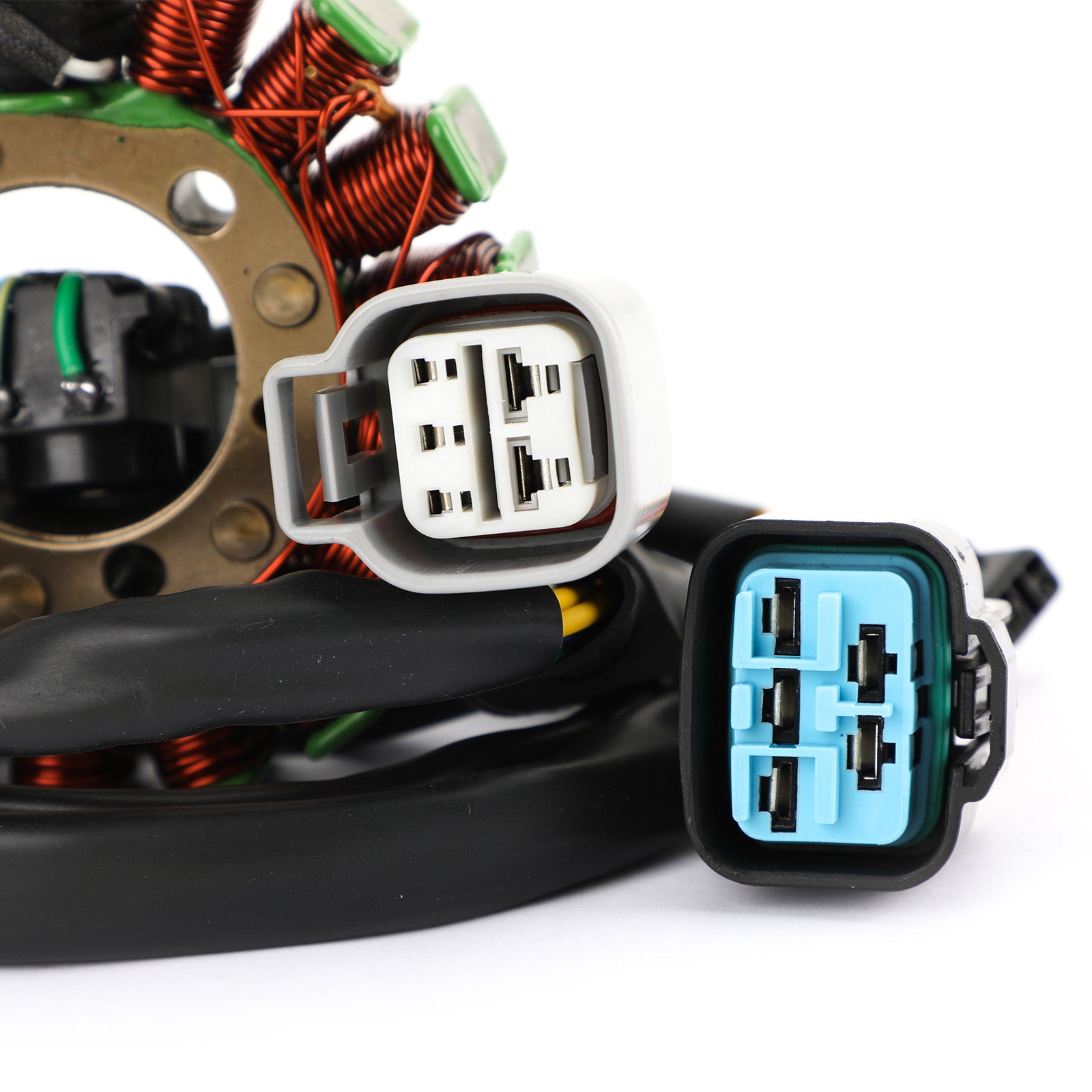

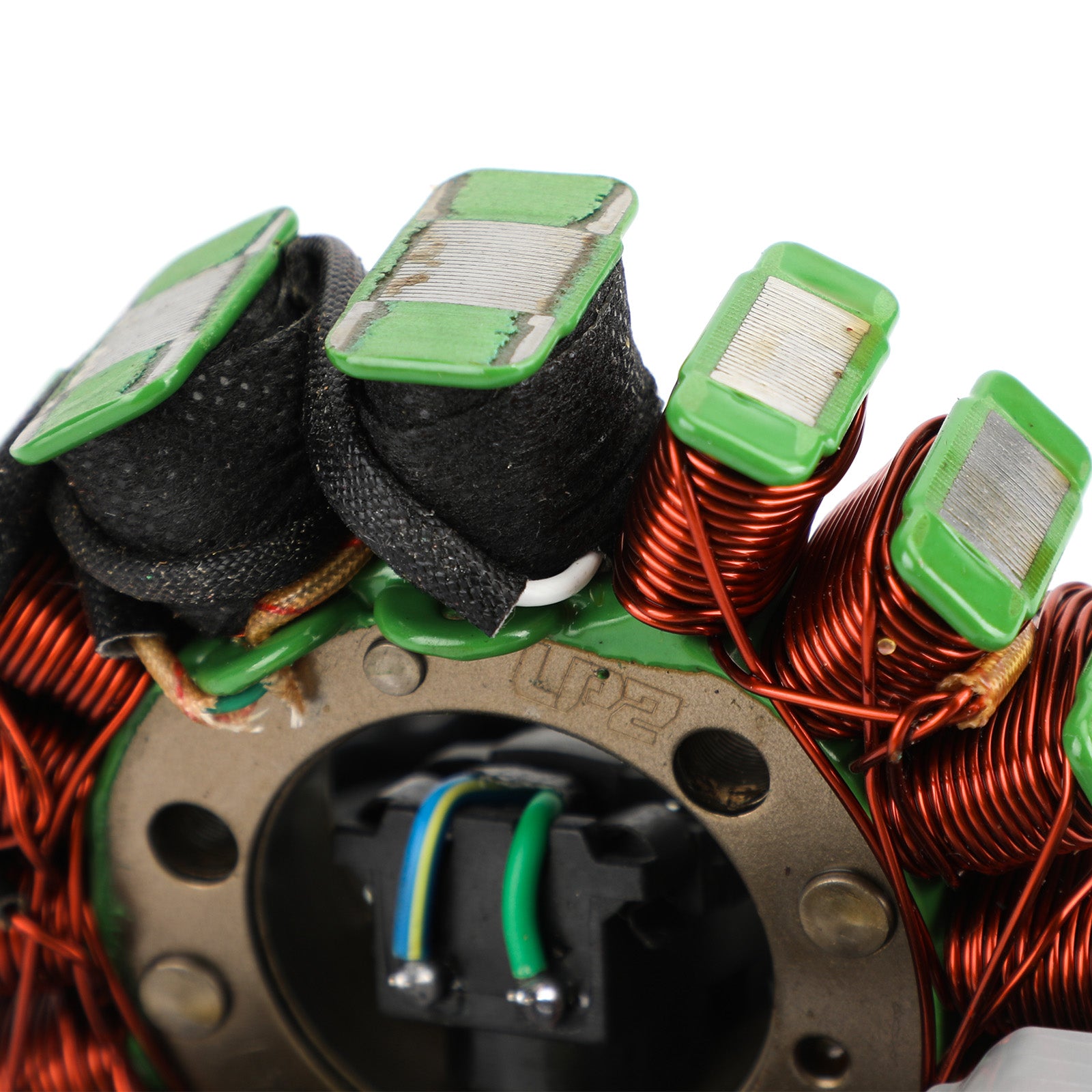

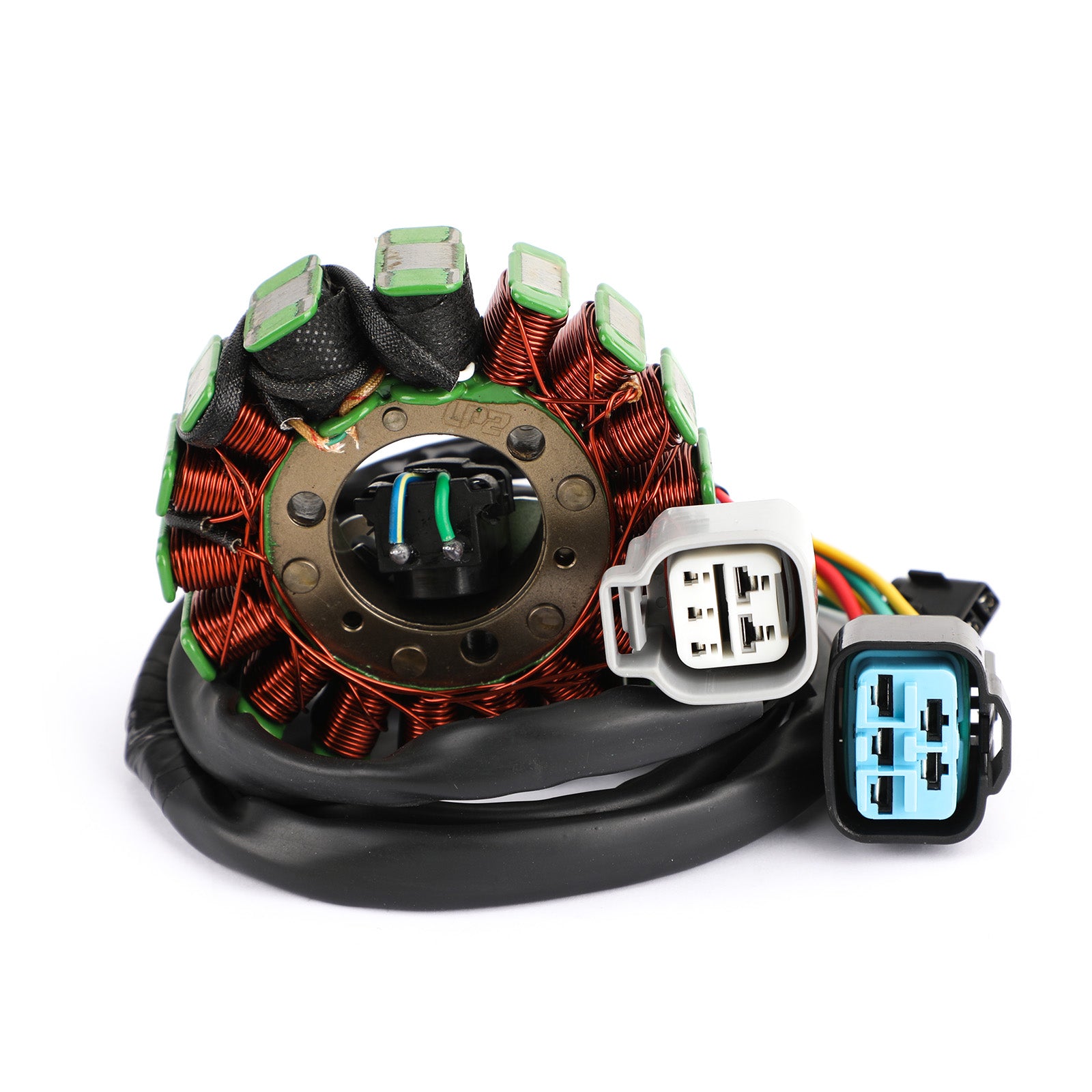

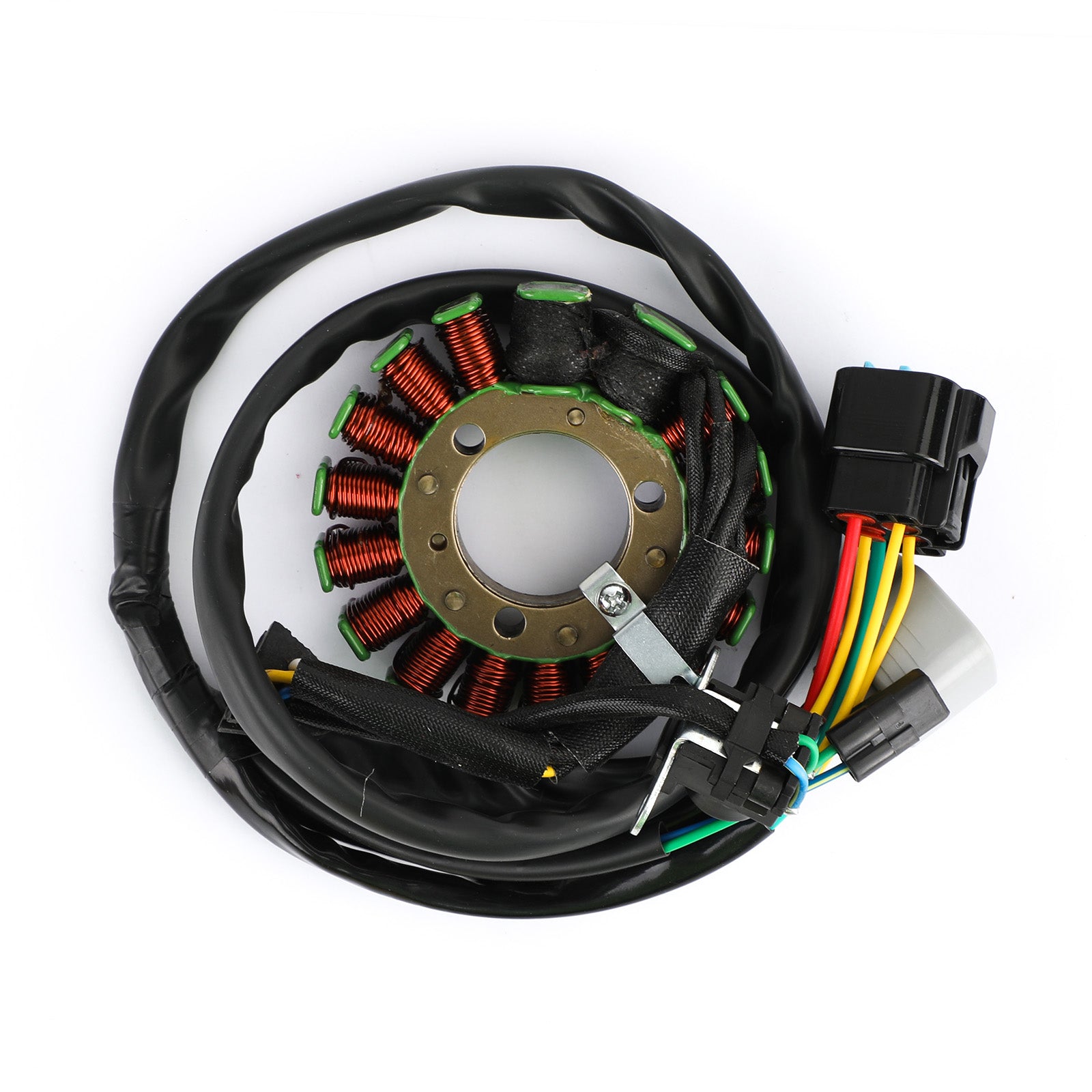

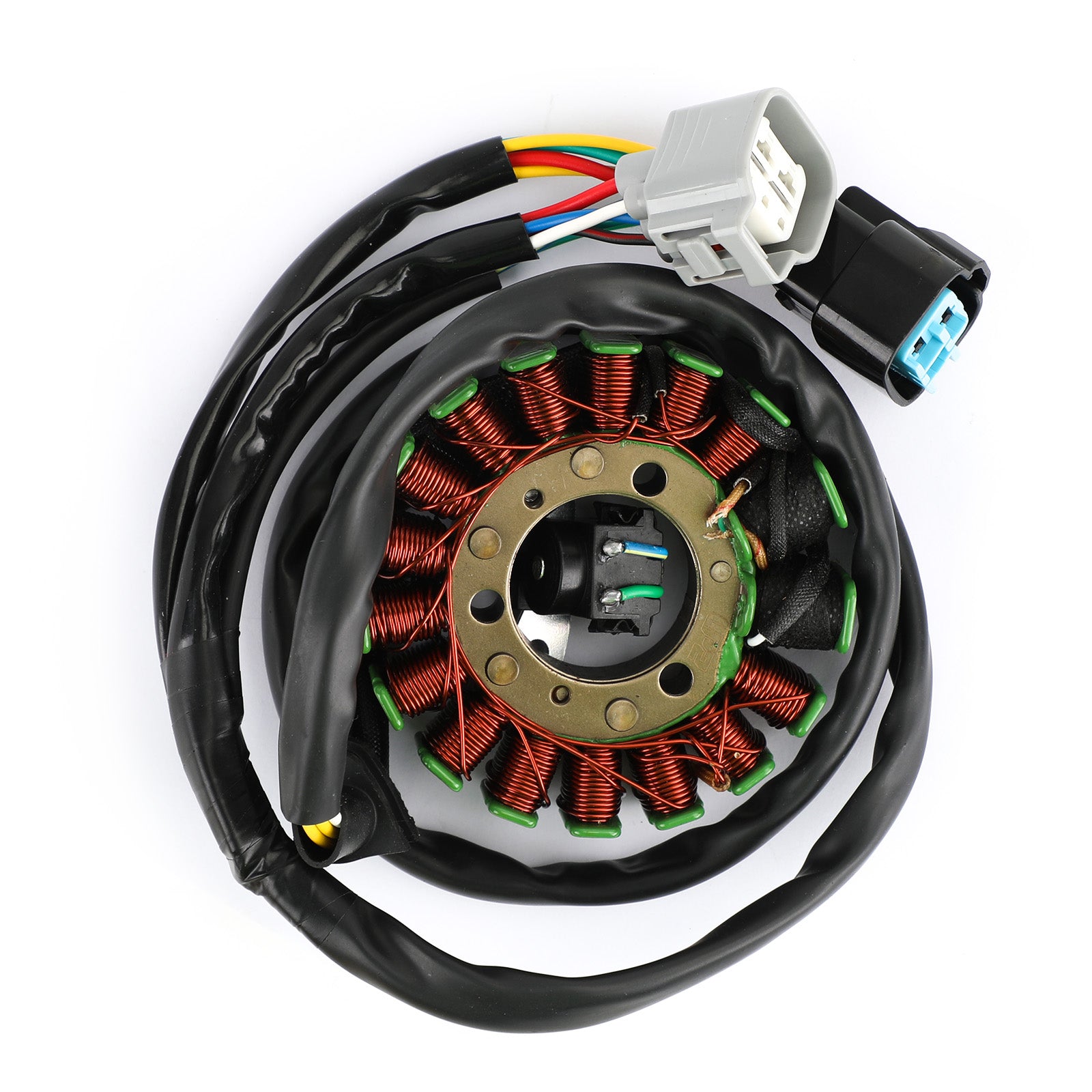

Magneto Generator Engine Stator Coil Fit For Honda 06-09 TRX450R 06-14 TRX450ER ATV 31120-HP1-601
Choose options
SEARCH YOUR DREAM FAIRING
Fit for Honda TRX450ER 2006-2009/2012-2014
Fit for Honda TRX450R 2006-2009
Other Specifications :
Number of wires: 12
Number of pins: 12
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 17
REPLACEMENT PART NUMBER: 31120-HP1-601
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Dimensions :
Interior diameter : 34.8mm
Exterior diameter : 92.9mm
Pole's Thickness : 24mm
Pole's Width : 10.8mm
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.Package
Included:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
