Magneto Generator Engine Stator Coil Fit For Gilera Fuoco 500 4T 4V ie E3 LT Fuoco 500 E3 2007-2014

Sale price$118.89 USD
SKU: M550-A433
Quantity:

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

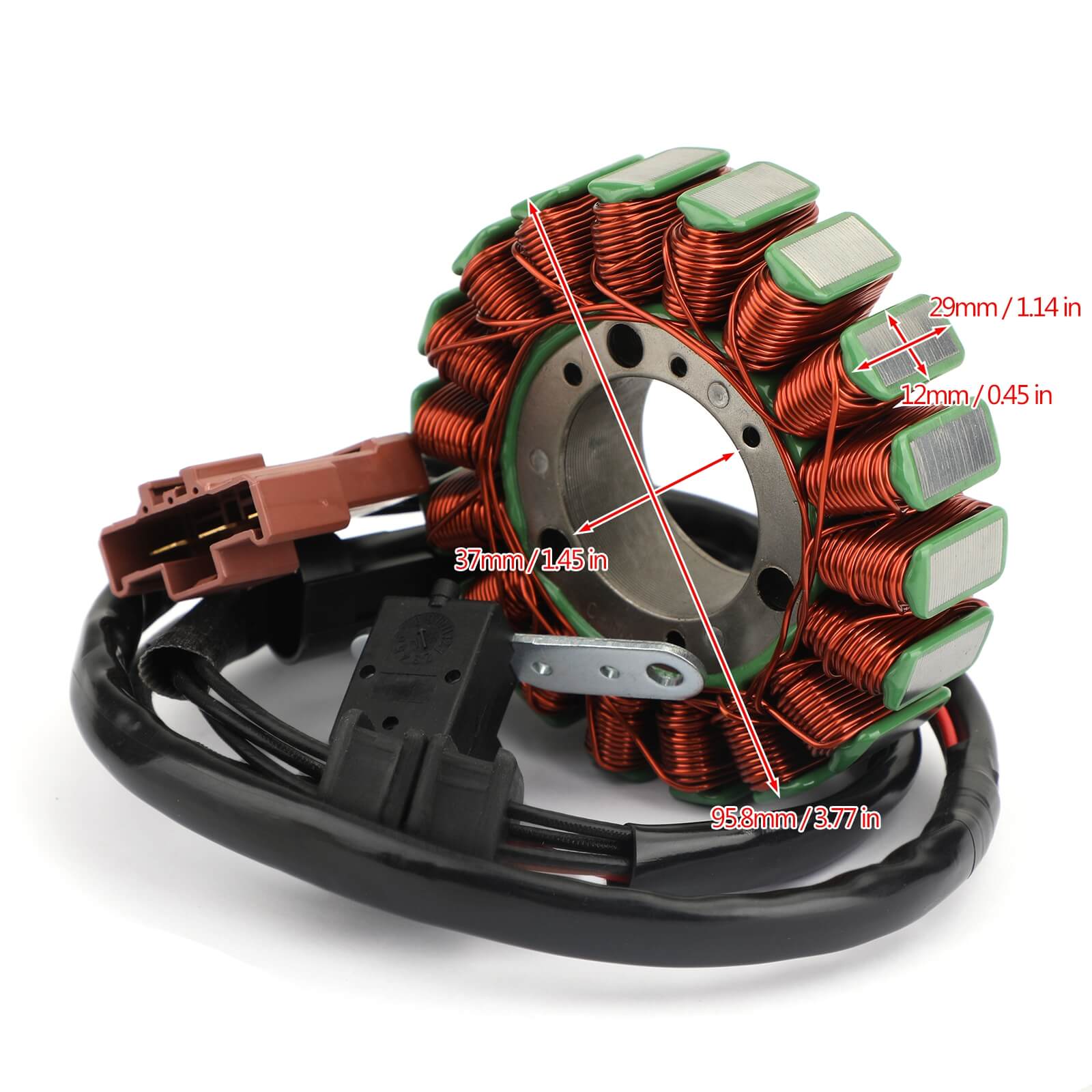

Dimensions :
Interior diameter : 37 mm / 1.45 inches
Exterior diameter : 95.8 mm / 3.77 inches
Pole's Thickness : 29 mm / 1.14 inches
Pole's Width : 12 mm / 0.45 inches

Magneto Generator Engine Stator Coil Fit For Gilera Fuoco 500  4T 4V ie E3 LT Fuoco 500 E3 2007-2014

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+3)
Number of poles: 18
PART NUMBER(S): 58108R

FITMENT:
Fits Gilera Fuoco 500 ?4T 4V ie E3 LT 2007-2014
Fits Gilera Fuoco 500 E3 2007-2014

Fits Piaggio Beverly 400 ie Tourer E3 2006-2009
Fits Piaggio Beverly 500 Cruiser E3 2005-2012
Fits Piaggio MP3 400 ie 2007-2010
Fits Piaggio MP3 400 ie LT Sport 2007-2010
Fits Piaggio MP3 400 ie LT Touring 2007-2010
Fits Piaggio MP3 400 ie MIC 2007-2010
Fits Piaggio MP3 400 RL Touring 2007-2010
Fits Piaggio MP3 500 LT Sport Business 2007-2015
Fits Piaggio MP3 500 RL Sport Business 2007-2015

Fits Scarabeo Scarabeo 500 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 492 Light (with 2 cables) 2003-2008
Fits Scarabeo Scarabeo 400 Light (with 2 cables) 2003-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

PACKAGE INCLUDED:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
