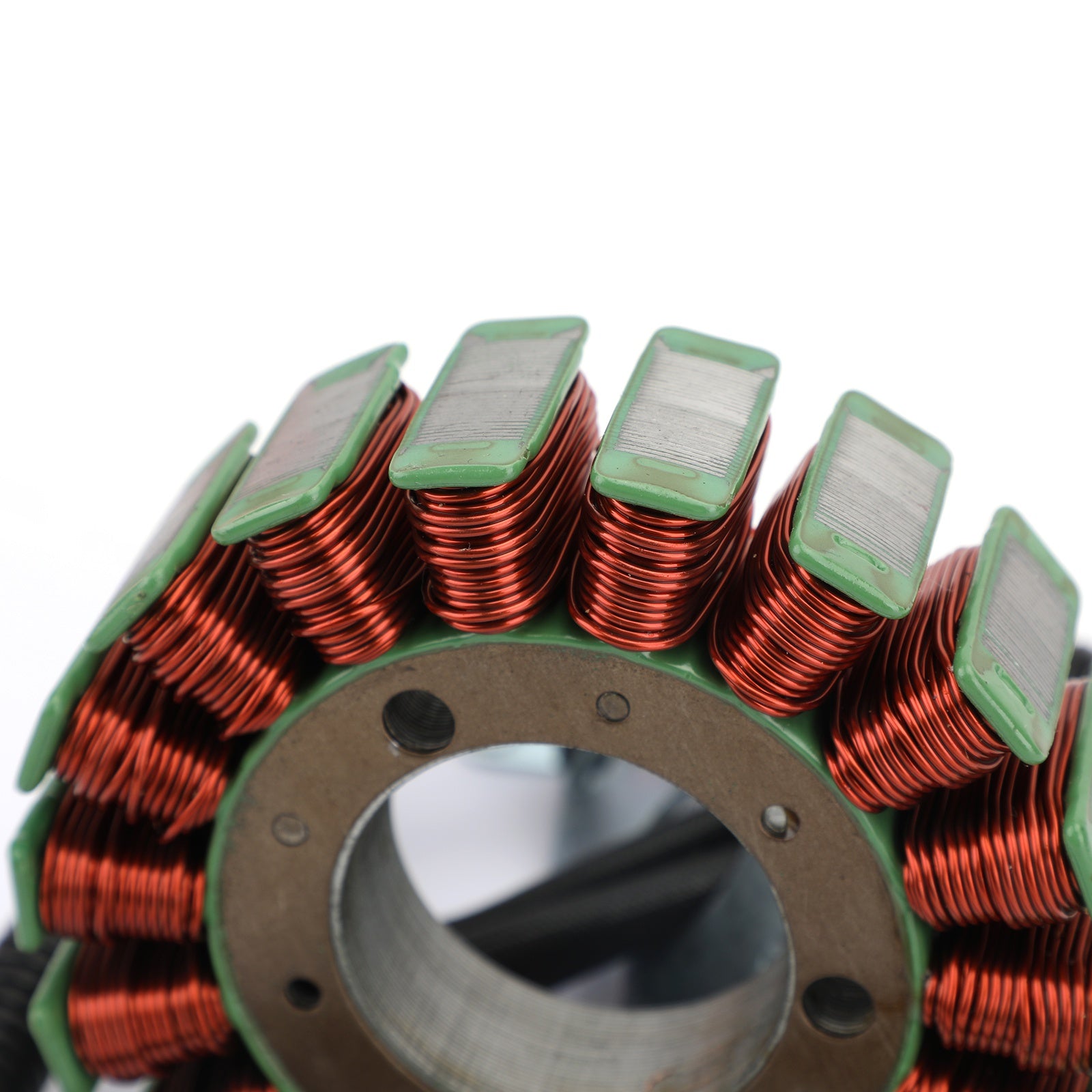

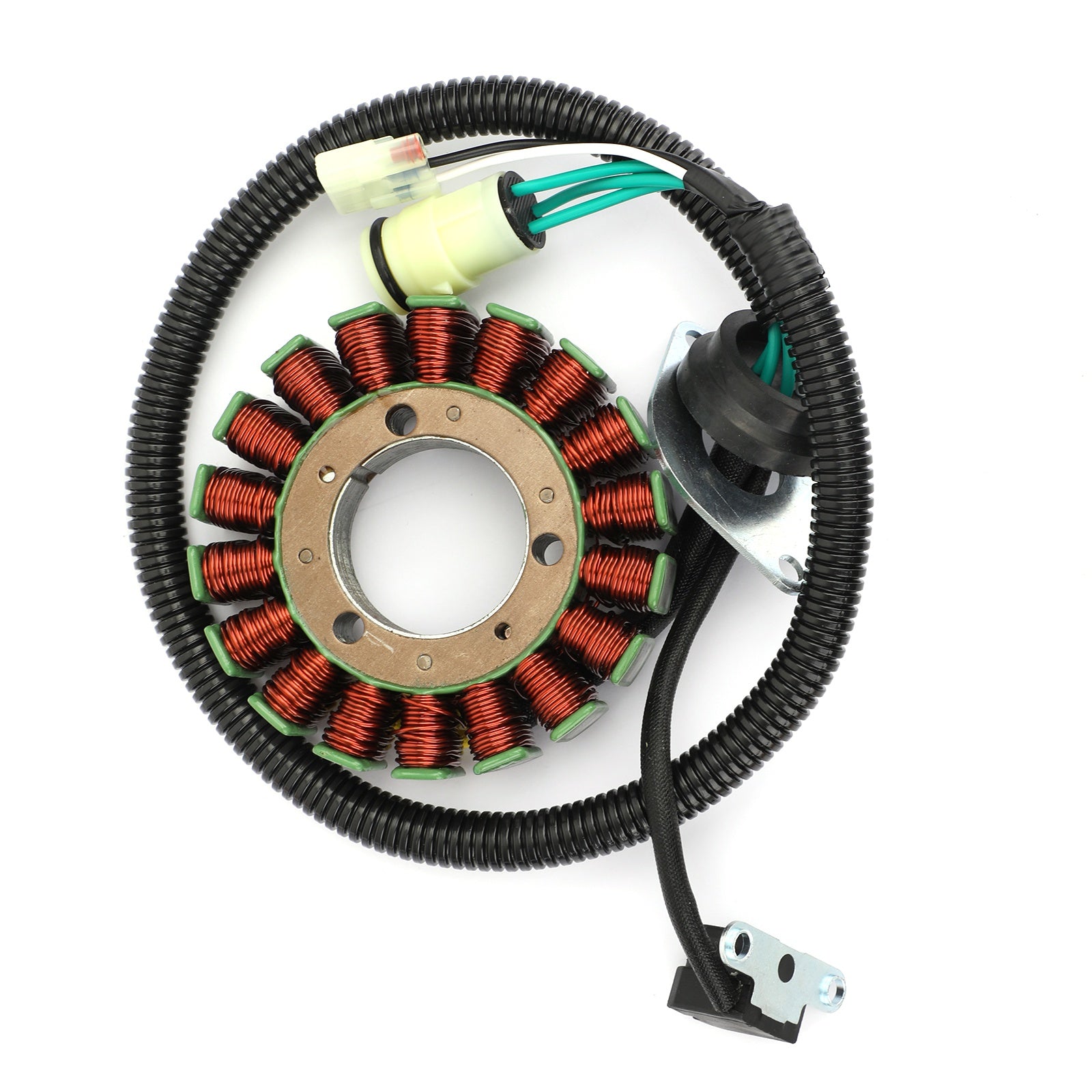

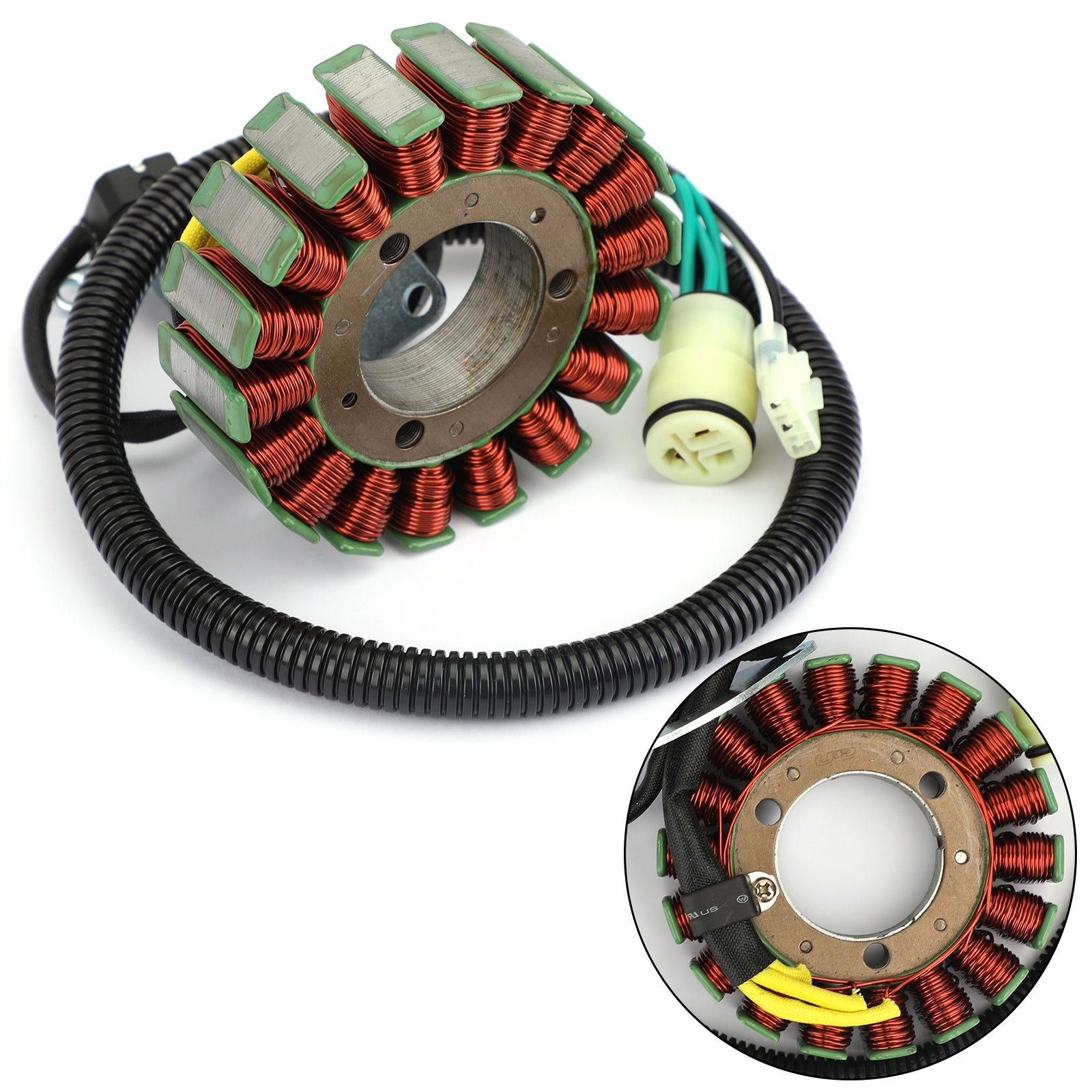

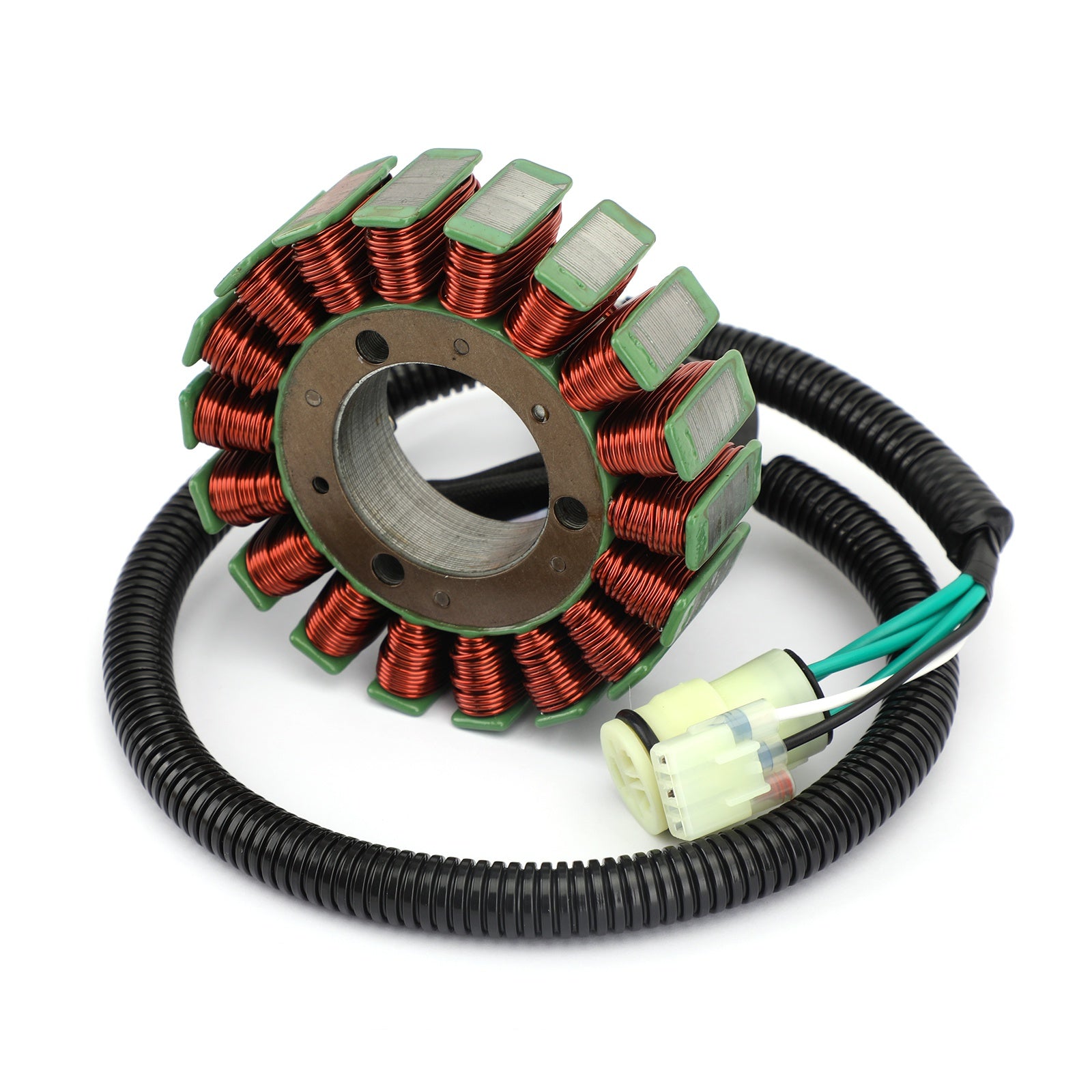

Alternator Magneto Stator for Yamaha VX 1100 Cruiser / Deluxe / Sport 2005-2015
Replacement Part Number:
6D3-81410-01
6D3-81410-02
6D3-81410-00
Please confirm the?Replacement Part Number before ordering.
Fitment:
Fits Yamaha AR 210 1100 2006-2015
Fits Yamaha SR 210 1100 2006-2007/2009-2011
Fits Yamaha SX 210 1100 2006-2015
Fits Yamaha VX1100 2005-2015
Fits Yamaha VX1100 Sport 2005-2015
Fits Yamaha VX1100 Deluxe 2005-2015
Fits Yamaha VX1100 Cruiser 2008-2015
Fits Yamaha Waverunner VX 1100 2007-2009
Fits Yamaha Waverunner VX 1100 Deluxe 2005-2015
Fits Yamaha Waverunner VX 1100 Cruiser 2007-2015
Fits Yamaha Waverunner VX 1100 Sport 2005-2015
Dimensions:
Interior diameter : 41.9mm / 1.65 inches
Exterior diameter : 103.7mm / 4.08 inches
Pole's Thickness : 31.2mm / 1.22 inches
Pole's Width : 12.7mm / 0.50 inches
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Number of poles: 18
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Incleded:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
