Condition: Aftermarket 100% Brand New

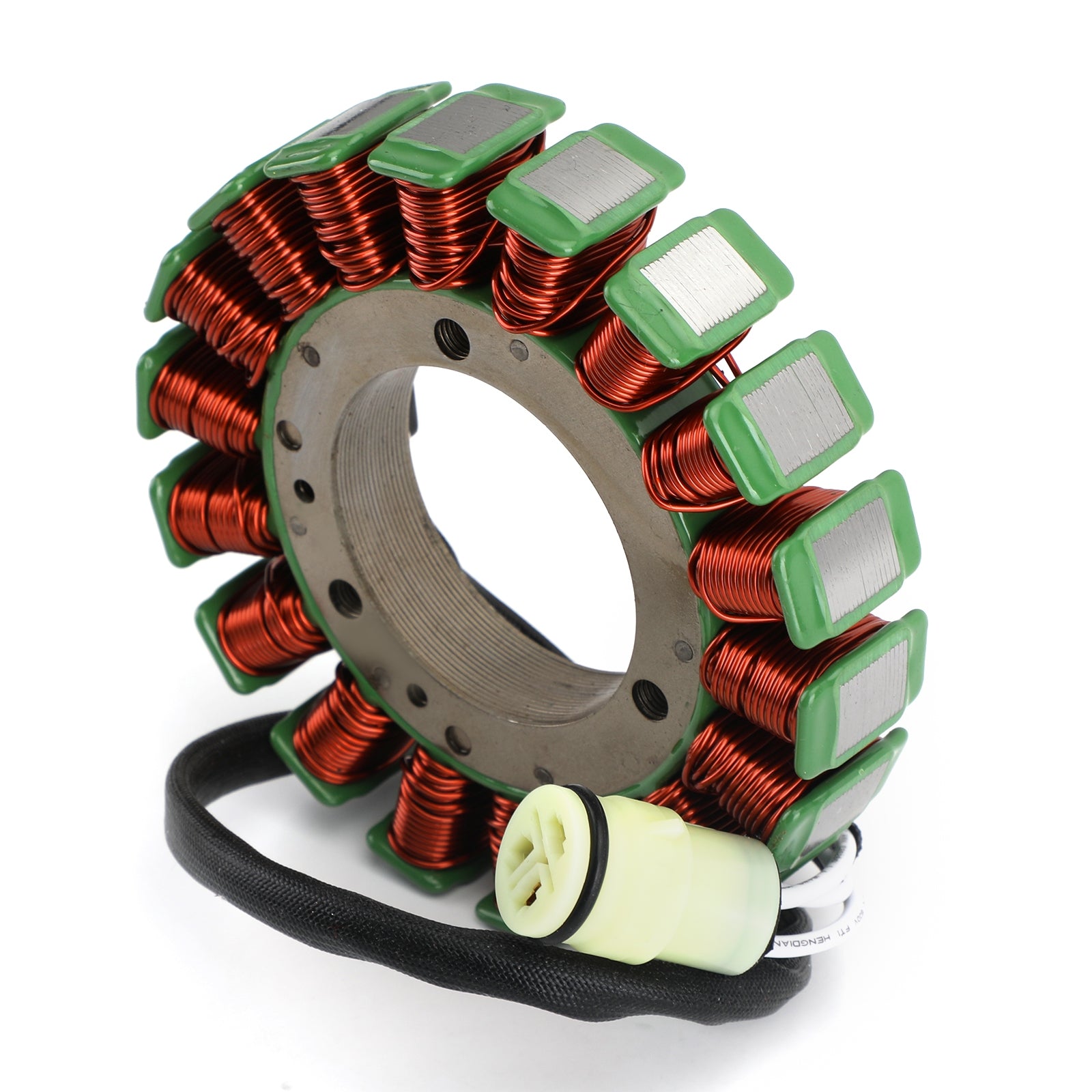

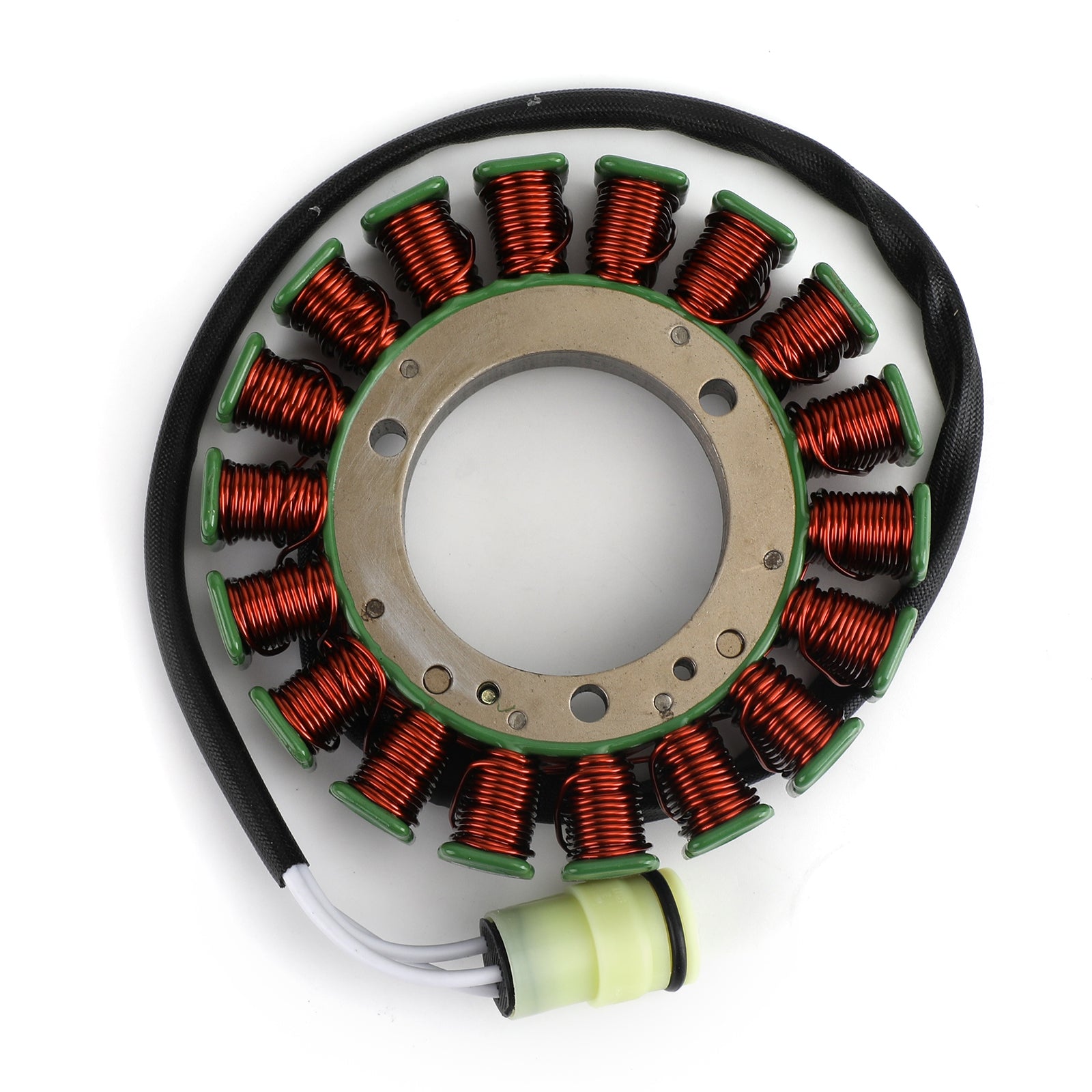

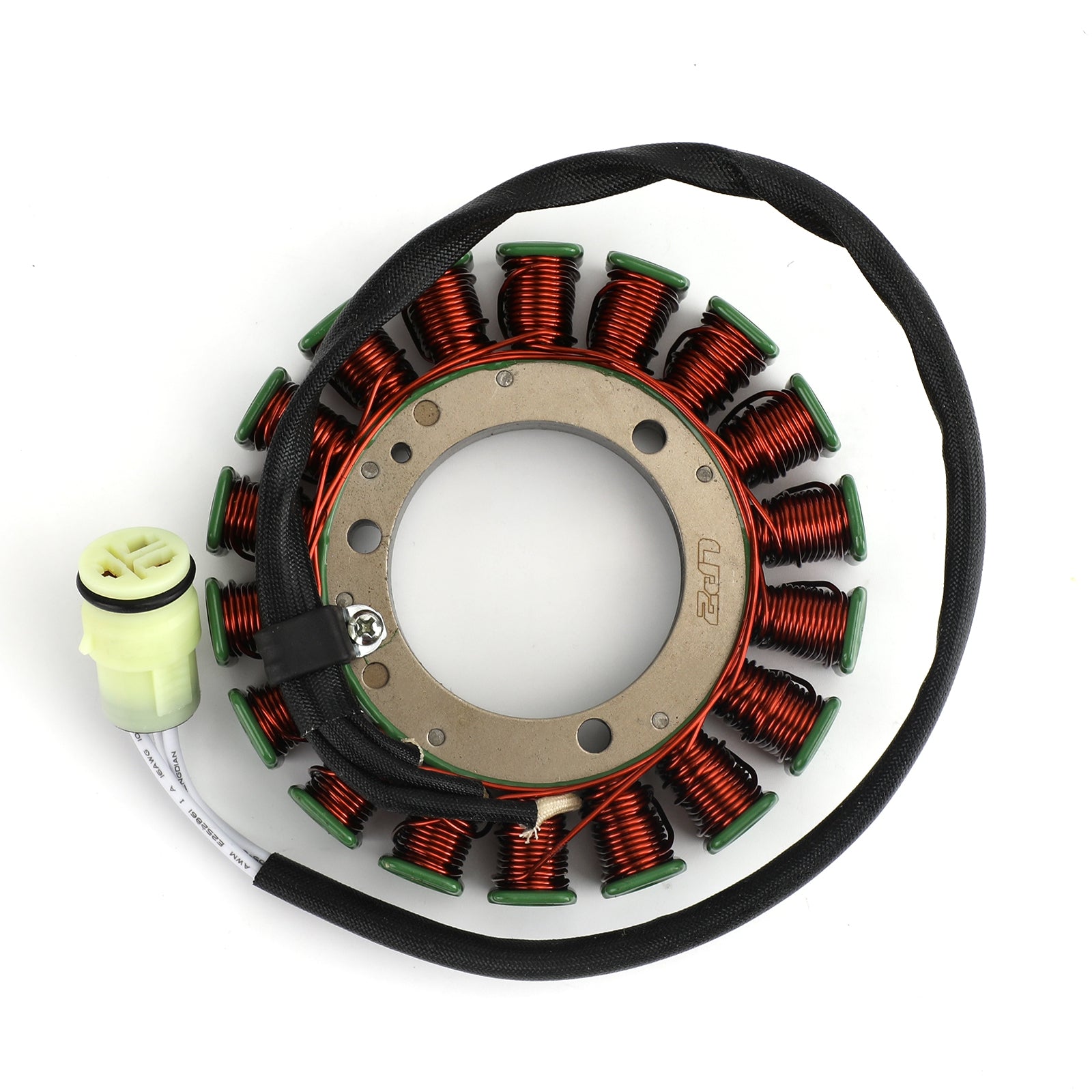

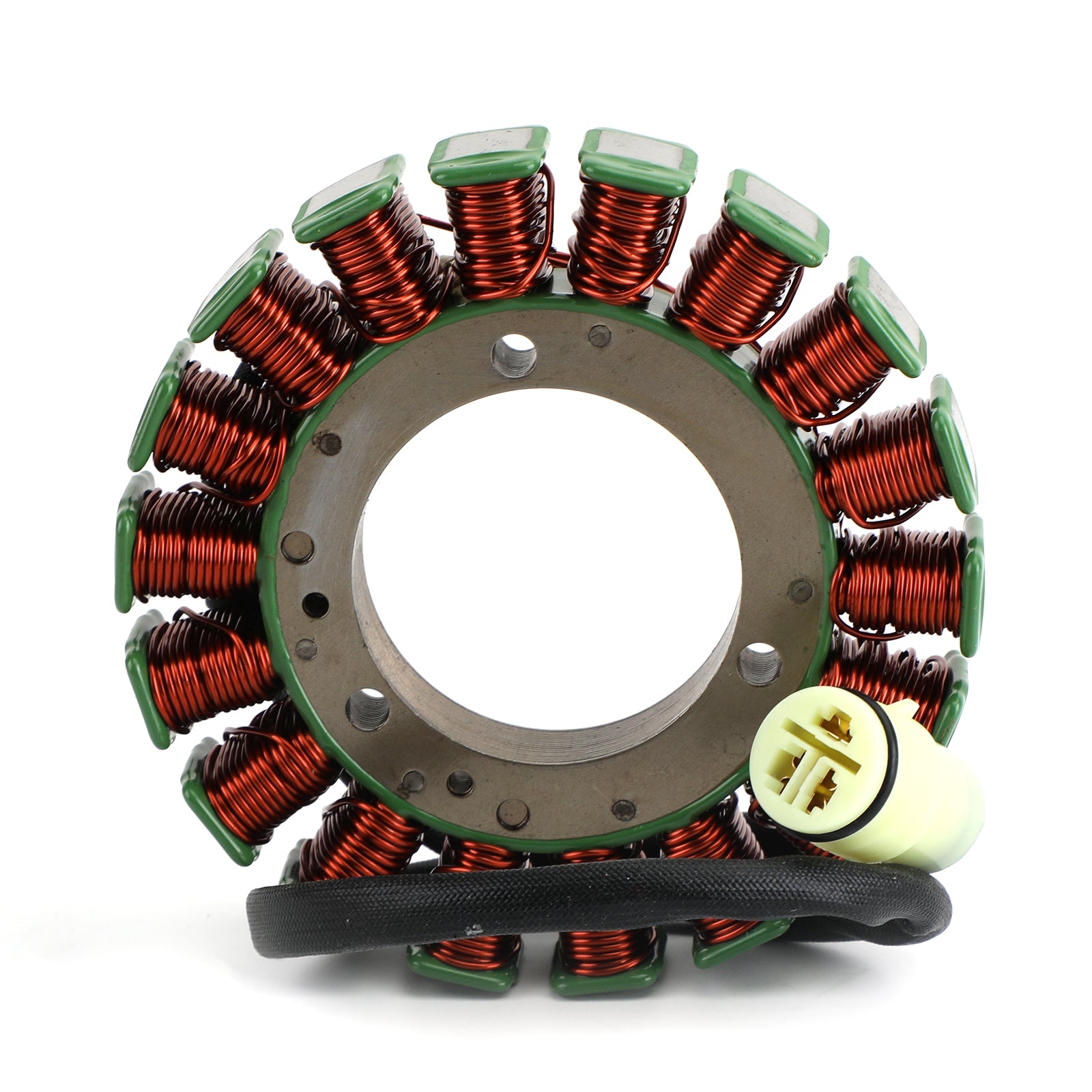

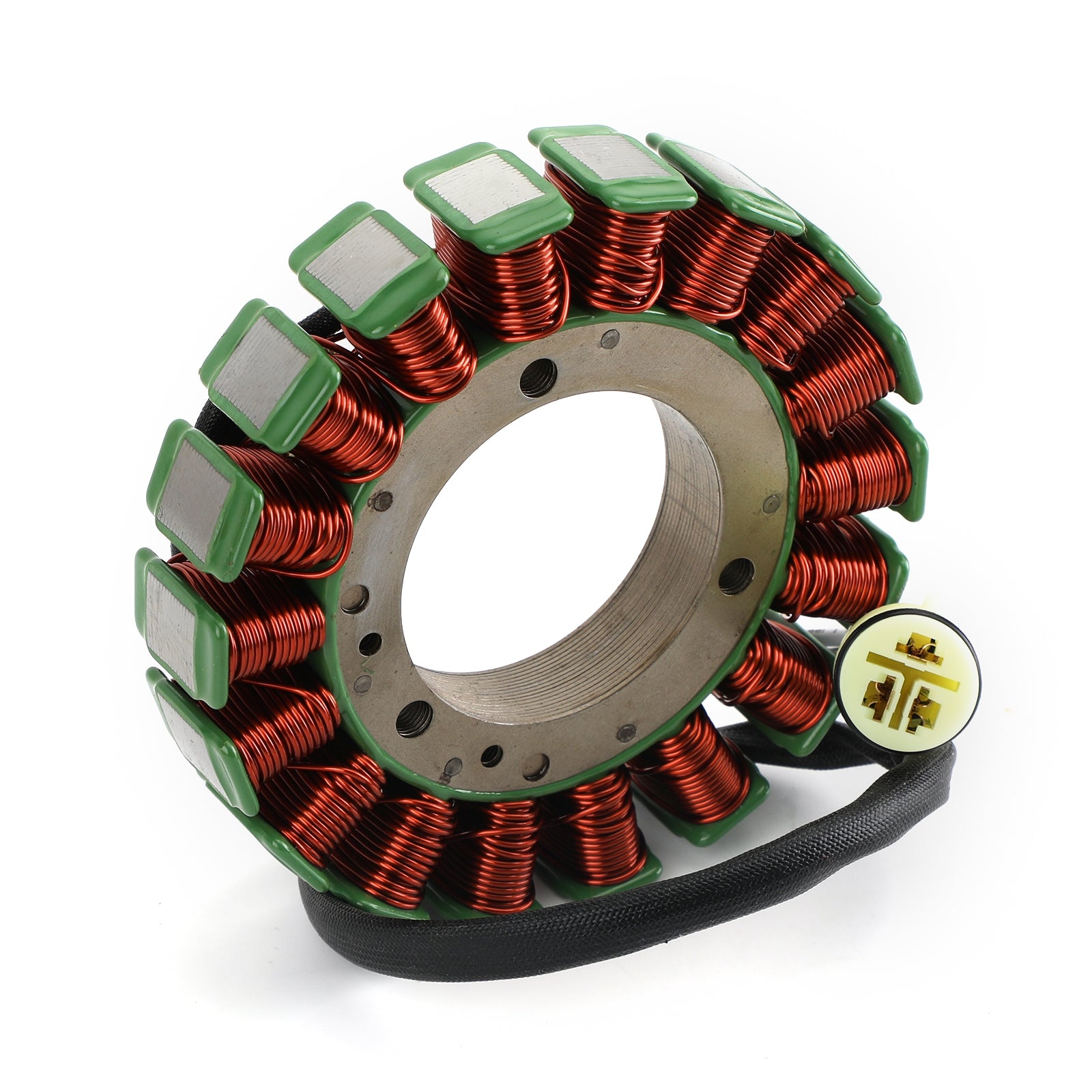

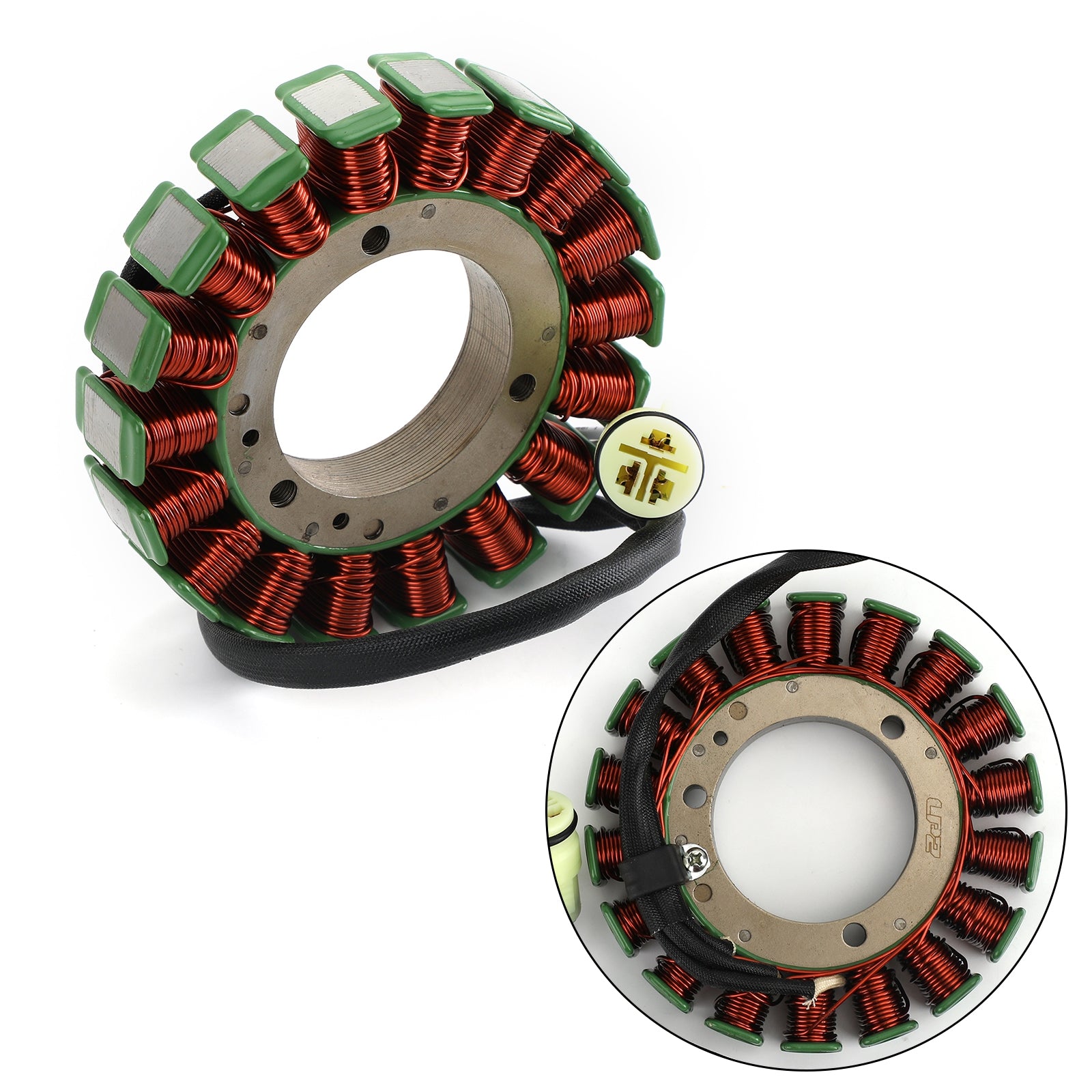

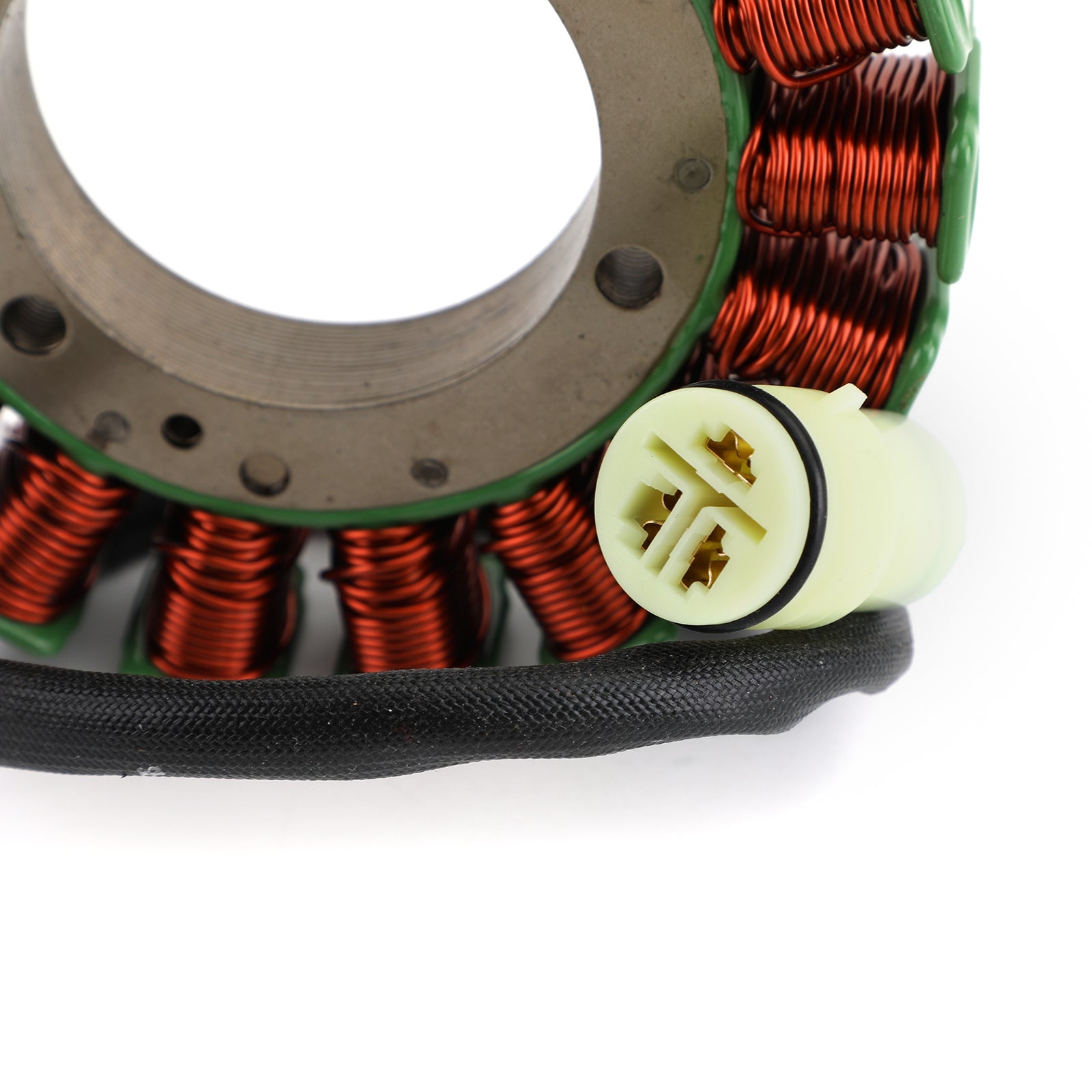

Type: Generator Stator Coil

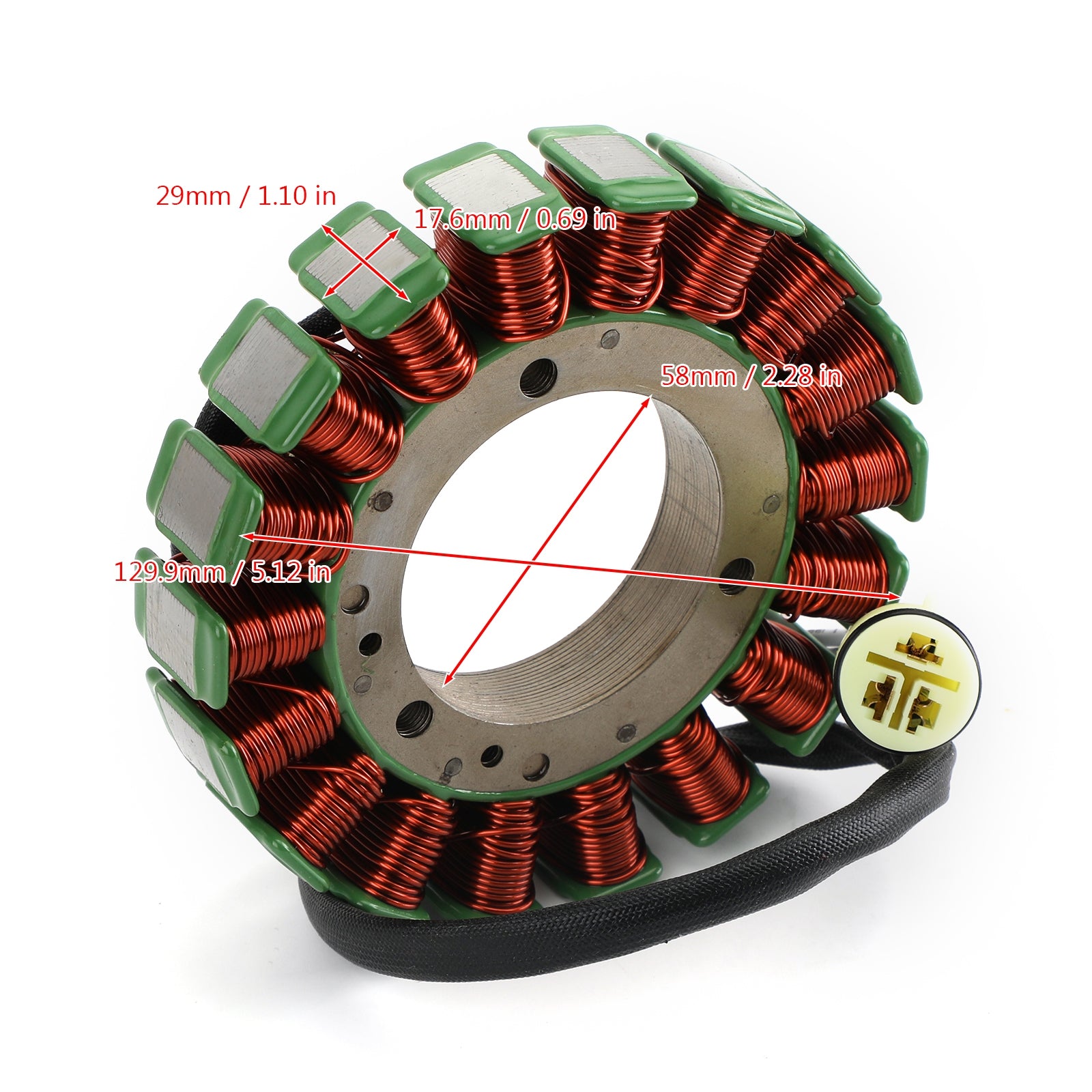

Interior diameter : 58mm / 2.28 inches
Exterior diameter : 129.9mm / 5.12 inches
Pole's Thickness : 29mm / 1.10 inches
Pole's Width : 17.6mm / 0.69 inches
Fits Yamaha F75 F75A ETL 2003-2004
Fits Yamaha F75 TLR 2003-2004
Fits Yamaha F80 F80A ETL/X1999-2004
Fits Yamaha F80 TL/XR 1999-2003
Fits Yamaha F90 F90A ETL/X 2003-2004
Fits Yamaha F90 TL/XR 2003-2004
Fits Yamaha 100 F100A ETL/X 1999-2004
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+1)
Number of poles: 18
Replacement Part Number:
Please confirm the Replacement Part Number before ordering.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

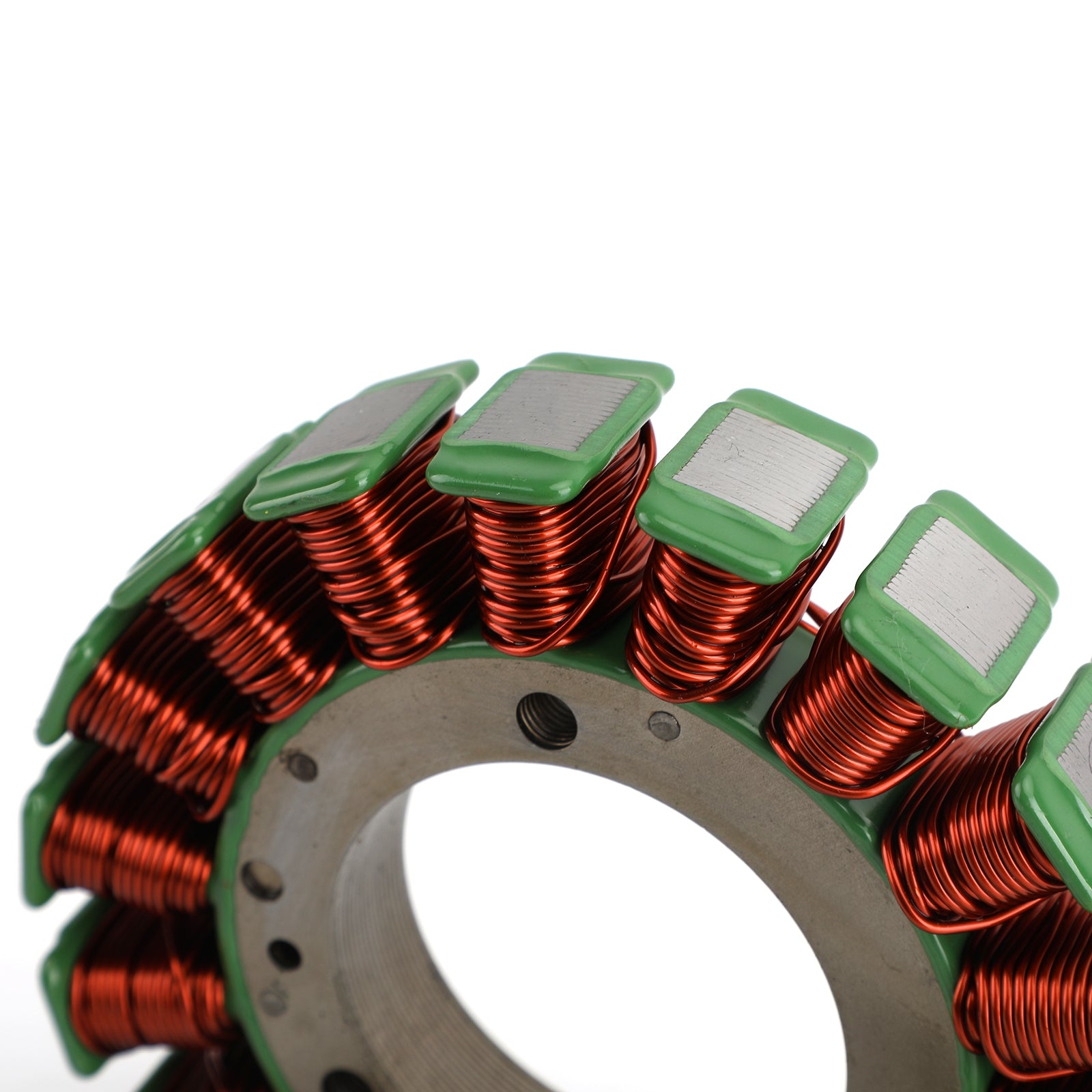

Highest grade copper windings, resistant to 200 degrees Celsius.
All products shipped are tested.
1x Generator Stator Coil
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
