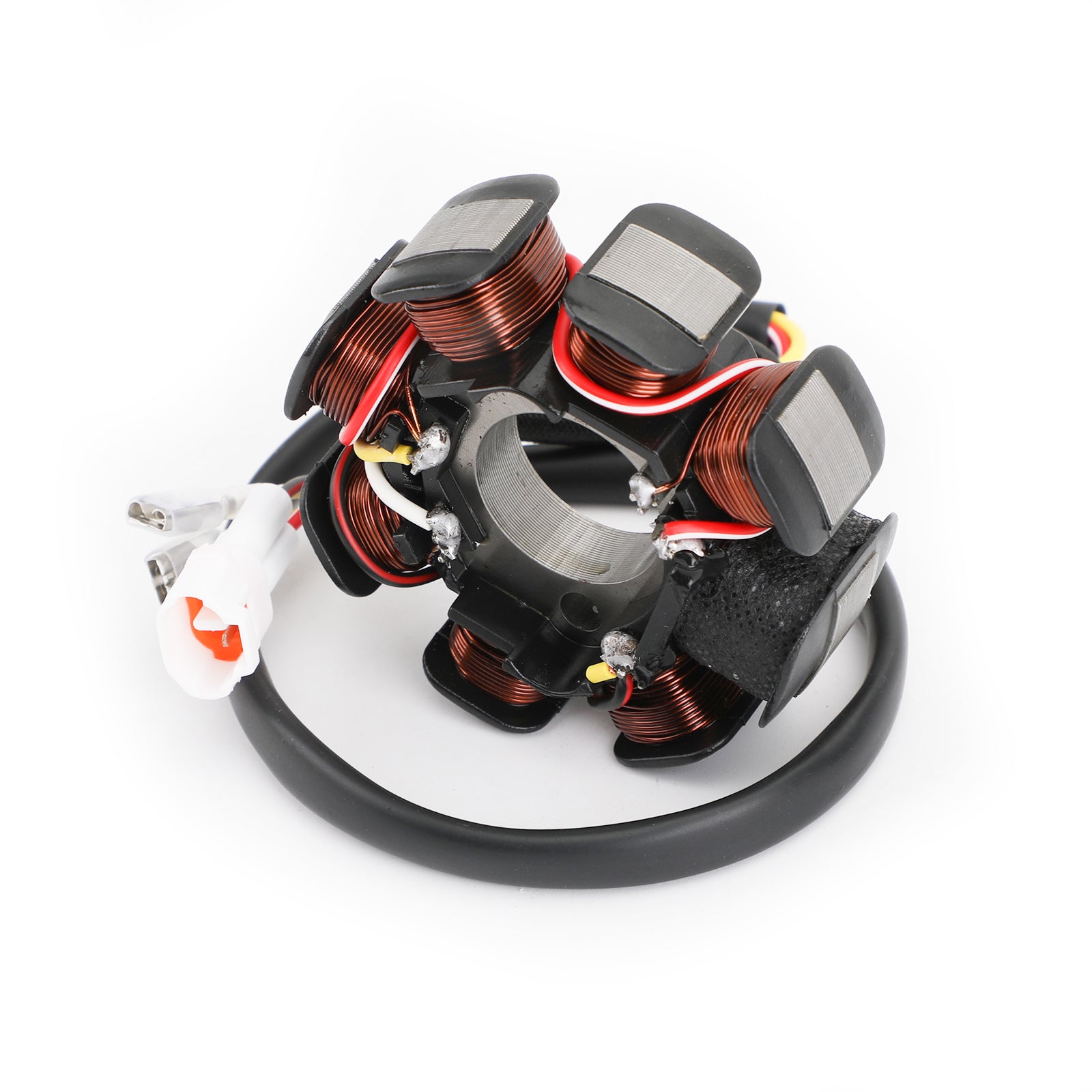

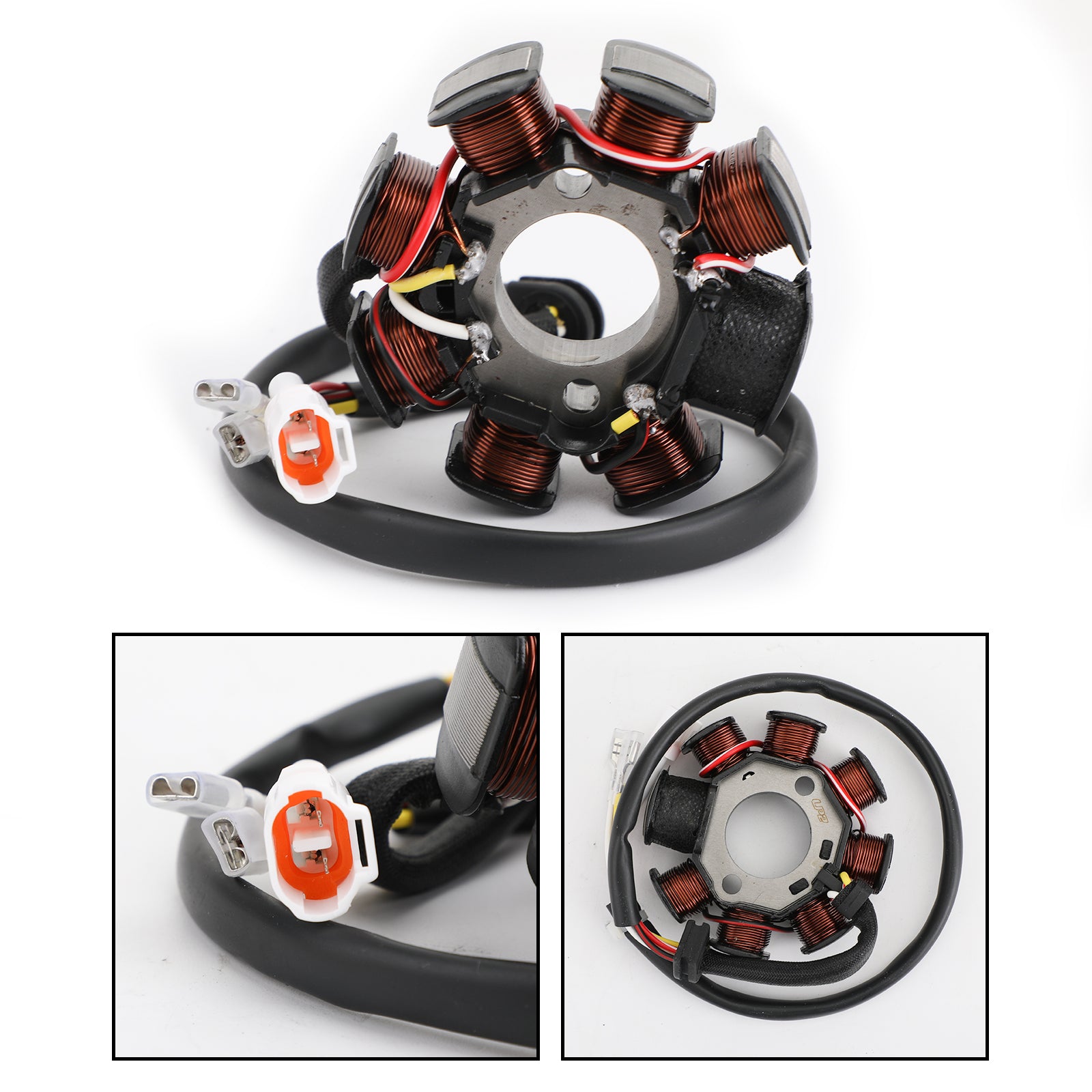

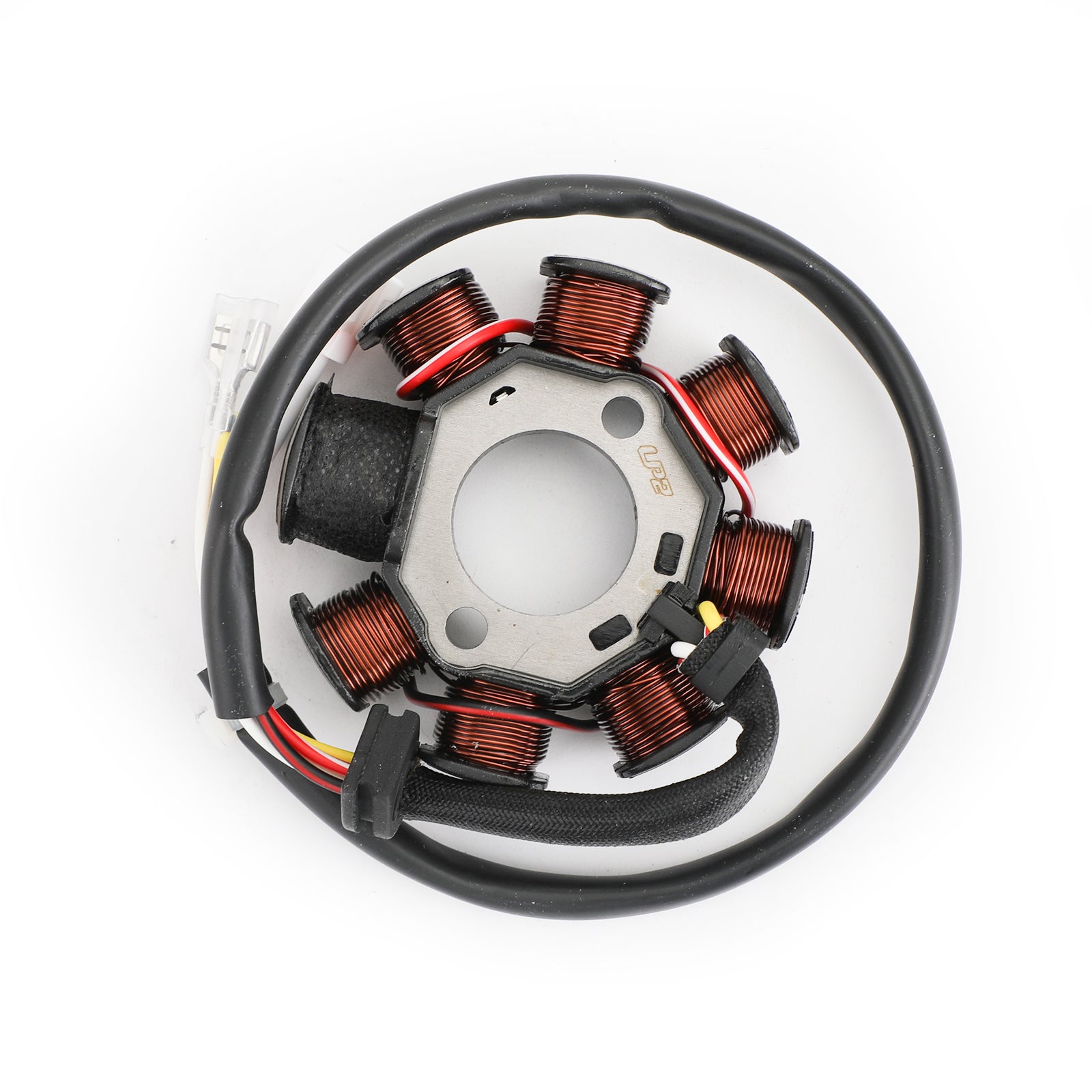

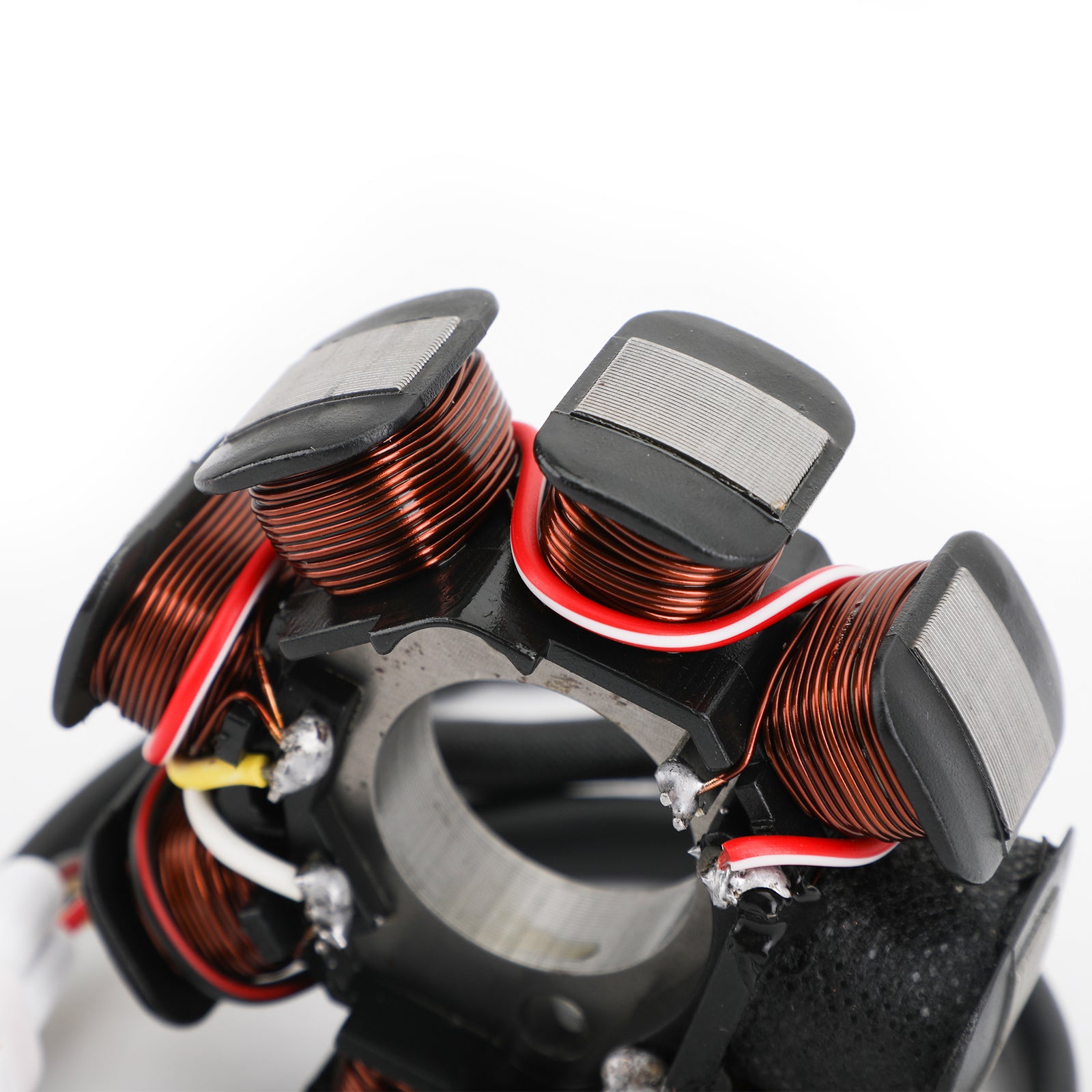

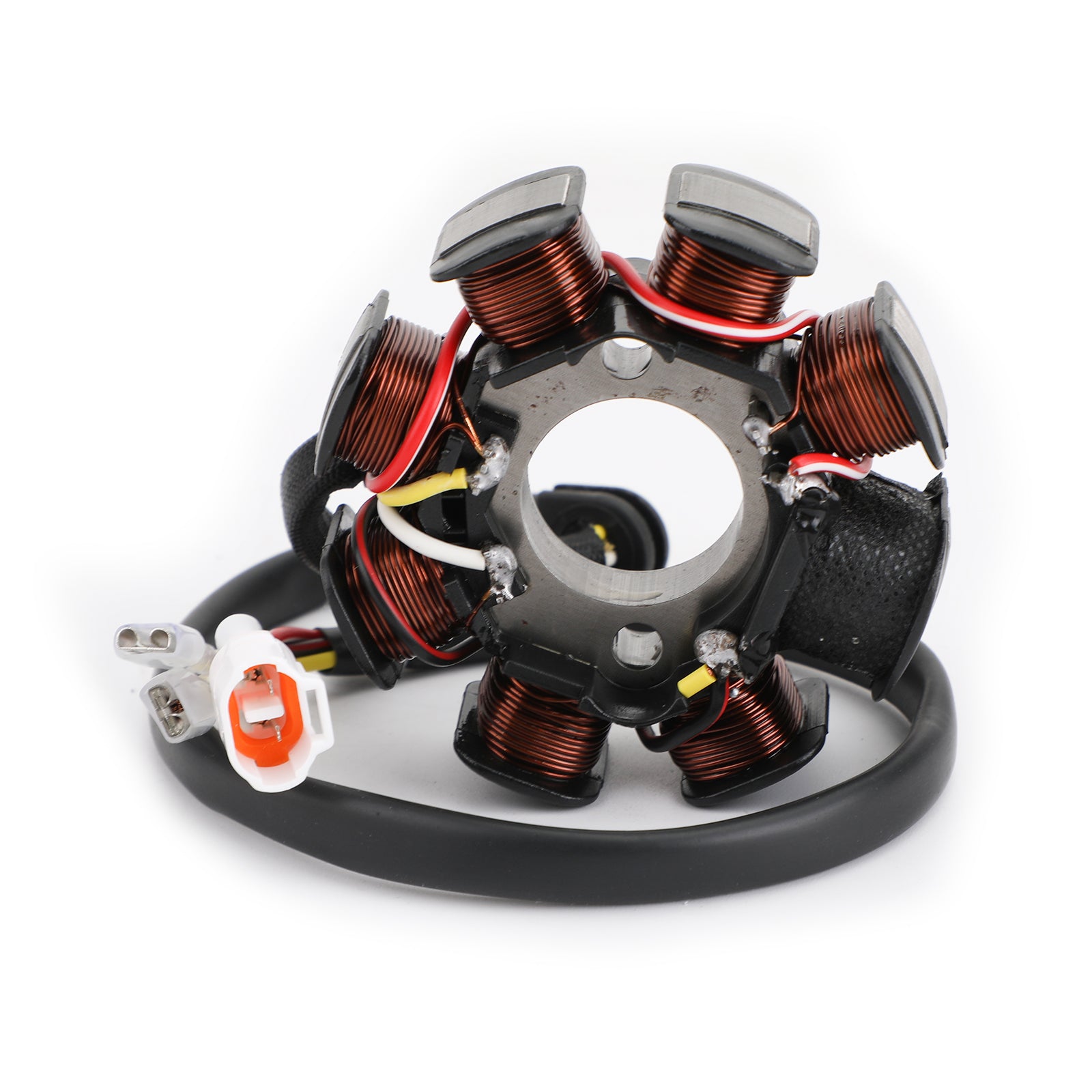

03-11 250 400 450 530 EXC XCW XC SXS XCF Stator Generator Alternator 77039104000 59039104200

Fitment:
Fit for 250 XCF-W 2007-2009
Fit for 250 EXC-F 2007
Fit for 250 XC-F 2007-2009
Fit for 250 XCF-W CHAMPION EDIT 2010
Fit for 250 XCF-W SIX DAYS 2011
Fit for 59039104200
Fit for 59039104000
Fit for EXC 4 Stroke 2003-2005
Fit for 250 EXC-F 2002-2005
Fit for 250 EXC-R 2002-2005
Fit for 250 EXC Euro 2003-2006
Fit for 250 EXC-G 2003-2005
Fit for 400 1999-2002/2004
Fit for 400 EXC 1999-2006
Fit for 400 XC-W 2007/2009-2010
Fit for 450 SX 1999-2002
Fit for 450 2003-2004
Fit for 450 EXC-G 2005-2006
Fit for 450 EXC-R 2008
Fit for 450 MXC 2003-2005
Fit for 450 MXC-G 2005
Fit for 520 EXC 1999-2002
Fit for 520 SX 2001-2002
Fit for 525 2003-2004
Fit for 525 EXC 2003-2007
Fit for 525 MXC 2004-2005
Fit for 525 XC 2007
Fit for 80039004000
Fit for 400 XCW 2009-2010
Fit for 450 XC-W 2007/2010-2011
Fit for 450 EXC 2003-2011
Fit for 450 XC-W Six Days 2010-2011
Fit for 450 XC-W Champions Edition 2010
Fit for 450 XCW 2007-2009
Fit for 450 EXC-R 2008
Fit for 450 EXC Racing 2008
Fit for 450 EXC Six Days 2008
Fit for 450 SMR 2008
Fit for 450 SXF 2008
Fit for 450 SXS 2008
Fit for 450 XCR-W 2008
Fit for 530 EXC 2008-2011
Fit for 530 XC-W Six Days 2010-2011
Fit for 530 EXC Champions Edition 2010
Fit for 530 XCW 2009/2011
Fit for 530 EXC-R 2008
Fit for 530 XCR-W 2008
Fit for 610 Crate 2004

Manufacturer Part Number:
77039104000
59039104200
59039104000
80039004000
Please confirm the Manufacturer Part Number before purchasing.

Features:

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Other Specifications:
Number of wires: 4
Number of pins: 4
Number of plugs: 3
Number of fixation holes: 2
Number of poles: 8

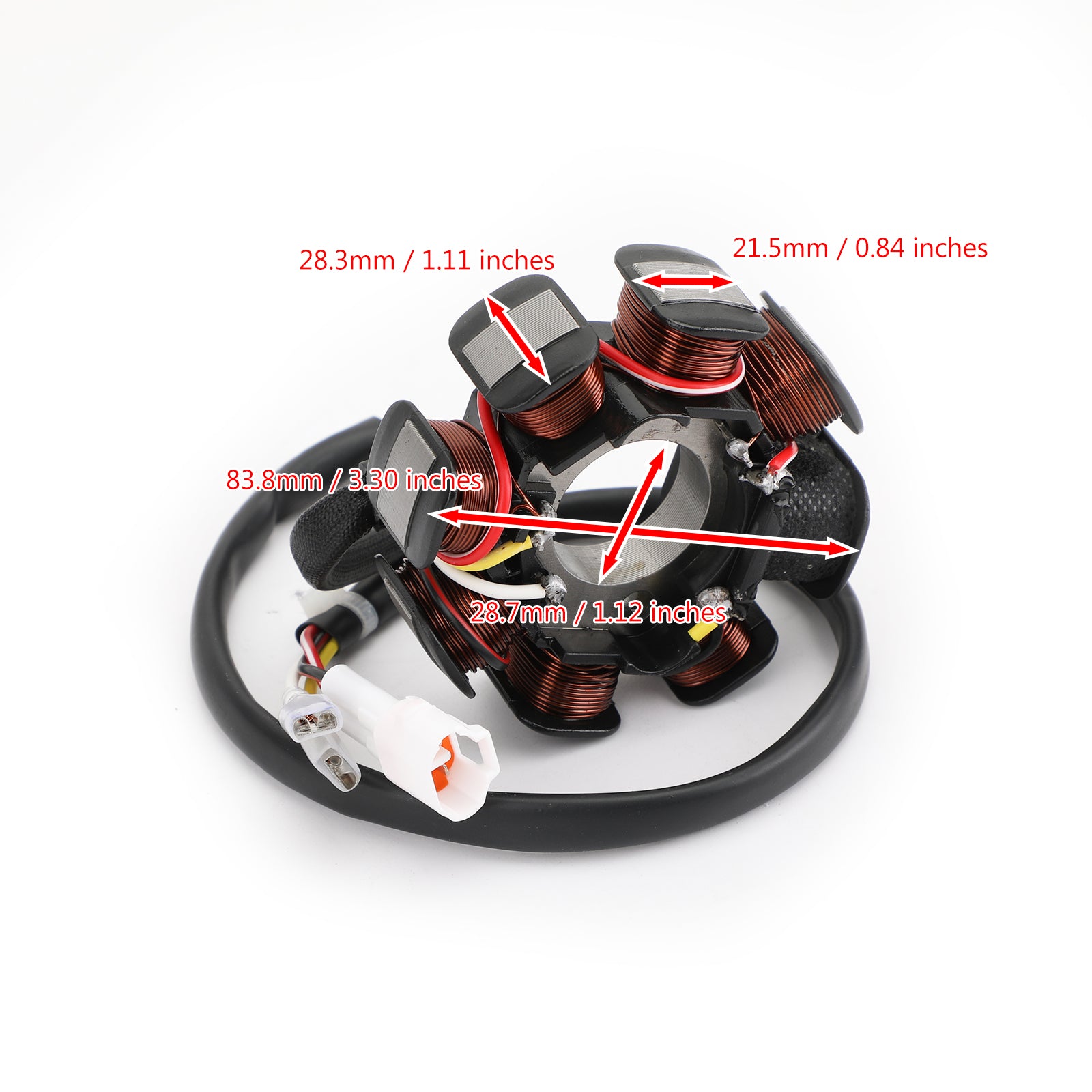

Dimensions:
Interior diameter : 28.7 mm / 1.12 inches
Exterior diameter : 83.8 mm / 3.30 inches
Pole's Thickness : 28.3 mm / 1.11 inches
Pole's Width : 21.5 mm / 0.84 inches

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:

1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
