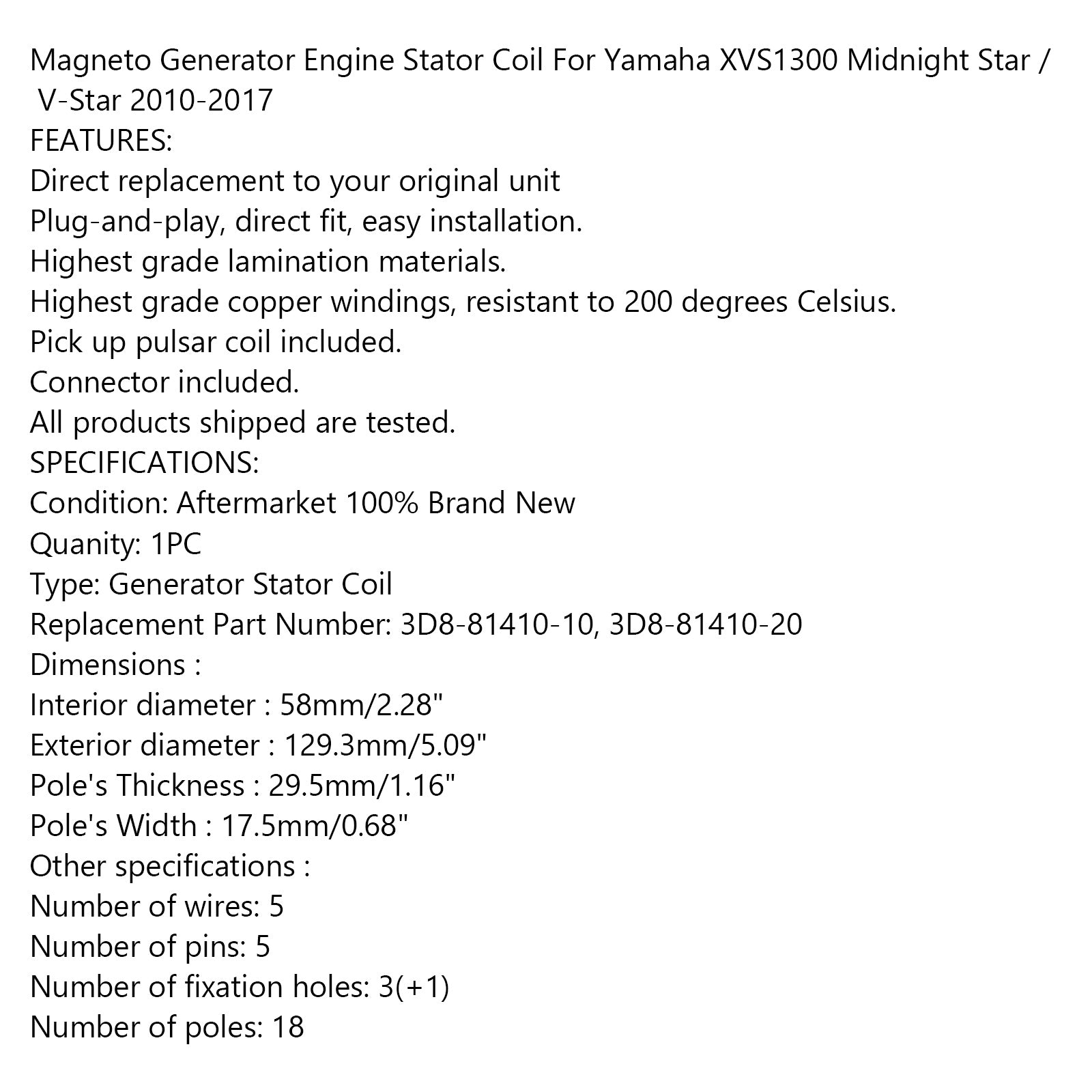

Condition: Aftermarket 100% Brand New

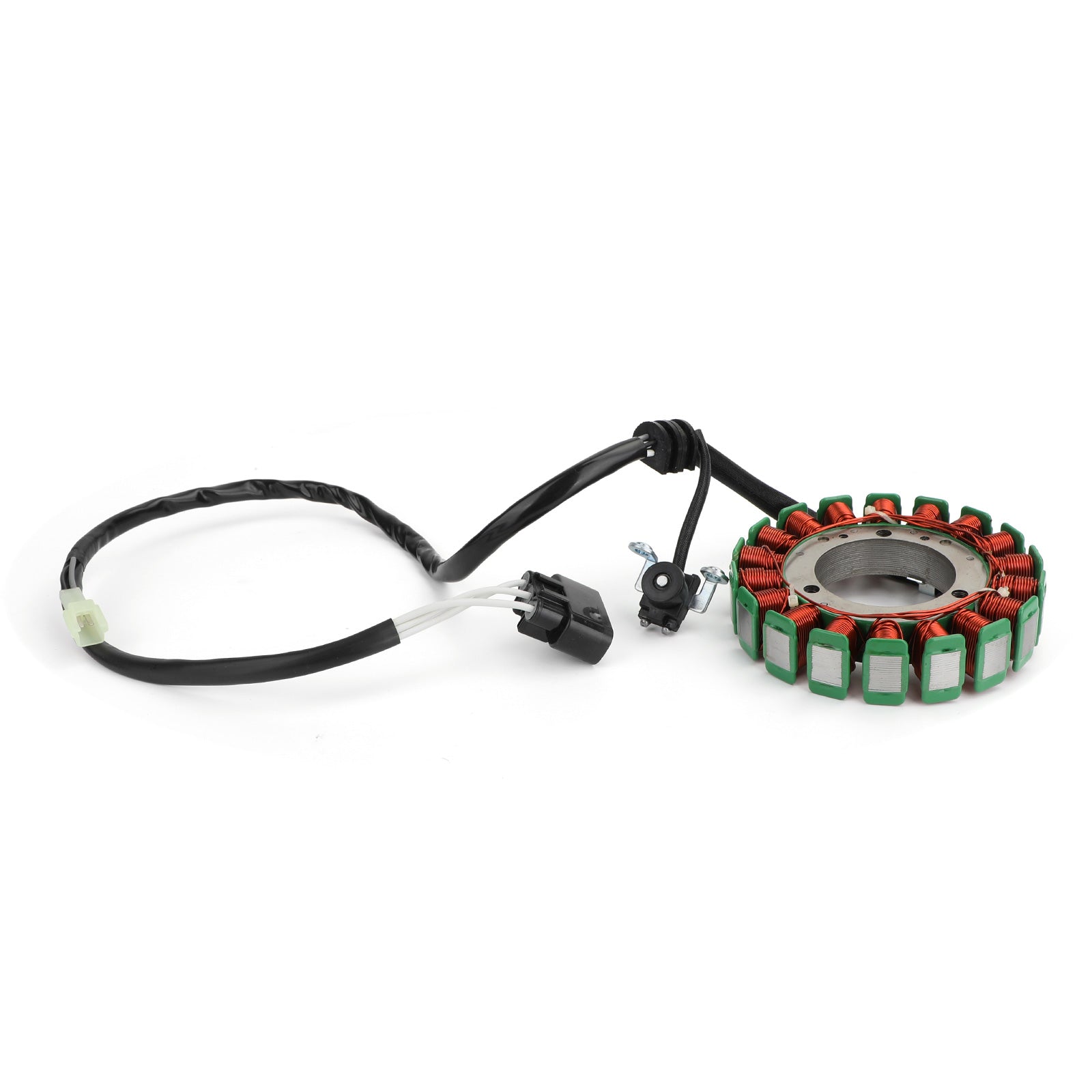

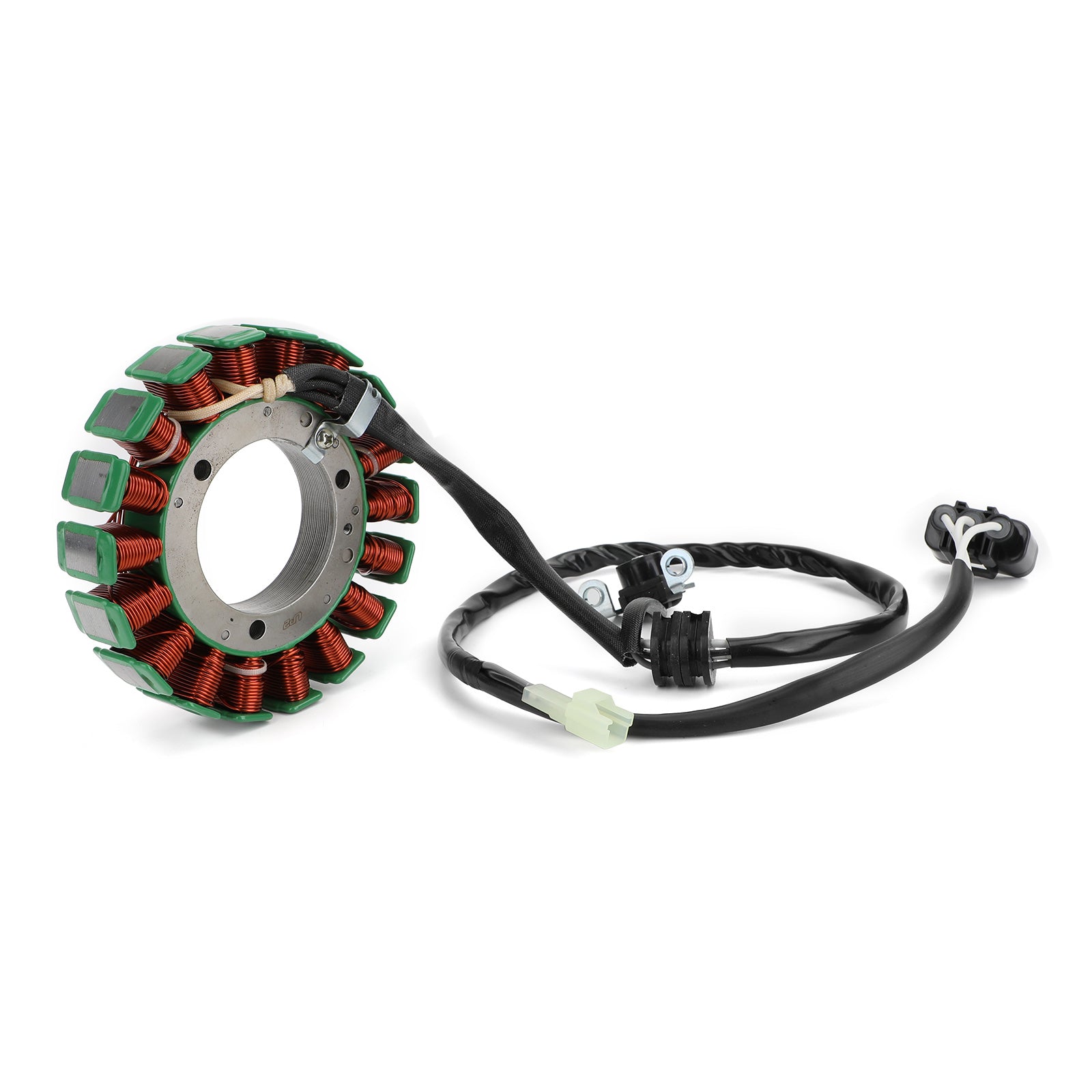

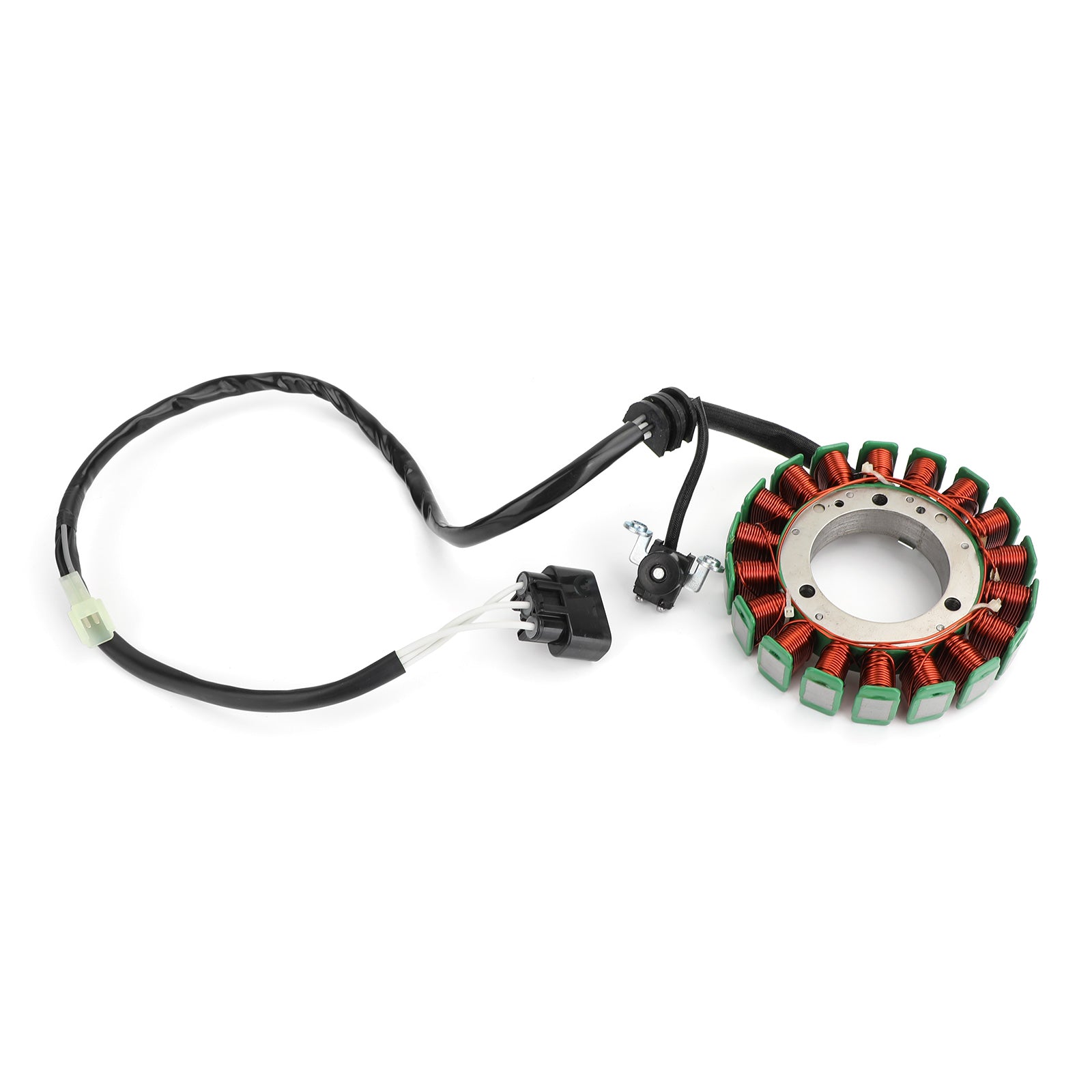

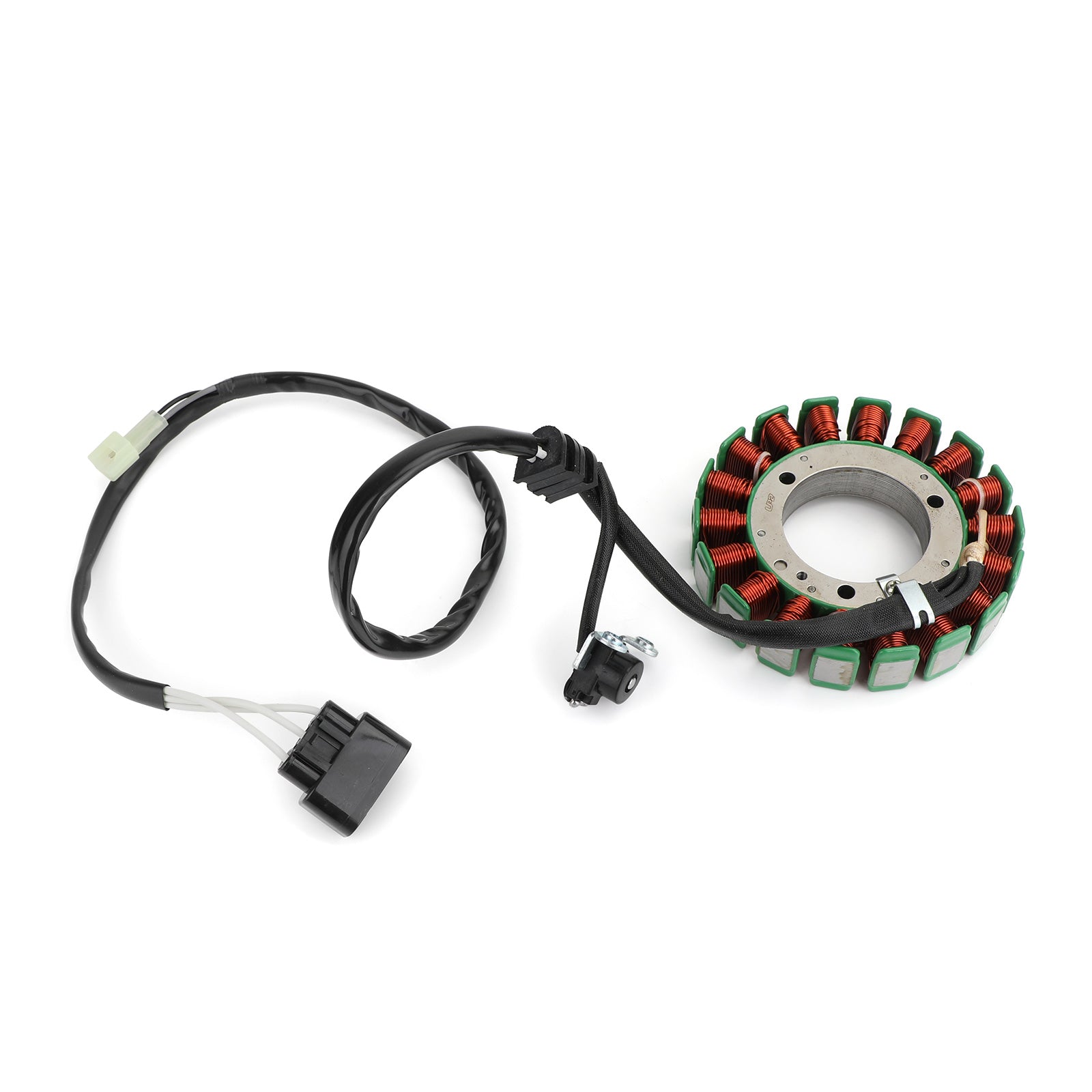

Type: Generator Stator Coil
Replacement Part Number: 3D8-81410-10, 3D8-81410-20
Interior diameter : 58mm/2.28"
Exterior diameter : 129.3mm/5.09"
Pole's Thickness : 29.5mm/1.16"
Pole's Width : 17.5mm/0.68"
Other specifications :
Number of wires: 5

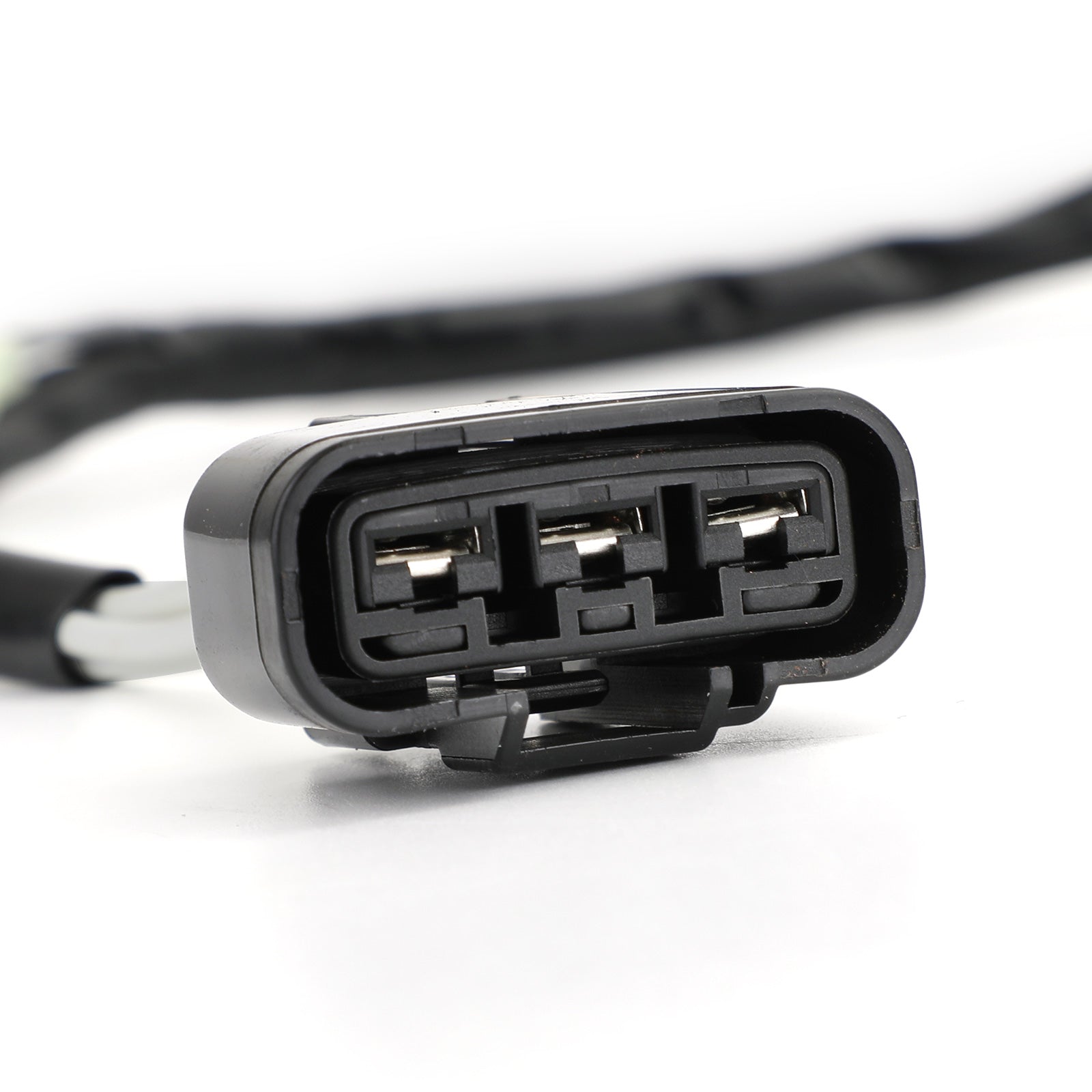

Number of pins: 5
Number of fixation holes: 3(+1)
Number of poles: 18

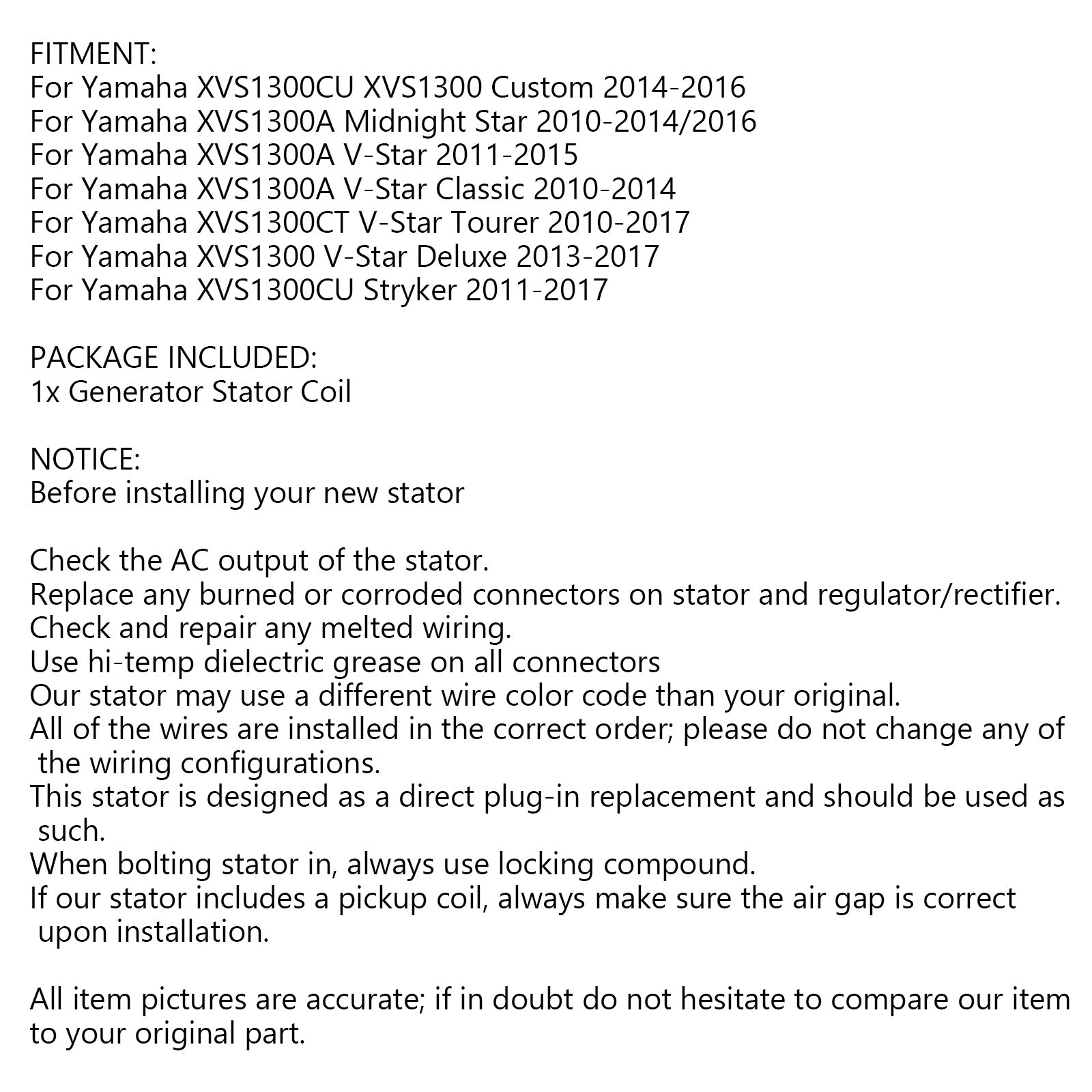

For Yamaha XVS1300CU XVS1300 Custom 2014-2016
For Yamaha XVS1300A Midnight Star 2010-2014/2016
For Yamaha XVS1300A V-Star 2011-2015
For Yamaha XVS1300A V-Star Classic 2010-2014
For Yamaha XVS1300CT V-Star Tourer 2010-2017
For Yamaha XVS1300 V-Star Deluxe 2013-2017
For Yamaha XVS1300CU Stryker 2011-2017
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
