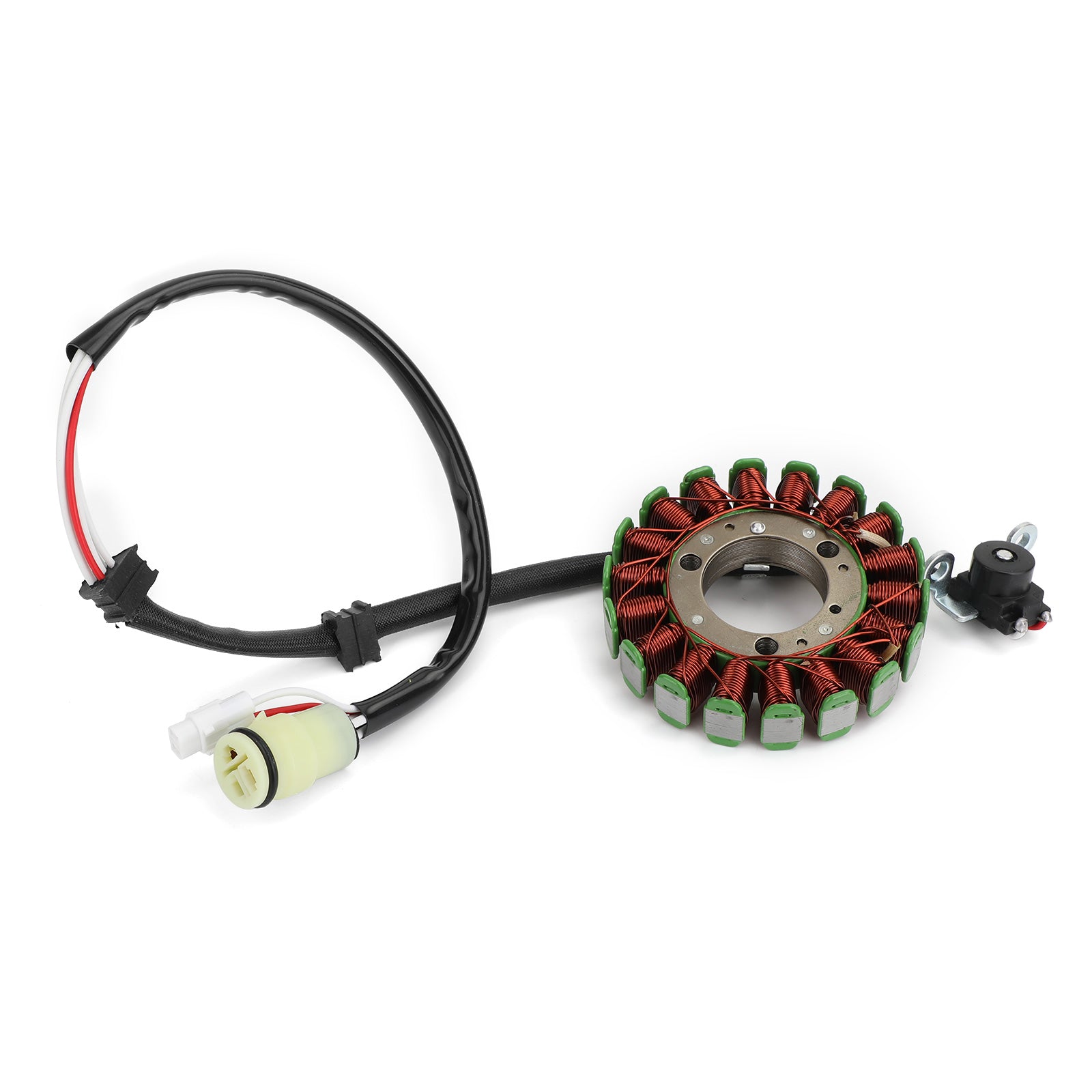

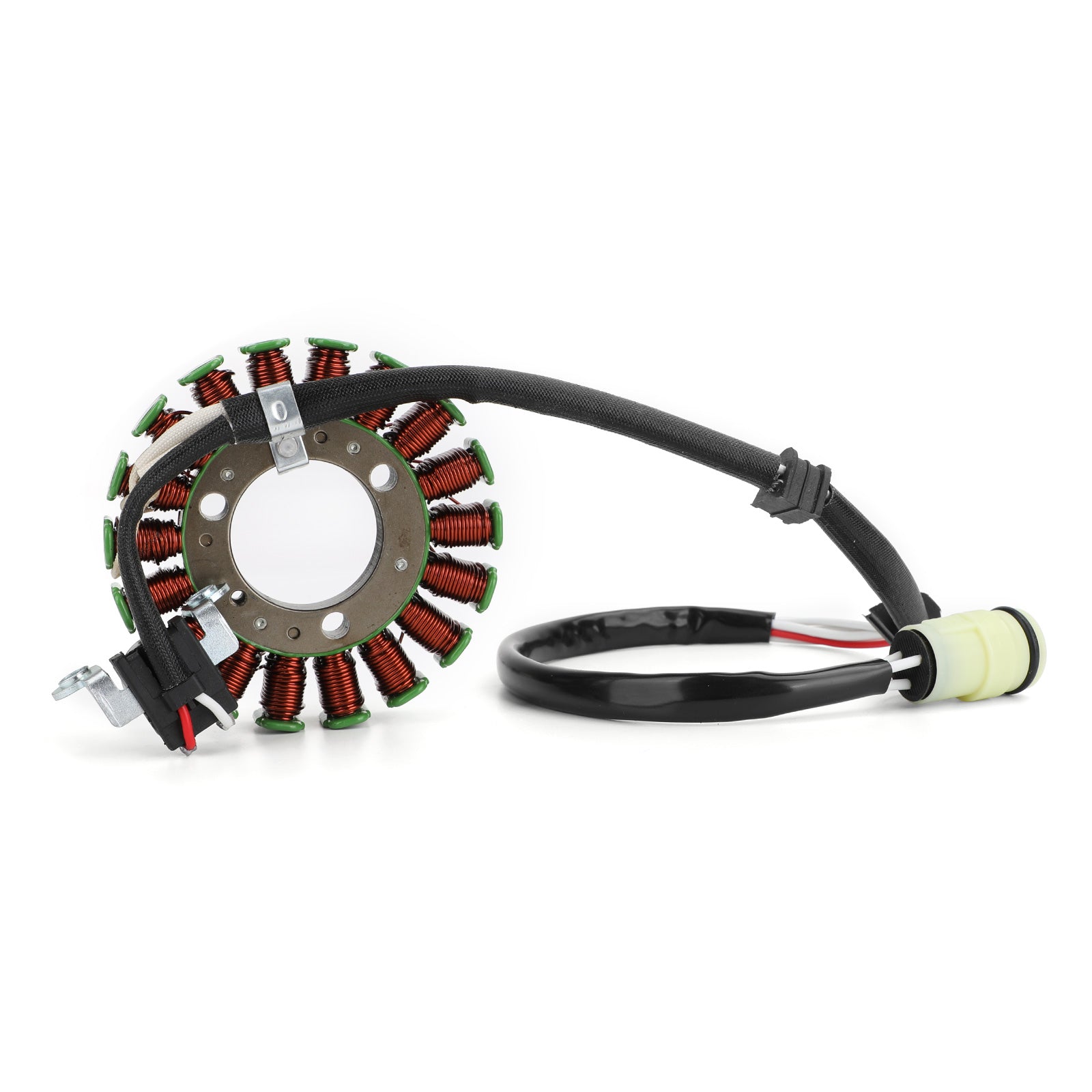

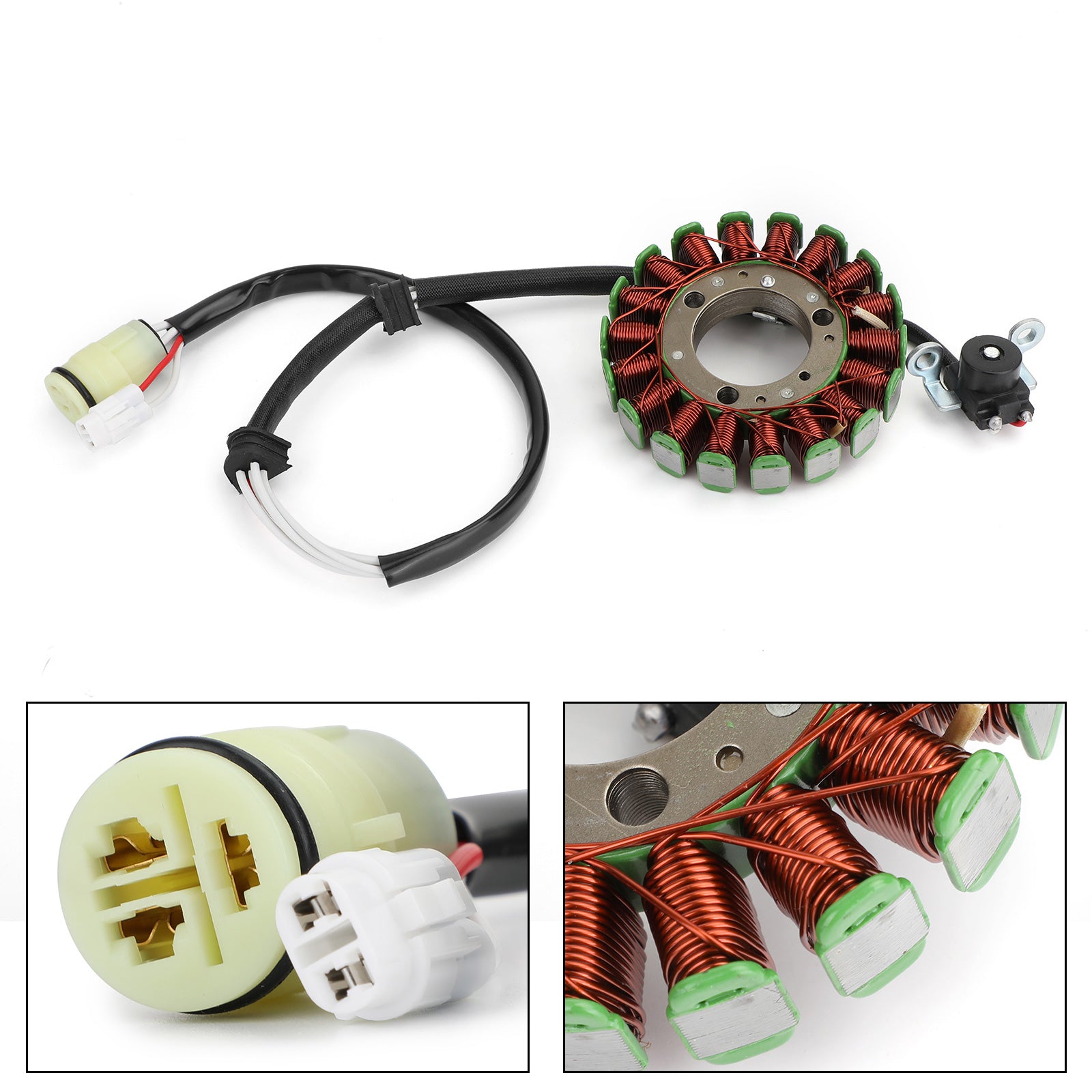

Generator Stator For Yamaha Raptor 250 YFM250 YFM250R 2008-2013 4D3-81410-00
Fitment:
For Yamaha YFM250R Raptor 250 2008-2013
For Yamaha YFM250 Raptor 250 Special Edition 2008-2009/2011
For Yamaha YFM250 Raptor 250 Special Edition 2 2008-2009
Replacement Part Number:
4D3-81410-00
Please confirm the Replacement Part Number before ordering.
Dimensions:
Interior diameter : 36.8mm/1.44"
Exterior diameter : 97mm/3.82"
Pole's Thickness : 21.7mm/0.85"
Pole's Width : 12.3mm/0.48"
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+1)
Number of poles: 18
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

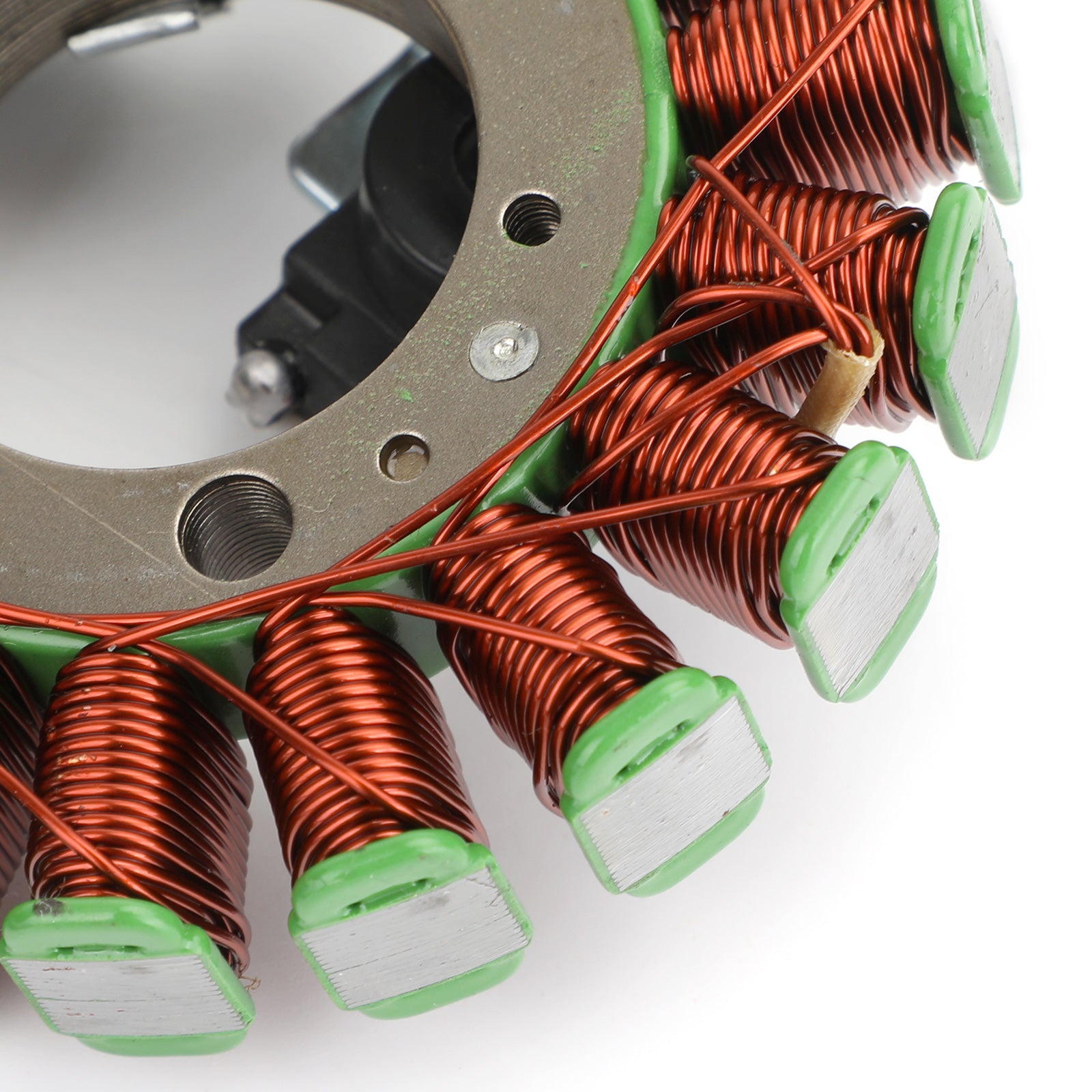

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

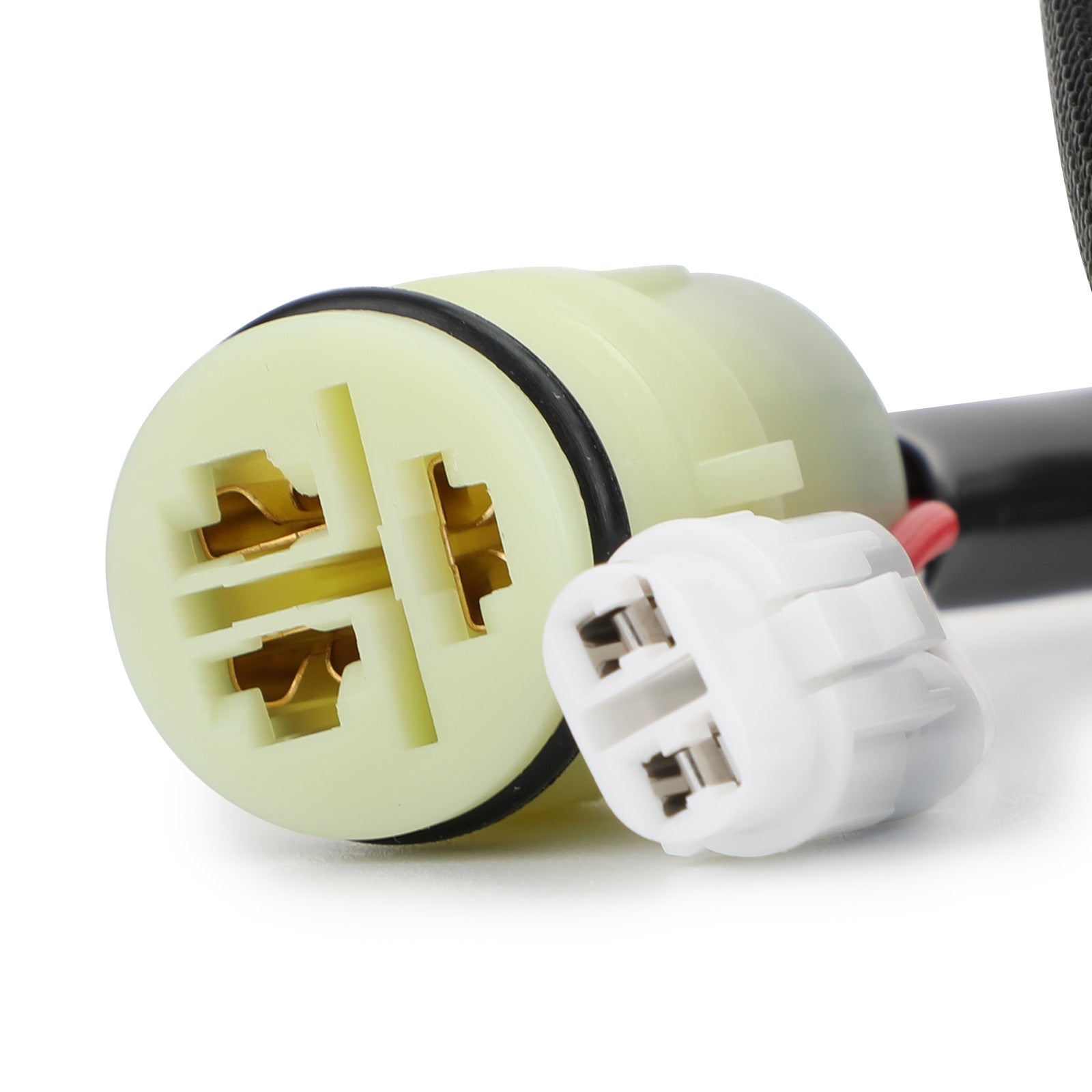

Connector included.
All products shipped are tested.
Package Incleded:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
