Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901
Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901
Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901
Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901
Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901

Generator Stator For Honda CBR R CB F 250 300 2011 2012 2013-2019 31120-KYJ-901

Sale price$98.78 USD
SKU: M550-A251
Quantity:

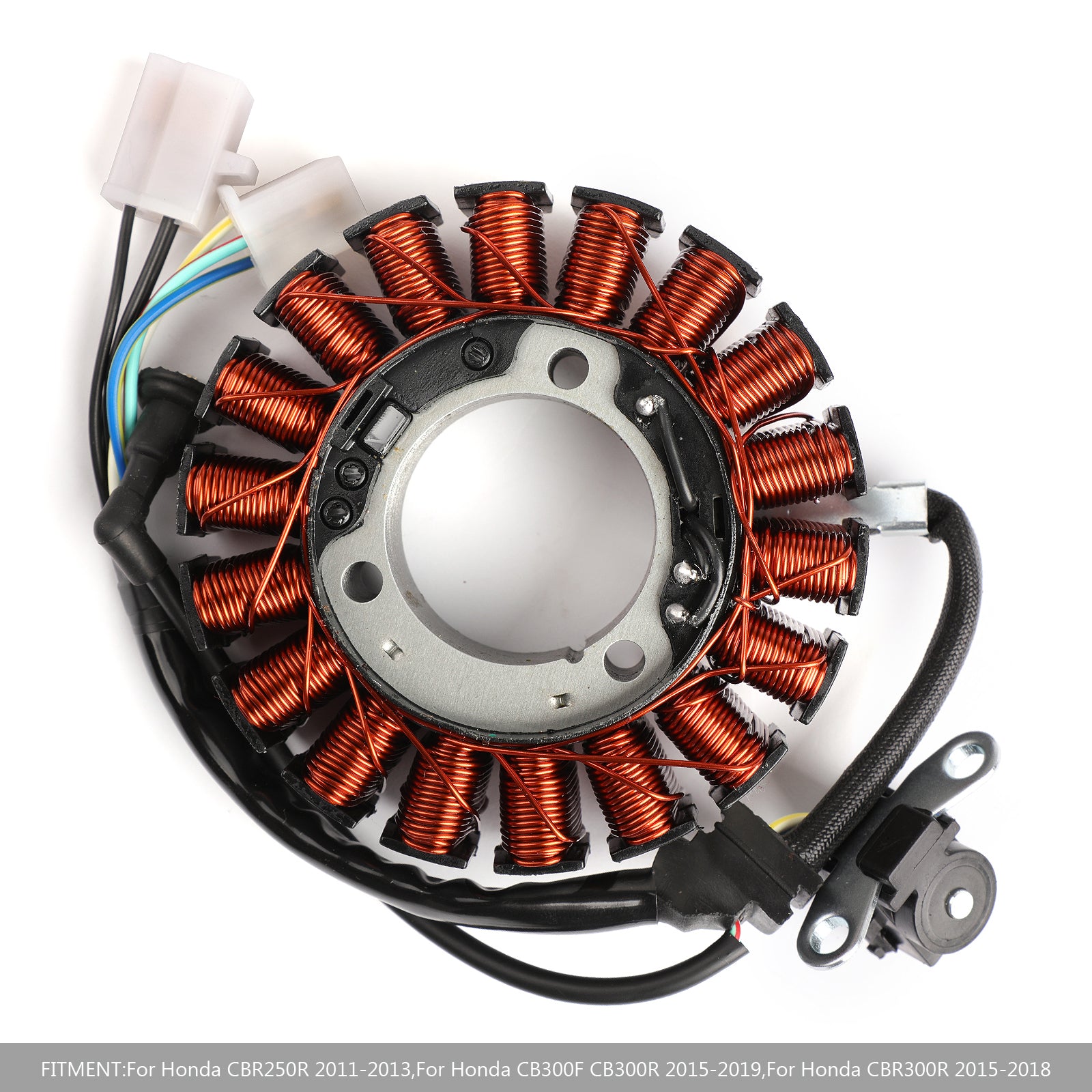

Fitment:
For Honda CBR250R 2011-2013
For Honda CB300F CB300R 2015-2019
For Honda CBR300R 2015-2018

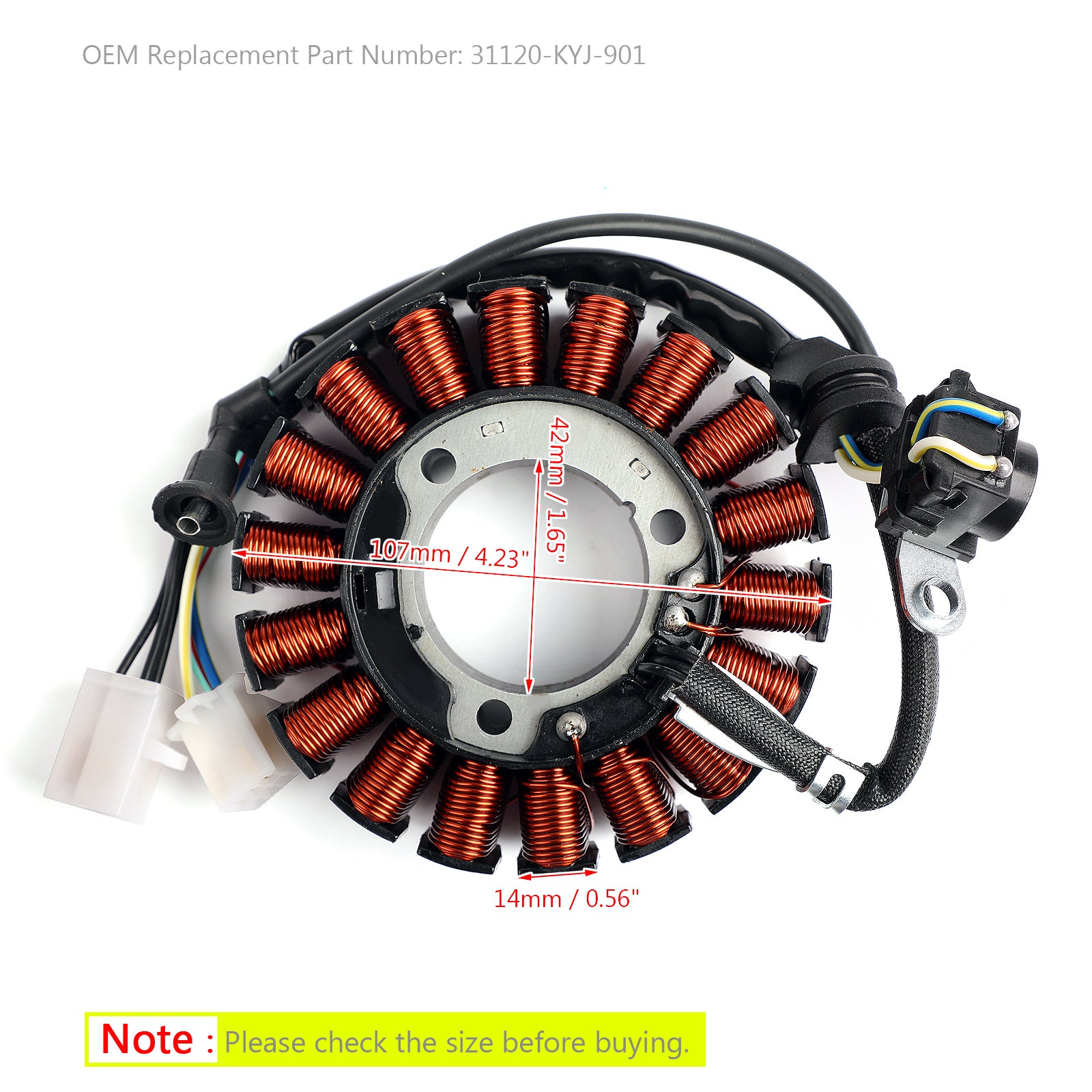

OEM Replacement Part Number:
31120-KYJ-901
Please confirm the Replacement Part Number before ordering.

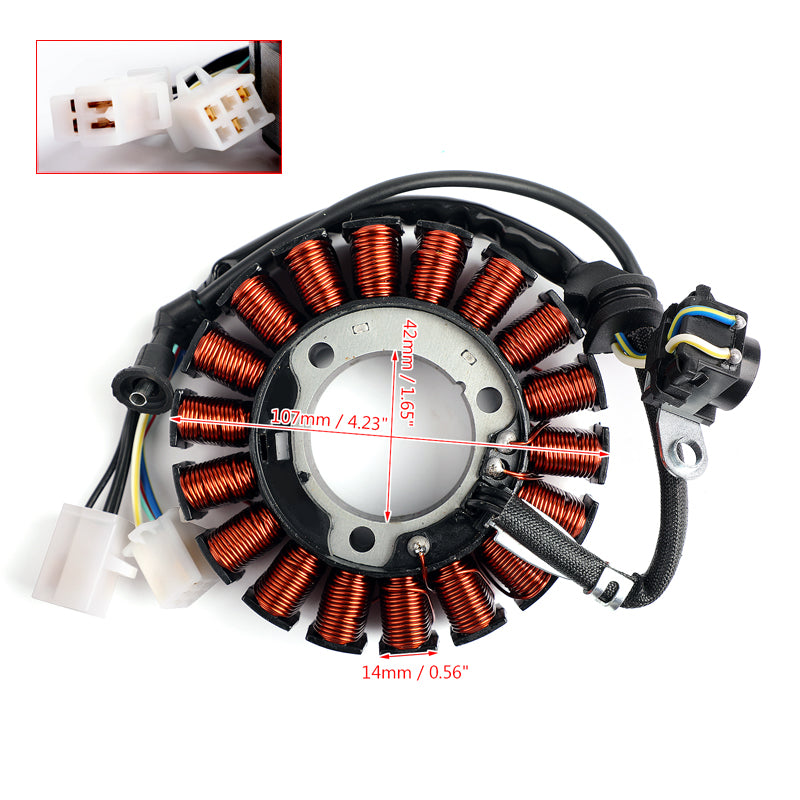

Dimensions:
Interior diameter : 42mm / 1.65"
Exterior diameter : 107mm / 4.23"
Thickness : 14mm / 0.56"

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 6
Number of pins: 7

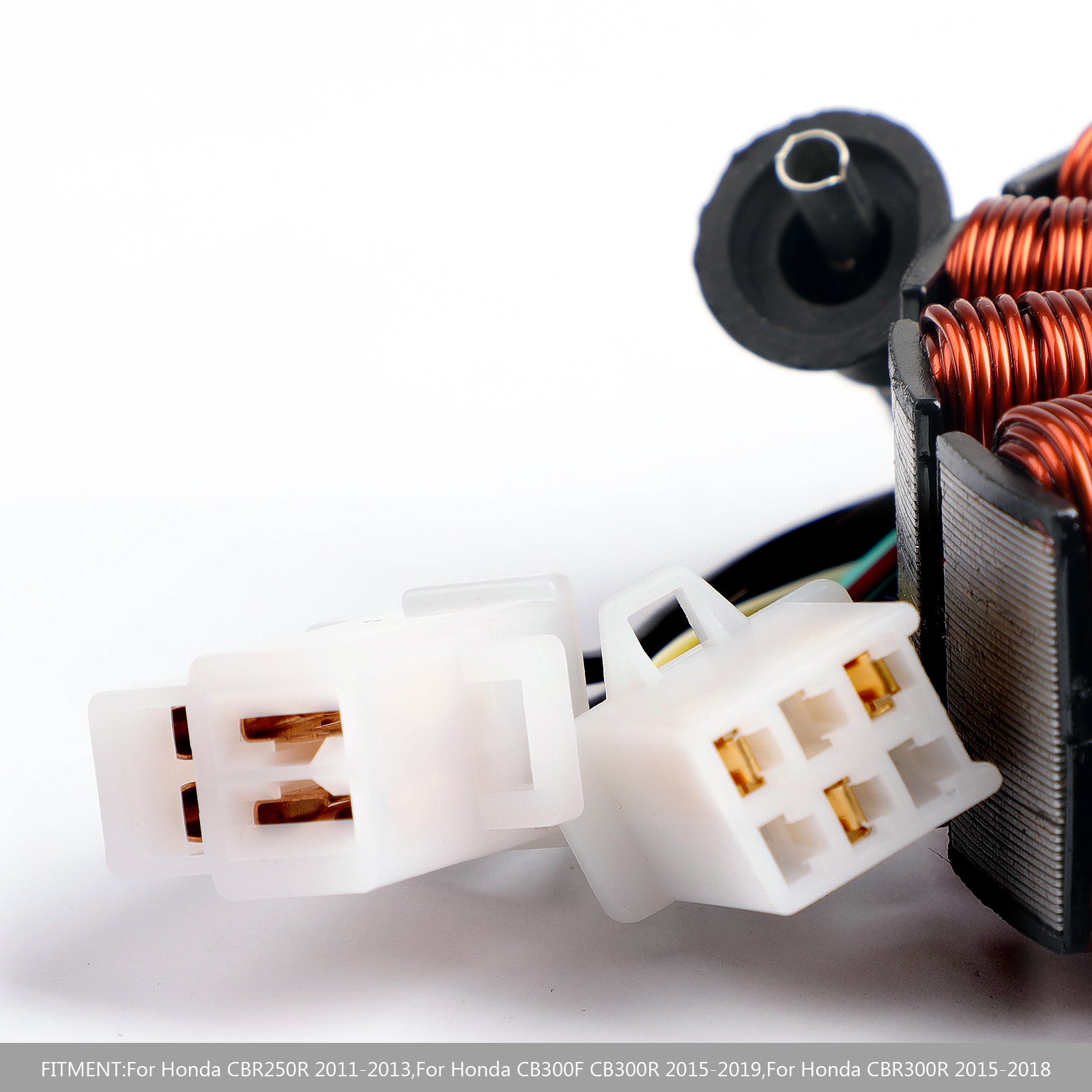

Number of plugs: 2
Number of fixation holes: 3

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Package Incleded:
1x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
