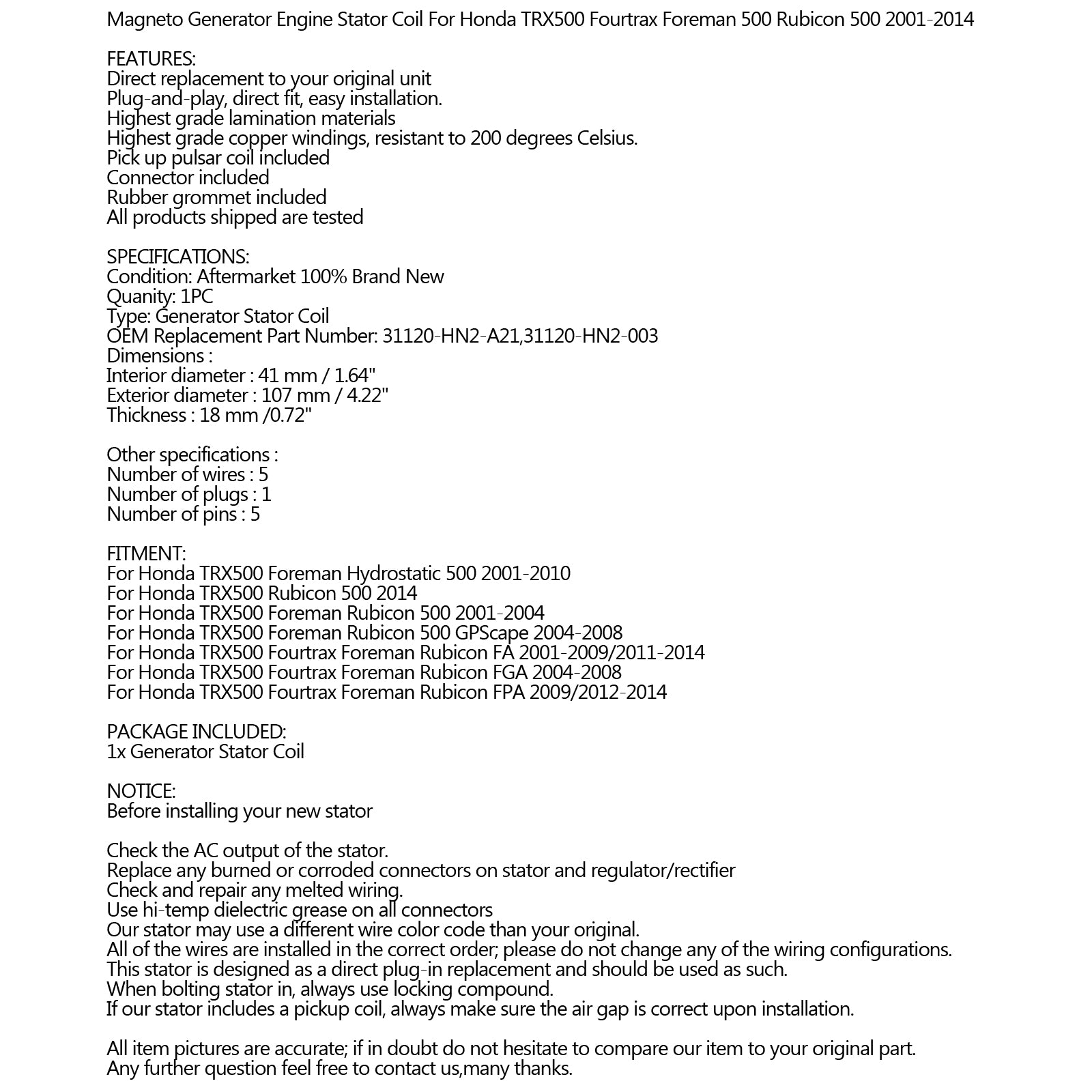

Condition: Aftermarket 100% Brand New

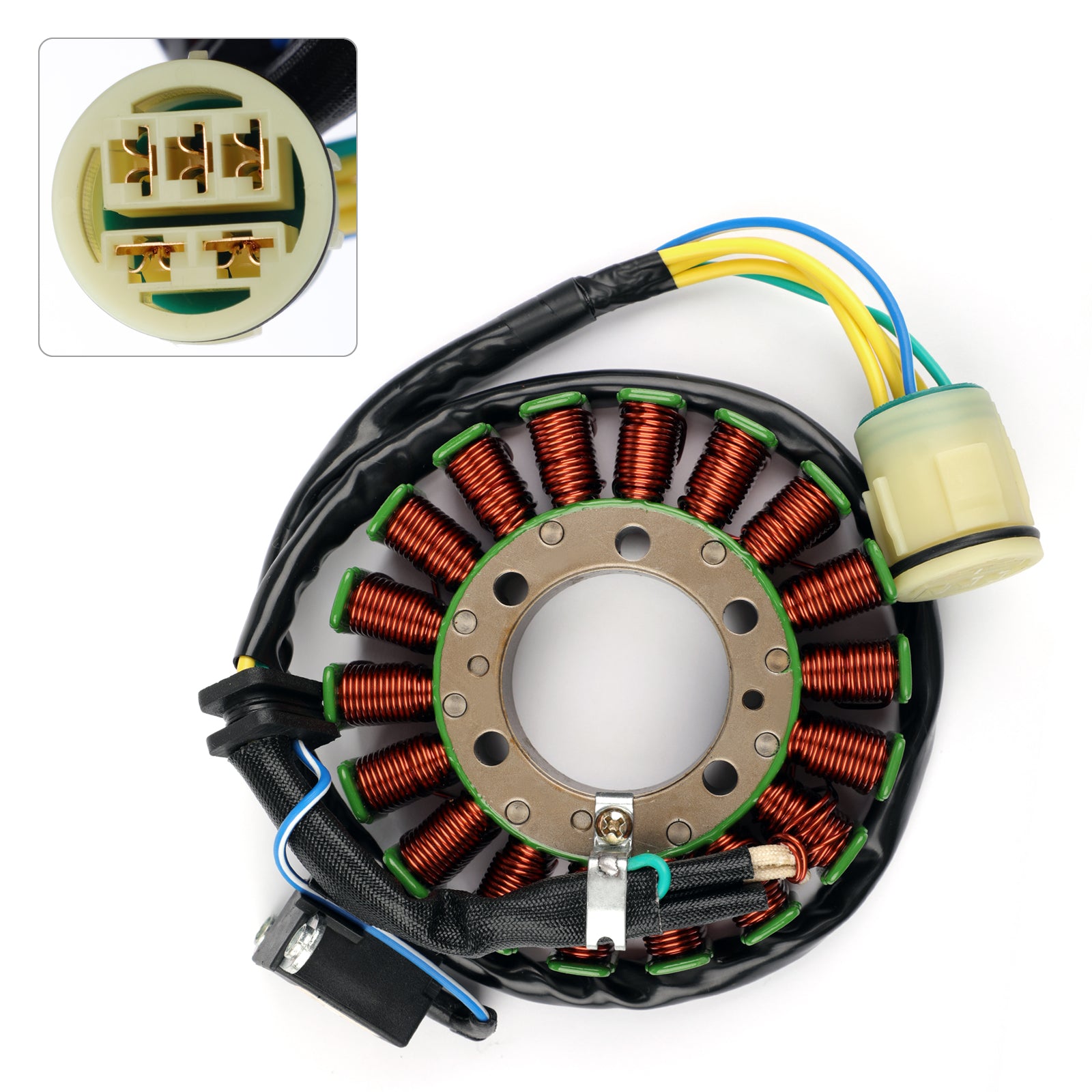

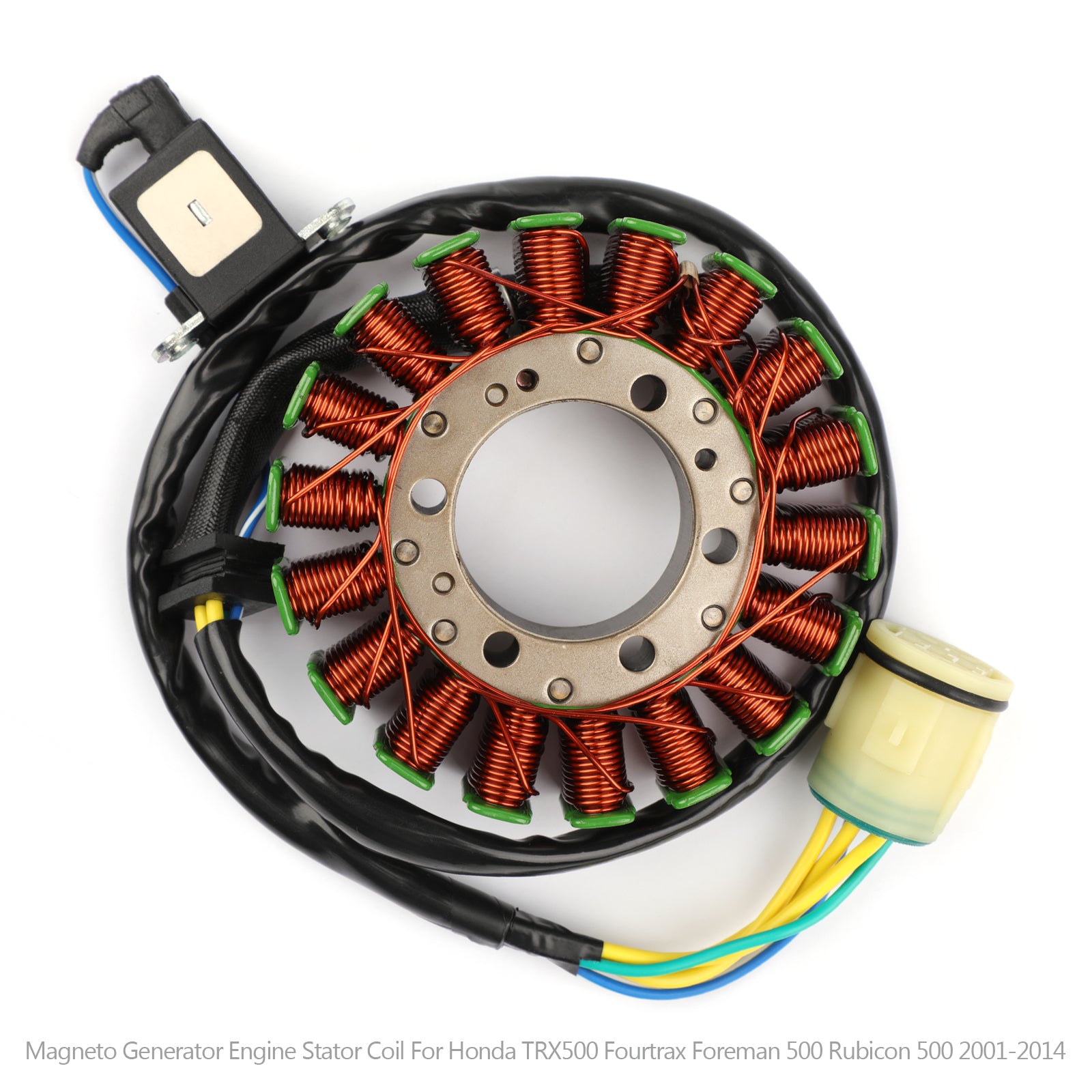

Type: Generator Stator Coil

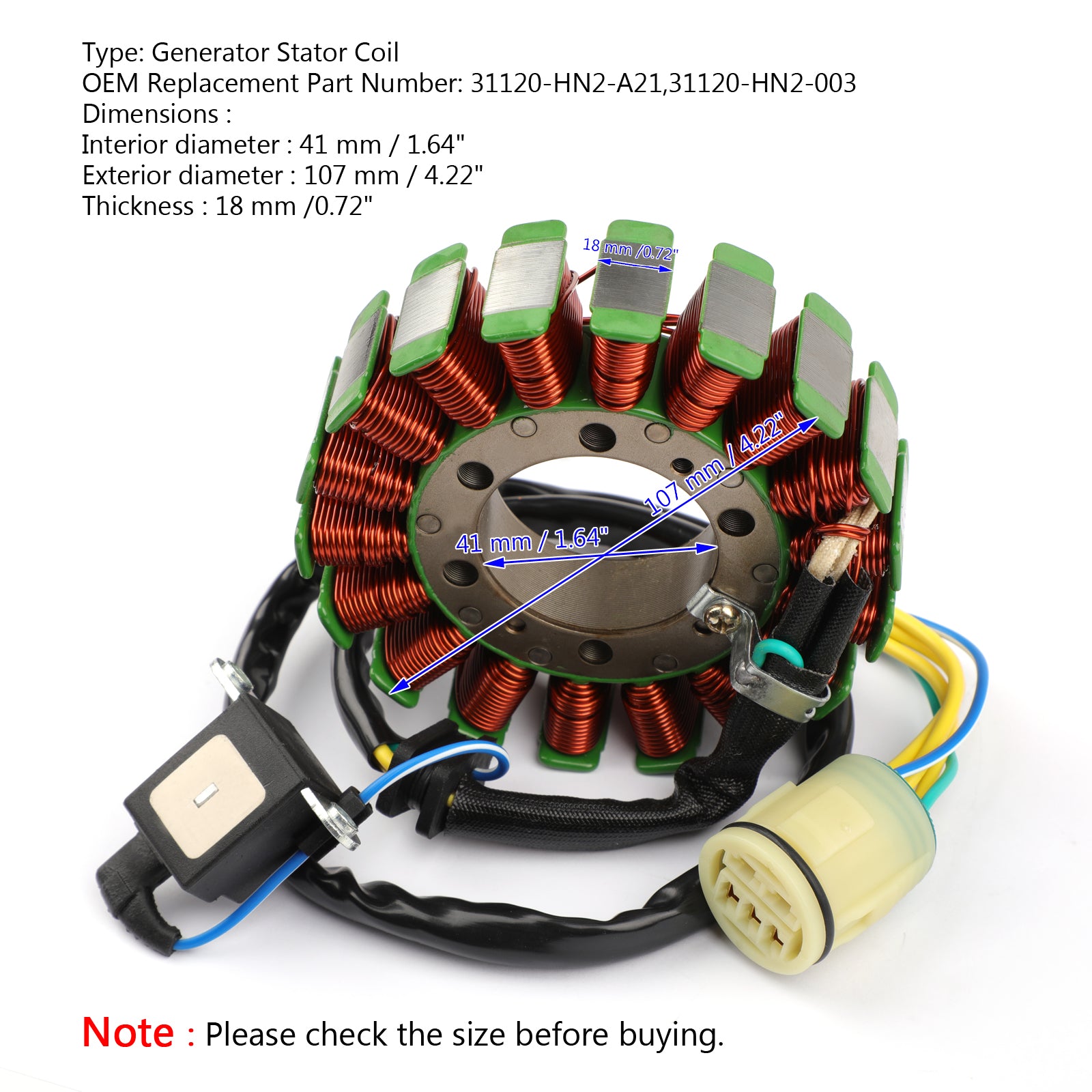

Interior diameter : 41 mm / 1.64"
Exterior diameter : 107 mm / 4.22"
Thickness : 18 mm /0.72"
OEM Replacement Part Number: 31120-HN2-A21,31120-HN2-003
Other specifications :
Number of wires : 5

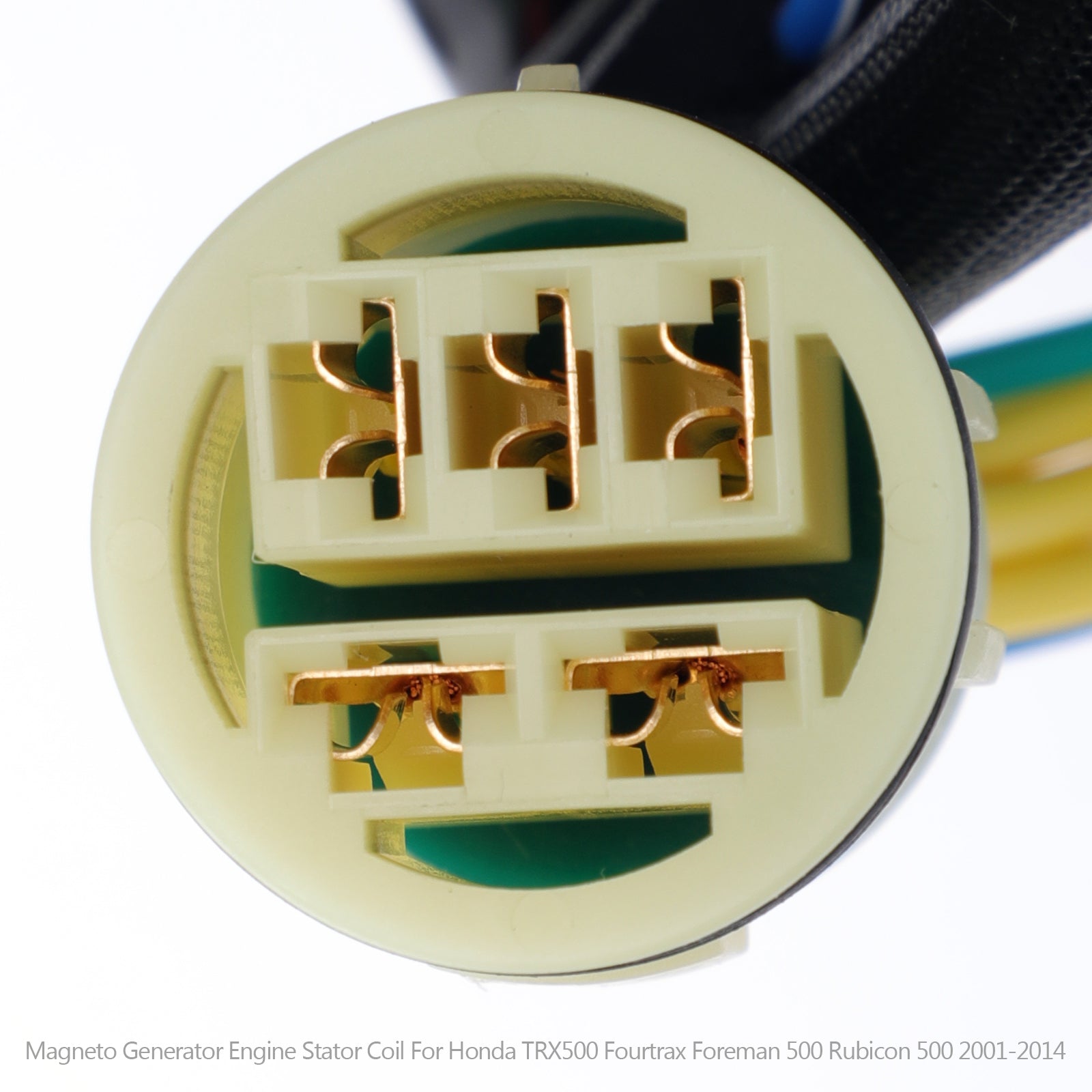

Number of plugs : 1
Number of pins : 5
For Honda TRX500 Foreman Hydrostatic 500 2001-2010
For Honda TRX500 Rubicon 500 2014
For Honda TRX500 Foreman Rubicon 500 2001-2004
For Honda TRX500 Foreman Rubicon 500 GPScape 2004-2008
For Honda TRX500 Fourtrax Foreman Rubicon FA 2001-2009/2011-2014
For Honda TRX500 Fourtrax Foreman Rubicon FGA 2004-2008
For Honda TRX500 Fourtrax Foreman Rubicon FPA 2009/2012-2014
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
All products shipped are tested
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
