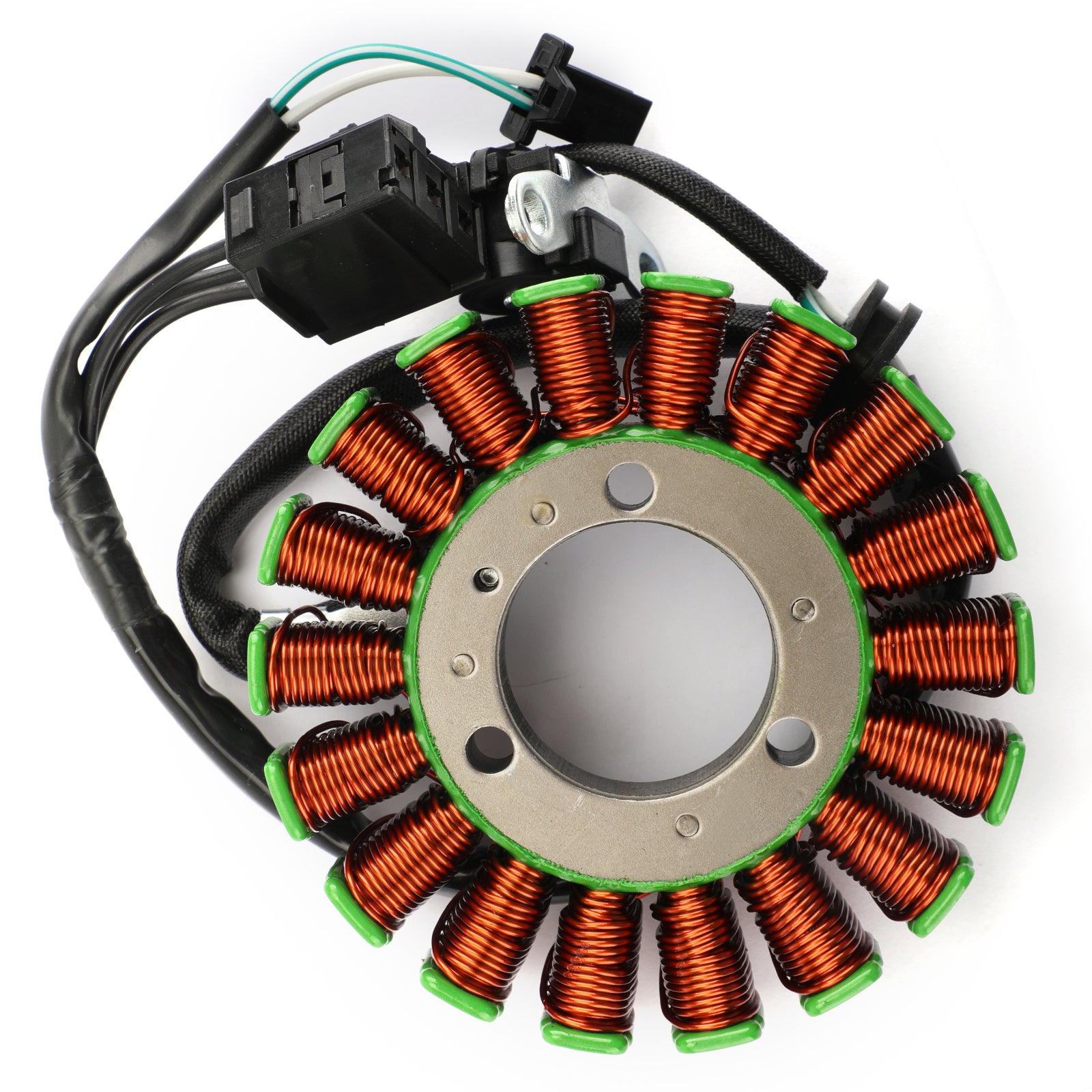

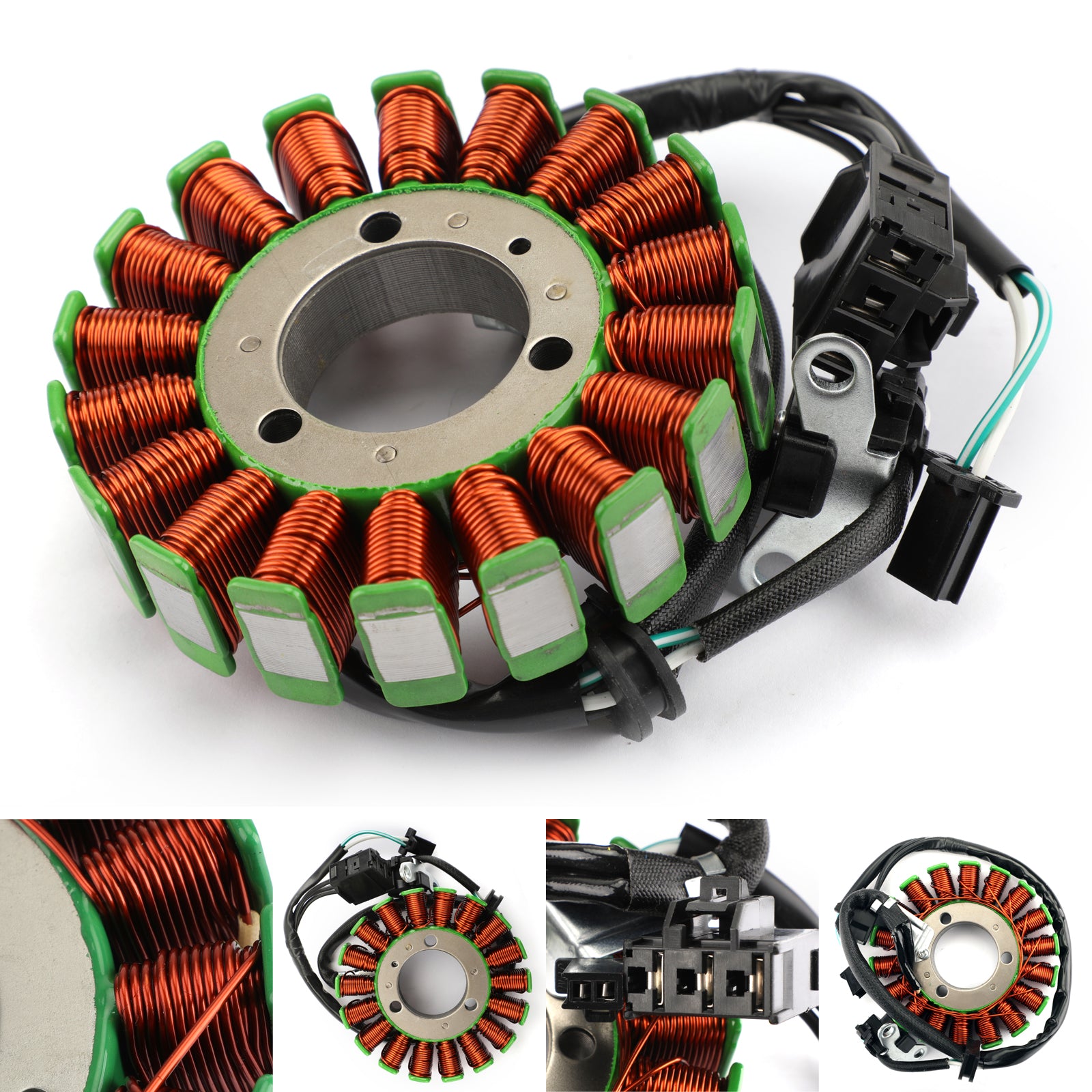

Generator Stator Coil 18 Poles For Kawasaki EX300 EX250 Ninja 13-17 ER250 ER300 Fedex
Condition: Aftermarket 100% Brand New
Type: Generator Stator Coil
Replacement Part Number: 21003-0128

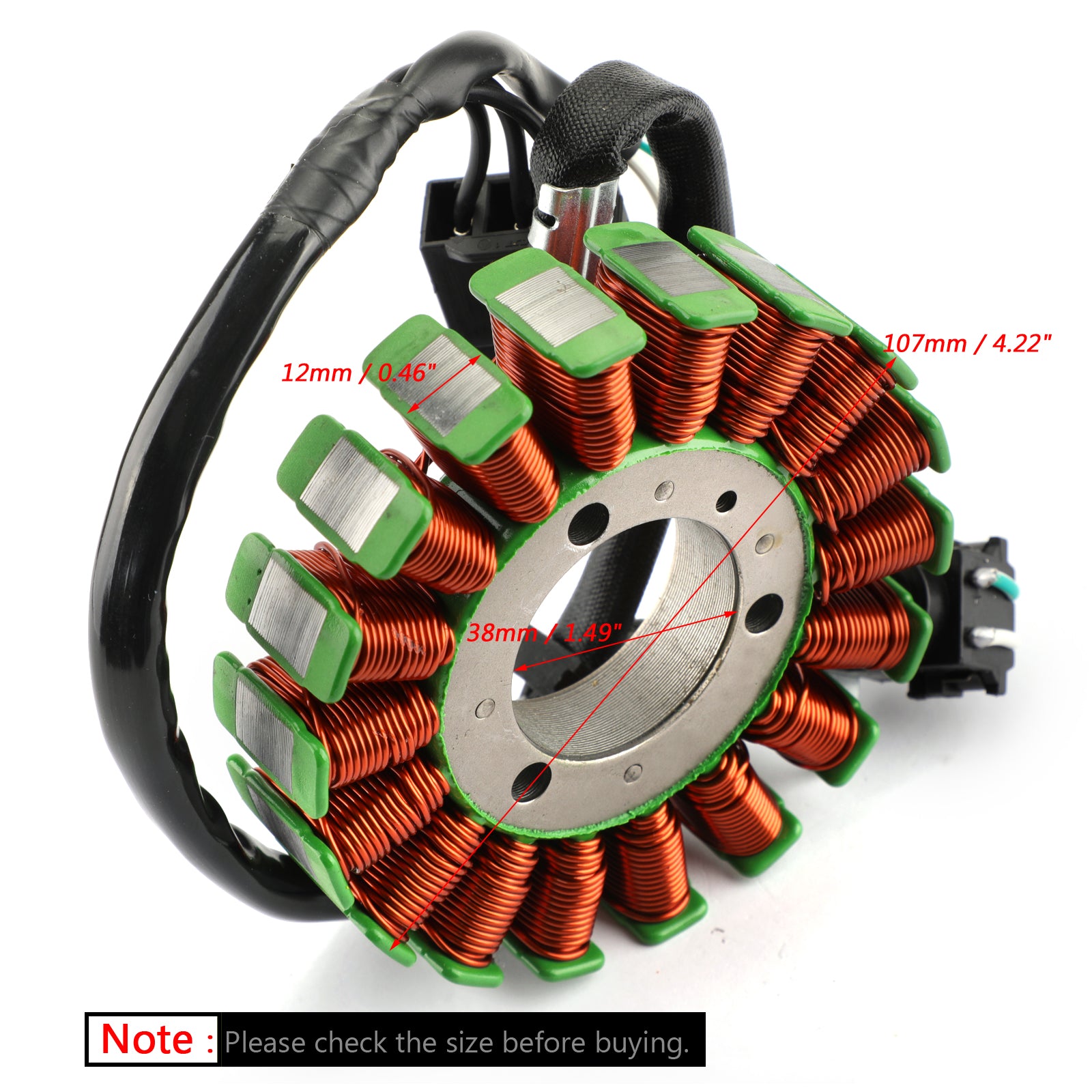

Interior diameter : 38 mm / 1.49"
Exterior diameter : 107 mm / 4.22"
Thickness : 12 mm / 0.46"
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
For Kawasaki EX250 (ABS) Ninja 250 2013-2017
For Kawasaki EX250 Ninja 250R 2013-2017
For Kawasaki EX300 Ninja 300 2013-2017
For Kawasaki EX300 Ninja 300 ABS 2013-2017
For Kawasaki ER250 Z250 2013-2014
For Kawasaki ER250 Z250 ABS 2015-2017
For Kawasaki ER300 Z300 2015-2016
For Kawasaki ER300 Z300 ABS 2015-2016
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
1 x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
