Gear Counting Coil Fit for Suzuki Suzuki DT 55 65 100 150 175 200 225 Hp 86-03
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

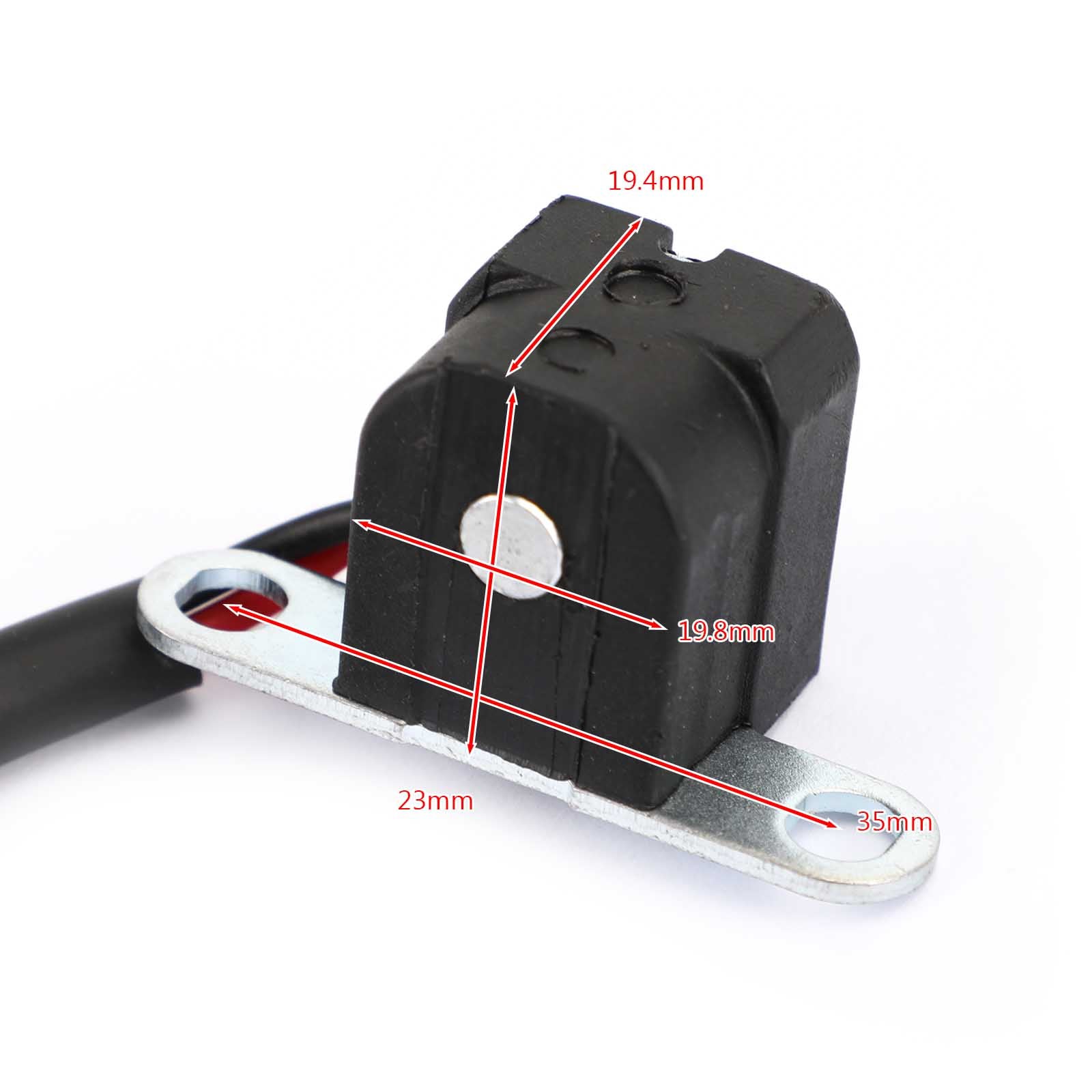

Dimensions:
Height: 19.4mm
Length: 23mm
Width: 19.8mm
Bracket center to center: 35mm
Other Specifications:
Number of wires: 2
Number of plugs: 2
Number of pins: 2
Replacement Part Number:
32150-87E20
Please confirm the?Replacement Part Number before ordering.
Fitments:
Fit for Suzuki DT100 1990-2000
Fit for Suzuki DT115 1986-2000
Fit for Suzuki DT140 1986-2000
Fit for Suzuki DT150 1987-2003
Fit for Suzuki DT175 1987-1992
Fit for Suzuki DT200 1987-2000
Fit for Suzuki DT225 1991-2003
Fit for Suzuki DT25C 1988-2000
Fit for Suzuki DT30C 1988-2000
Fit for Suzuki DT50A 1992-1999
Fit for Suzuki DT55 1988-1998
Fit for Suzuki DT60 1994-2000
Fit for Suzuki DT65 1988-1999
Fit for Suzuki DT75 1988-1998
Fit for Suzuki DT85 1988-2000
Fit for Suzuki DT90 1994-2000
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.
Package Included:
1x Gear Counting Coil
Note:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
