Cylinder Piston Rings Gaskets Spark Plug Fit For Yamaha Grizzly 400 2007-2008 Kodiak 400 2000-2006
Quantity:
Features:

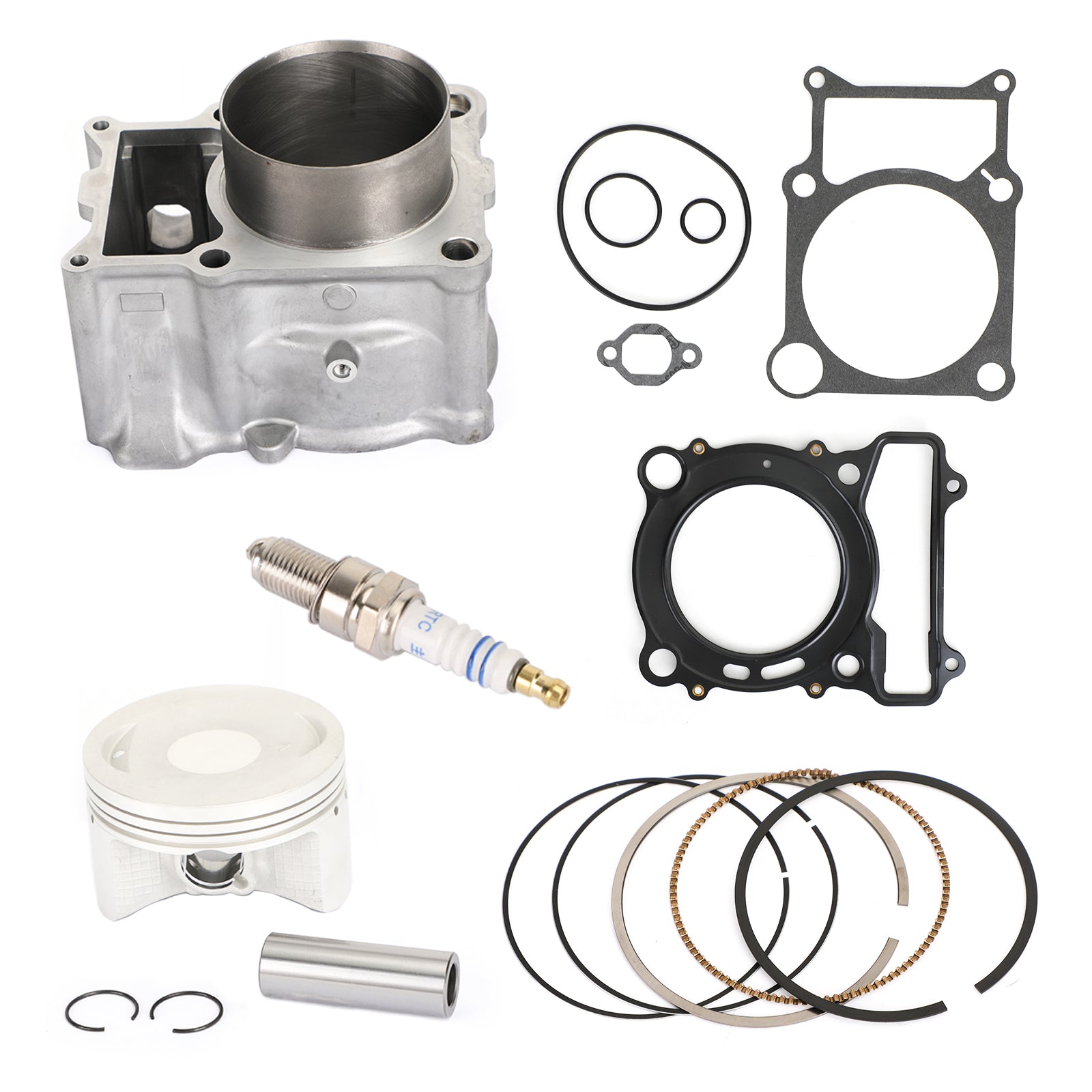

Kit includes piston, rings, pin, clips, spark plug & top end gasket kit (you get exactly what is pictured).

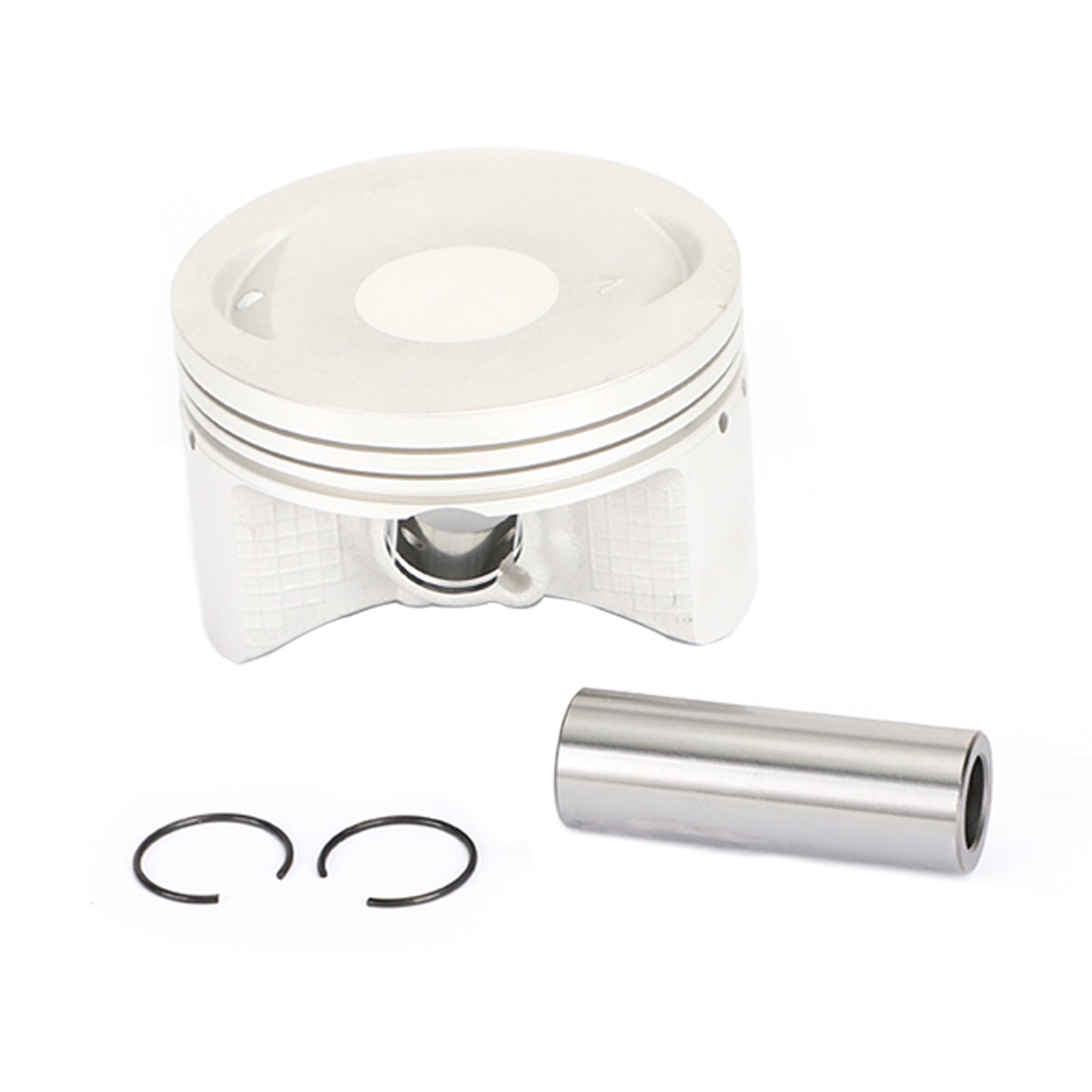

Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.

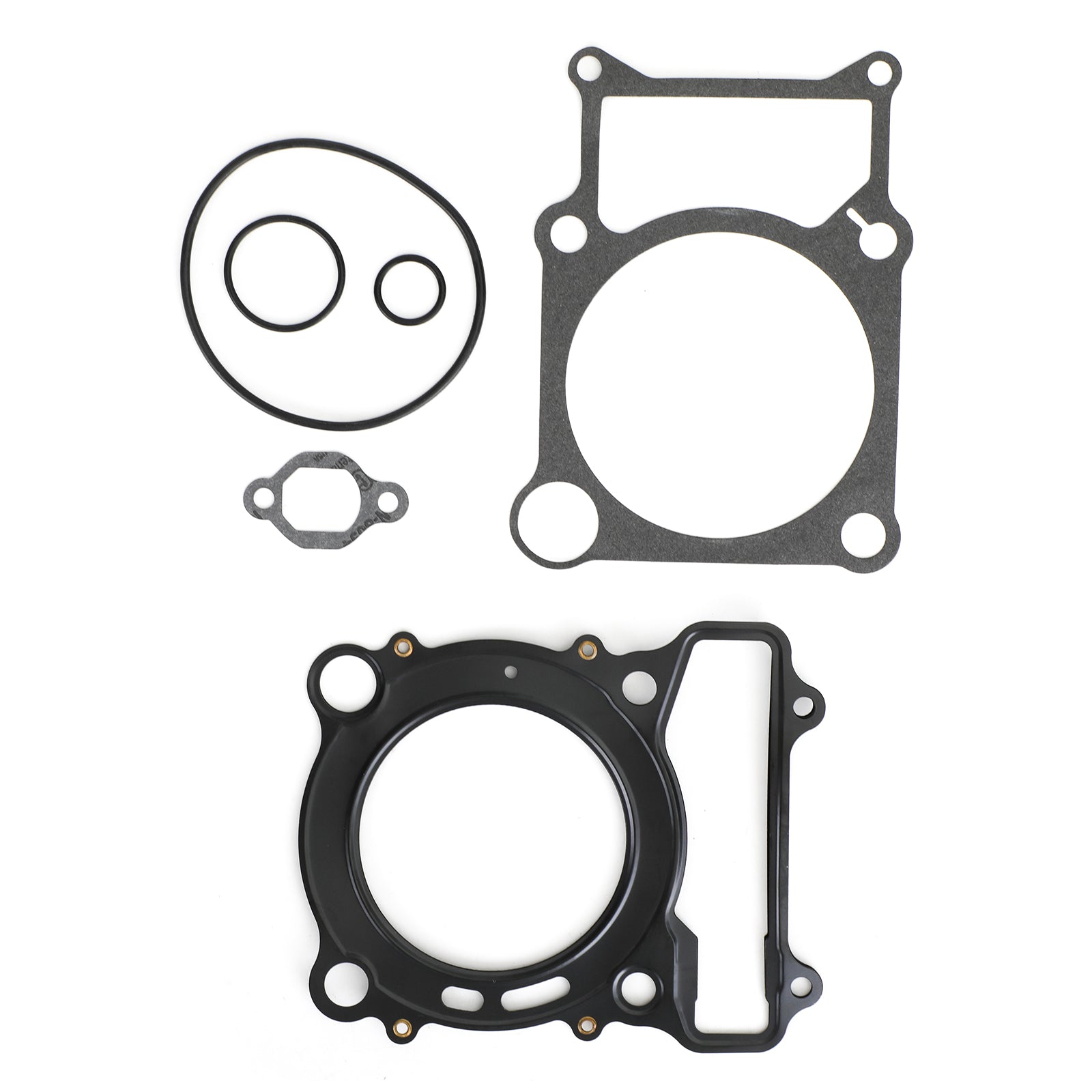

Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 84.50mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 400cc
Bore Size: STD 84.50 mm
Piston diameter: 84.50 mm
Piston height: 52.30 mm
Piston pin diameter: 20 mm
Piston pin height: 58 mm
Replaces Part Number:
Cylinder: 5GH-11310-00-00
Piston: 5GH-11631-00-00
Piston Ring Set: 5GH-11603-00-00
Wristpin: 3LD-11633-00-00
Circlip(2): 93450-22027-00
Head Gasket: 5GH-11181-00-00
Base Gasket: 5GH-11351-00-00
Chain Tensioner Gasket: 3GD-12213-00-00
Cylinder Head O-Ring: 93210-89447-00
Radiator Hose O-Ring: 93210-33786-00
Clutch O-Ring: 93210-18322-00
Fitment:
Fit for Yamaha Kodiak 400 2000-2006
Fit for Yamaha Grizzly 400 2007-2008
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x Cylinder
1x Piston(STD)
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
1x Cylinder Head Gasket
1x Cylinder Base Gasket
1x Chain Tensioner Gasket
1x Cylinder Head O-Ring
1x Radiator Hose O-Ring
1x Clutch O-Ring

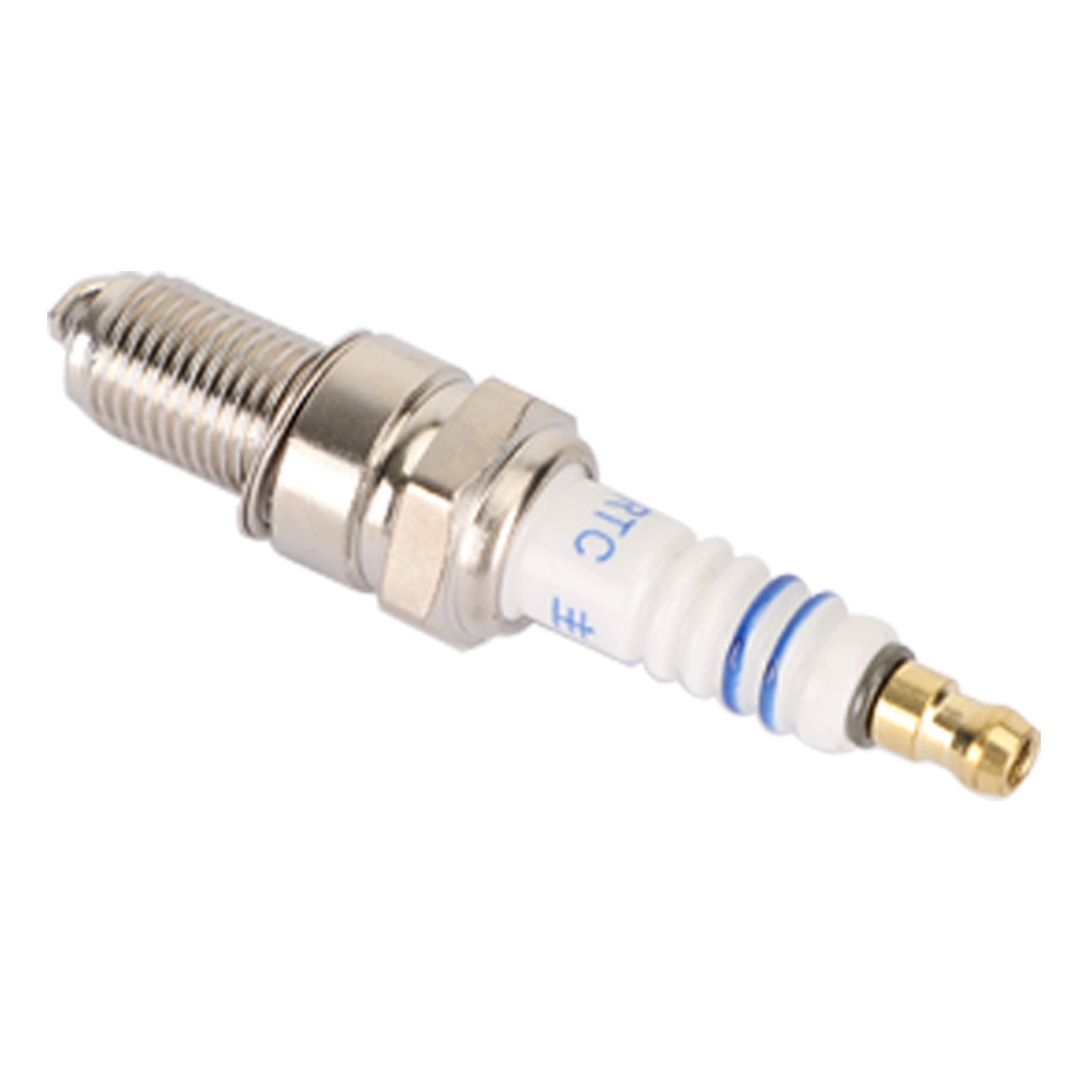

1x Spark Plug
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
