Yamaha YFZ450 YFZ 450 2004-2013 95mm Stock Standard Bore Cylinder Piston Rebuild Kit
Fitments:
Fits Yamaha YFZ450 CARBURETED MODEL all years and models.
Fit for Yamaha YFZ450 2004-2009
Fit for Yamaha YFZ450 2012-2013
Fit for Yamaha YFZ450 YFZ450LE Limited Edition 2004
Fit for Yamaha YFZ450 YFZ450SE Special Edition 2005
Fit for Yamaha YFZ450 YFZ450SE Special Edition 2006
Fit for Yamaha YFZ450 YFZ450SE Special Edition 2007
Fit for Yamaha YFZ450 YFZ450SE2 Special Edition II 2007
Fit for Yamaha YFZ450 YFZ450SP Special Edition 2008
Fit for Yamaha YFZ450 YFZ450SP2 Special Edition II 2008
Fit for Yamaha YFZ450V Bill Balance Edition YFZ450BB 2006-2007
Fit for Yamaha YFZ450W Custom Graphics 2013
Only for for YFZ450 NOT fit for YZ450F, YFZ450R nor YFZ450X FUEL INJECTED Models
Replacement Part Number:
Cylinder: 5TA-11311-00-00, 5TA-11311-01-00, 5TA-11311-02-00, 5TA-11311-10-00, 5TA-11311-11-00, 5TA-11311-12-00
Cylinder Base Gasket: 5TA-11351-00-00
Cylinder Head Gasket: 5TA-11181-00-00
Chain Tensioner Gasket: 4FM-12213-00-00, 3KS-12213-00-00, 4BE-12213-00-00
Piston Kit: 99999-03528
Piston: 5TG-11631-00-00
Pin, piston: 5TG-11633-10-00, 5TG-11633-00-00
Ring Set, piston: 5TG-11603-00-00
Circlips, piston: 99009-20500
Features:

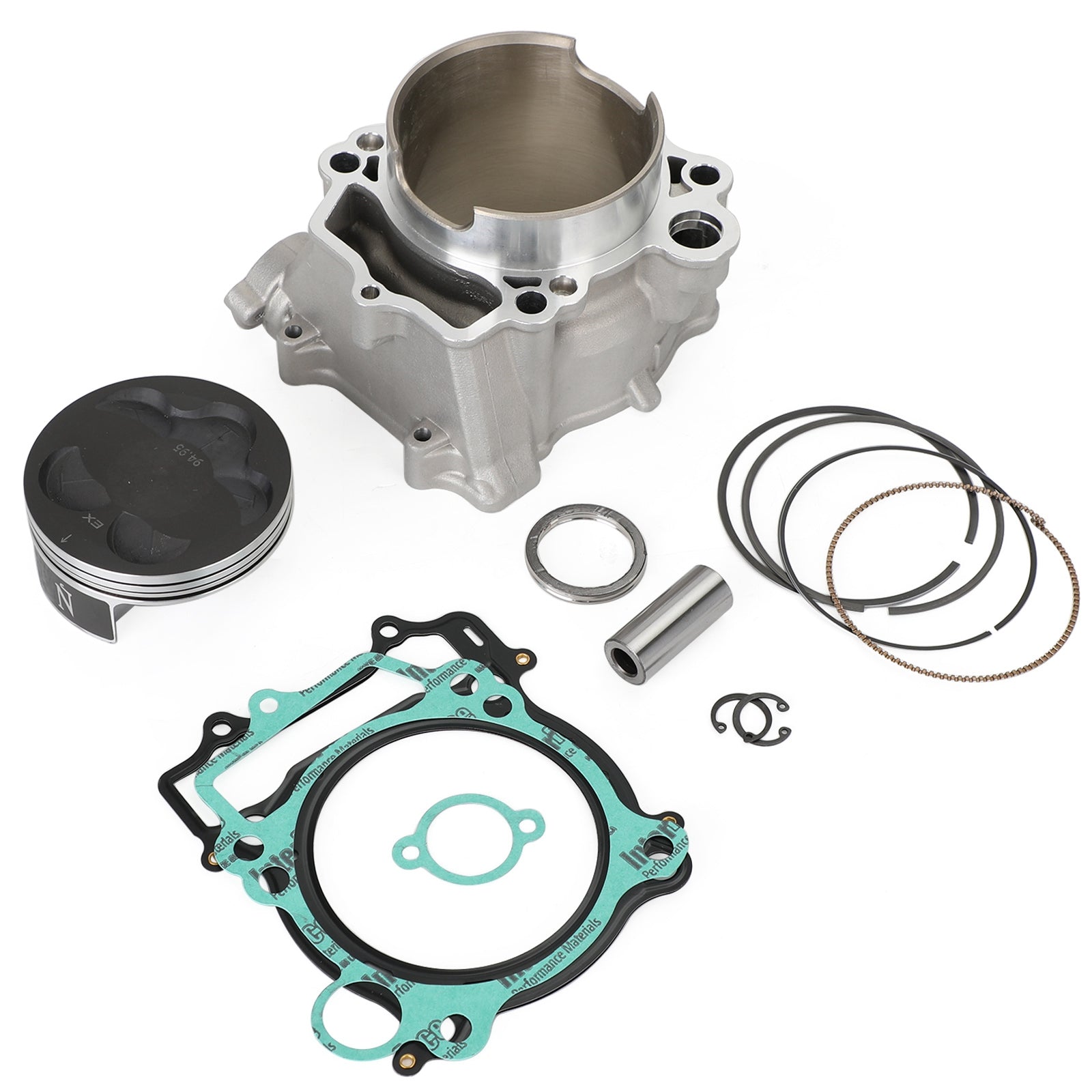

Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 95.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 449cc
Bore Type: Stanard Bore

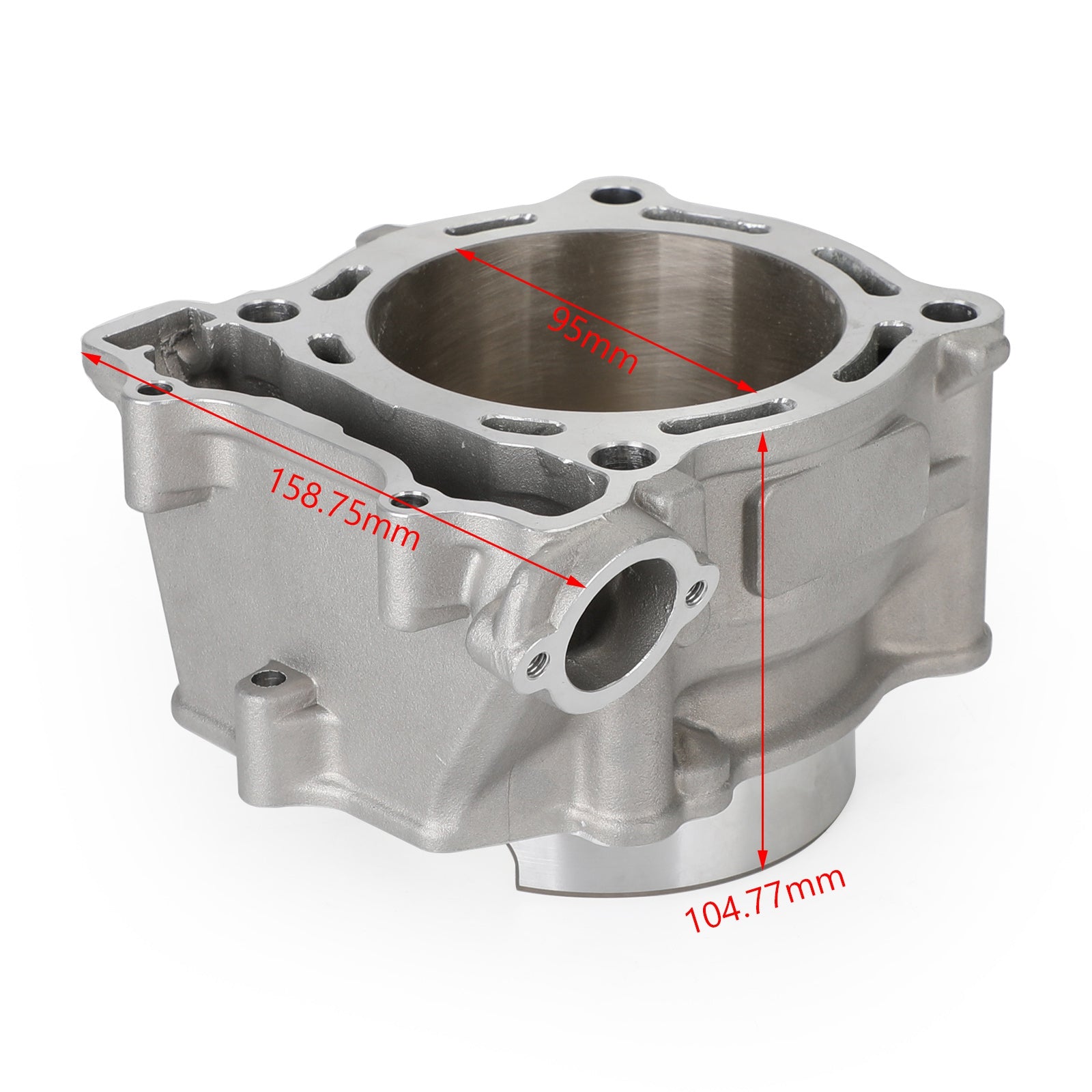

Bore Size: STD 95.00mm
Stroke: 63.40mm
Pin Length: 48mm
Pin Diameter: 20mm
Package Includes:

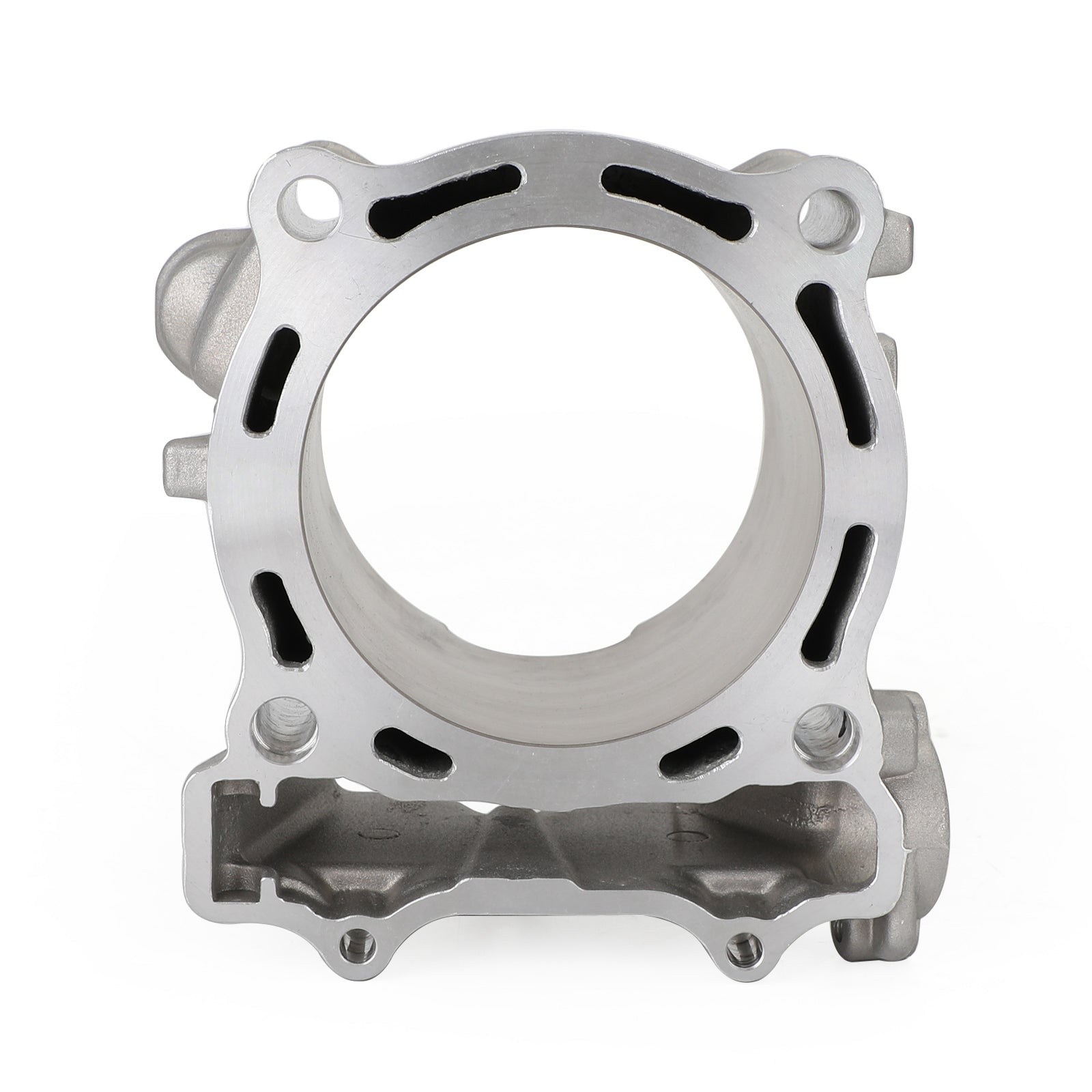

1x 95mm Cylinder

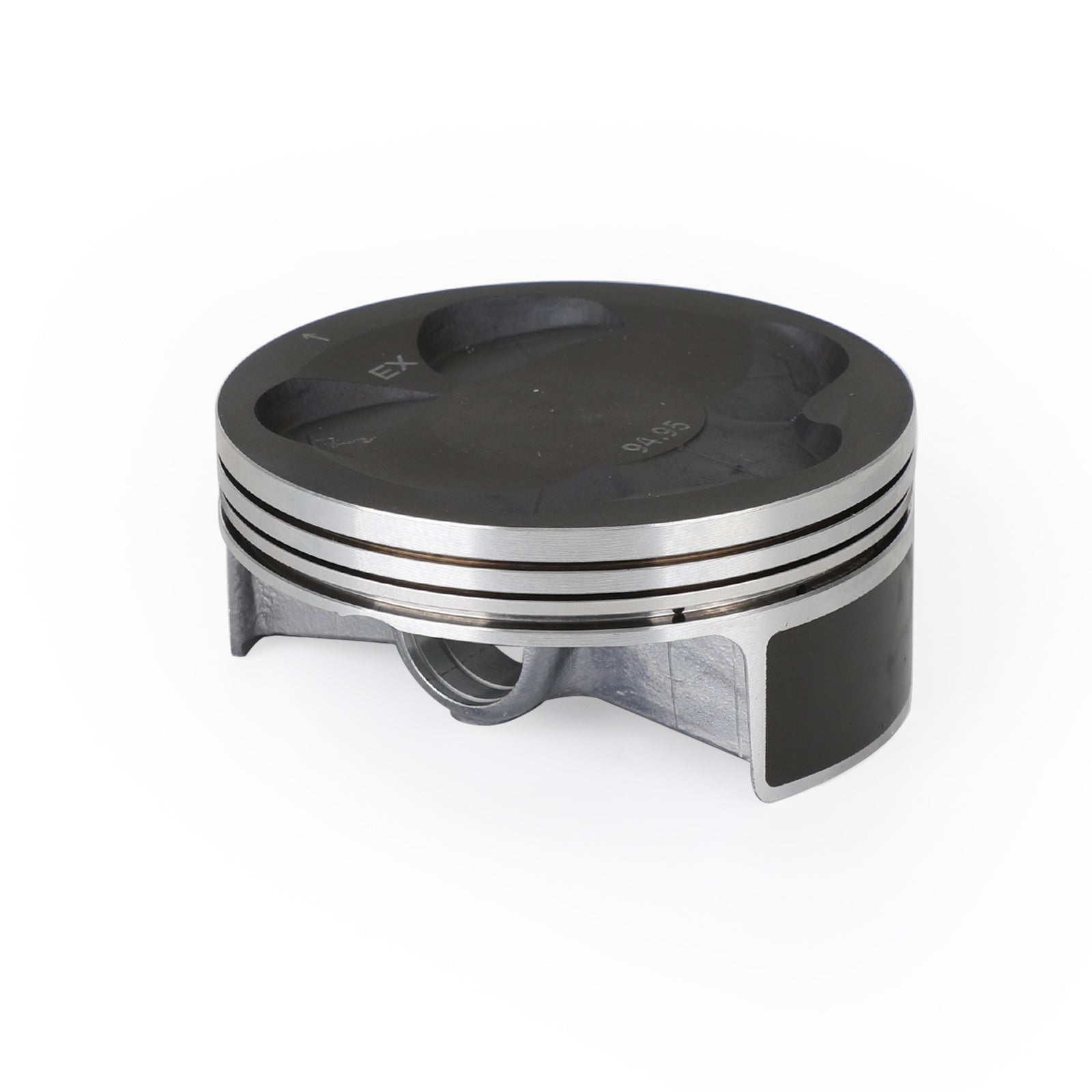

1x Piston(STD)

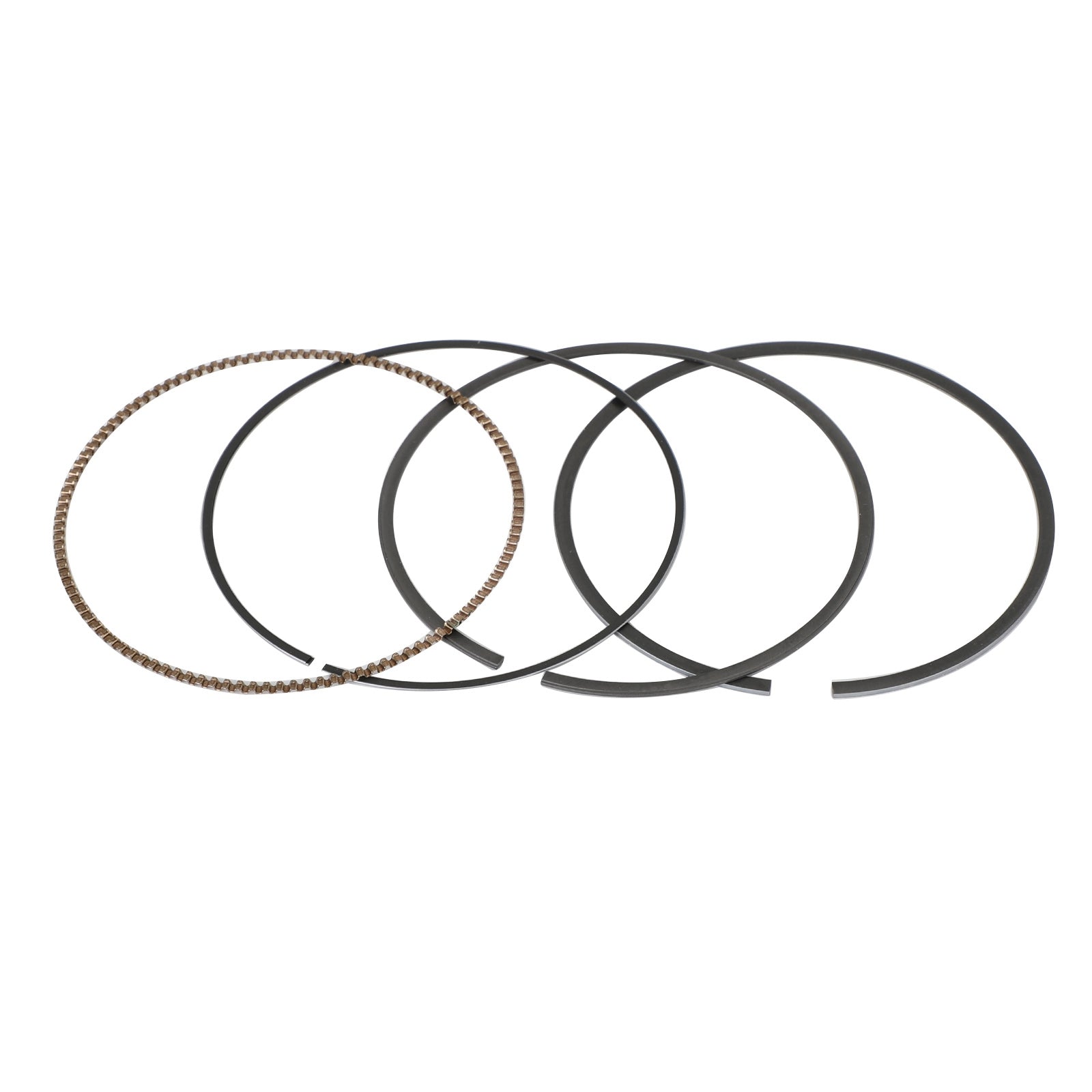

1x Piston Ring Set

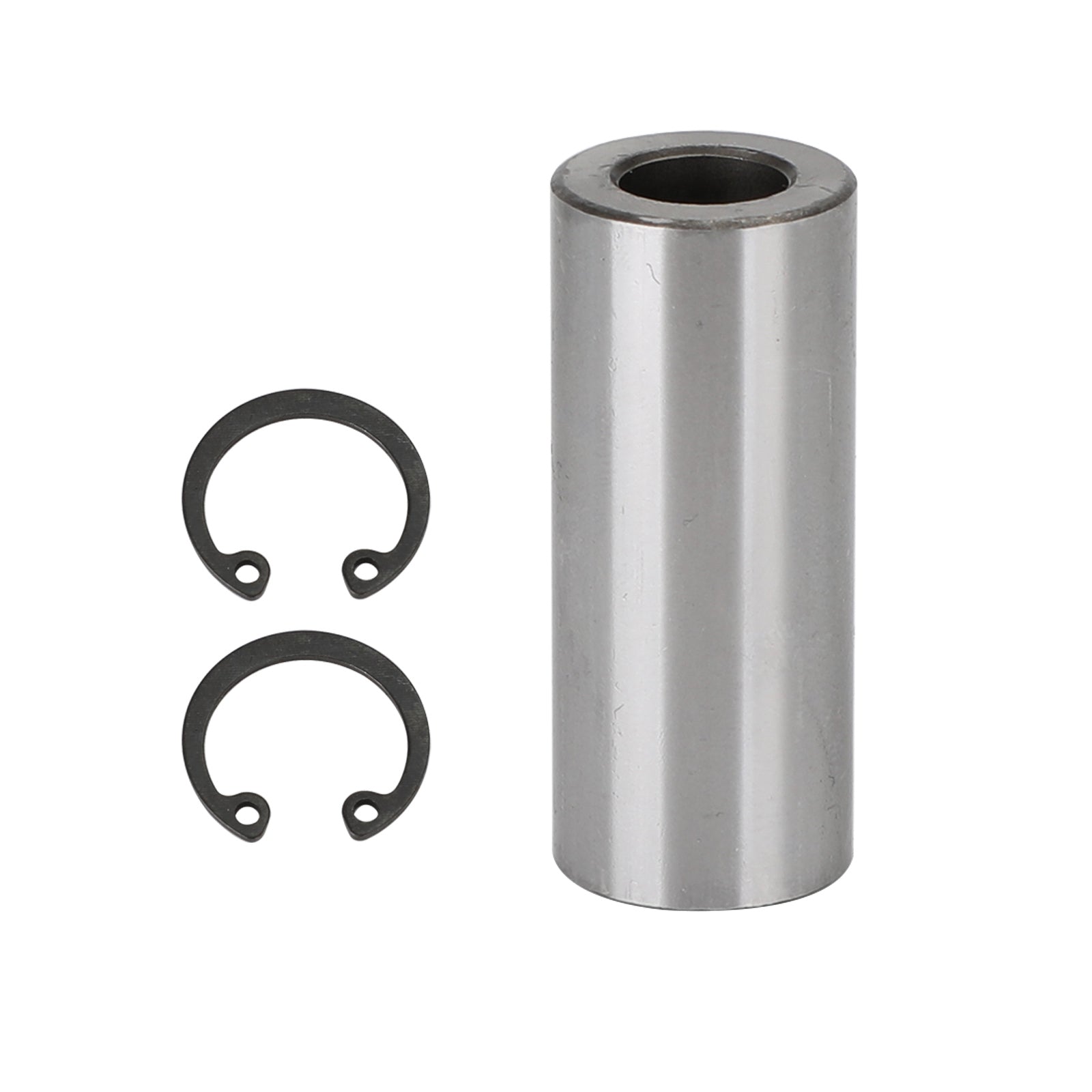

1x Wristpin
1x Circlip(2)

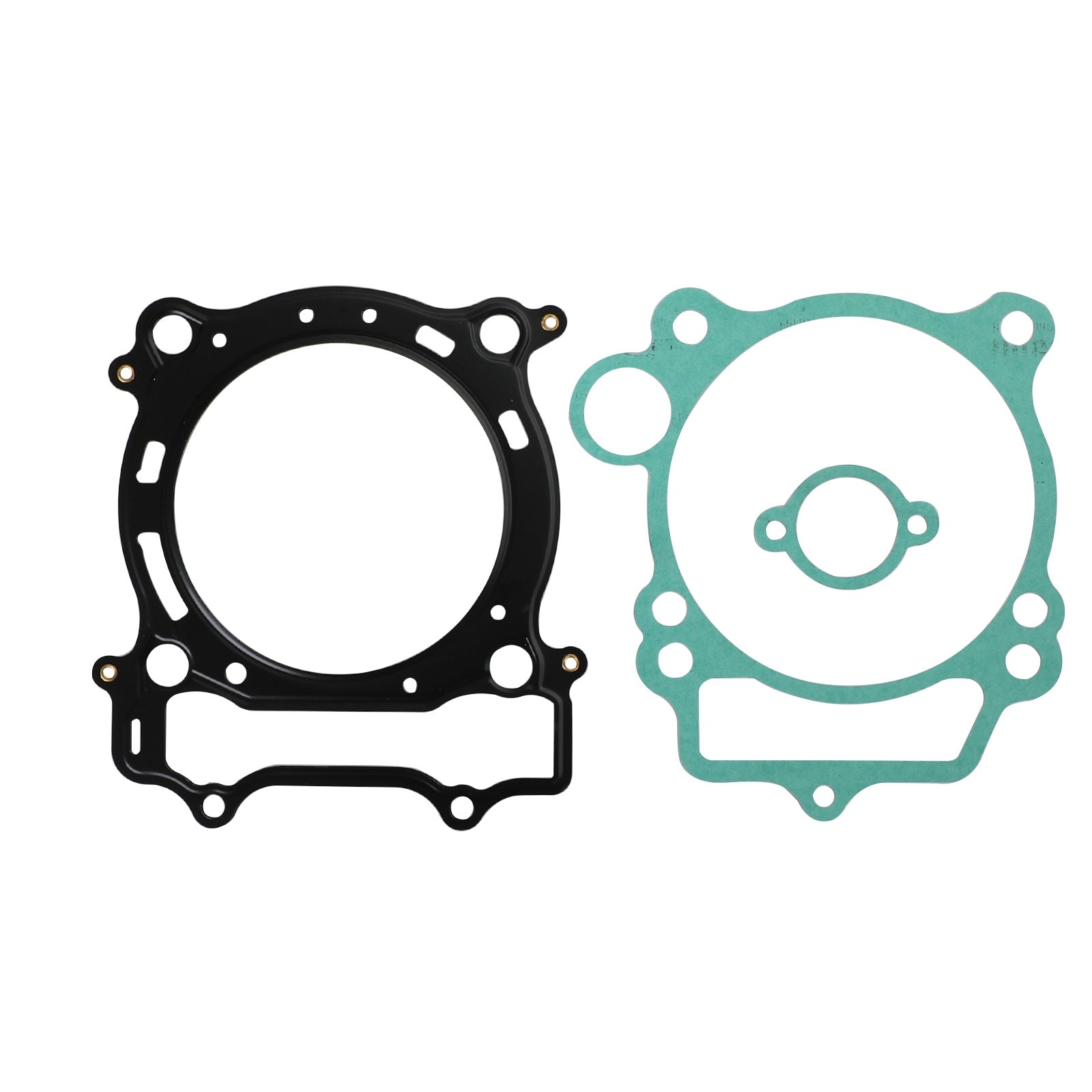

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
