1998-2004 Honda Foreman 450 ES S FE FM Cylinder Jug Piston Rings Gasket Top End Kit
Quantity:
Fitment:
Fit for Honda Foreman 450 ES S FE FM 1998-2004
Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 90.00mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 432cc
Bore Size: STD 90 mm
Piston diameter: 90 mm
Piston height: 55.60 mm
Piston pin diameter: 19 mm
Piston pin height: 69 mm
Replaces Part Number:
Cylinder: 12100-HN0-A00
Cylinder Base Gasket: 12191-HM7-013
Cylinder Head Gasket: 12251-HN0-A01
Piston: 13101-HN0-A00
Ring Set: 13010-HN0-A02
Pin, Piston: 13111-HN0-A00, 13111-KL3-670
Clip, Piston: 13112-MAT-000
Package Includes:

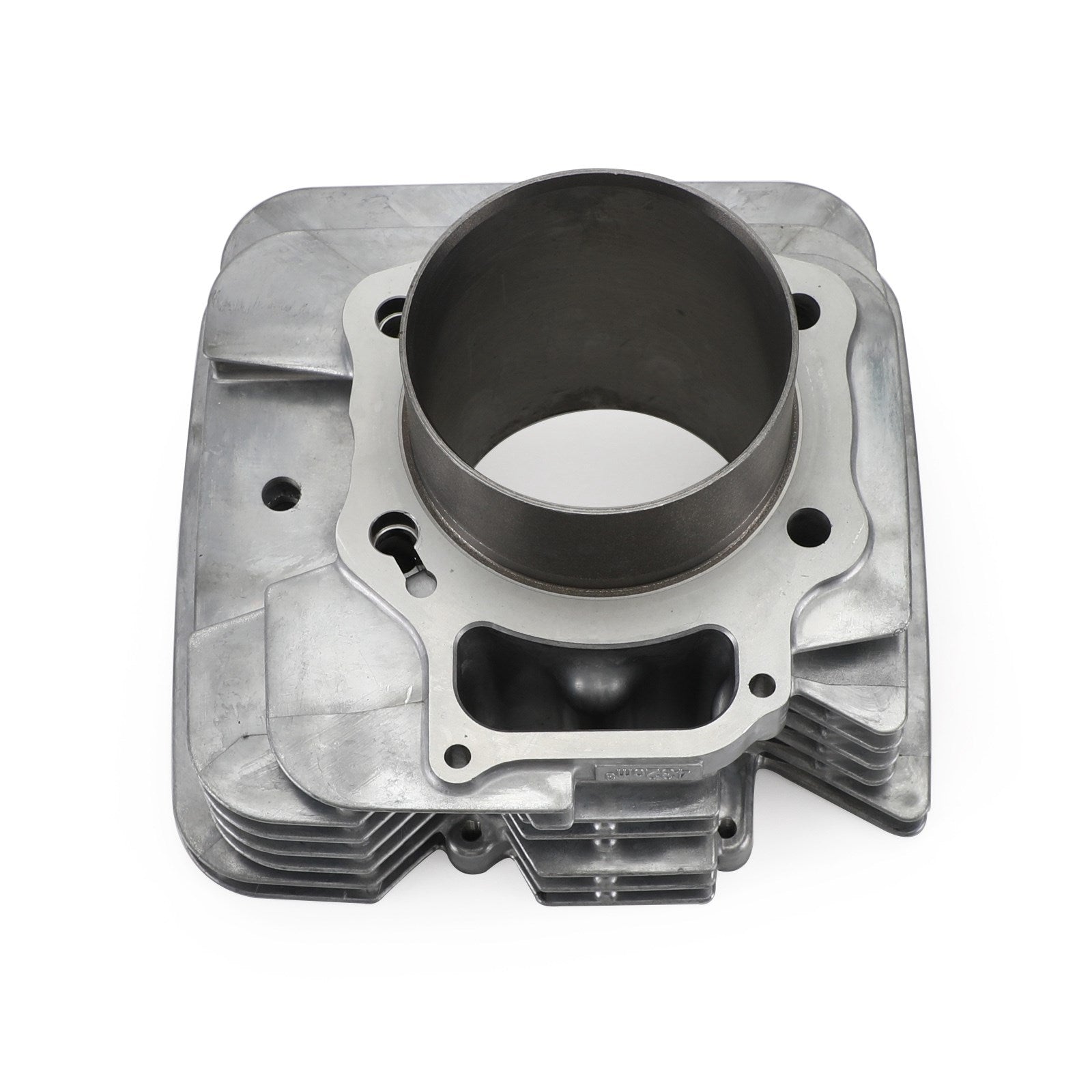

1 x Cylinder

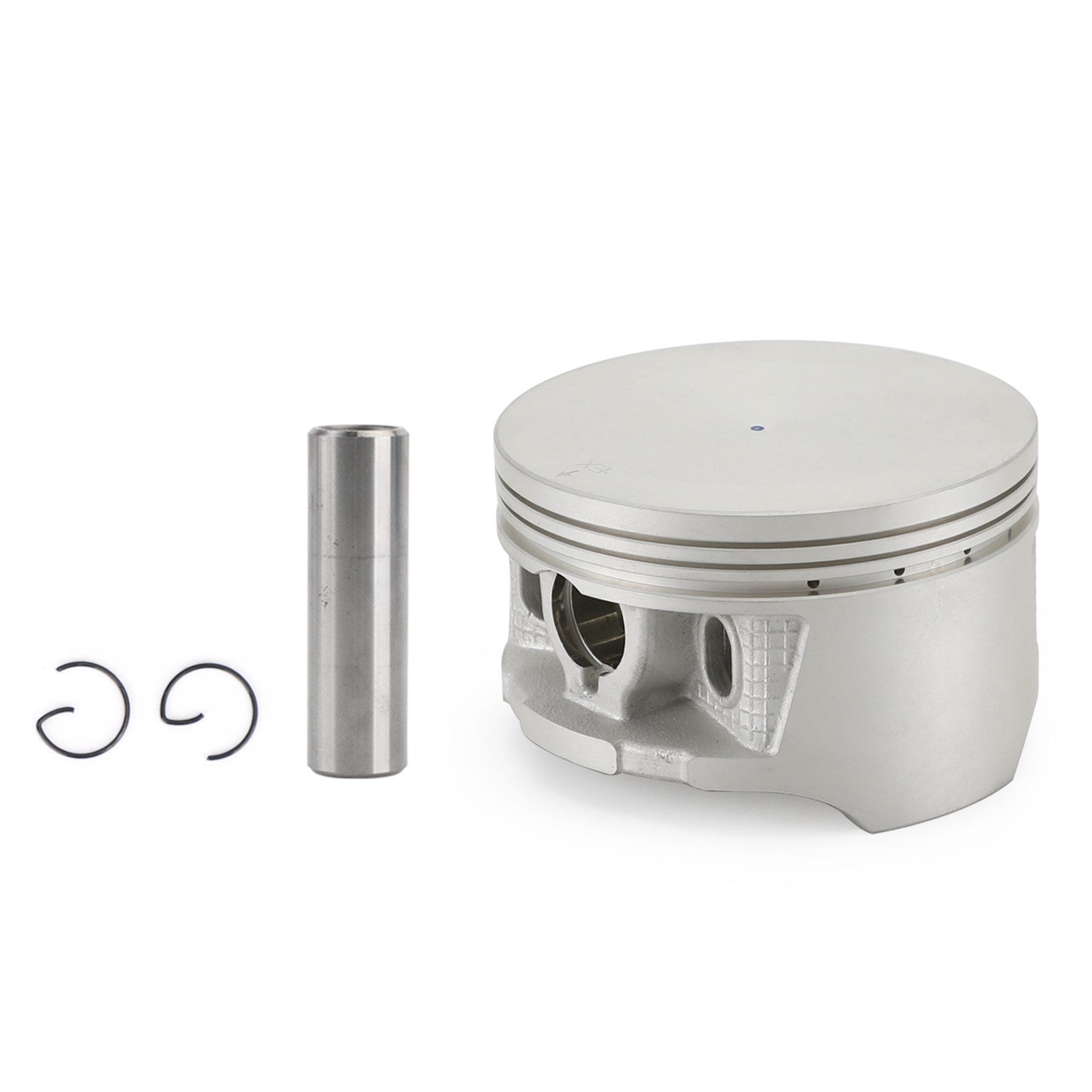

1 x Piston(STD)
1 x Piston Ring Set
1 x Wristpin
1 x Circlip(2)

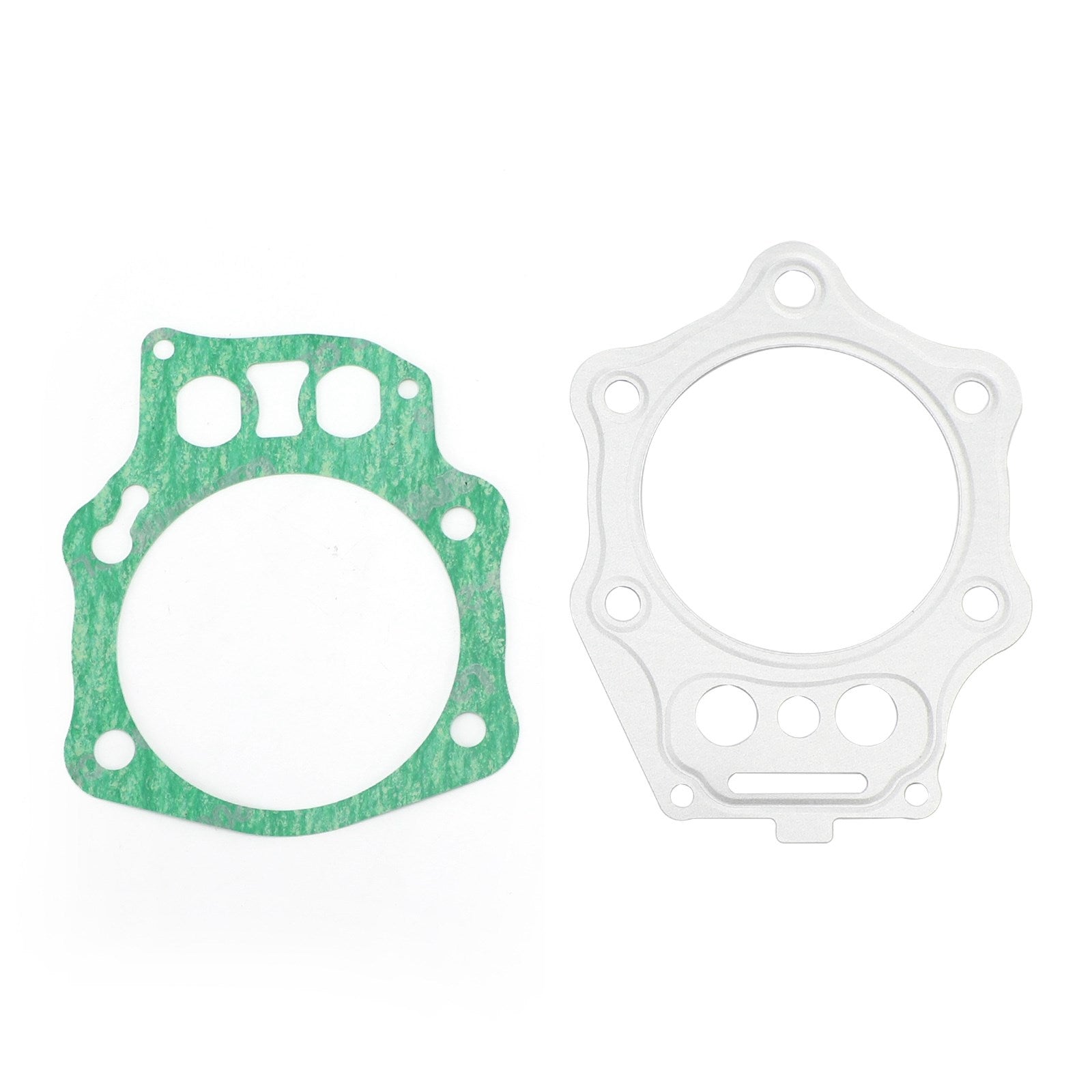

1 x Cylinder Head Gasket
1 x Cylinder Base Gasket
Note:
Ring end gaps are checked prior to shipment for proper size.
Please check out the product and size fits your motorcycle or not before you purchase.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
