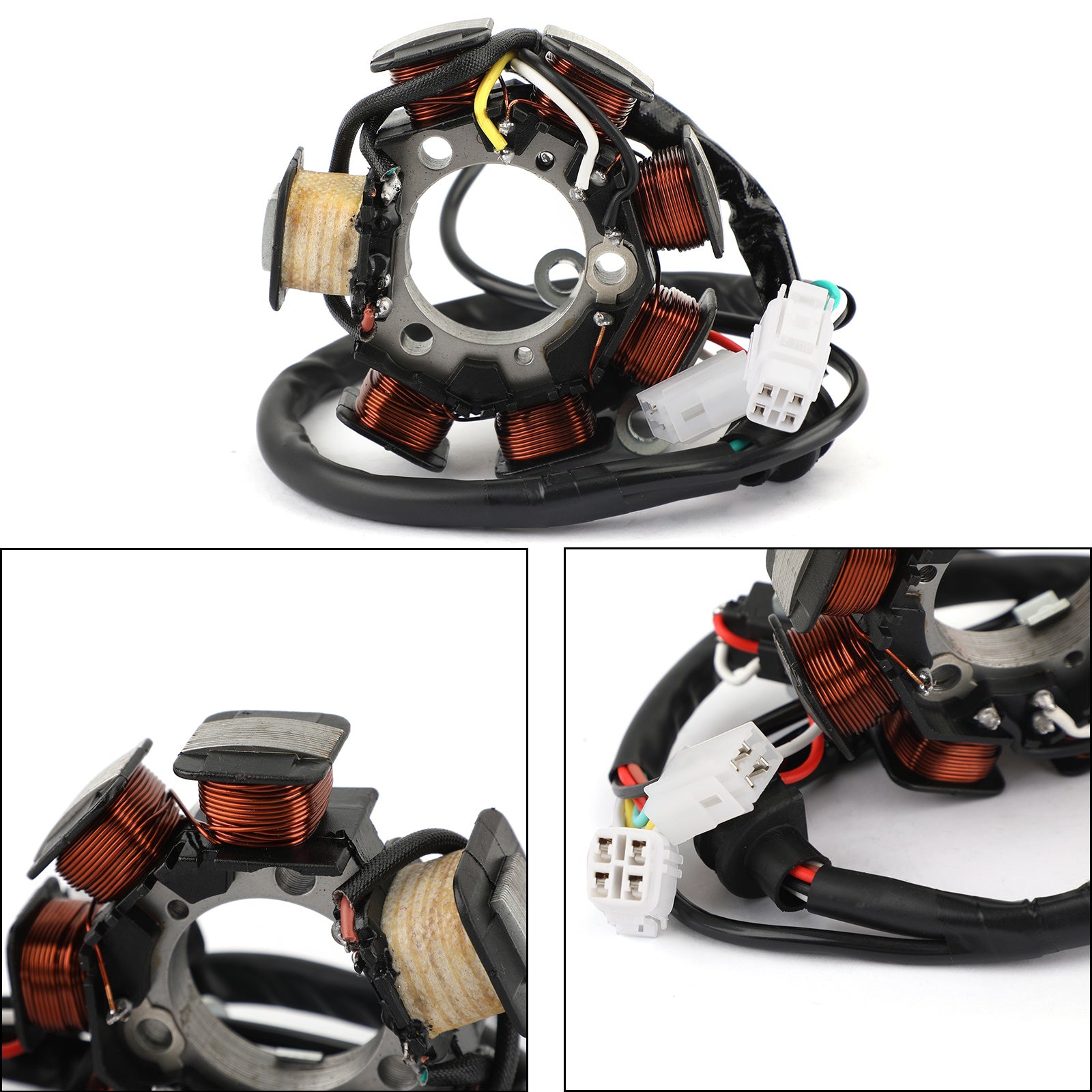

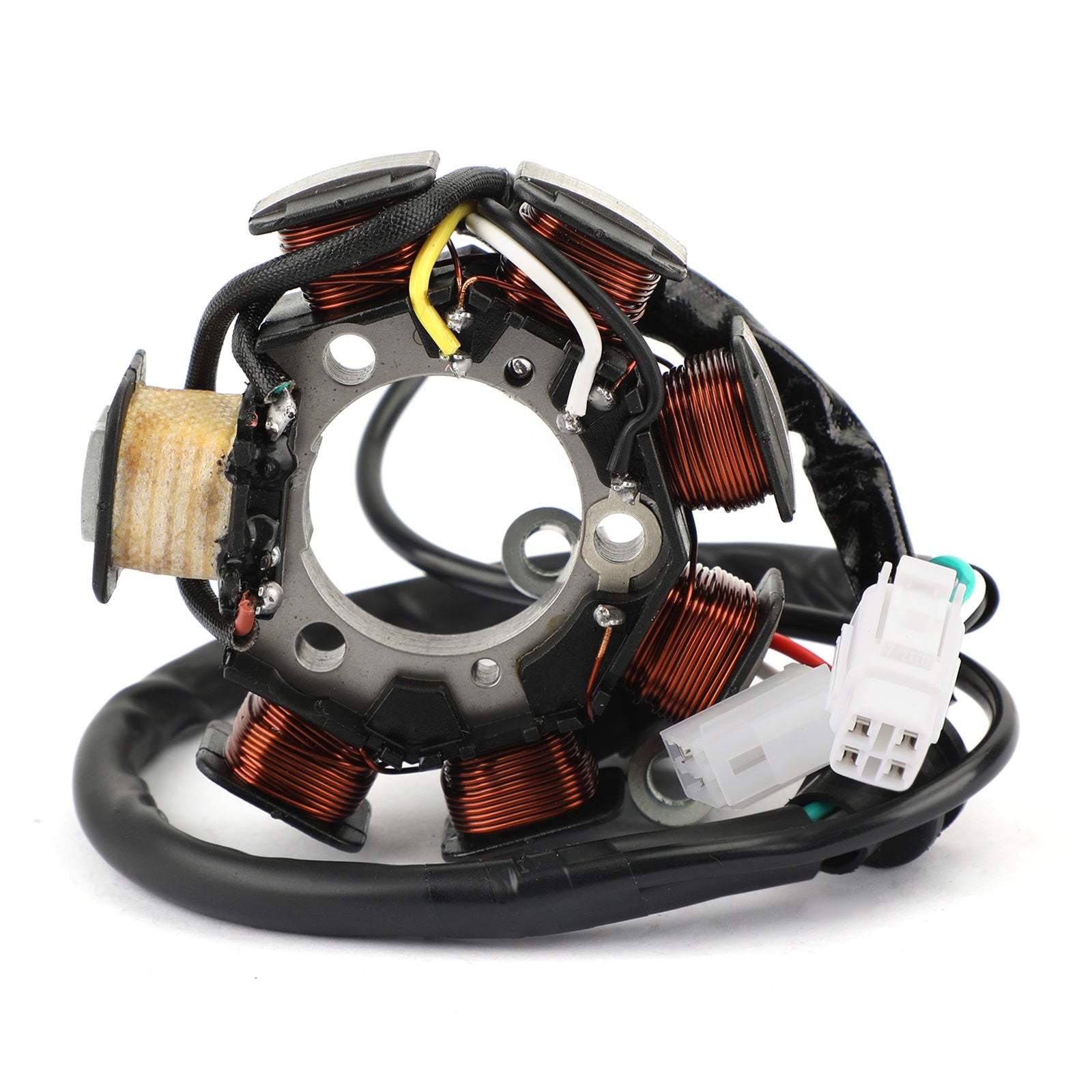

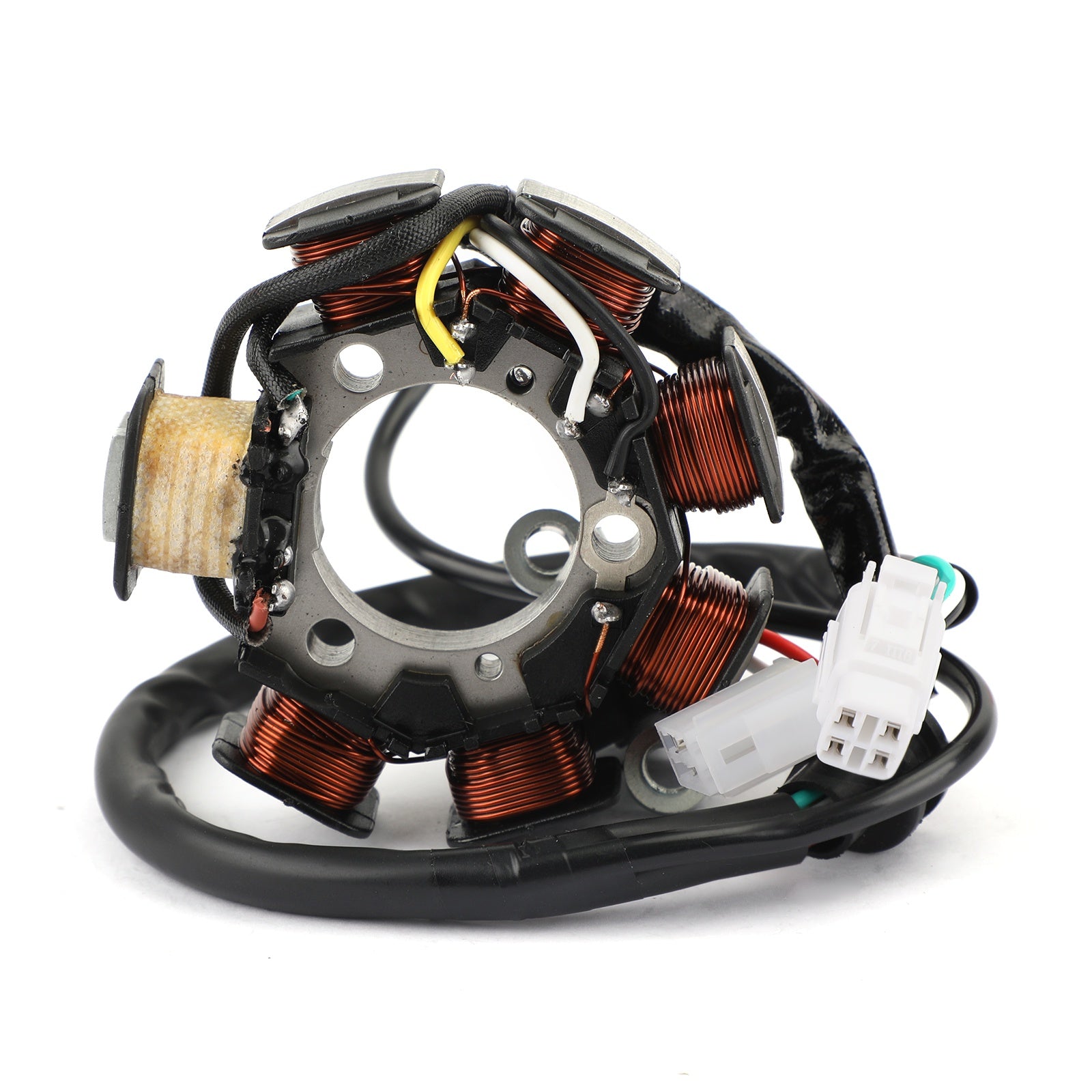

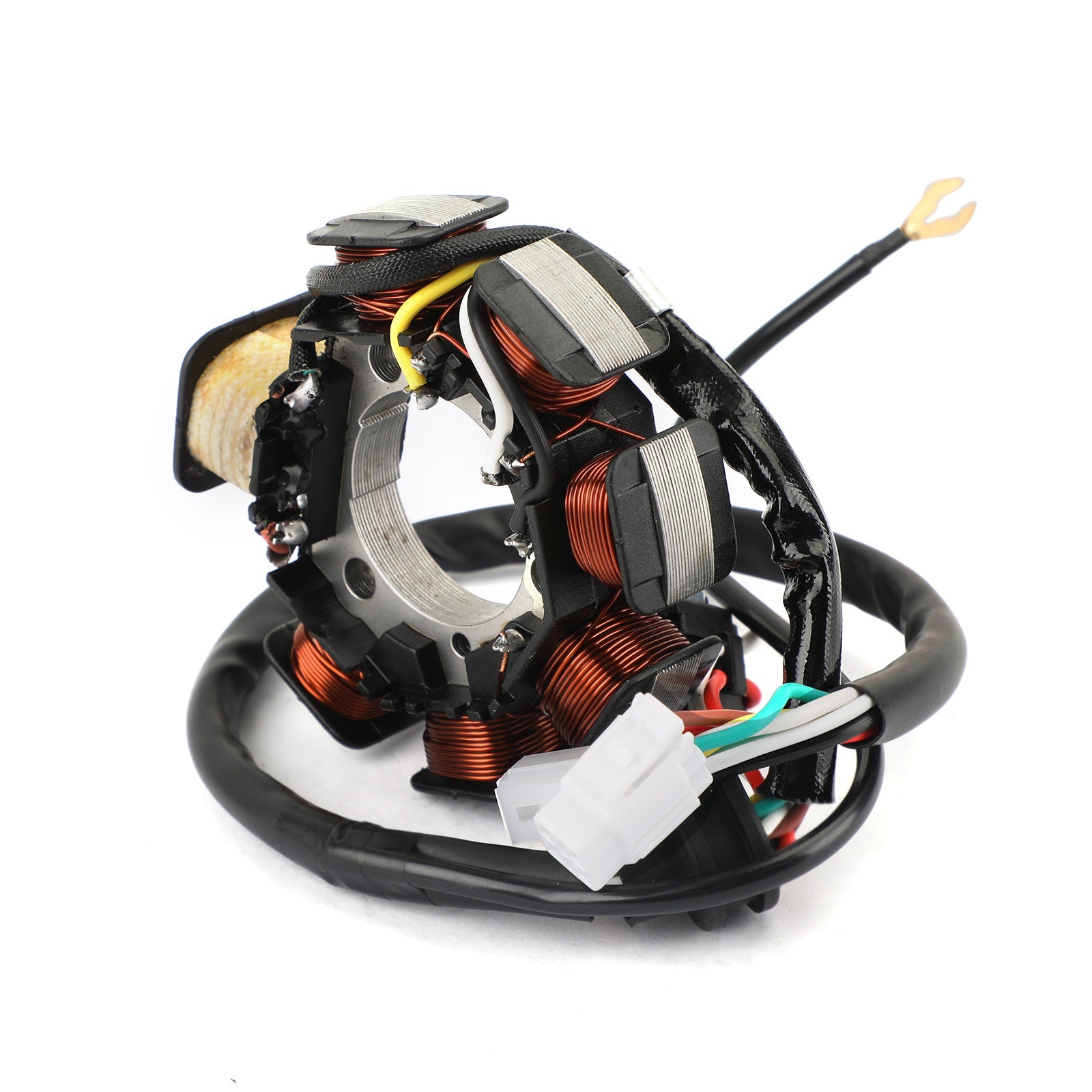

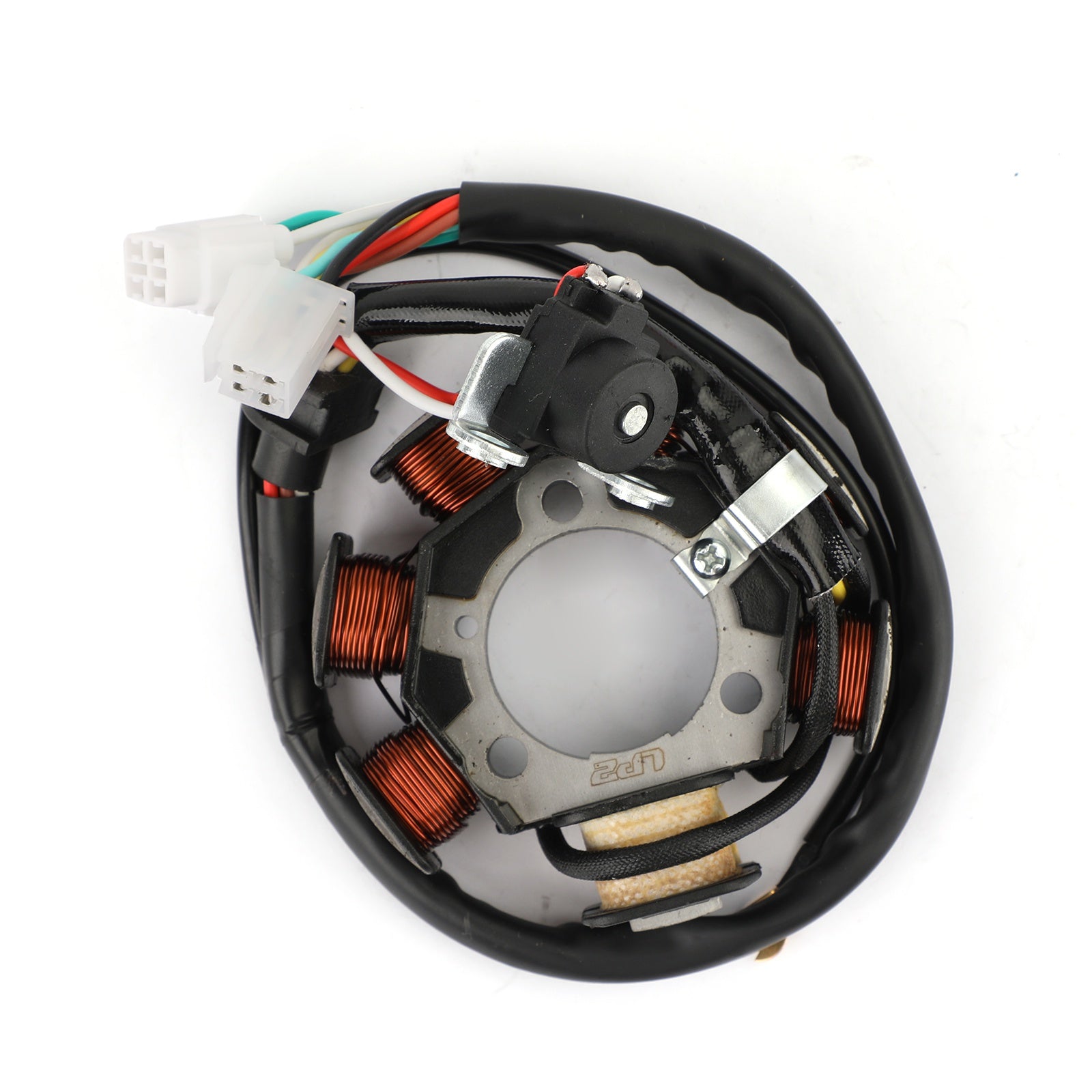

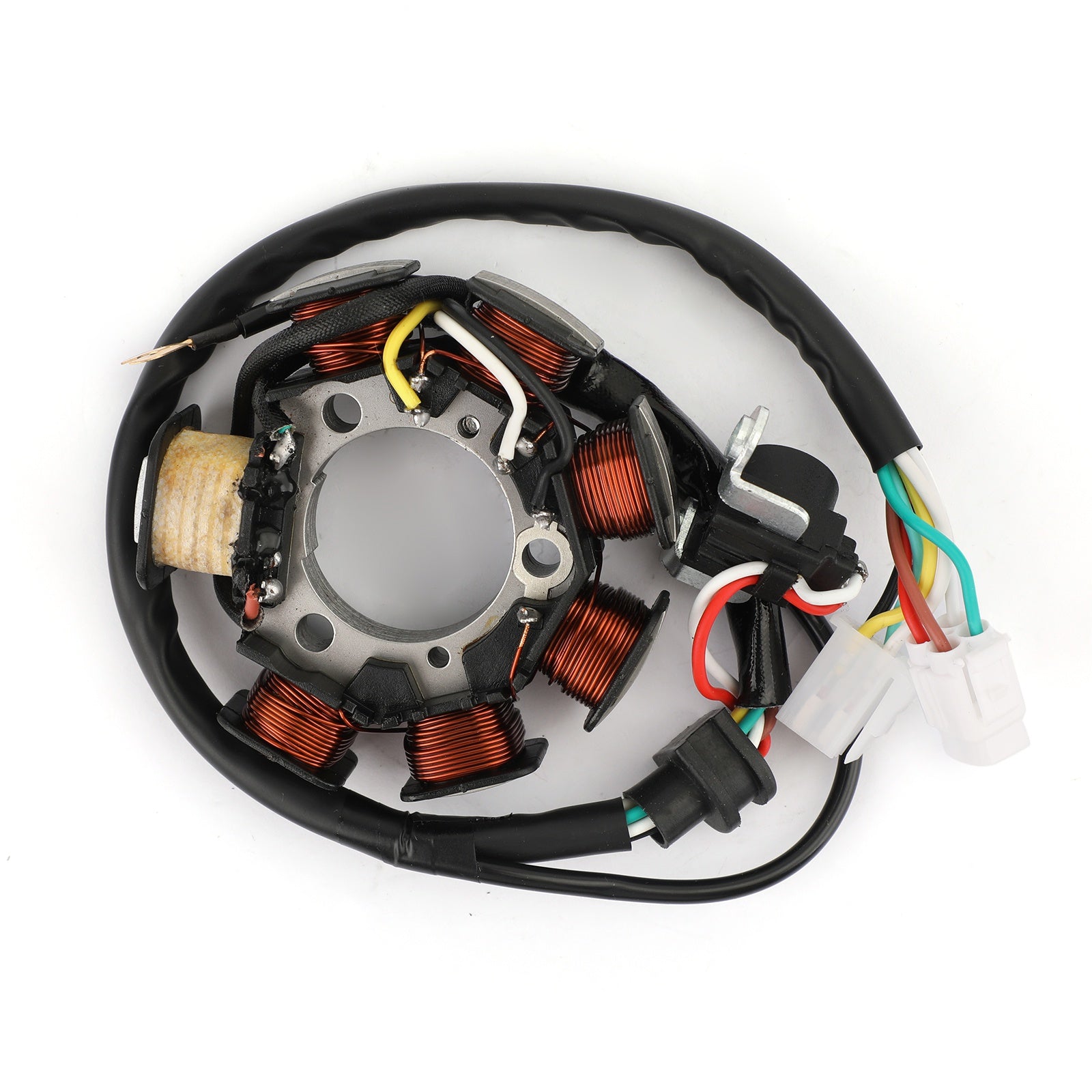

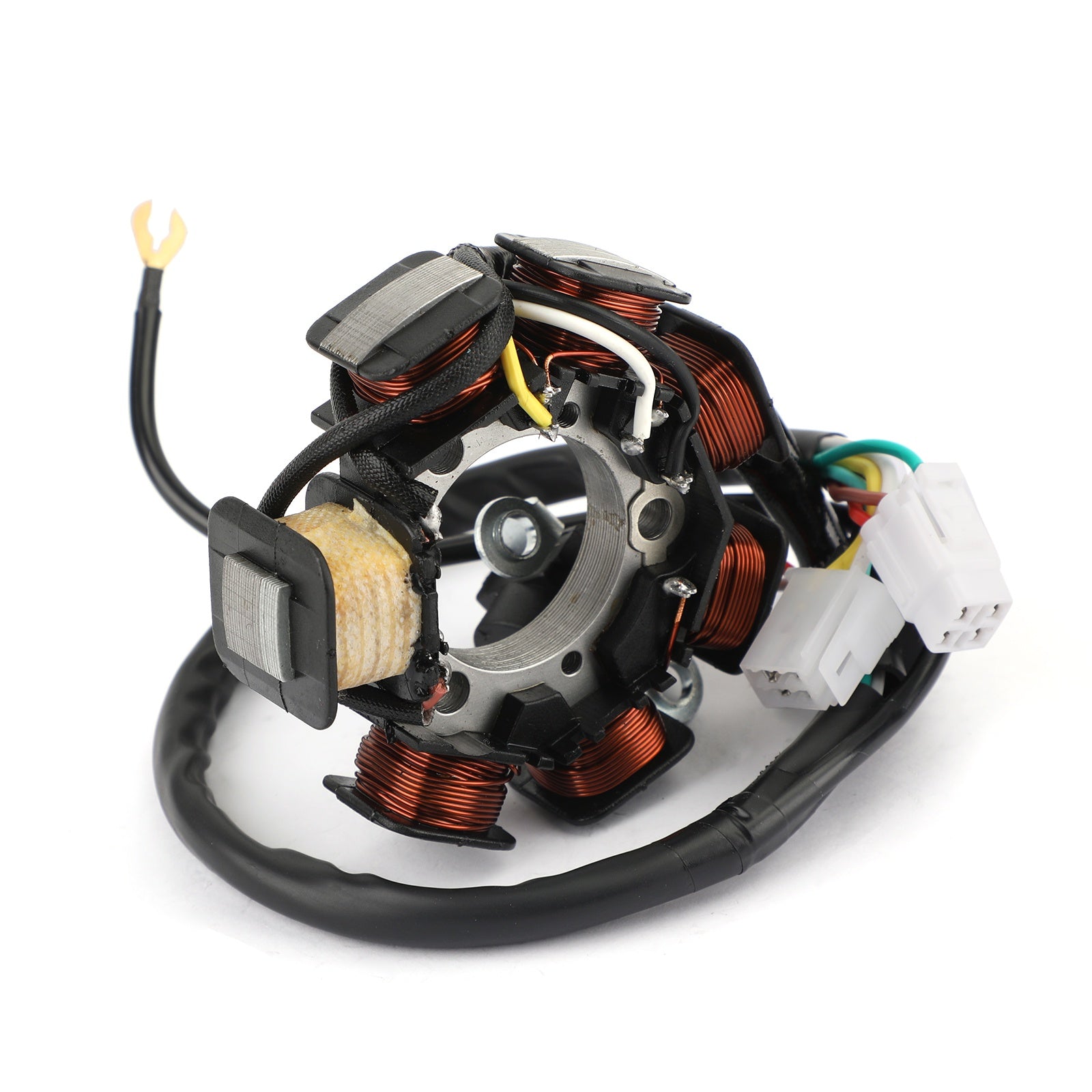

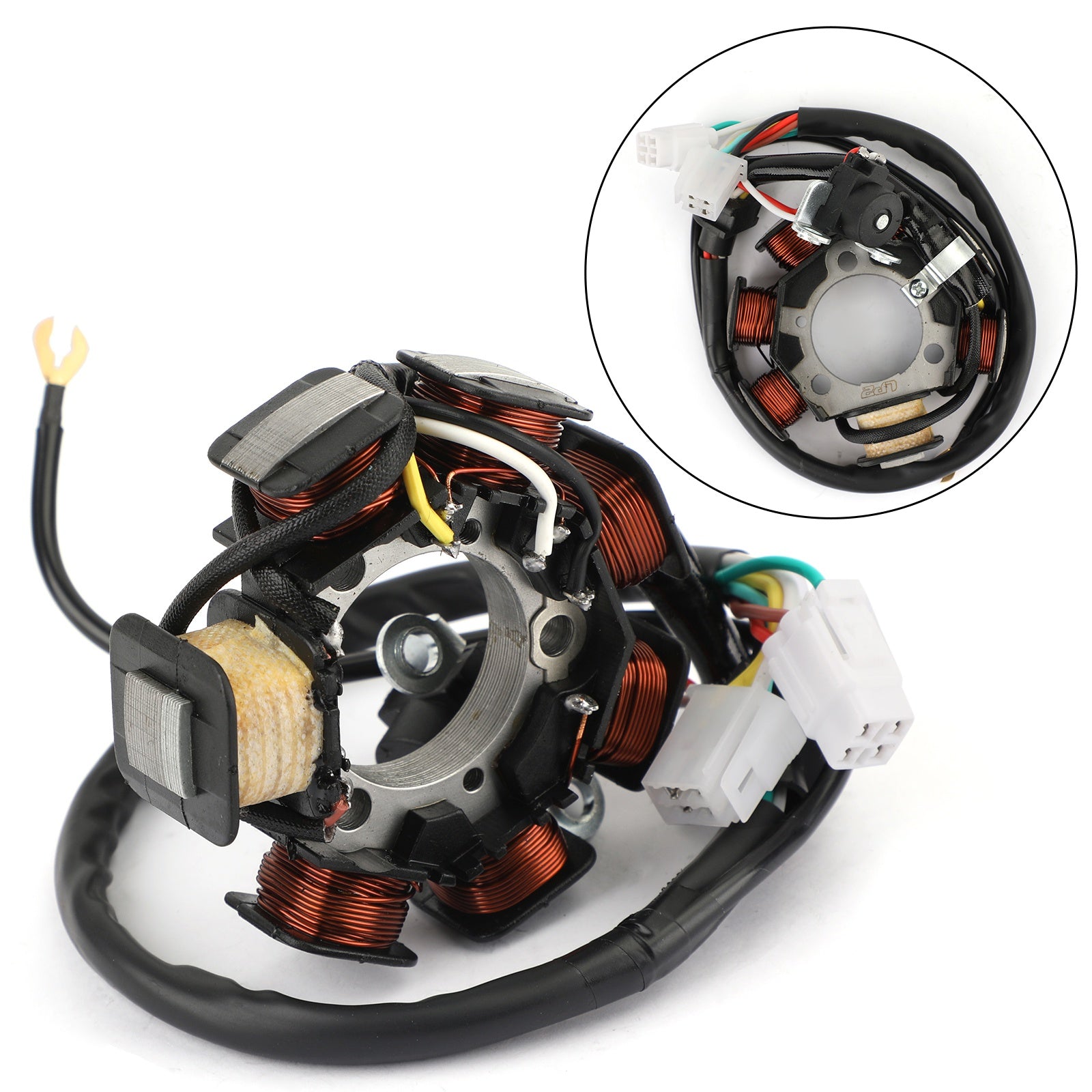

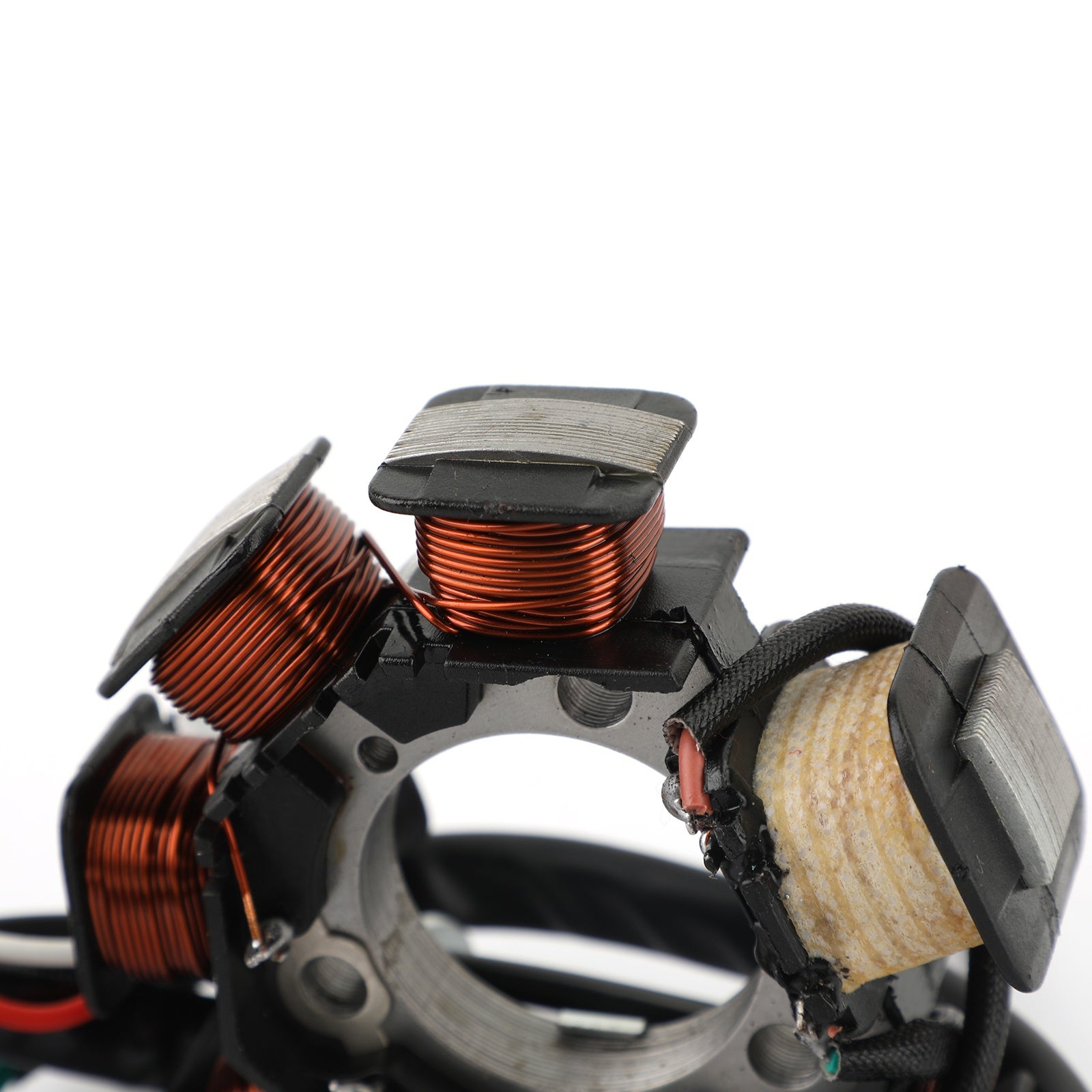

STATOR GENERATOR ALTERNATOR Fit for Yamaha 5HP-85510-10-00, 5HP-H5510-10-00 Generic
Replacement Part Number:
5HP-85510-10-00
5HP-H5510-10-00
Please confirm the Replacement Part Number before ordering.
Fitments:
Fit for Yamaha TTR125ER TT-R125 2003
Fit for Yamaha TTR125ES TT-R125 2004
Fit for Yamaha TTR125ET TT-R125 2005
Fit for Yamaha TTR125EV TT-R125 2006
Fit for Yamaha TTR125EW TT-R125 2007
Fit for Yamaha TTR125EX TT-R125 2008
Fit for Yamaha TTR125EY TT-R125 2009
Fit for Yamaha TTR125LER TT-R125 2003
Fit for Yamaha TTR125LES TT-R125 2004
Fit for Yamaha TTR125LET TT-R125 2005
Fit for Yamaha TTR125LEV TT-R125 2006
Fit for Yamaha TTR125LEW TT-R125 2007
Fit for Yamaha TTR125LEX TT-R125 2008
Fit for Yamaha TTR125LEY TT-R125 2009
Fit for Yamaha TTR125LEA TT-R125 2011
Fit for Yamaha TTR125LEB TT-R125 2012
Fit for Yamaha TTR125LED TT-R125 2013
Fit for Yamaha TTR125E TT-R125 2003-2010
Fit for Yamaha TTR125L TT-R125 2003-2004
Fit for Yamaha TT-R125LE TT-R125 2004-2013
Fit for Yamaha TTR125LEE TT-R125 2014
Fit for Yamaha TTR125LEF TT-R125 2015
Fit for Yamaha TTR125LEG TT-R125 2016
Fit for Yamaha TTR125LEH TT-R125 2017
Fit for Yamaha TT-R125LWE TT-R125 2014-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Dimensions:
Interior diameter : 37mm / 1.45 inches
Exterior diameter : 92.2mm / 3.63 inches
Pole's Thickness : 24.8mm / 0.97 inches
Pole's Width : 23.7mm / 0.94 inches
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Other Specifications:
Number of wires: 8
Number of pins: 8
Number of plugs: 2(+1)
Number of fixation holes: 3(+1)
Number of poles: 7
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Package Included:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
