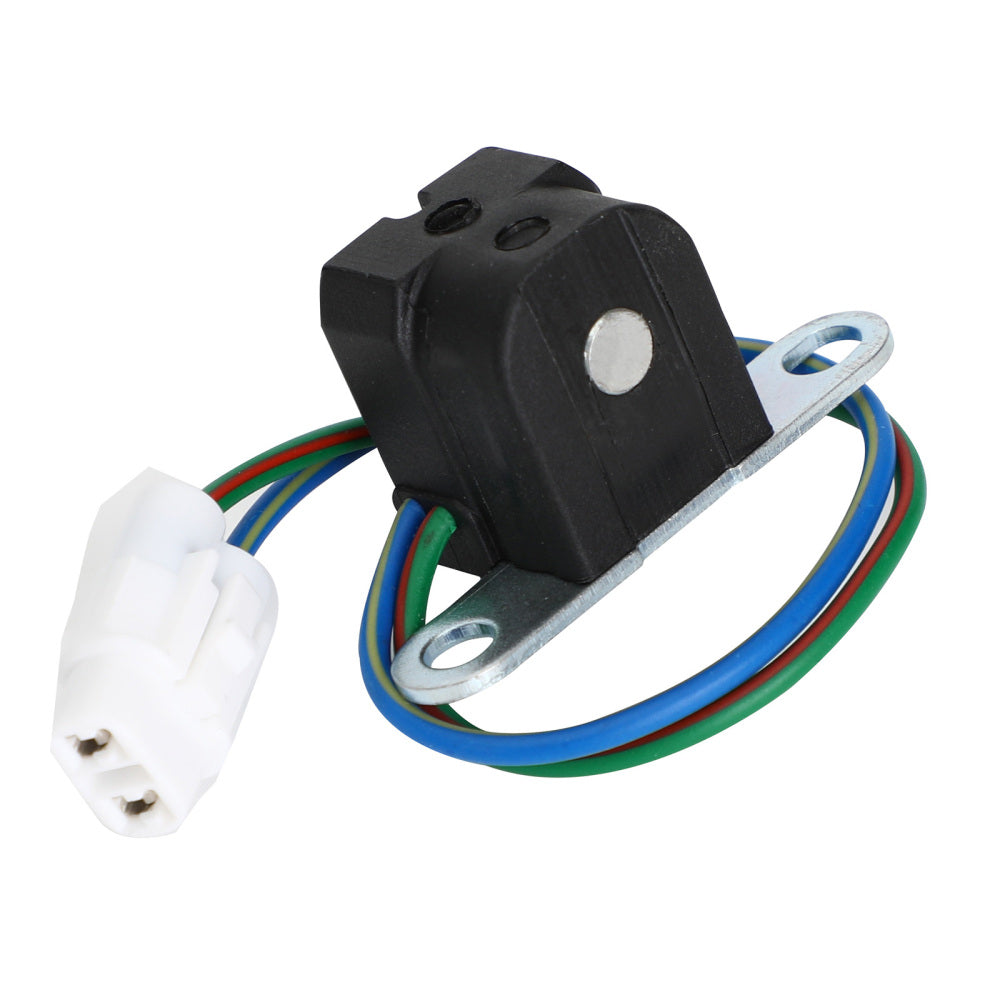

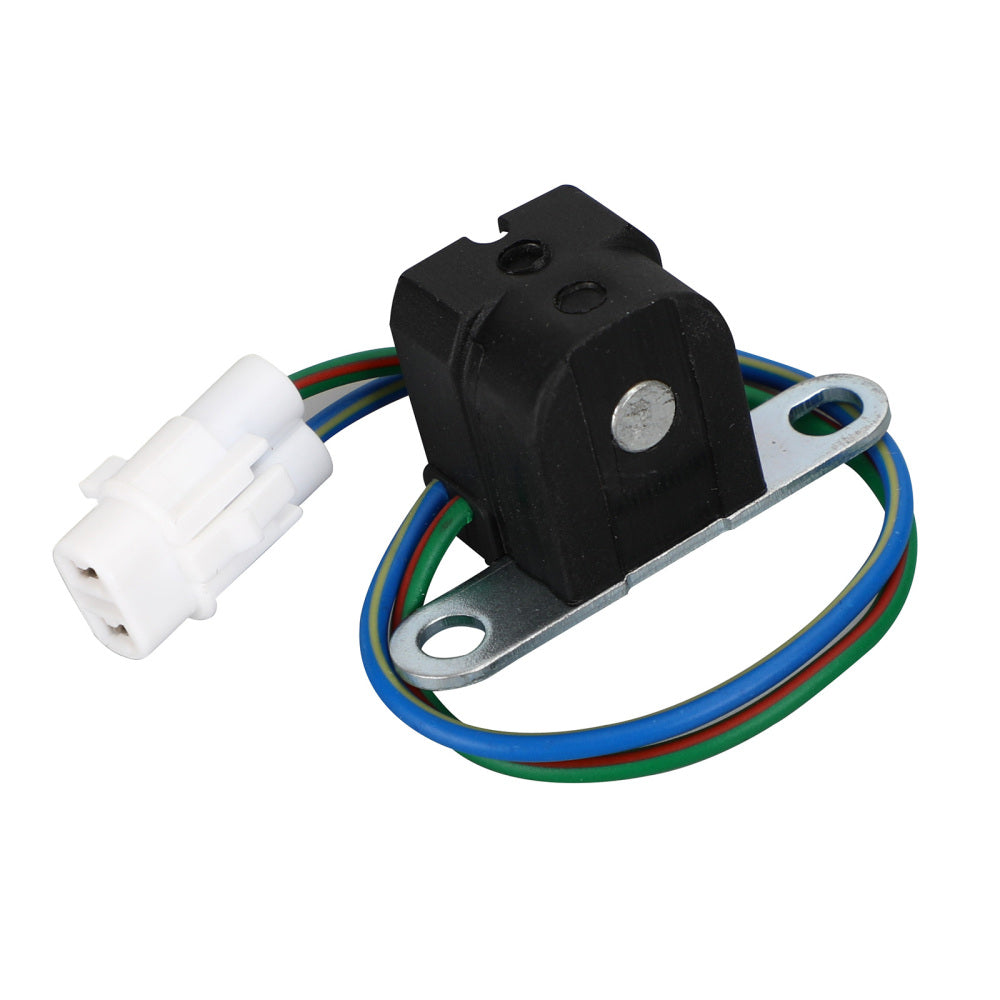

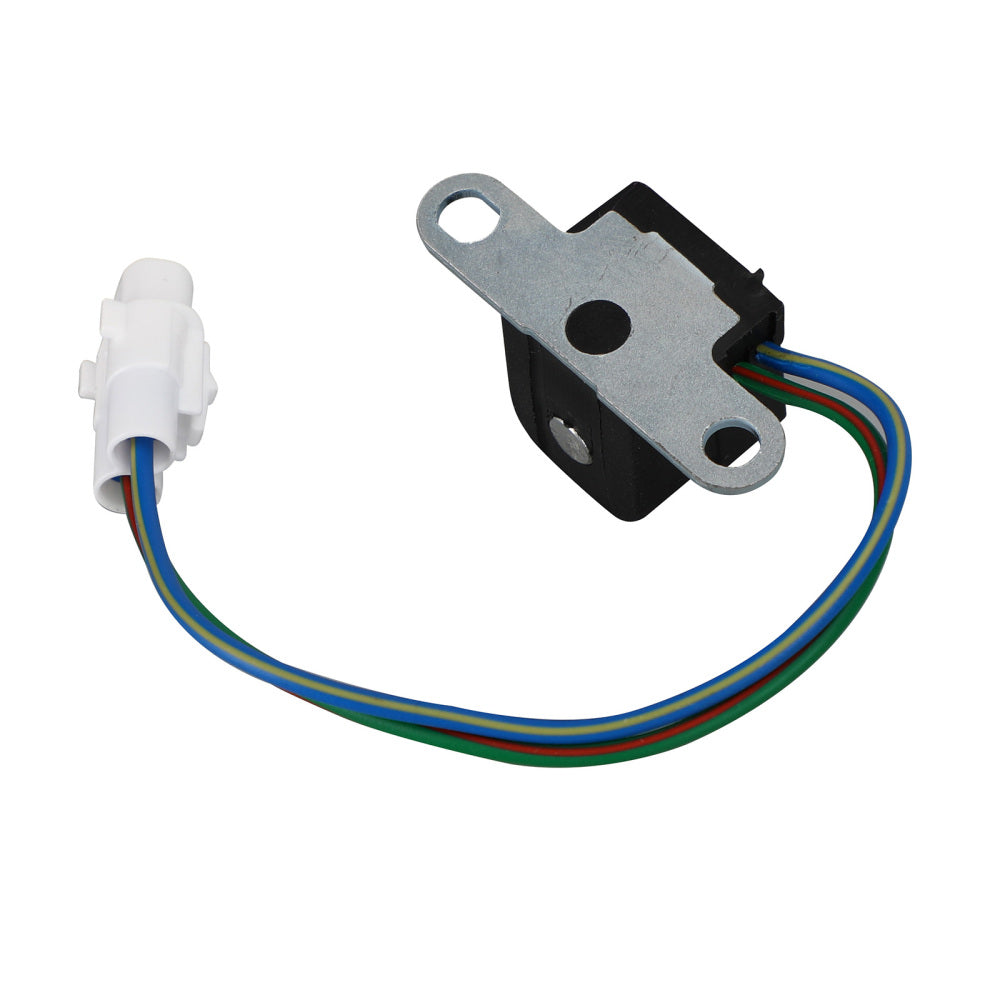

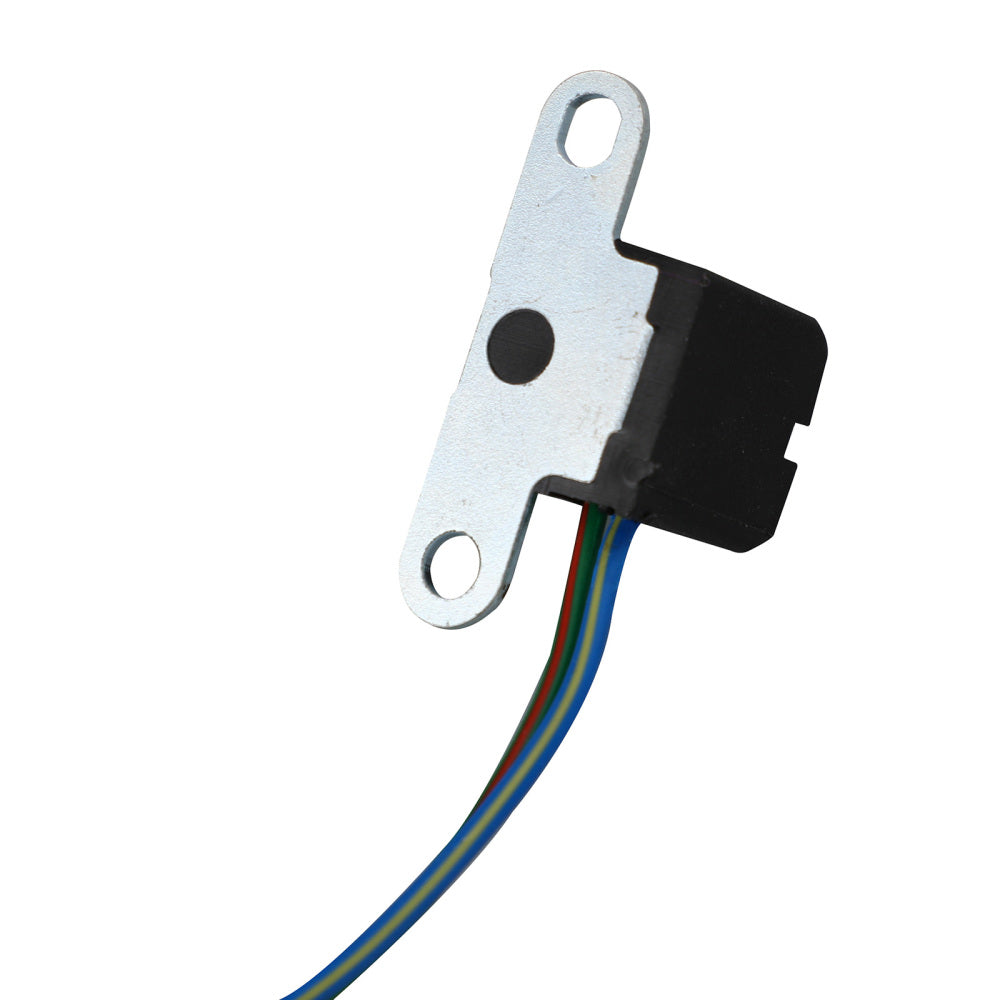

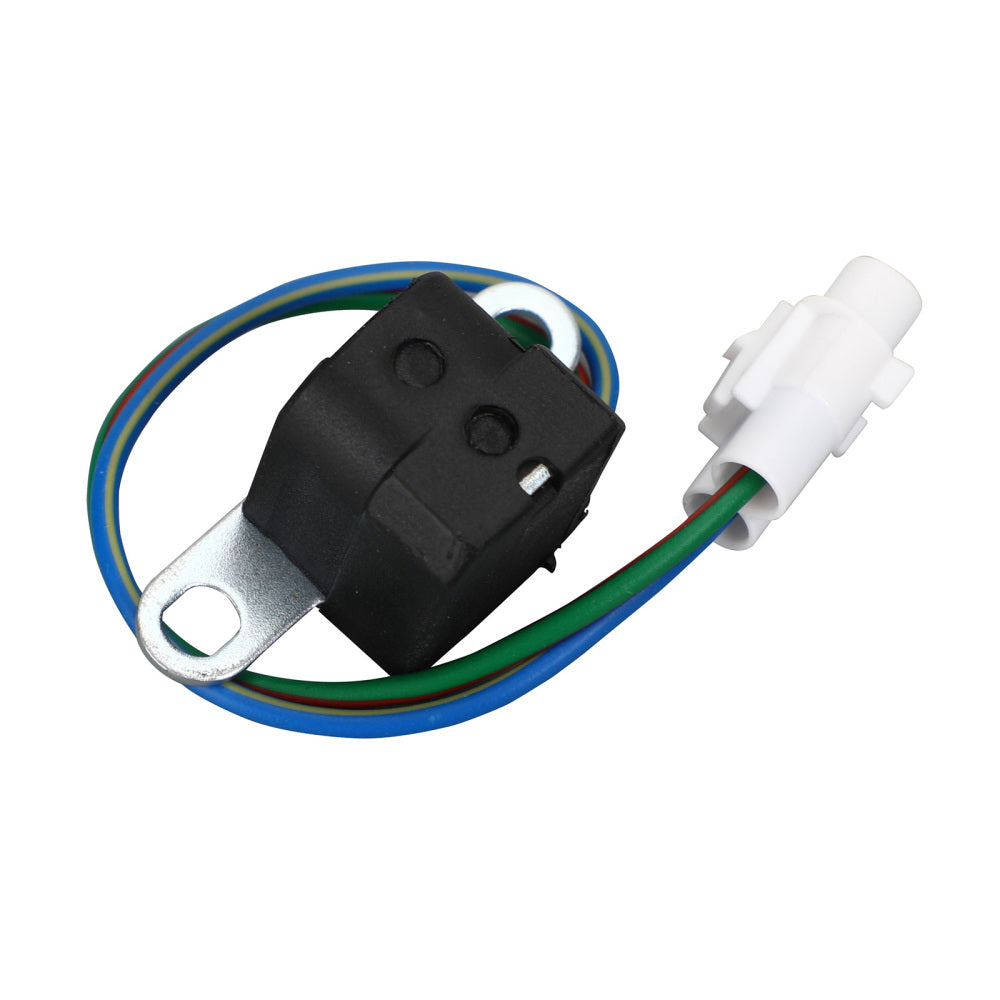

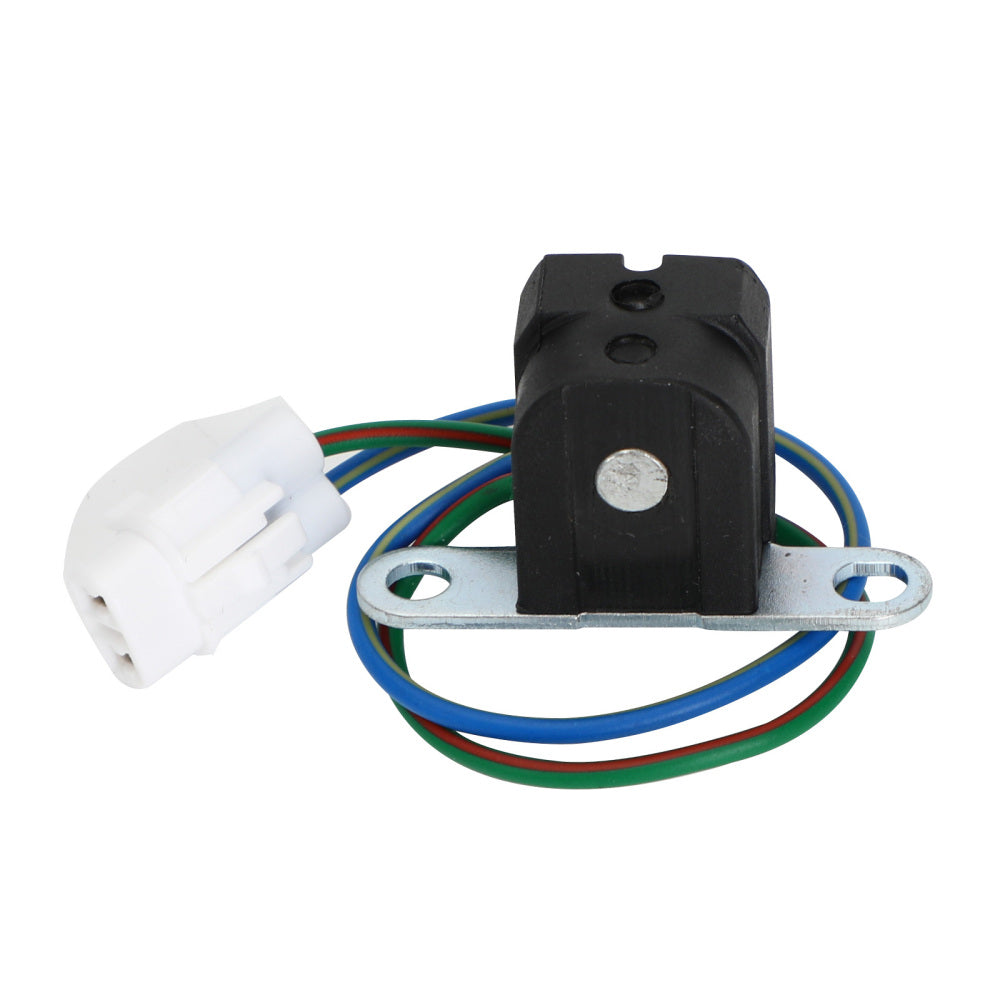

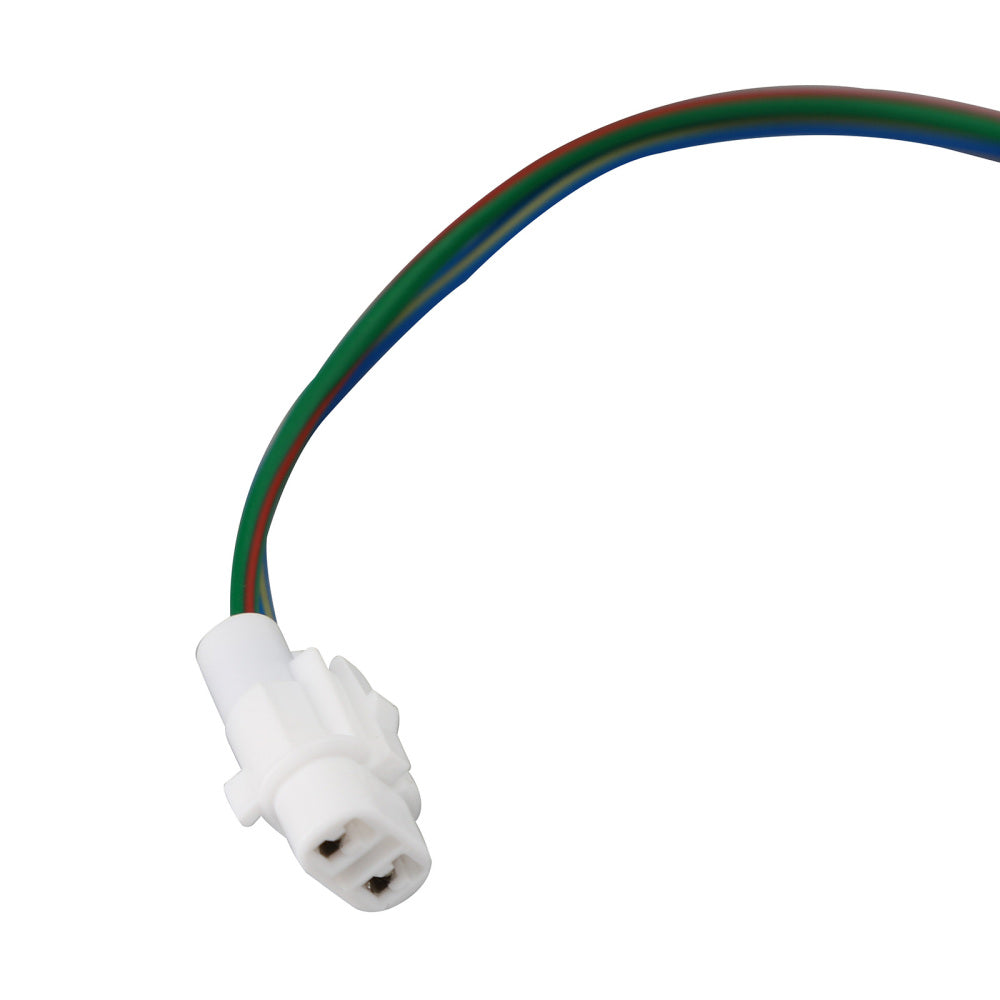

Pick-up Pulsar Pulse Sensor 3T5-06145-0 Fit For Tohatsu MD 40 50 70 75 90 Hp 2 Stroke Outboards

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Pick up pulsar coil

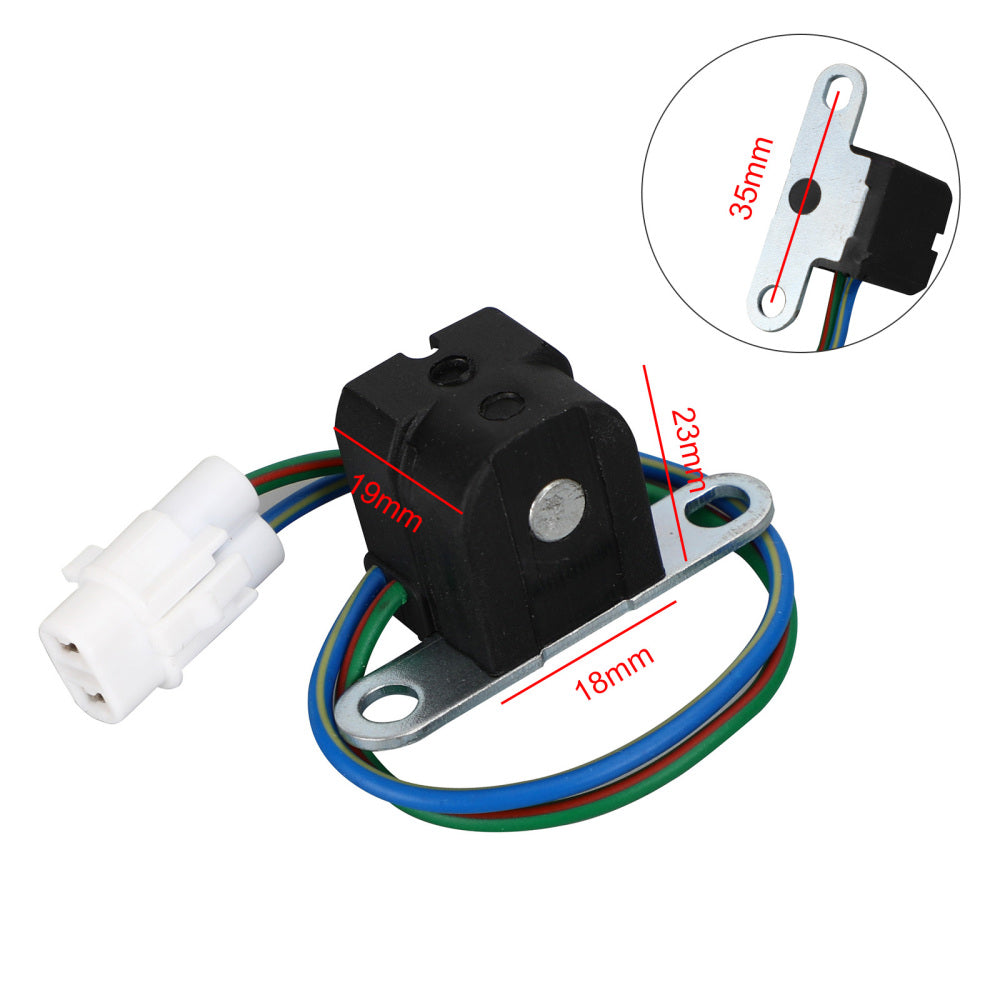

Dimensions:
Height: 19 mm
Length: 23 mm
Width: 18 mm
Bracket center to center: 35 mm

Other Specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2

Replacement Part Number: 3T5-06145-0

Fitments:
Fit for Tohatsu MD40A 2002-2003
Fit for Tohatsu MD40B 2003-2011
Fit for Tohatsu MD40B (AQ) 2006
Fit for Tohatsu MD40B2 2010-2014
Fit for Tohatsu MD50A 2002-2003
Fit for Tohatsu MD50B 2002-2011
Fit for Tohatsu MD50B (AQ) 2006
Fit for Tohatsu MD50B2 2010-2014
Fit for Tohatsu MD70B 2002-2010
Fit for Tohatsu MD70B (AQ) 2006
Fit for Tohatsu MD75C2 2010-2014
Fit for Tohatsu MD90A 2002
Fit for Tohatsu MD90B 2003-2010
Fit for Tohatsu MD90B (AQ) 2006
Fit for Tohatsu MD90C2 2010-2014

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Package Included:
1 x Pick up pulsar coil
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
